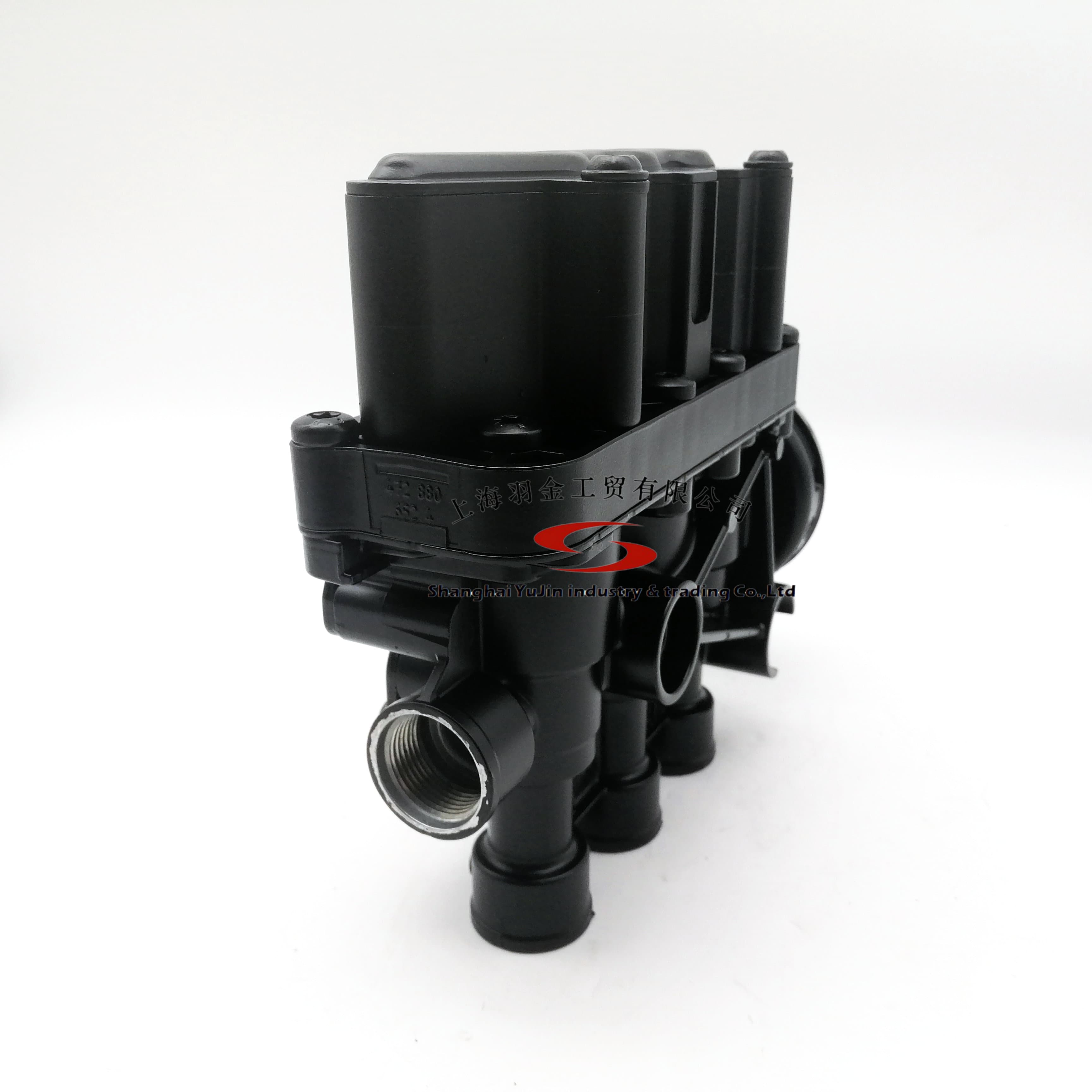

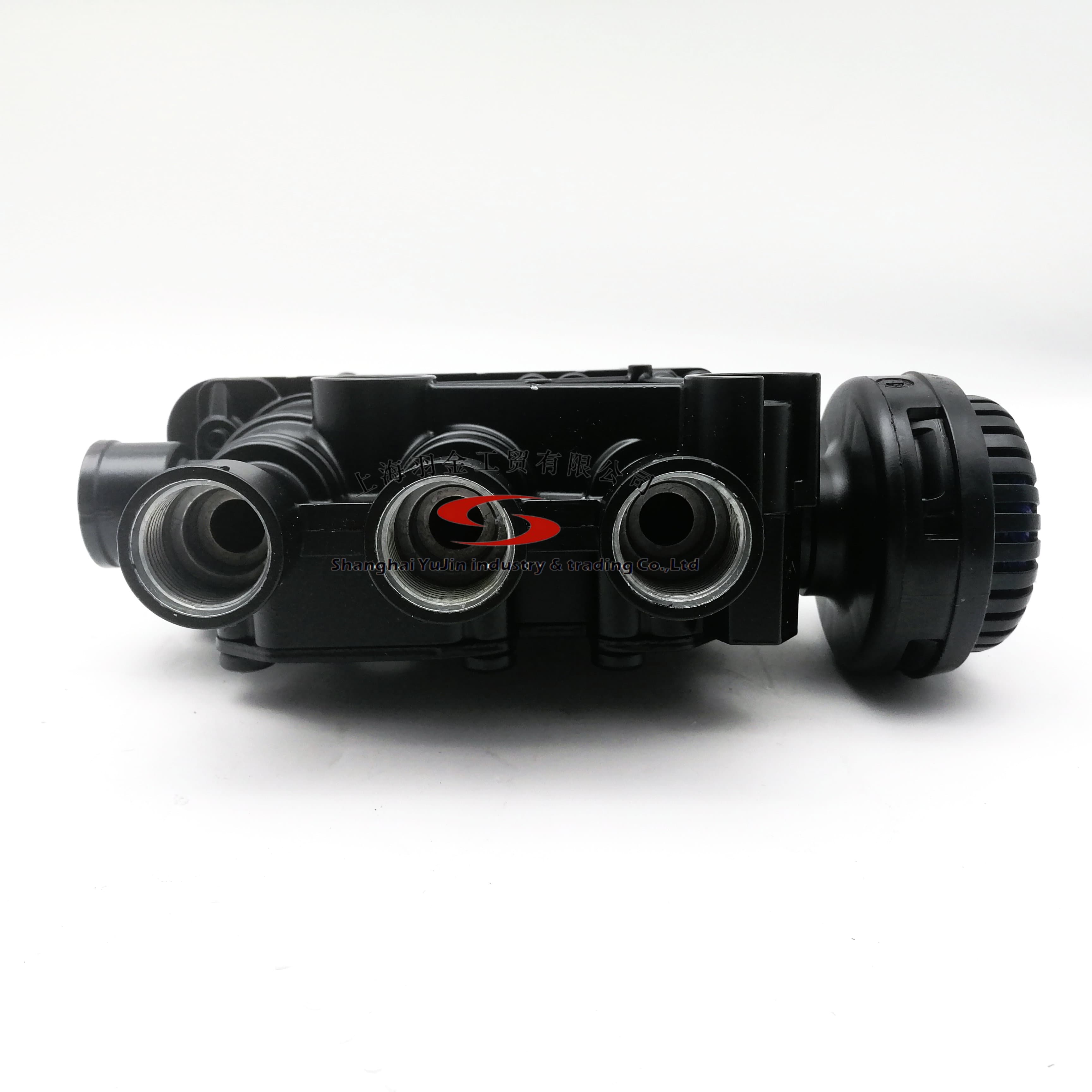

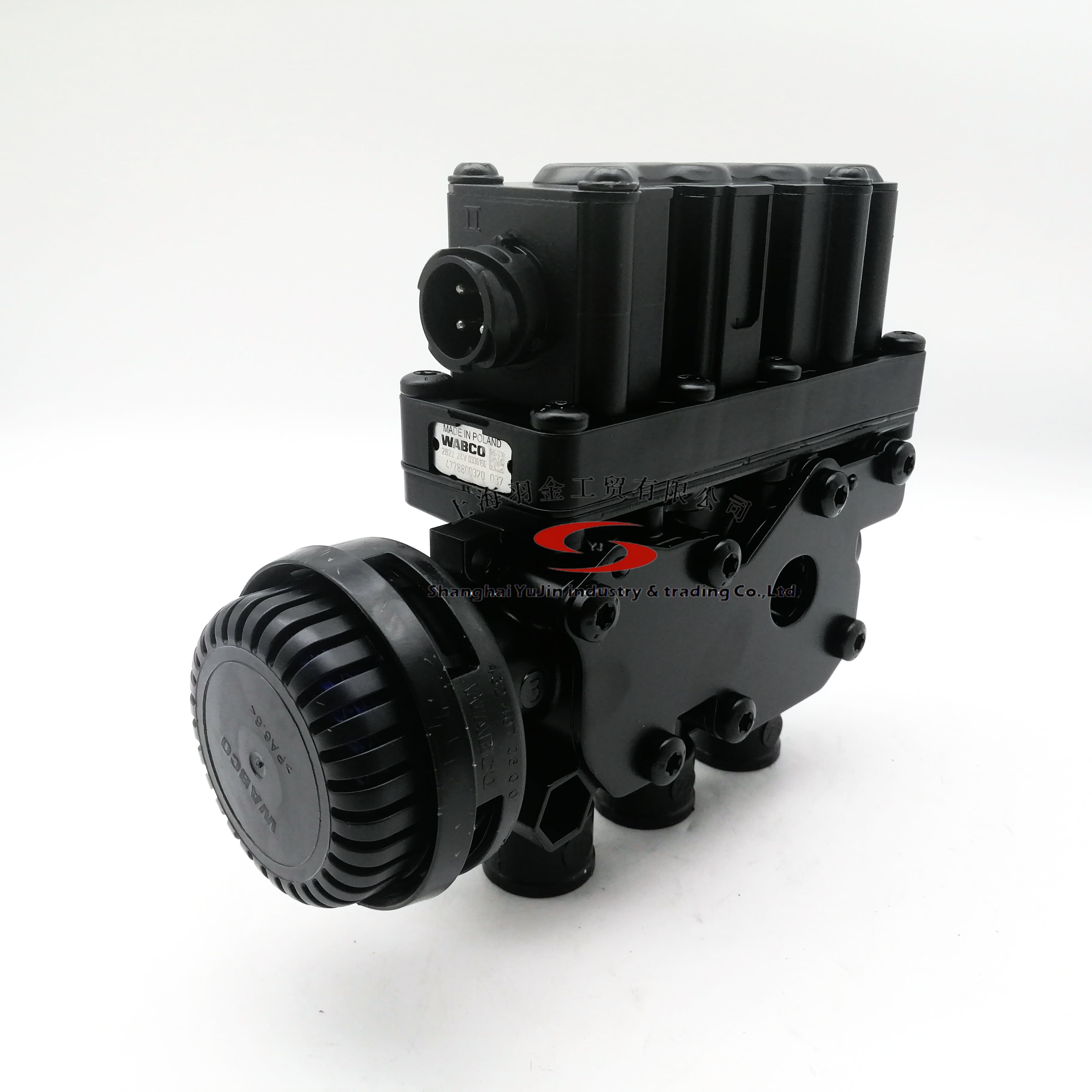

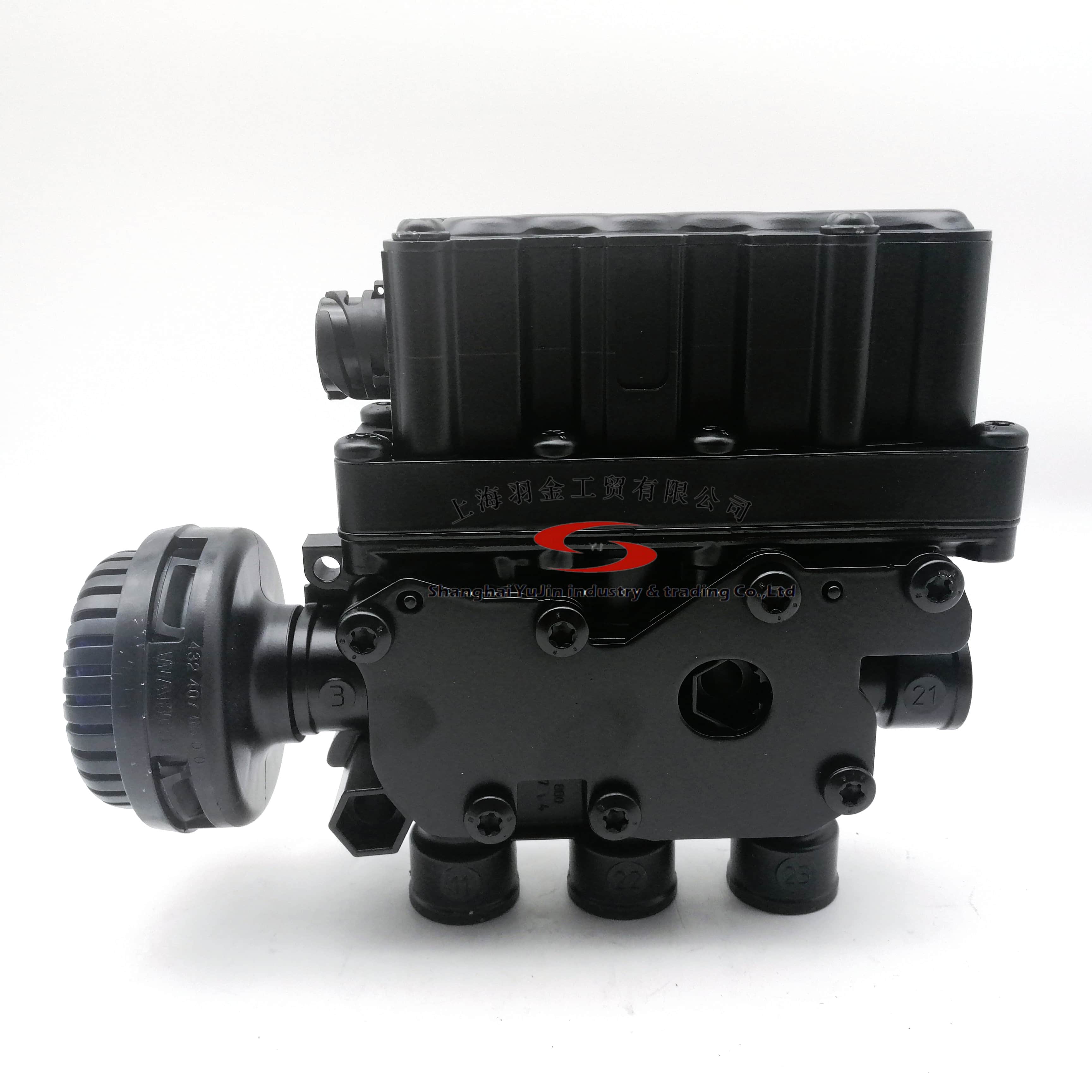

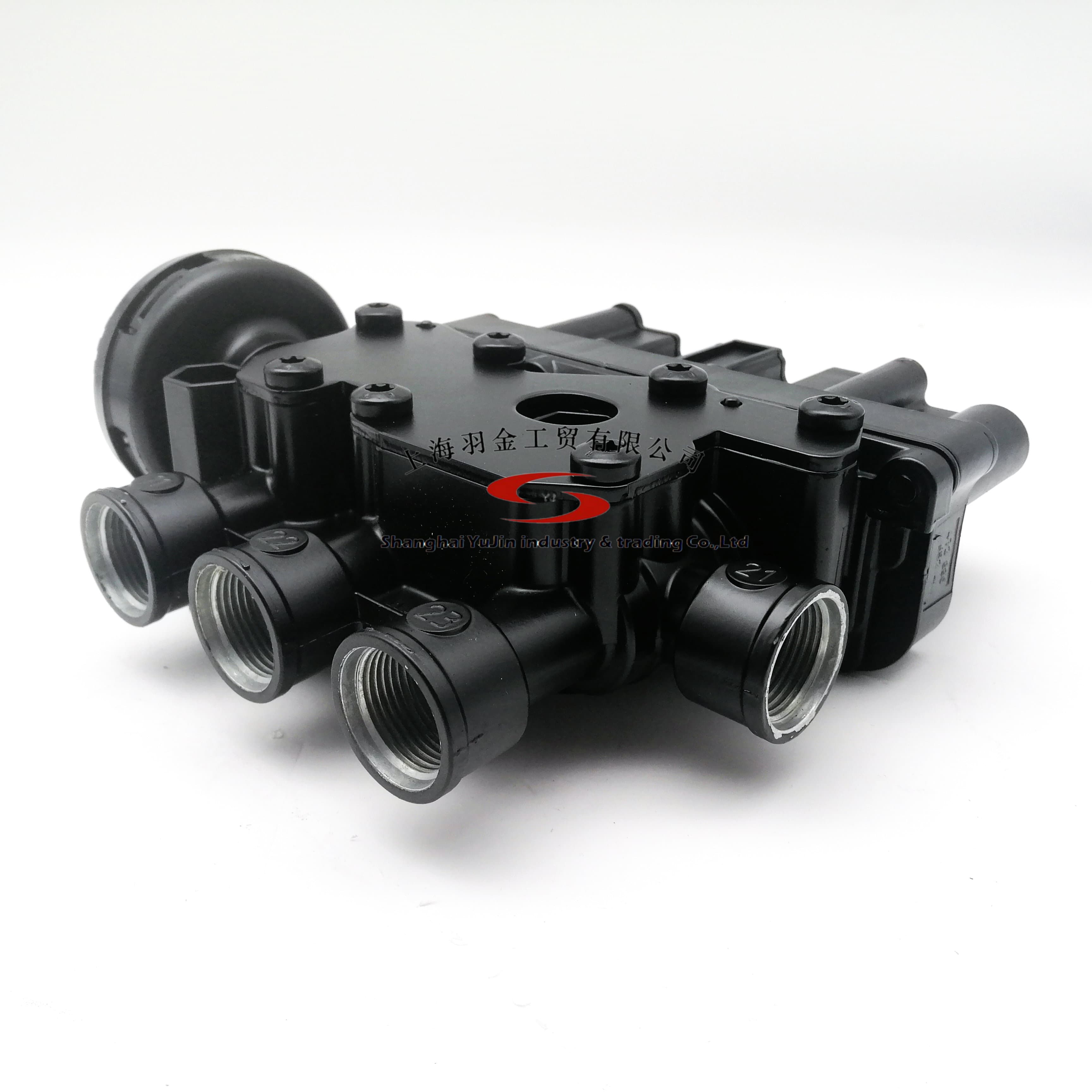

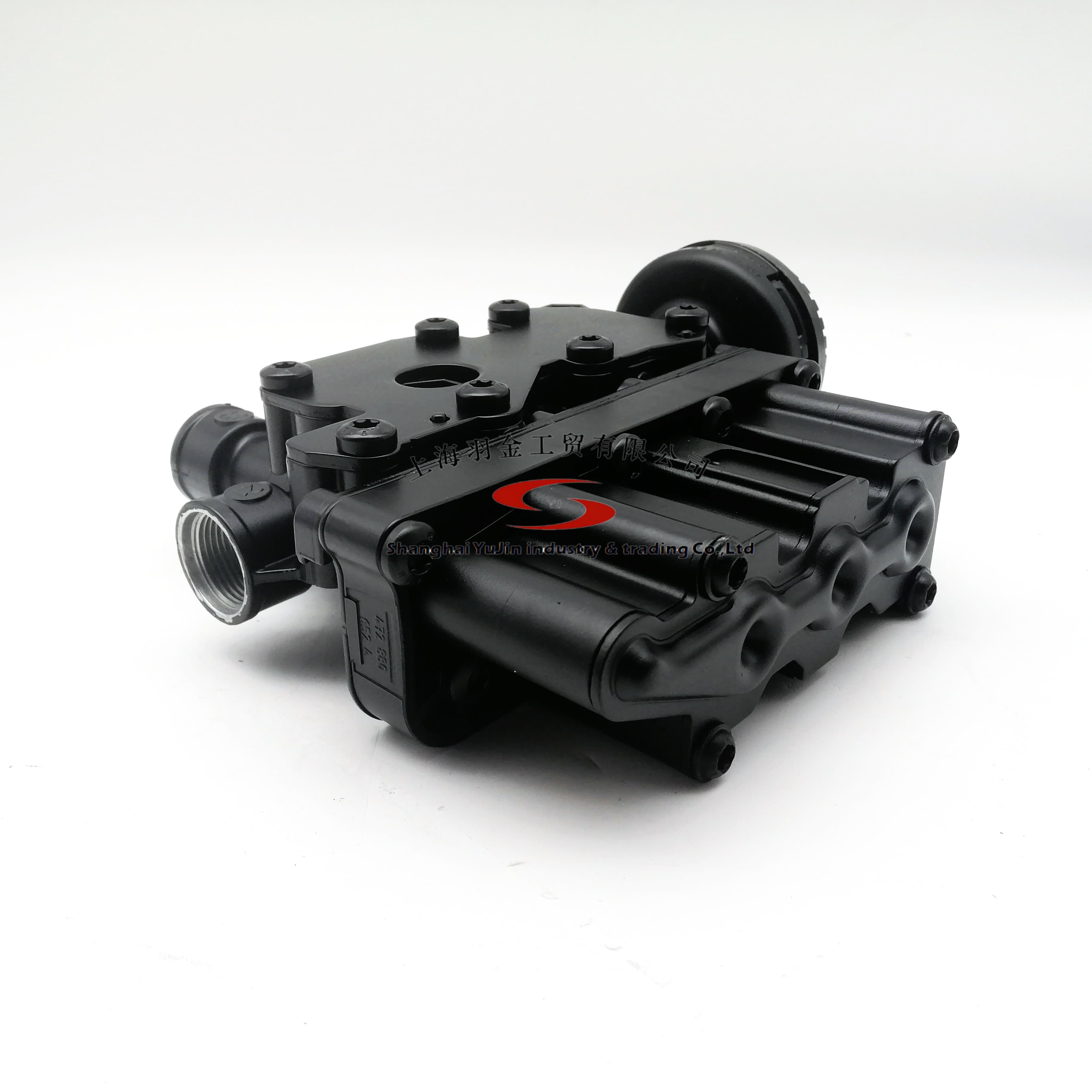

ECAS电磁阀 -- 4728800320
| SCANIA | 2084509 |
| SCANIA | 1448078 |
| VOLVO | 20514449 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 2.564 |
| Electrical connection | Bayonet DIN 72585-A1-3.2-Sn/K2 |
| Max. operating pressure | 290.1 psi |
| Mounting | 2 x Ø 9 mm |
| Multi Nominal diameter (From Port 1 to x) | 0.39 / 0.28 / 0.02 in |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 21 | M22 x 1.5 JED - 388 |
| Port thread 22 | M22 x 1.5 JED - 388 |
| Port thread 23 | M22 x 1.5 JED - 388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Protection class | IP 6K9K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
