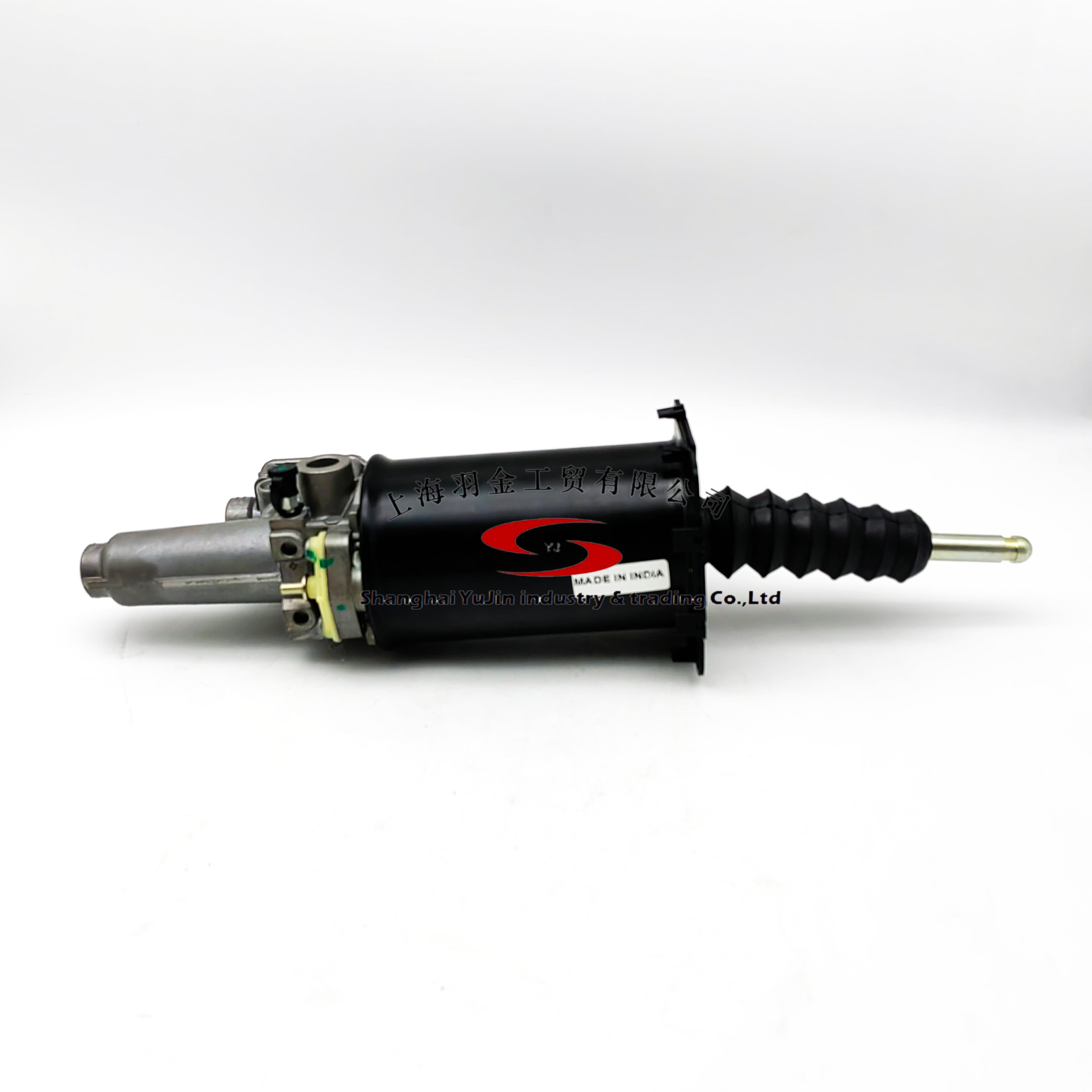

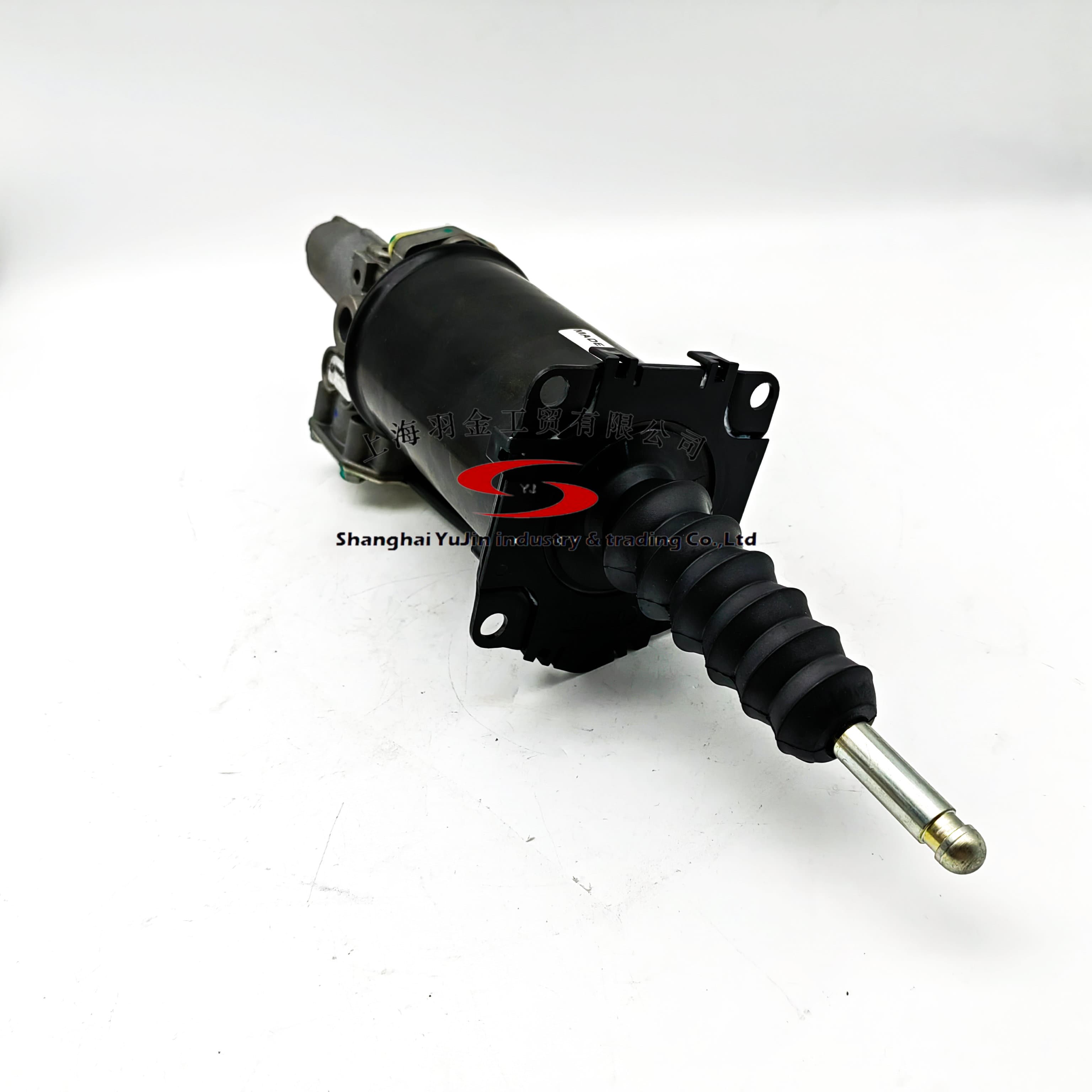

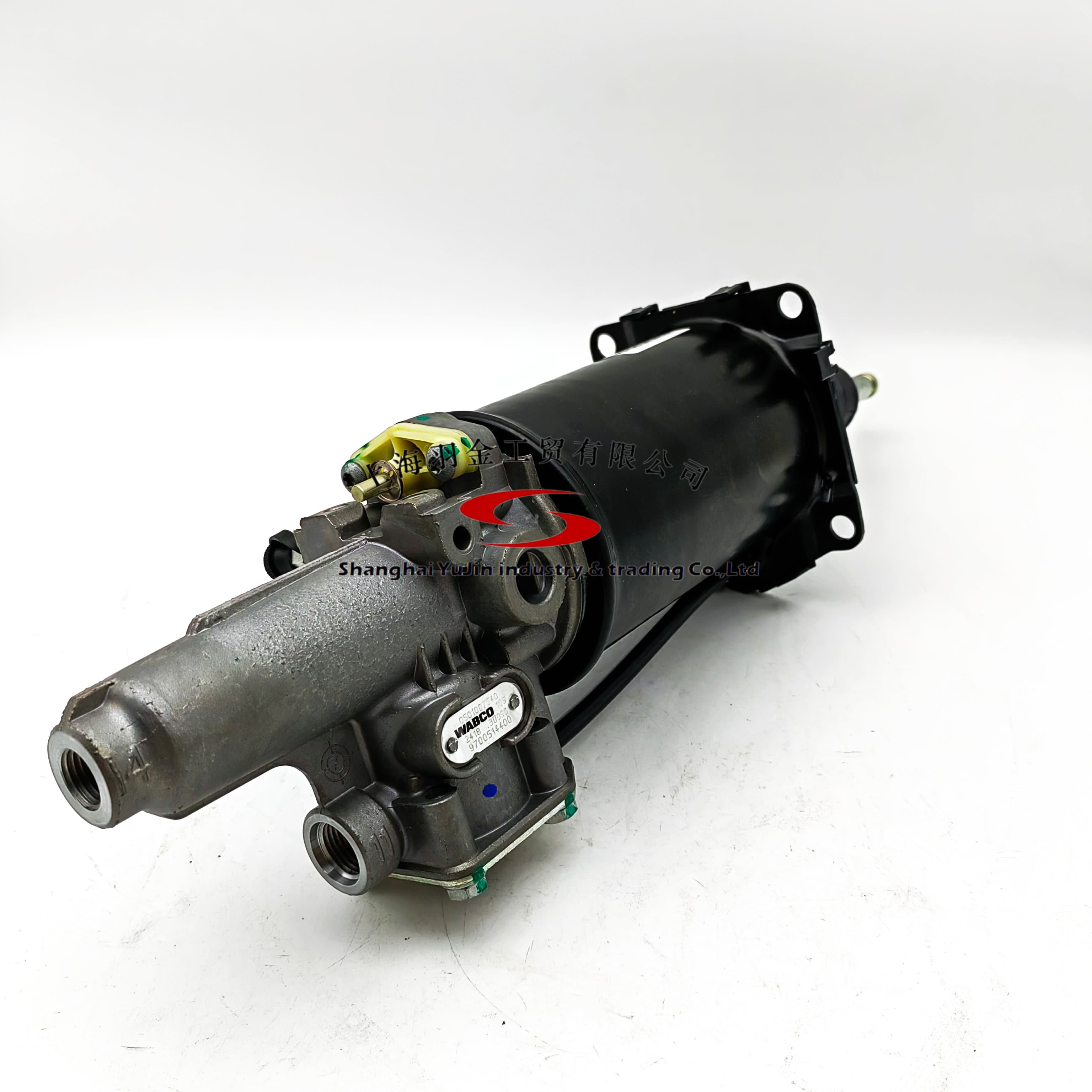

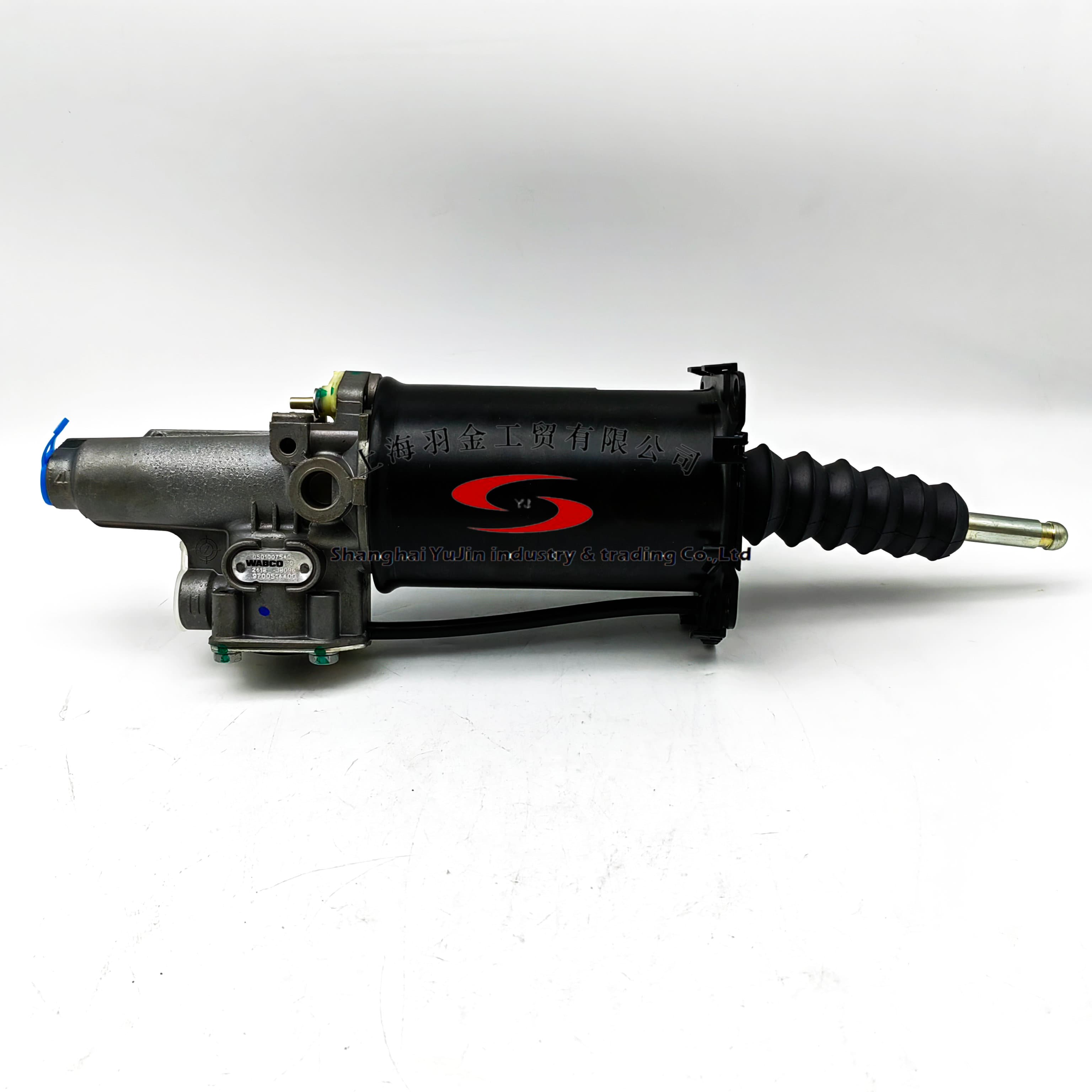

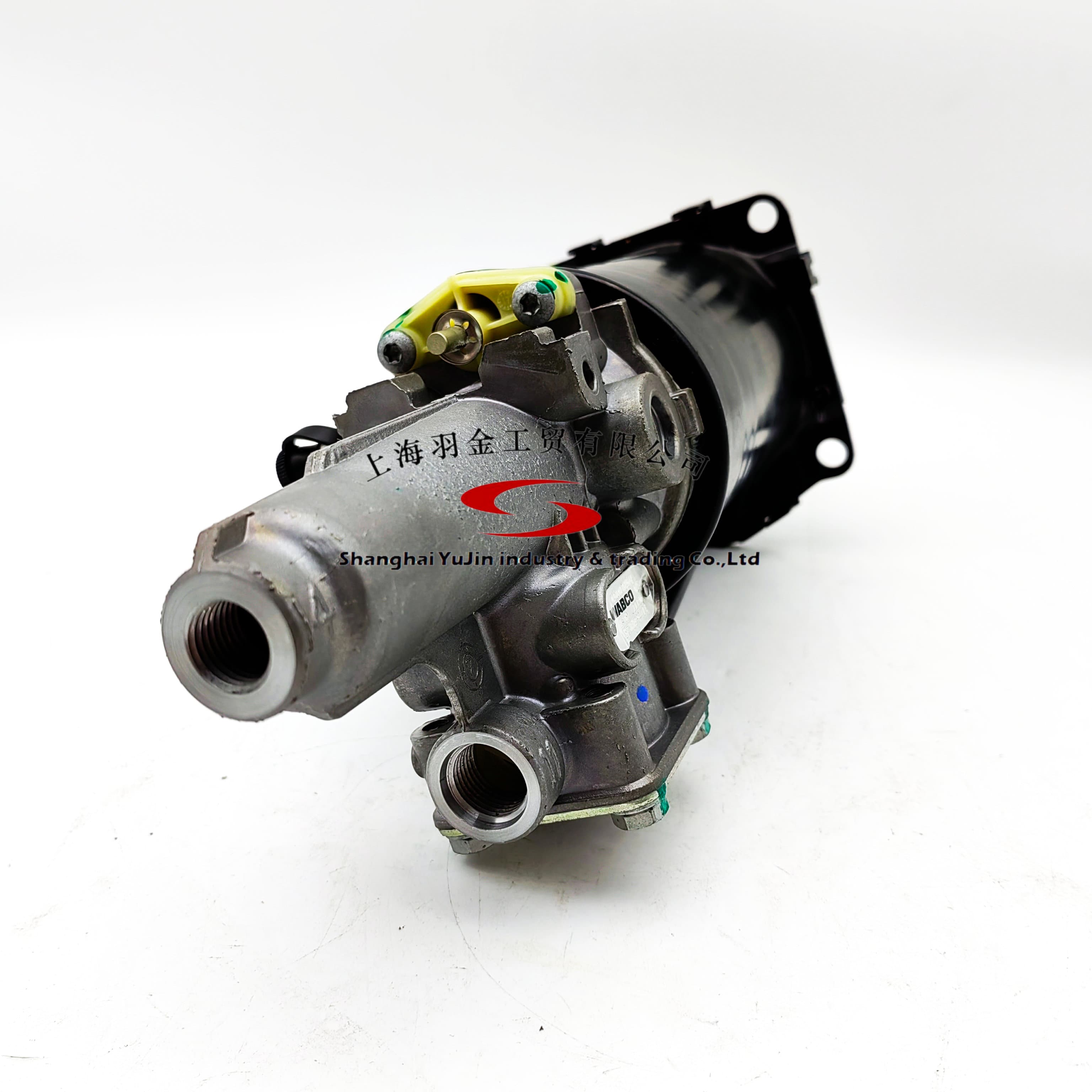

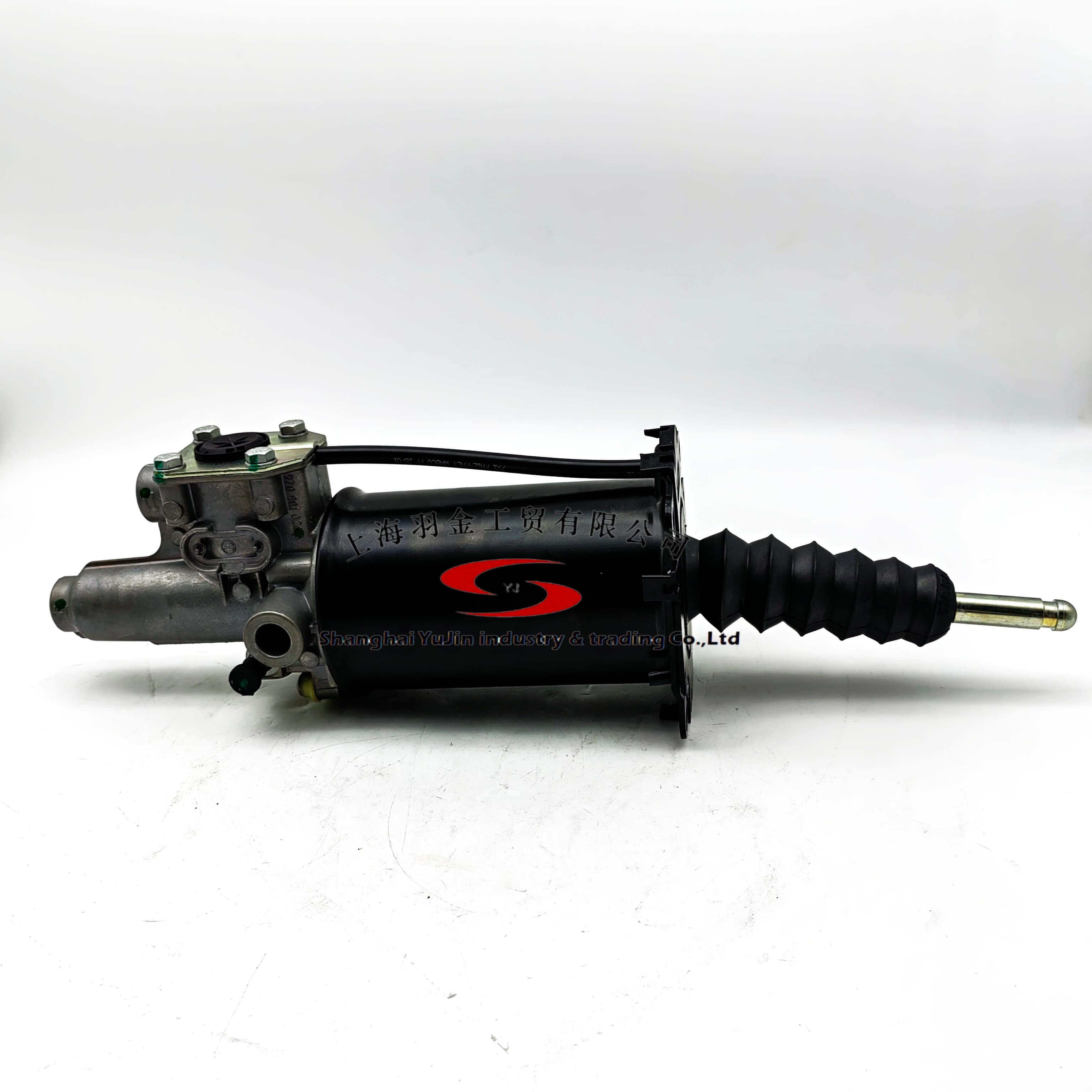

| IVECO | 501007540 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 5.253 |
| Distance between holes | 4.33 in |
| Length | 406 mm |
| Max. operating pressure | 145.0 psi |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED - 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 3.35 in |
| Technical specification | OE specification |
| Temperature range | -30°C to +100°C |
