WABCO威伯科TEBS阀 4S2M 4801020630 7118837 1066116 170974 515024036 21150110185 1268388 AIF2062 1935126 1042743 1115125 83603 21150110185 11074055

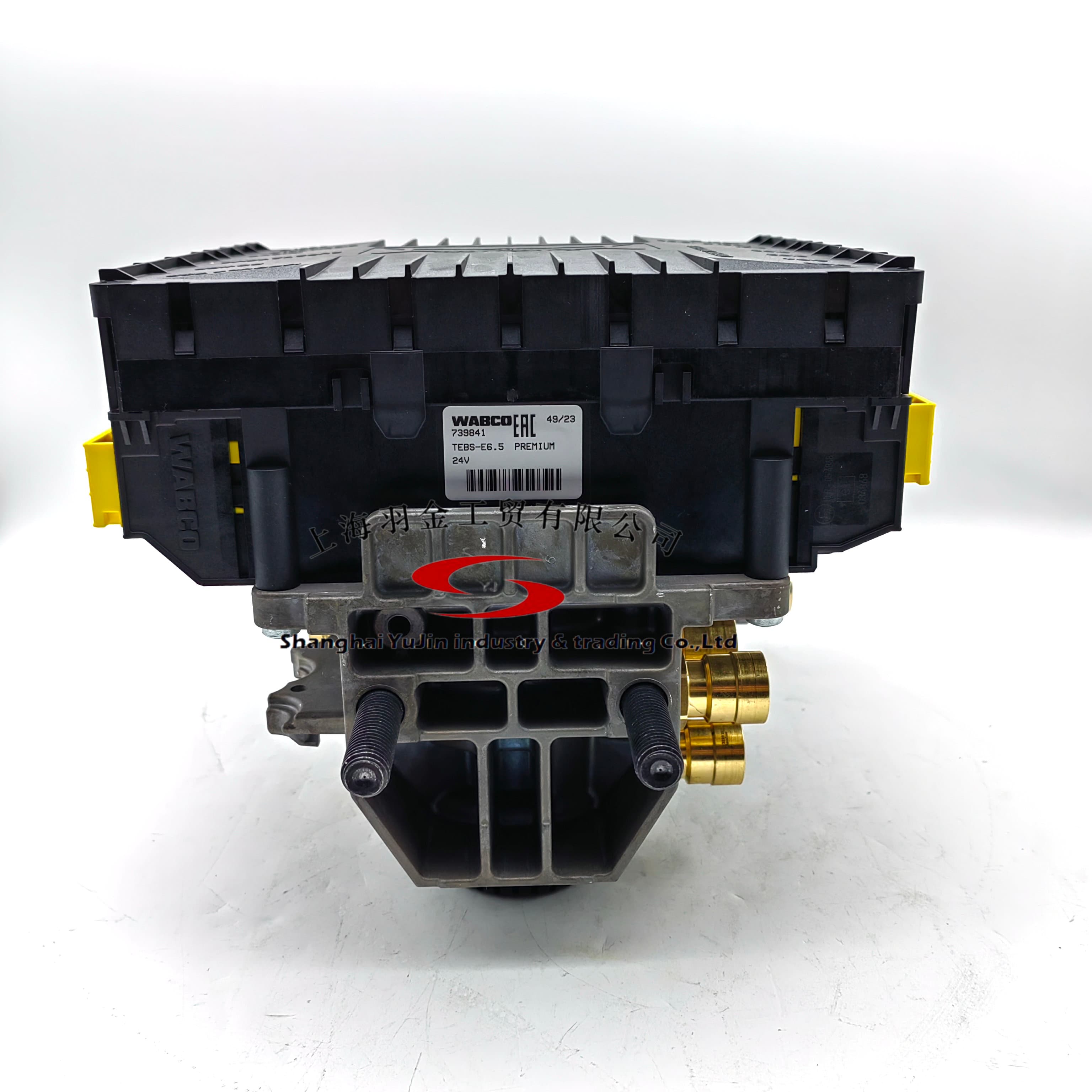

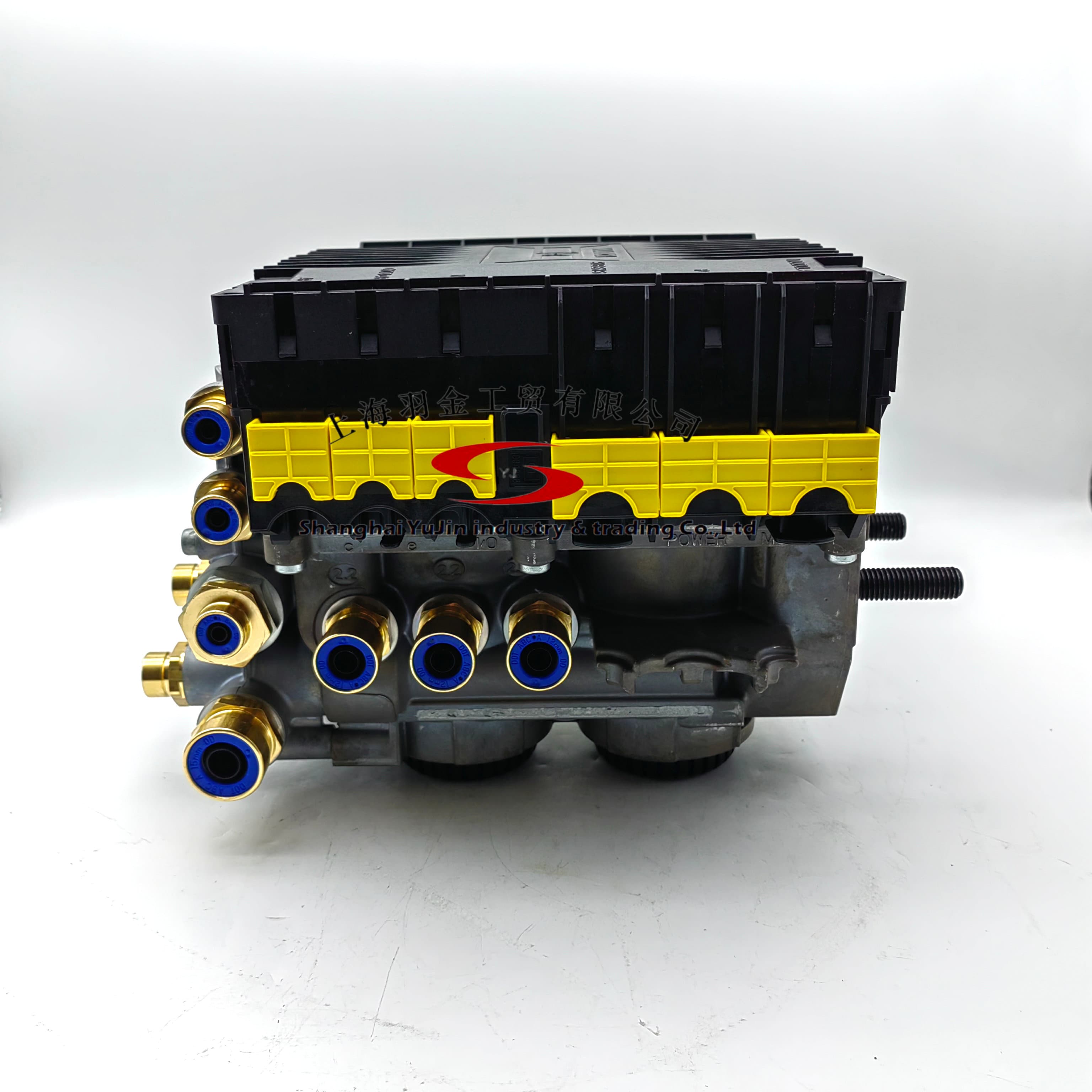

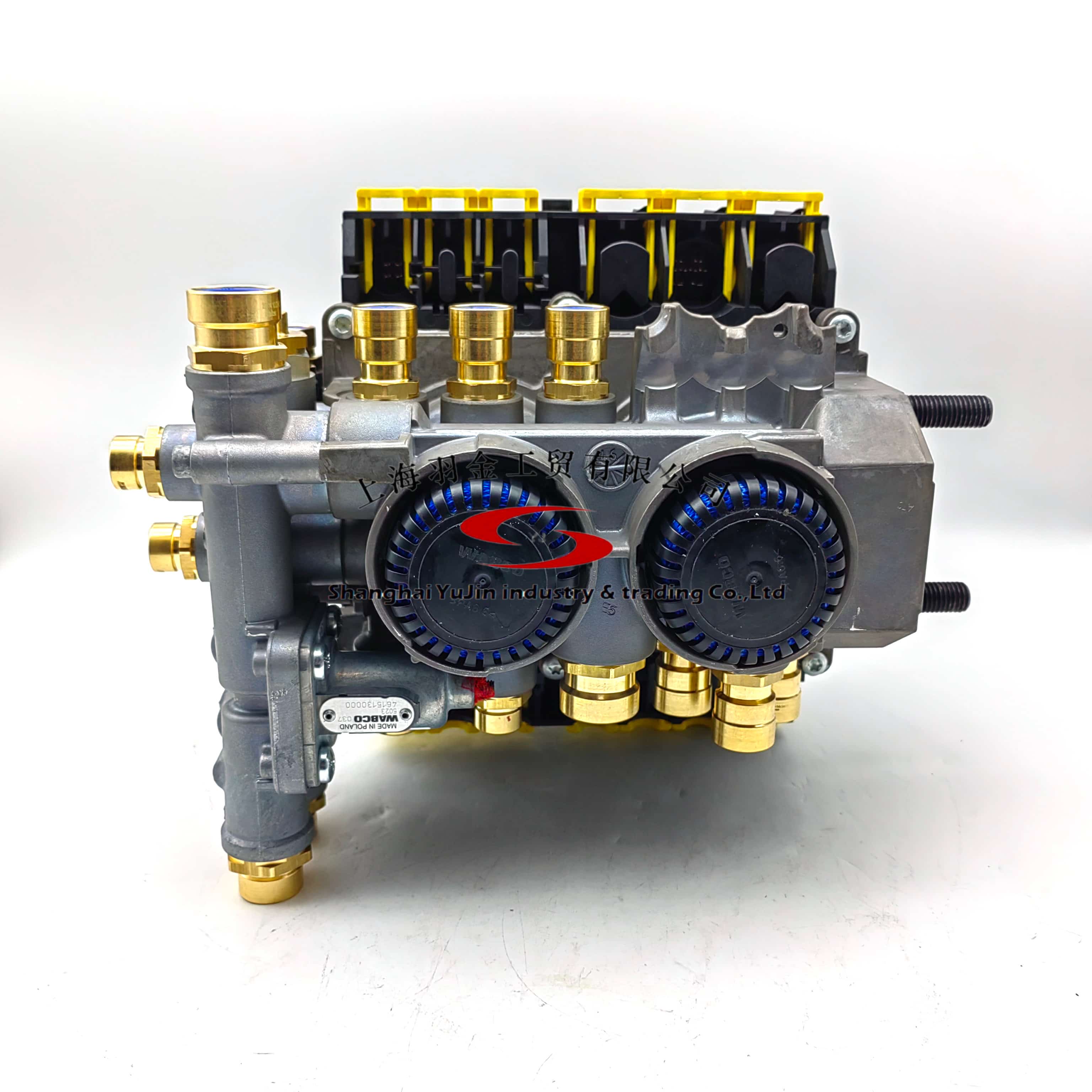

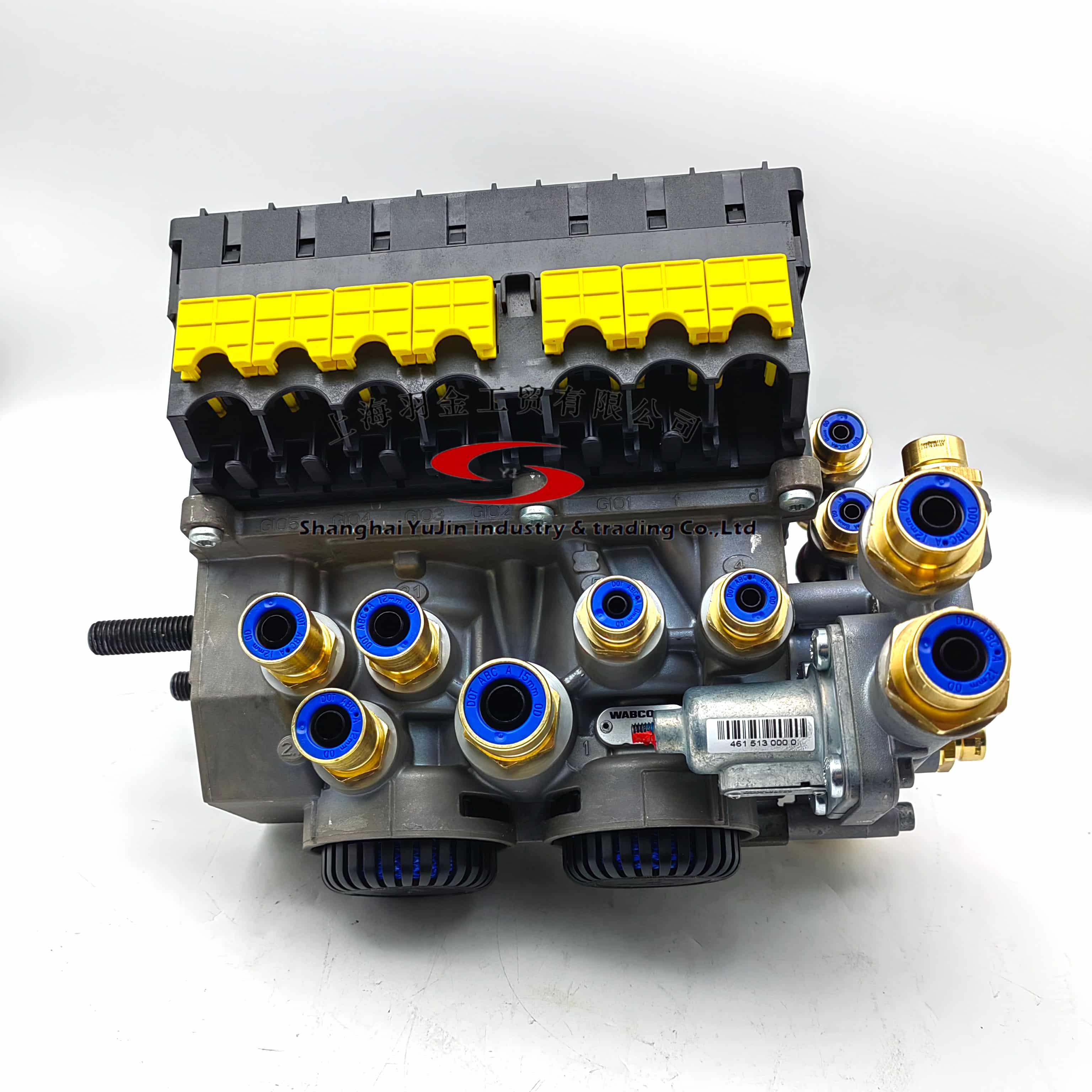

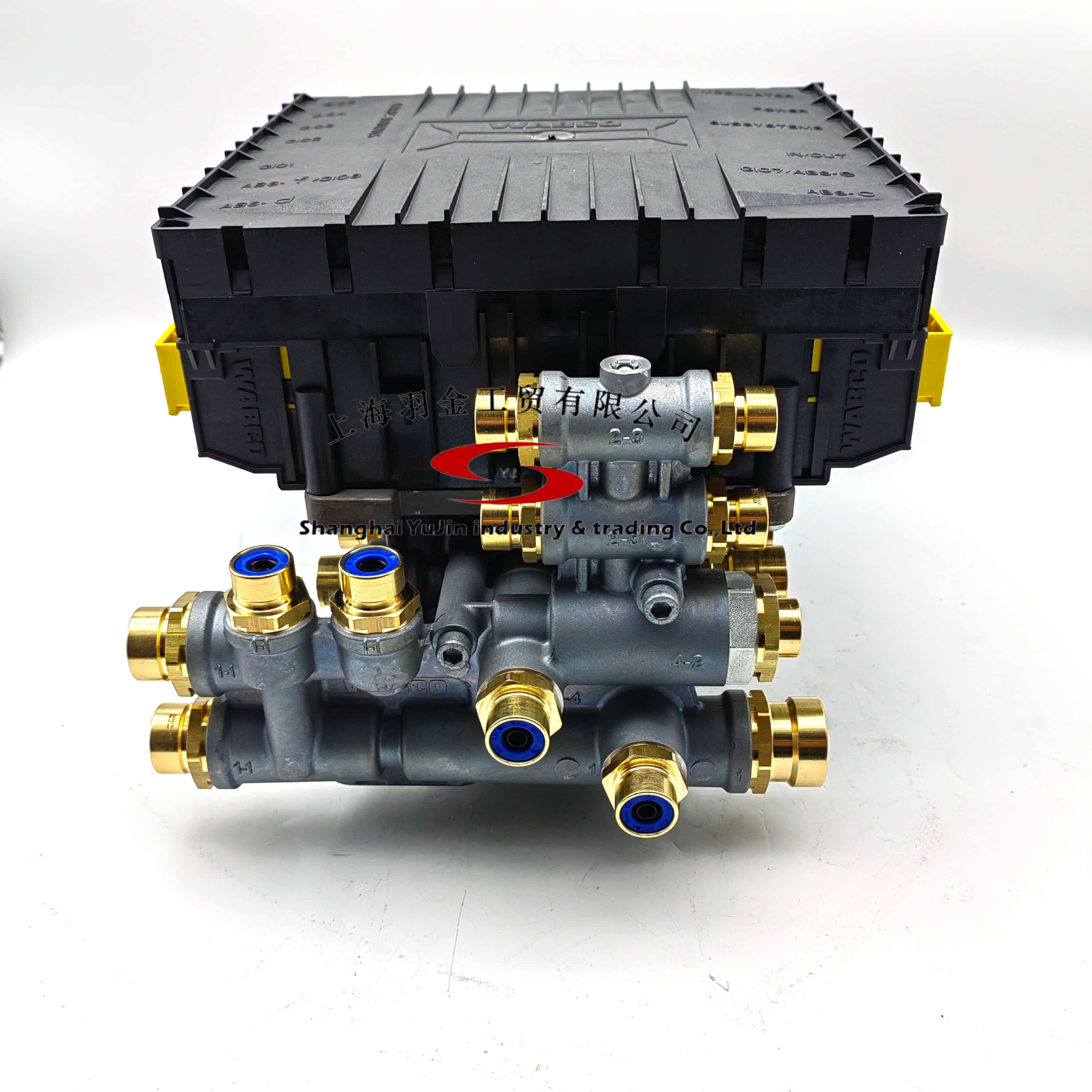

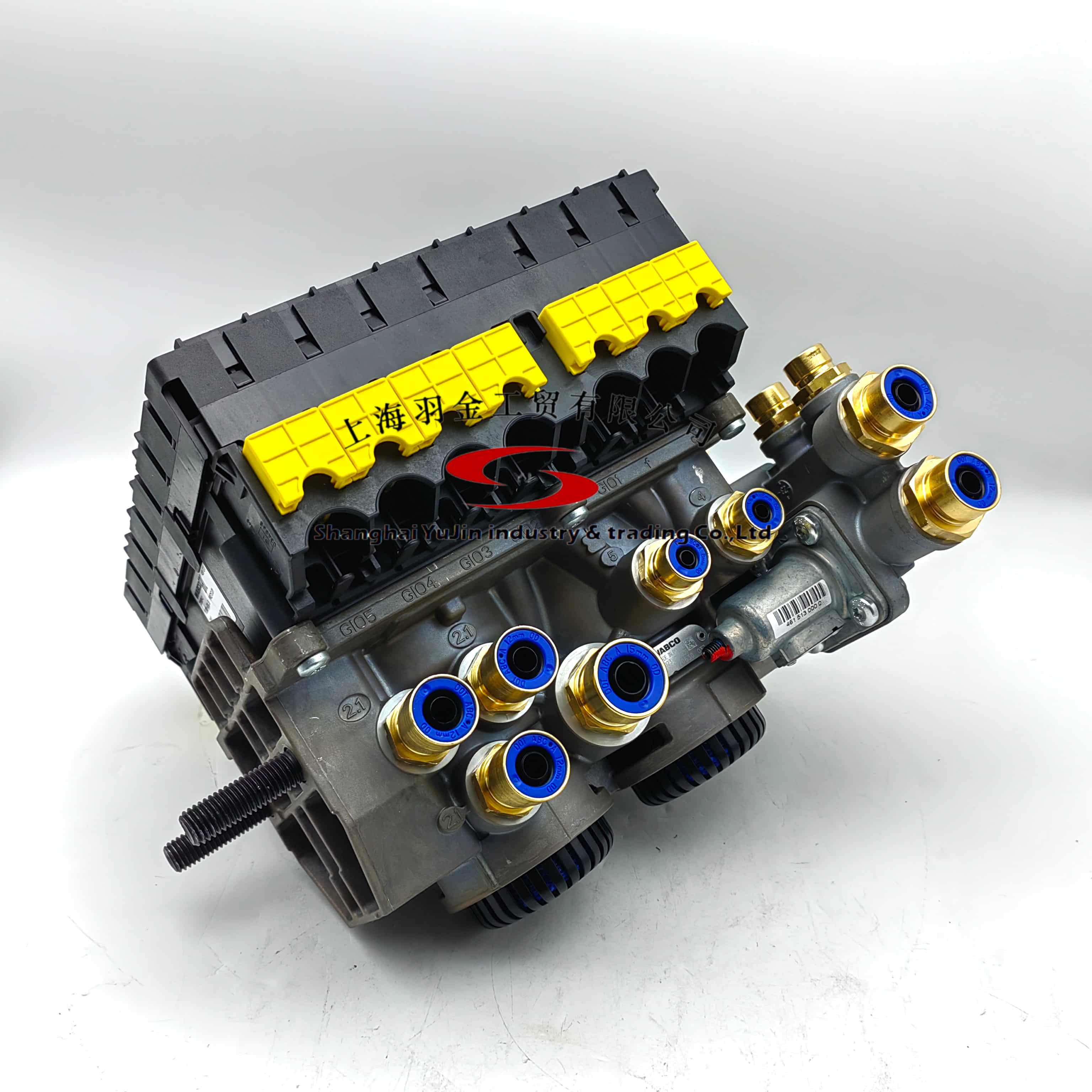

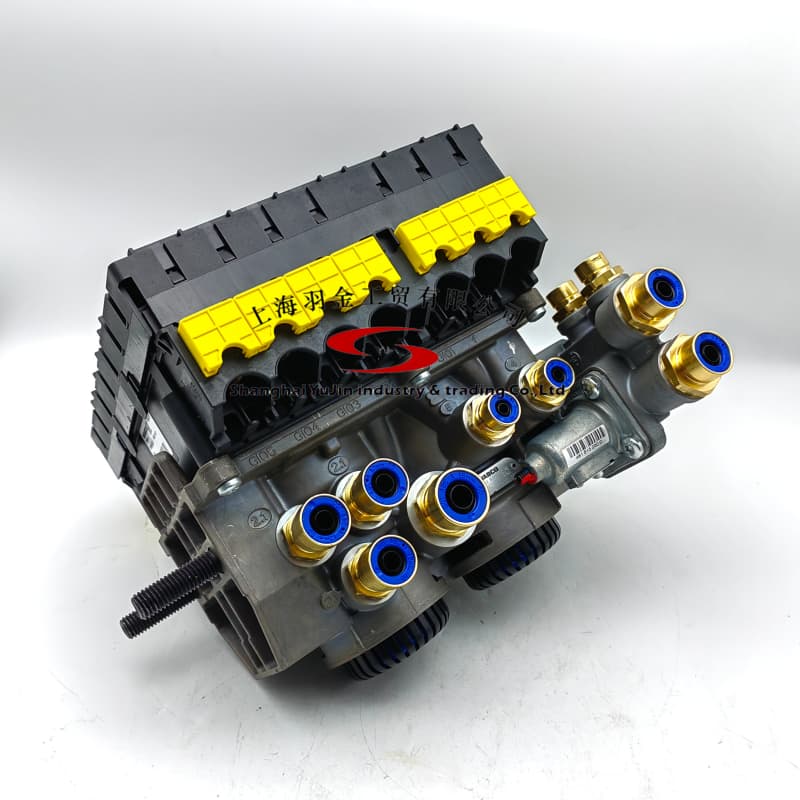

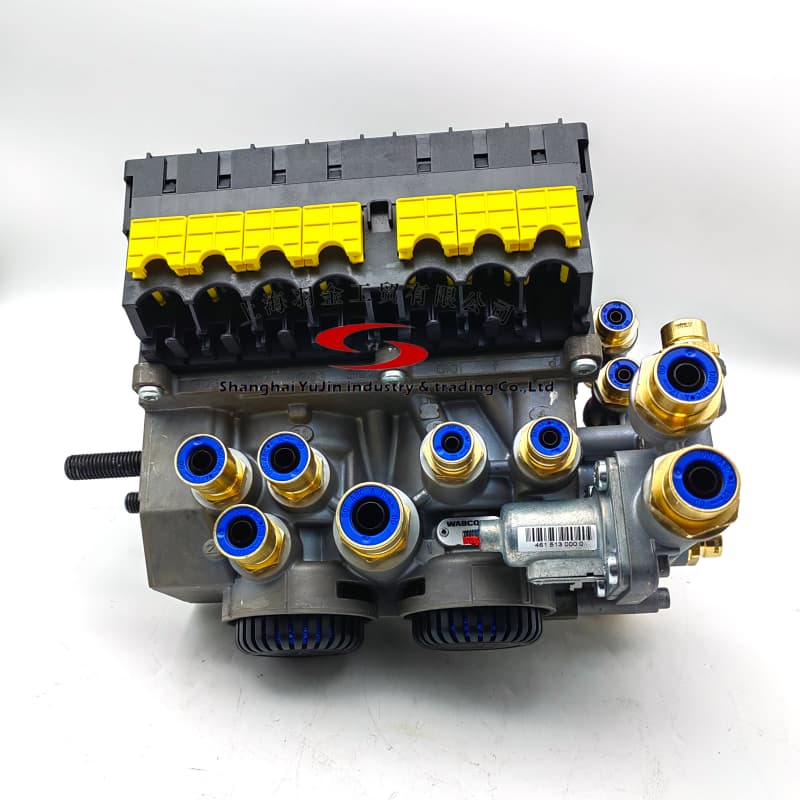

TEBS阀 4S2M -- 4801020630
产品介绍
| DOLL | 7118837 |
| FELDBINDER | 1066116 |
| GOLDHOFER | 170974 |
| KRONE | 515024036 |
| KÄSSBOHRER | 21150110185 |
| LANGENDORF | 1268388 |
| OTOKAR | AIF2062 |
| SCANIA | 1935126 |
| SCHMITZ CARGOBULL | 1042743 |
| SCHMITZ CARGOBULL | 1115125 |
| SCHWARZMÜLLER | 83603 |
| TIRSAN | 21150110185 |
| VAN HOOL | 11074055 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 11.49 |
| Distance between bolts | 2.76 in |
| Max. operating pressure | 123.28 psi |
| Mounting | 2x M12 |
| Port thread 1 | 15 x 1.5 / 8 x 1 |
| Port thread 11 | 12 x 1.5 / 8 x 1 |
| Port thread 21 | 12 x 1.5 |
| Port thread 22 | 12 x 1.5 |
| Port thread 23 | 8 x 1 |
| Port thread 24 | 8 x 1 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | 8 x 1 |
| Port thread 42 | 8 x 1 |
| Port thread 5 | 8 x 1 |
| Protection class | IP 6K9K |
| System | 4S/3M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Premium |
| Version | TEBS E with PEM |
| Voltage | 24 V |
