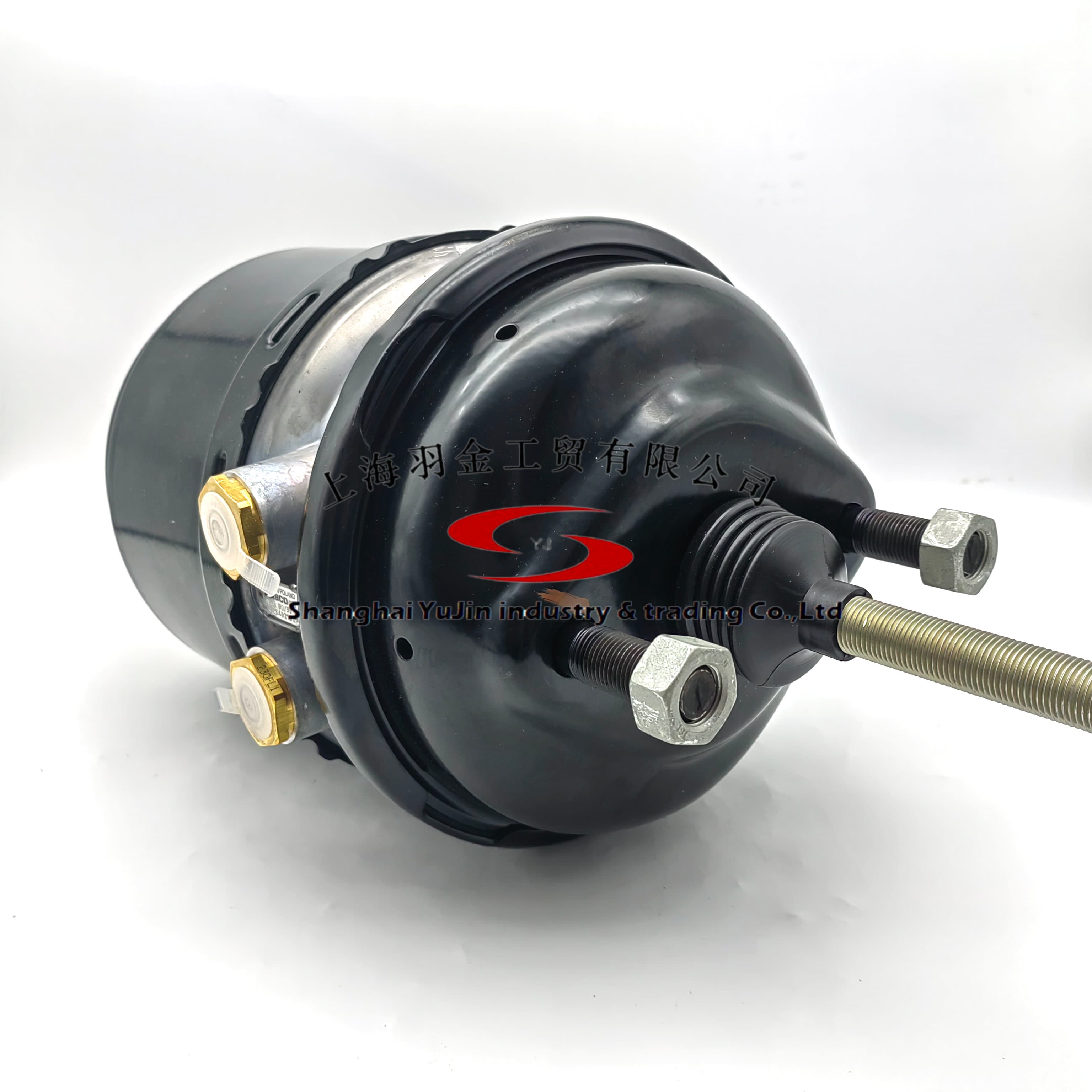

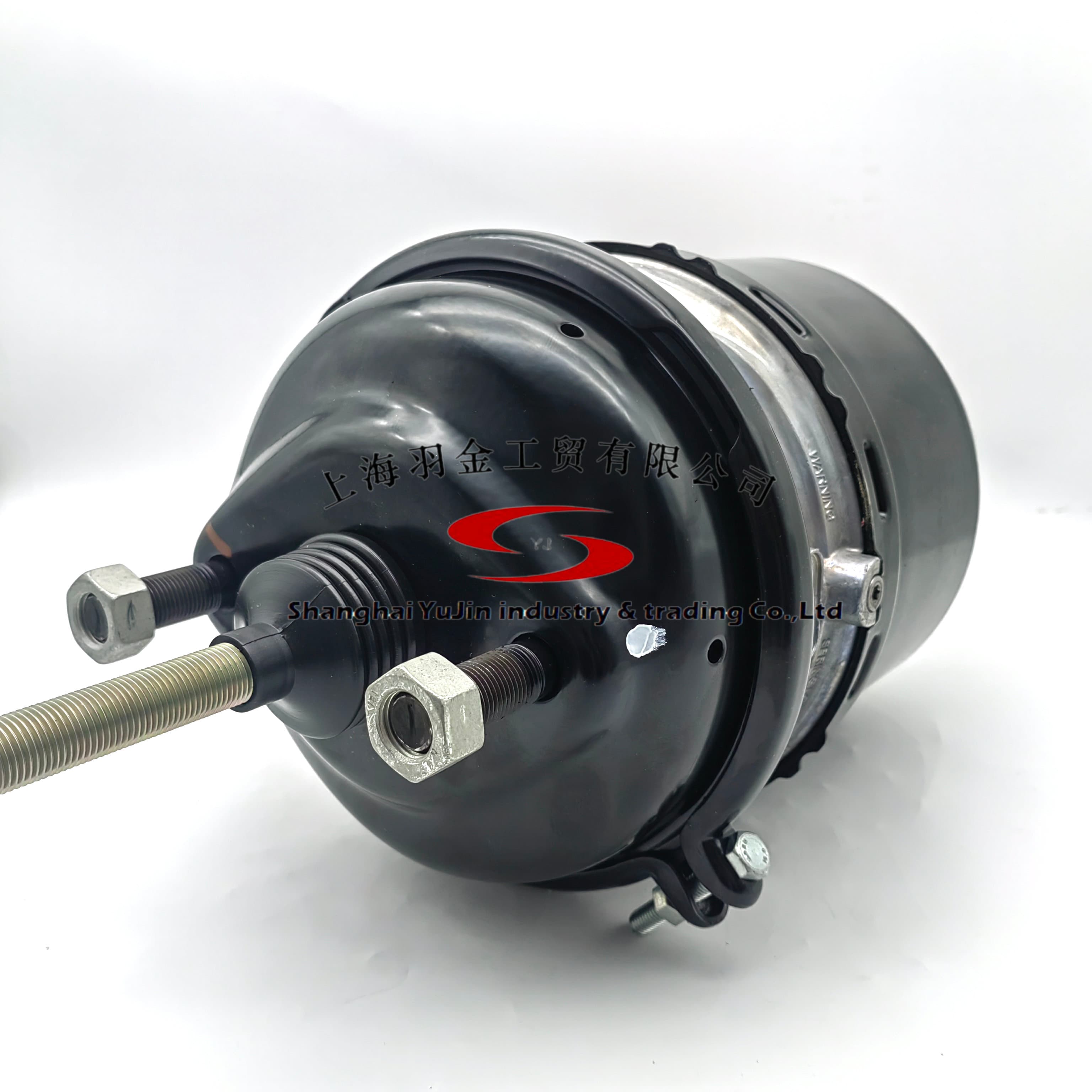

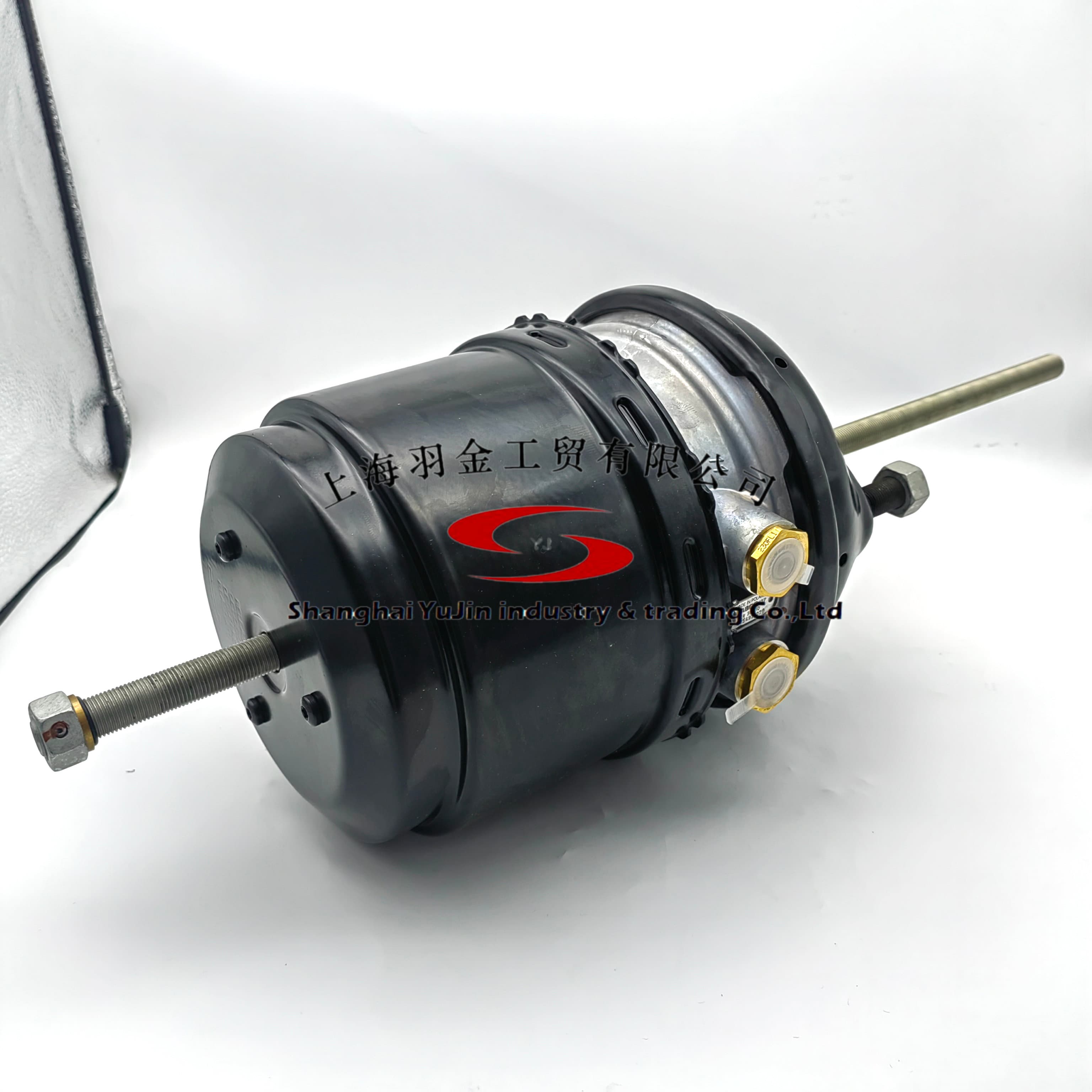

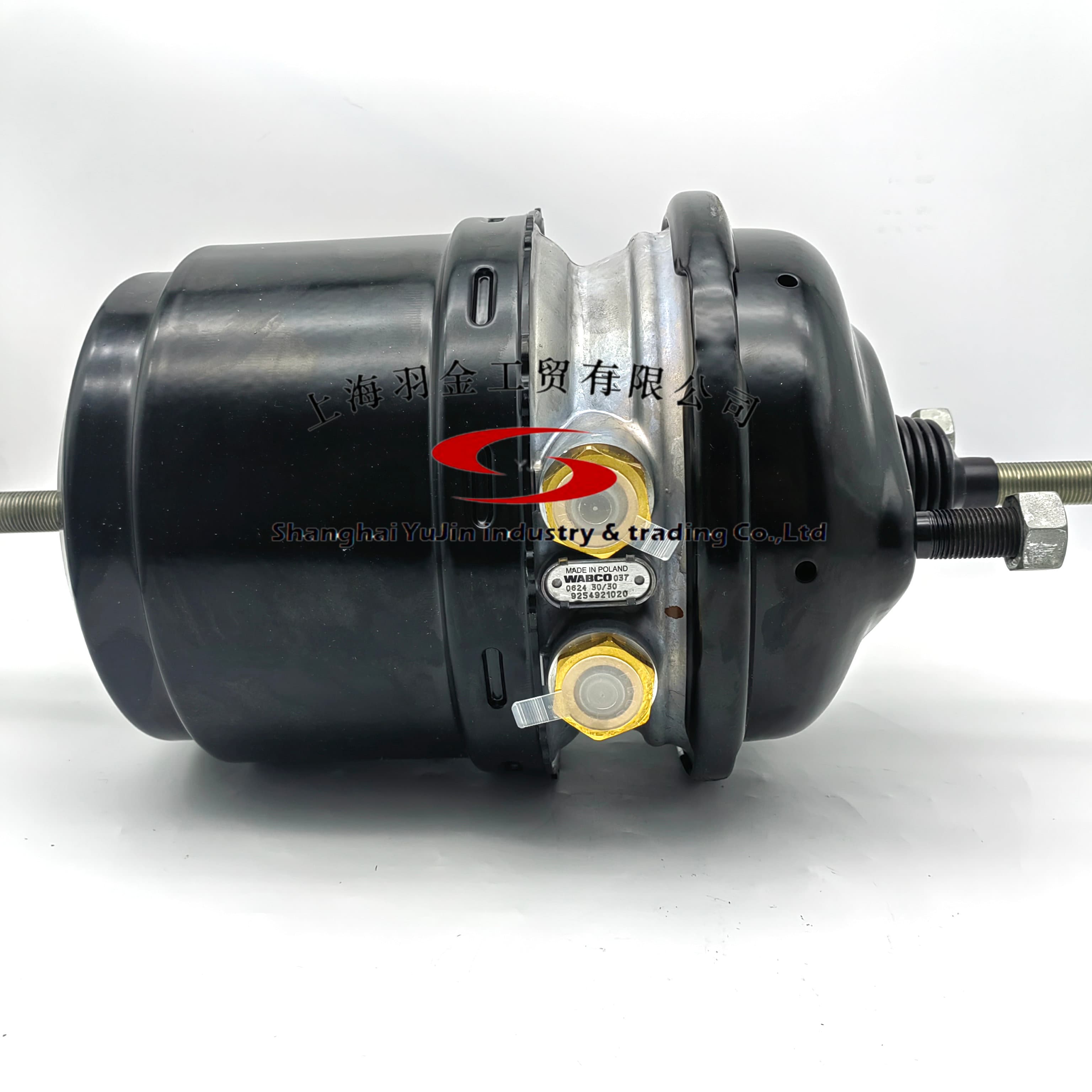

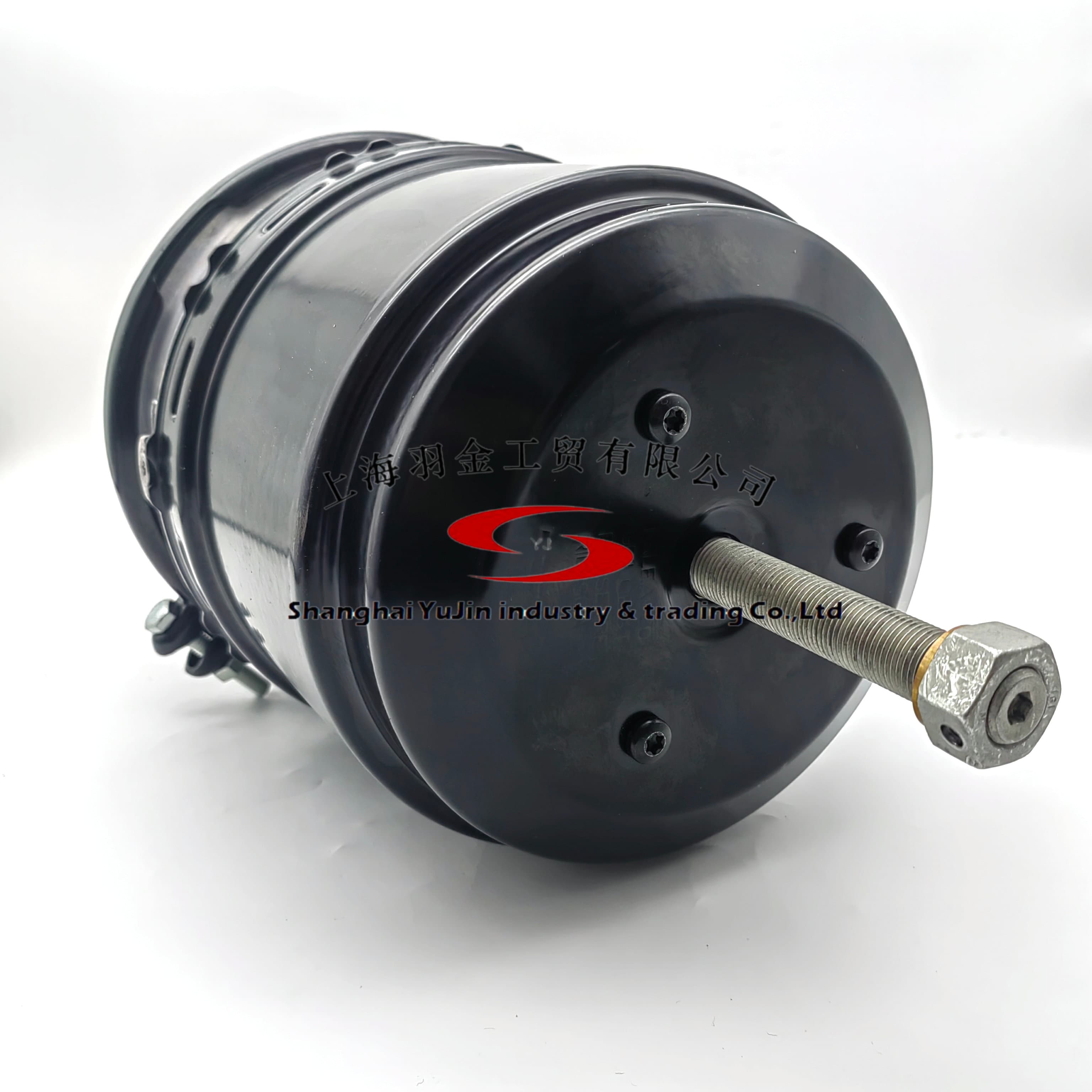

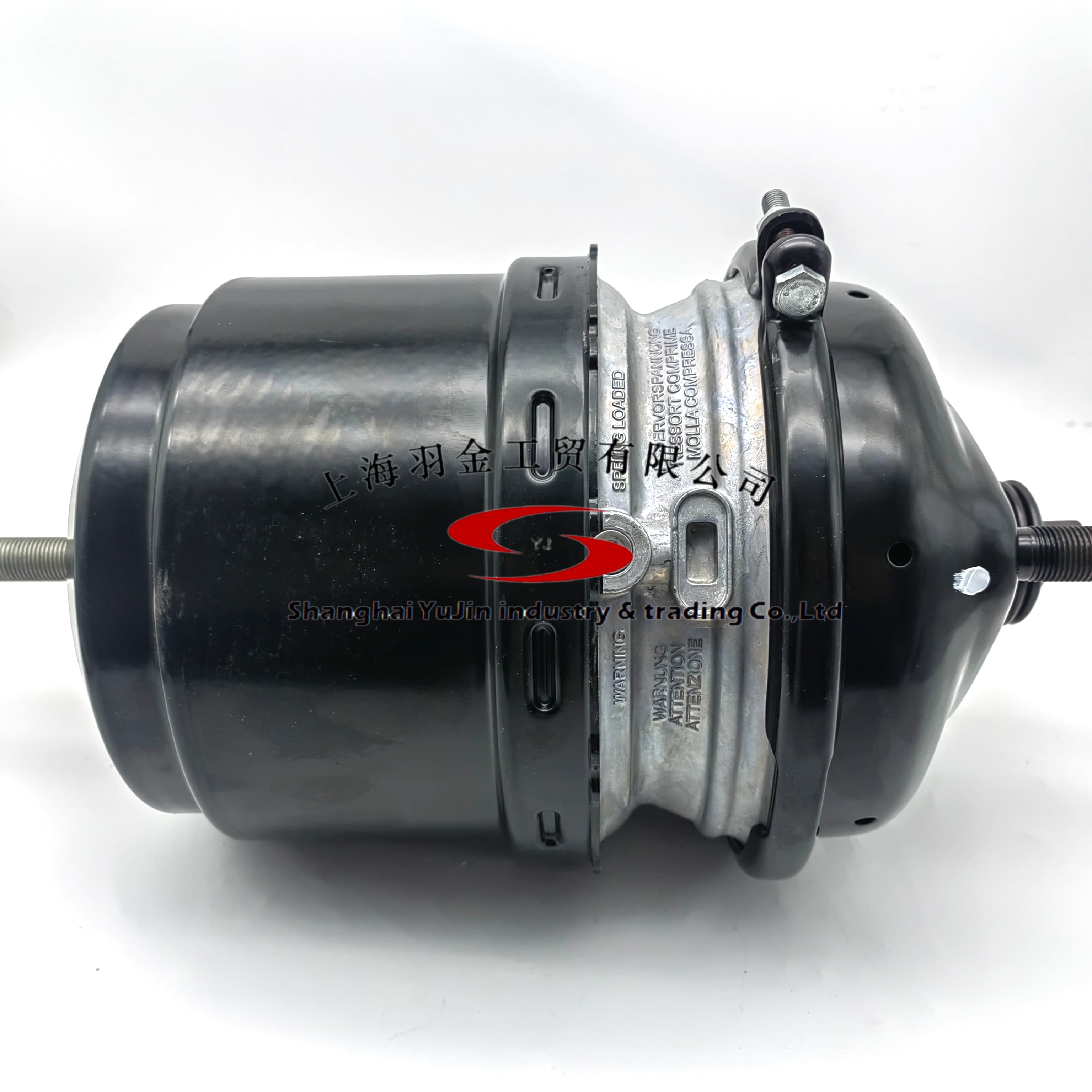

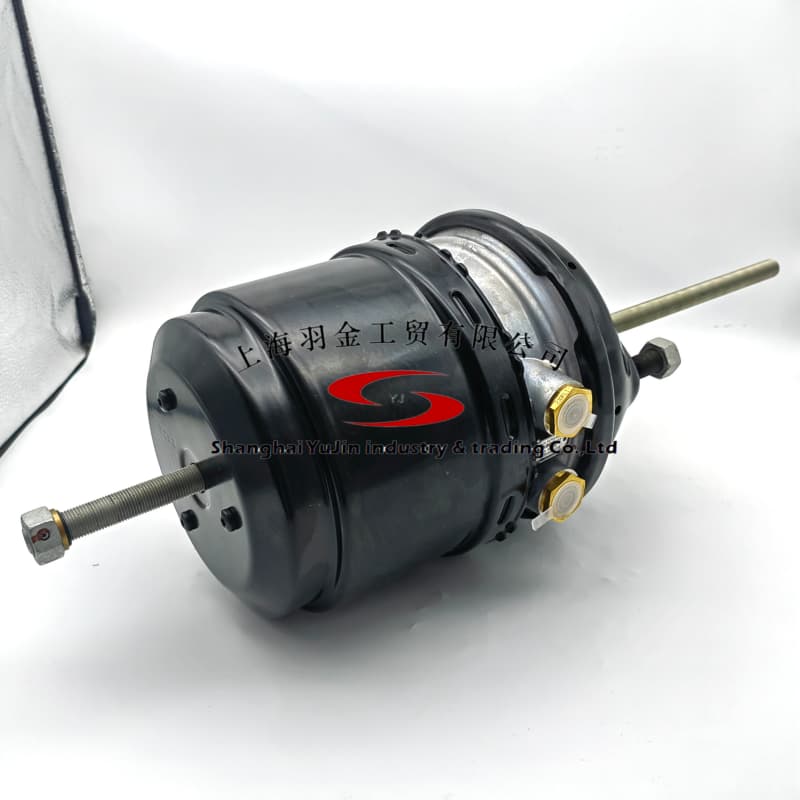

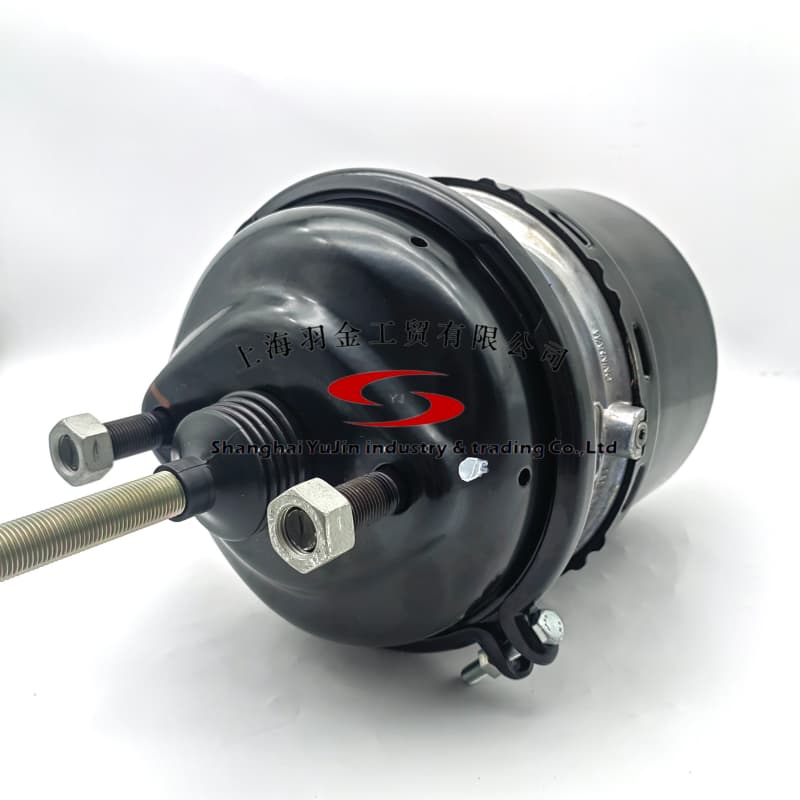

弹簧制动室 -- 9254921020
| ALEXANDER DENNIS | 660740 |
| DOLL | 8143104 |
| EVOBUS | 89199797624 |
| GOLDHOFER | 169691 |
| MAFI | 0005680011 |
| SCANIA | 2089721 |
| SCHMITZ CARGOBULL | 1020767 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 30.5415 |
| Comments | Universal-Tristop-Zylinder needs additional accessories (Link): 423 000 901 2 |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Output force 3 | 2585.30 lbf |
| Output force M | 2903.41 lbf |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port threads | M16 x 1.5 . M22 x 1.5 |
| Push-rod length | 9.92 in |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 75.42 psi |
| Return-spring force | 62.95 lbf |
| Stroke | 2.56 / 2.56 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Thread length | 9.84 in |
| Total lenght | 11.22 in |
| Type | 30/30 IBV |
| Type of operation | Cam |
| Version | With boot |
| Yoke | Without |
