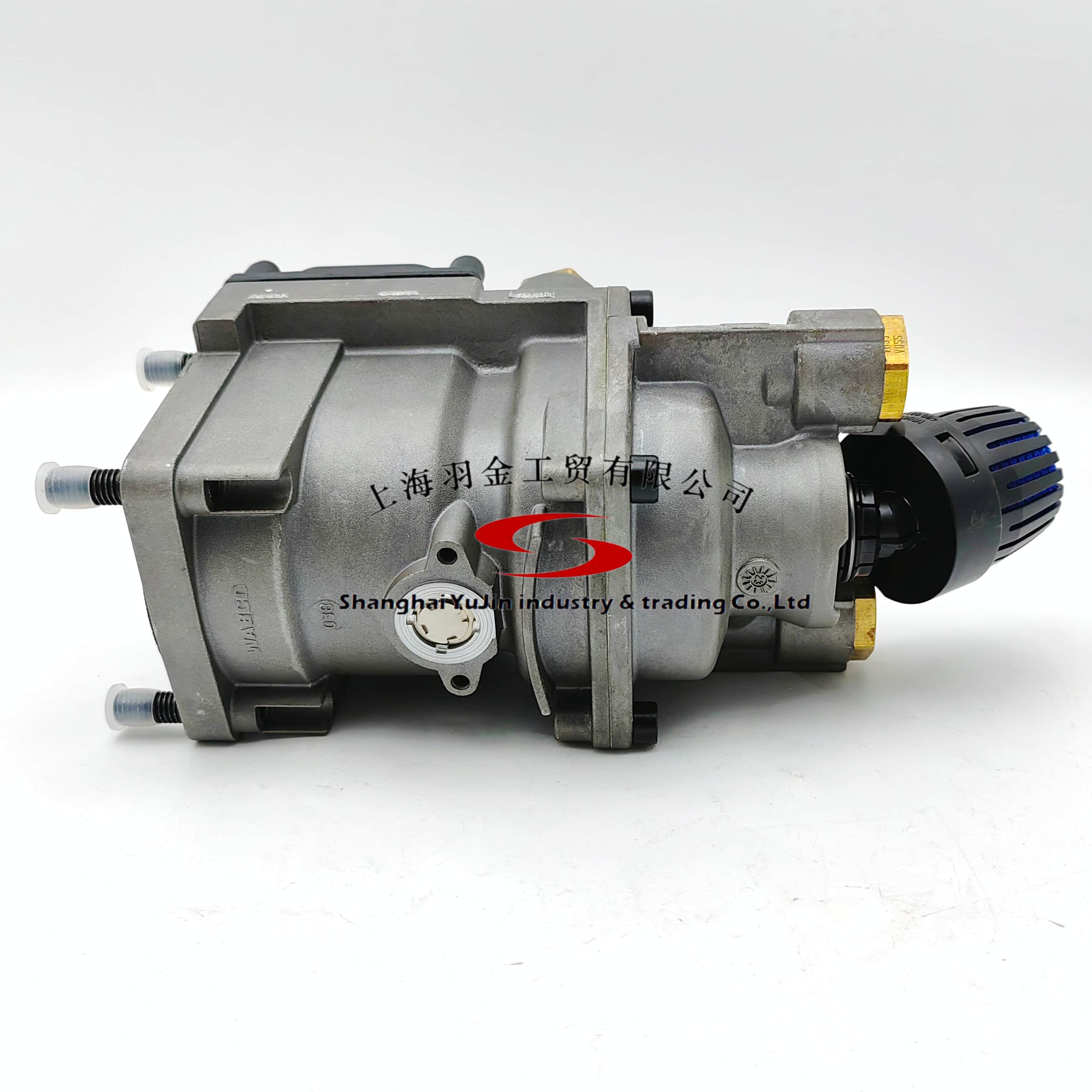

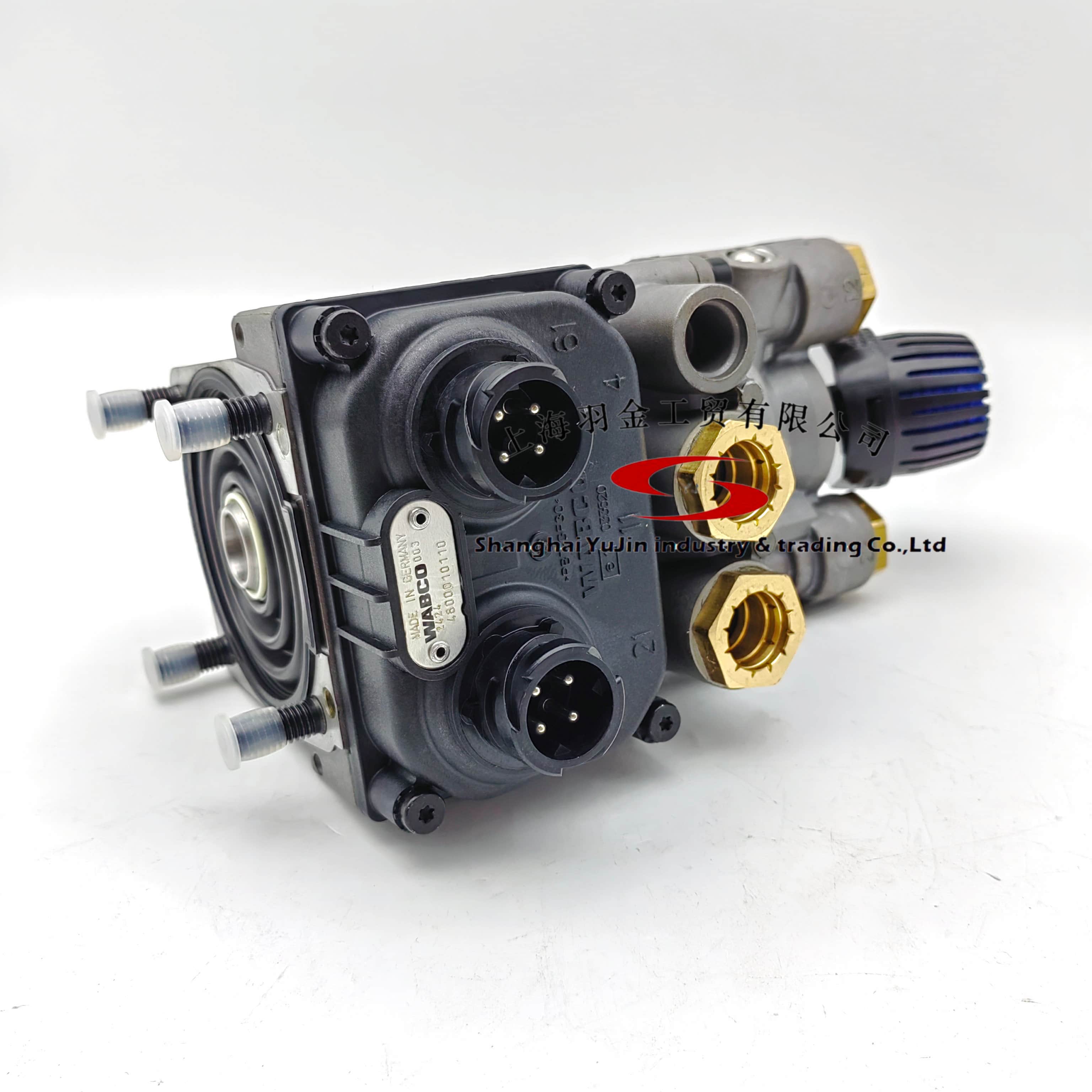

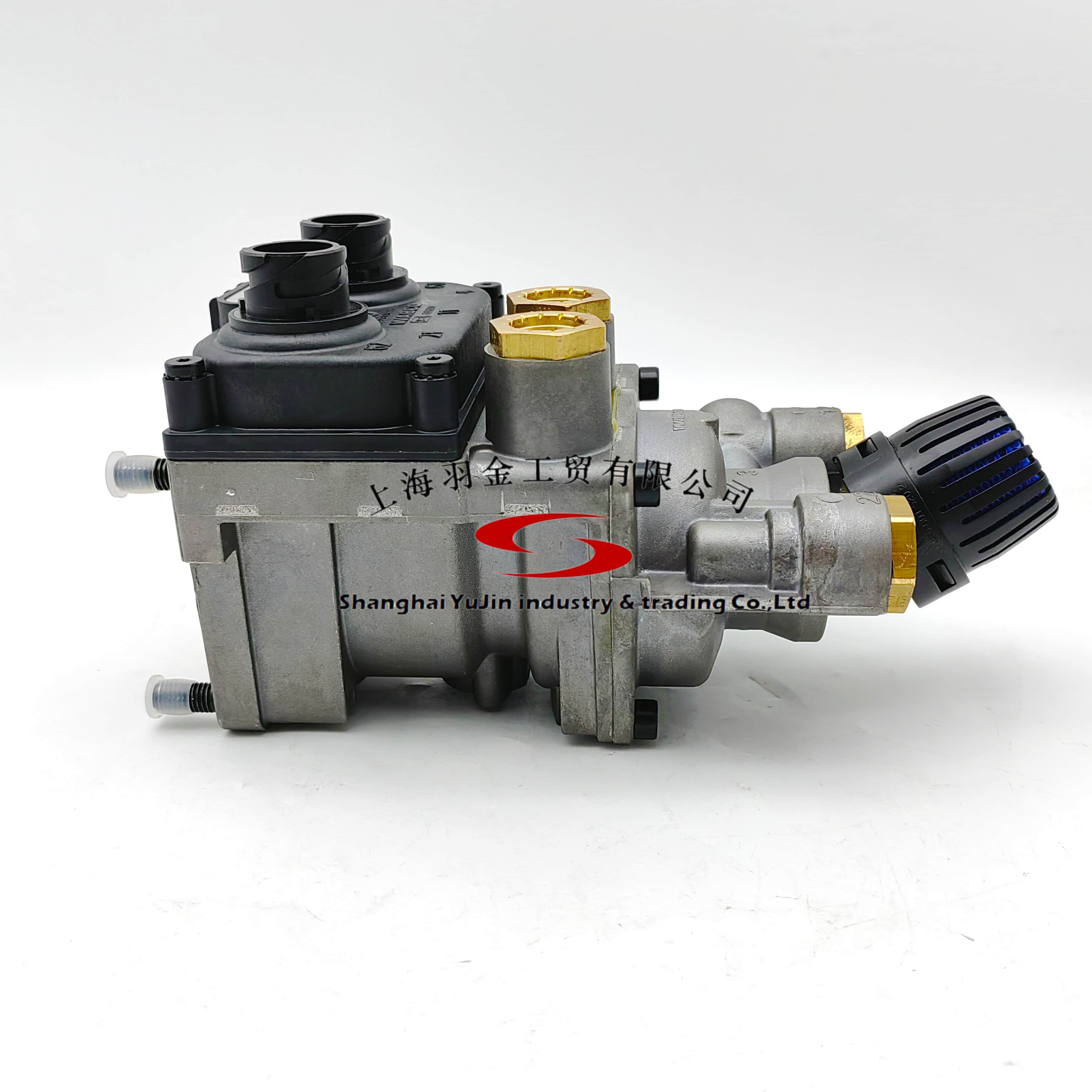

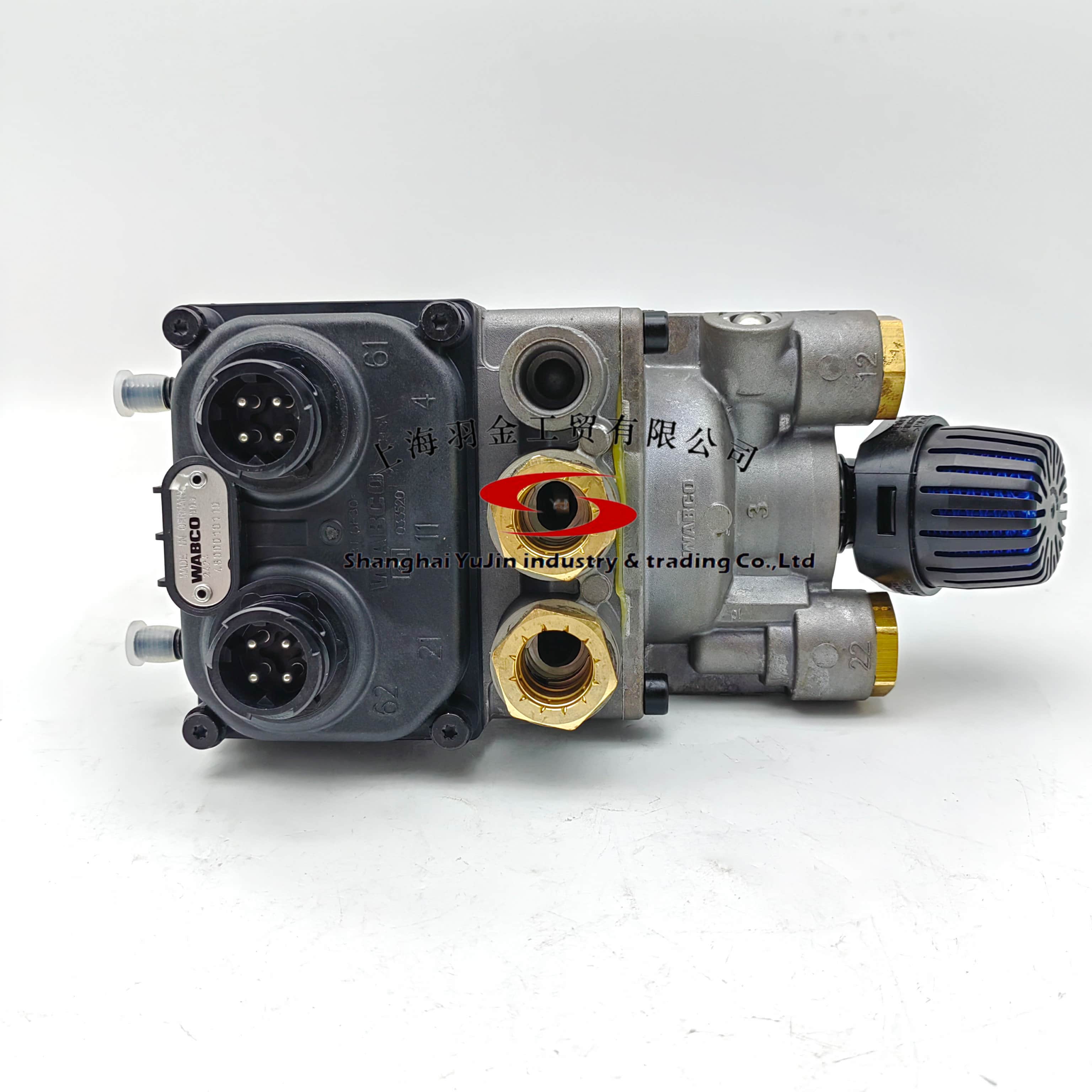

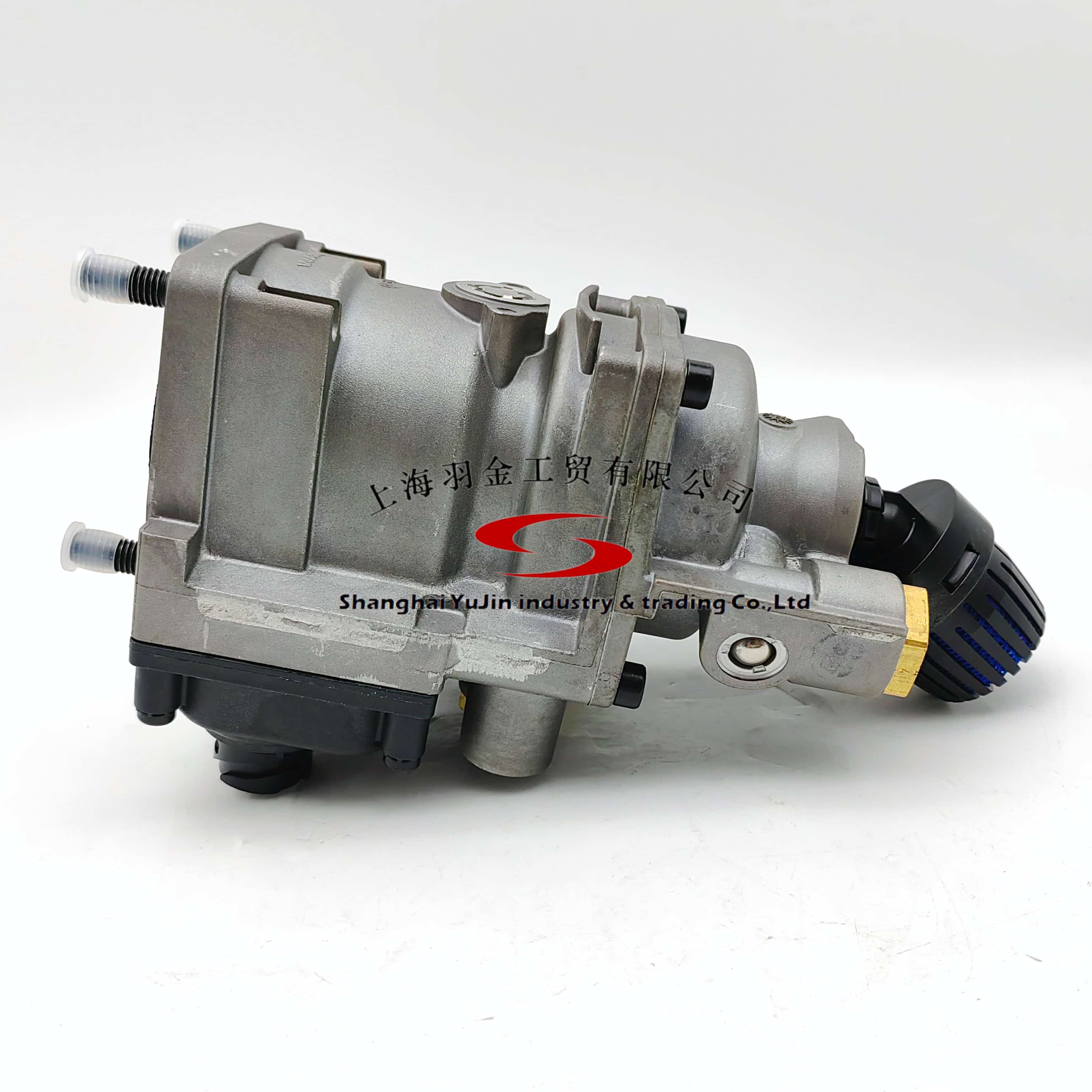

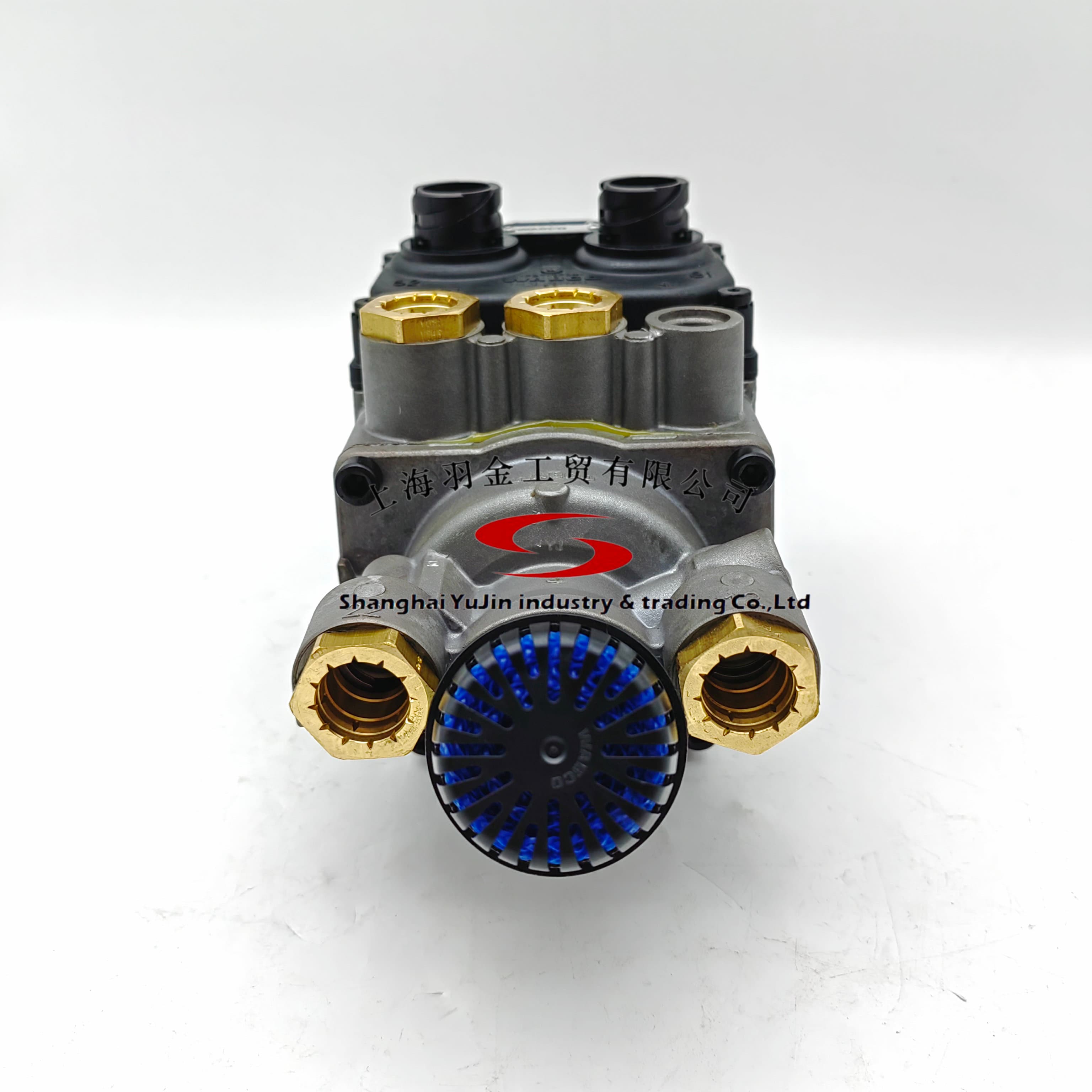

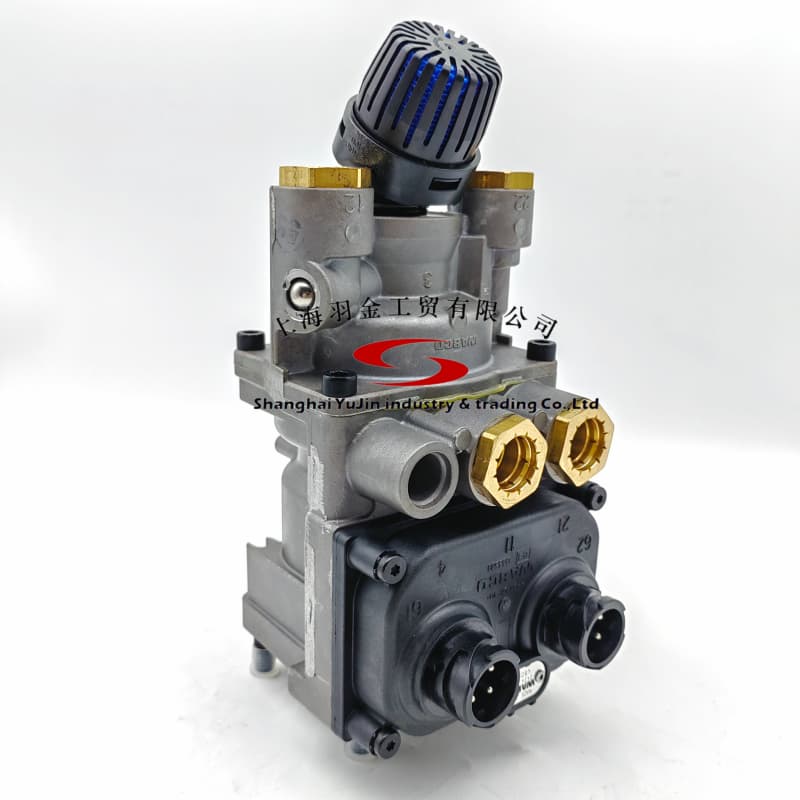

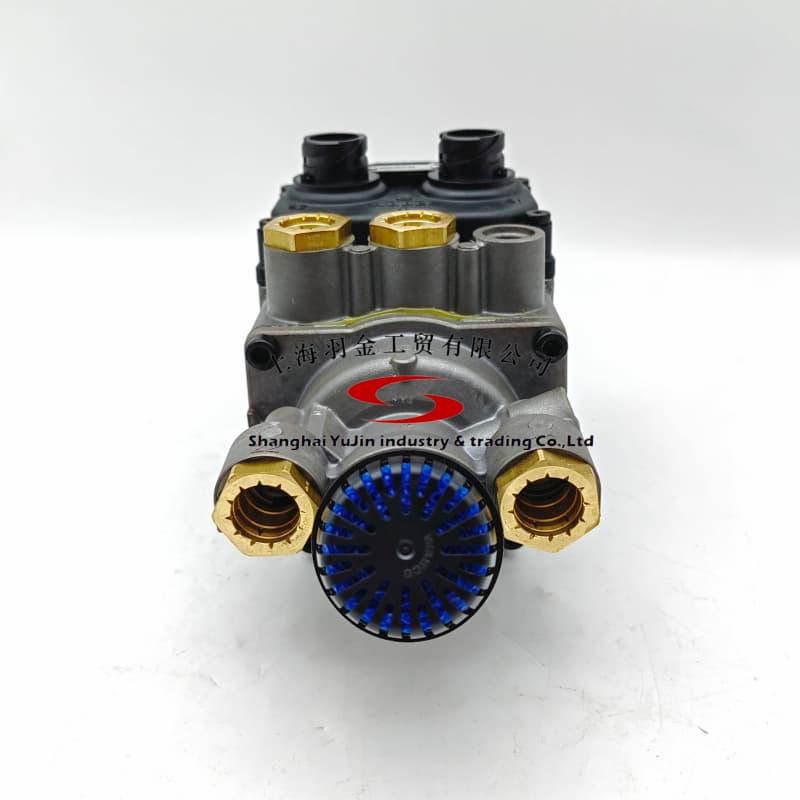

EBS脚阀 -- 4800010110
| EVOBUS | A0034318606 |
| MERCEDES-BENZ | 0044315605 |
| MERCEDES-BENZ | 0034318606 |
| MERCEDES-BENZ | A0034318606 |
| MERCEDES-BENZ | A0044315605 |
| PACCAR | 1528675 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | Daimler |
| Calculated Volume (dm³) | 2.9015 |
| Distance between bolts | 2.4x2.4 in |
| Electrical connection | 2x Bayonet DIN 72585 A1-4.1-Sn/K1 |
| Max. operating pressure | 145.0 psi |
| Mounting | 4 Studs M 8: 20 mm long |
| Multi Nominal diameter (From Port 1 to x) | 0.24 in |
| Output force | 4945.80 lbf |
| Port thread 11 | Voss - 232 NG12 |
| Port thread 12 | Voss - 232 NG12 |
| Port thread 21 | Voss 232 NG12 |
| Port thread 22 | Voss - 232 NG12 |
| Port thread 3 | Silencer 480 001 520 2 |
| Protection class | IP 56, IP 59K |
| Silencer | 480 001 520 2 |
| Stroke | 0.55 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Thread | Voss threads |
| Voltage | 9 to 32 V |
