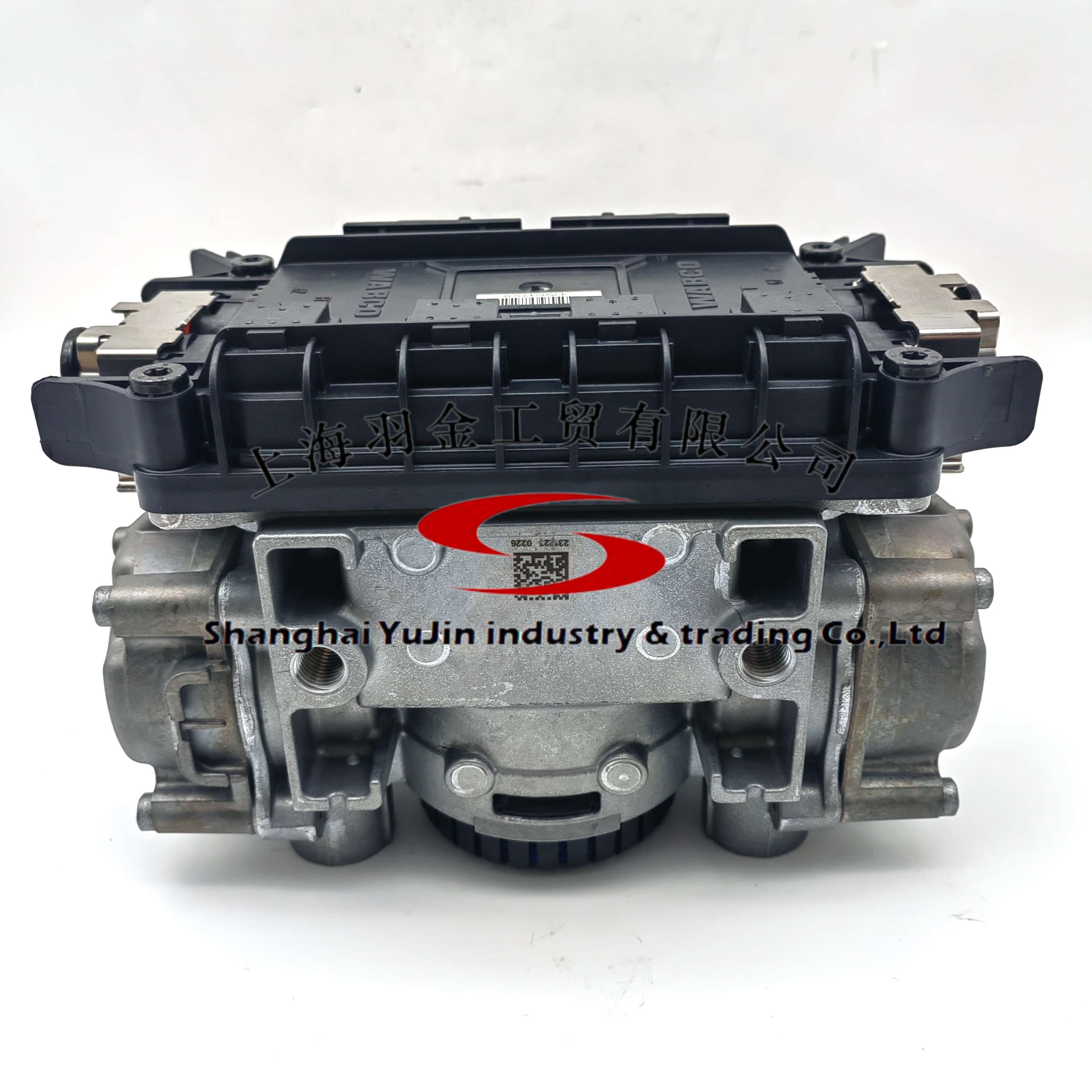

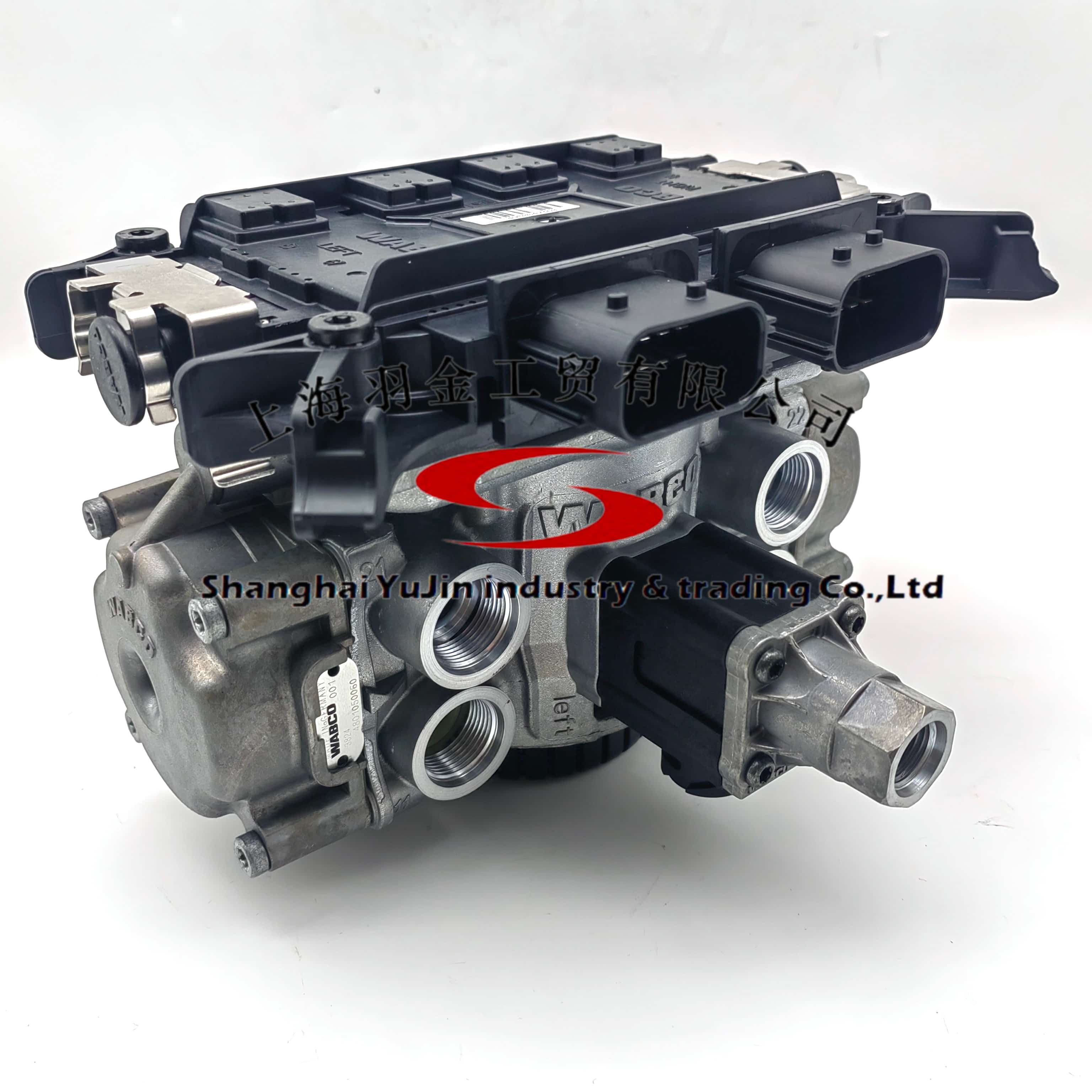

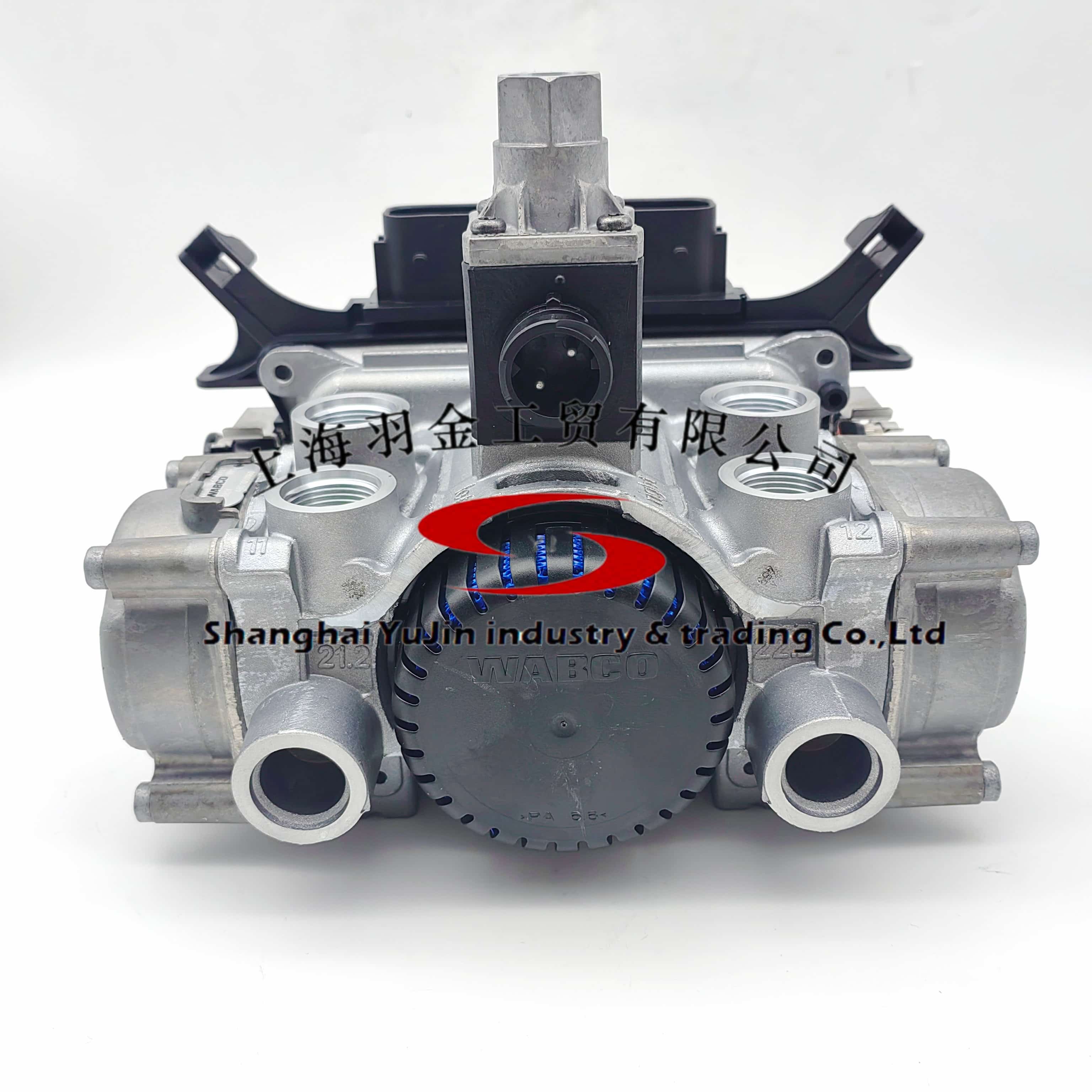

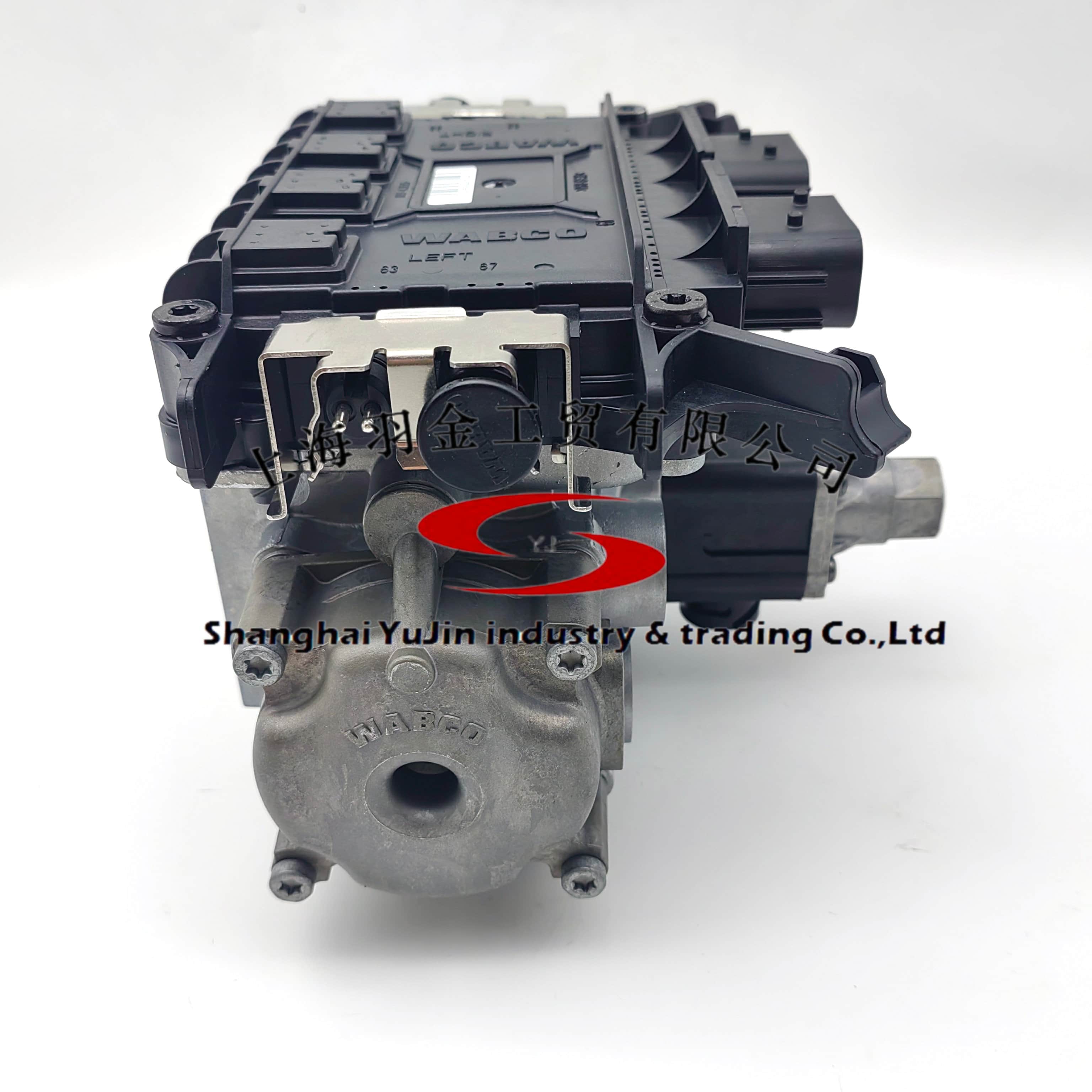

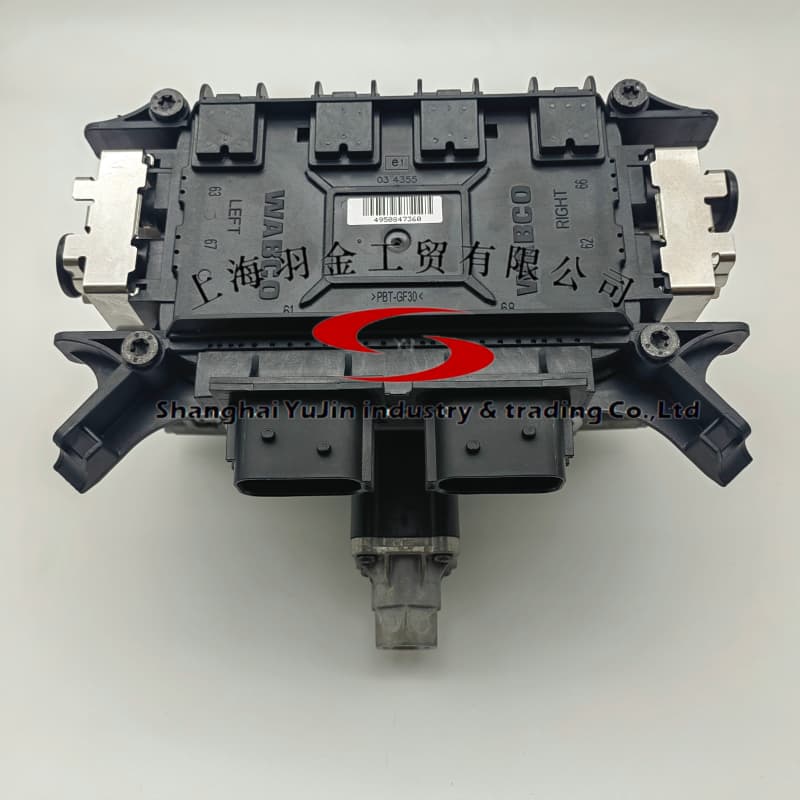

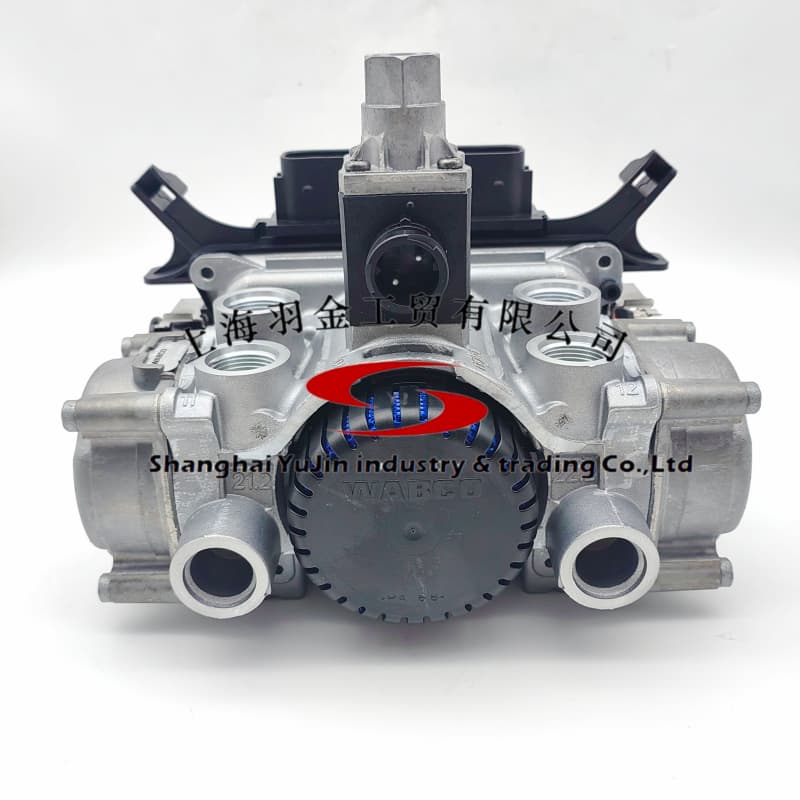

EBS双通道模块 -- 4801050060
| EVOBUS | A0004294224 |
| MERCEDES-BENZ | A0004294224 |
| MERCEDES-BENZ | 0004294224 |
| MERCEDES-BENZ | 0004293724 |
| MERCEDES-BENZ | A0004293724 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | 2-Axle vehicles |
| Calculated Volume (dm³) | 6.183 |
| Comments | Volume production variant 1 |
| Distance between holes | 3.94 in |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 188.5 psi |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 4 x 2 |
| Voltage | 24 V |
