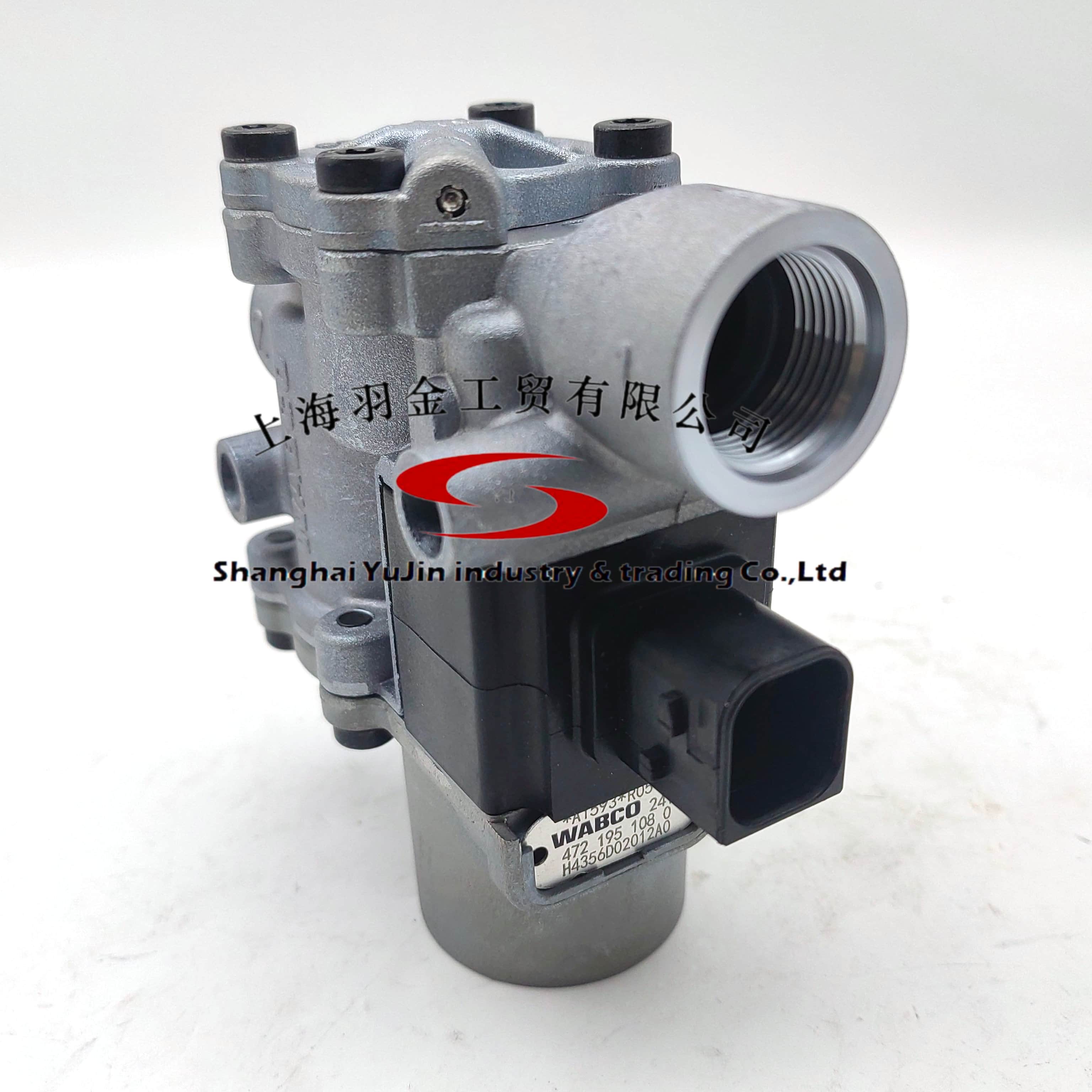

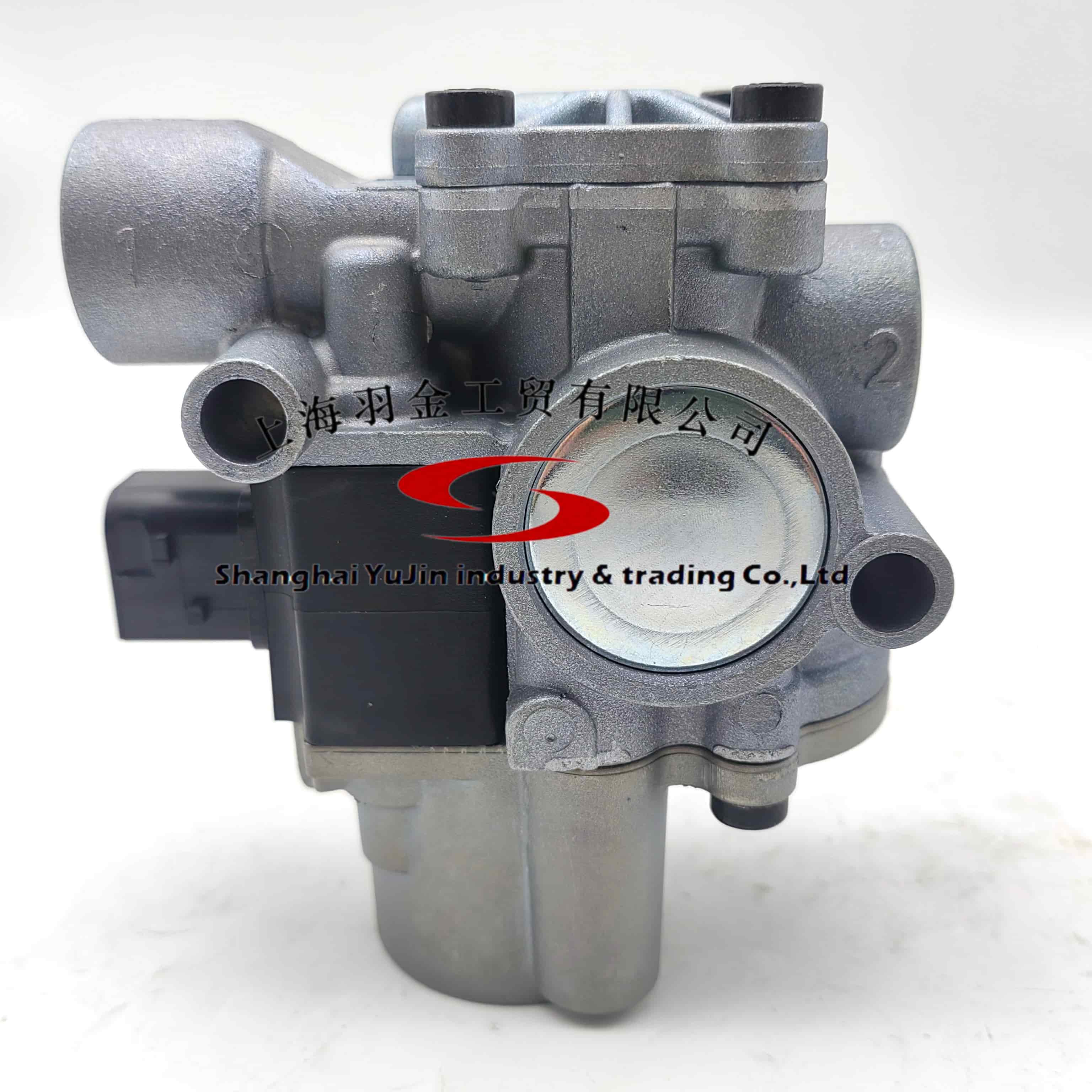

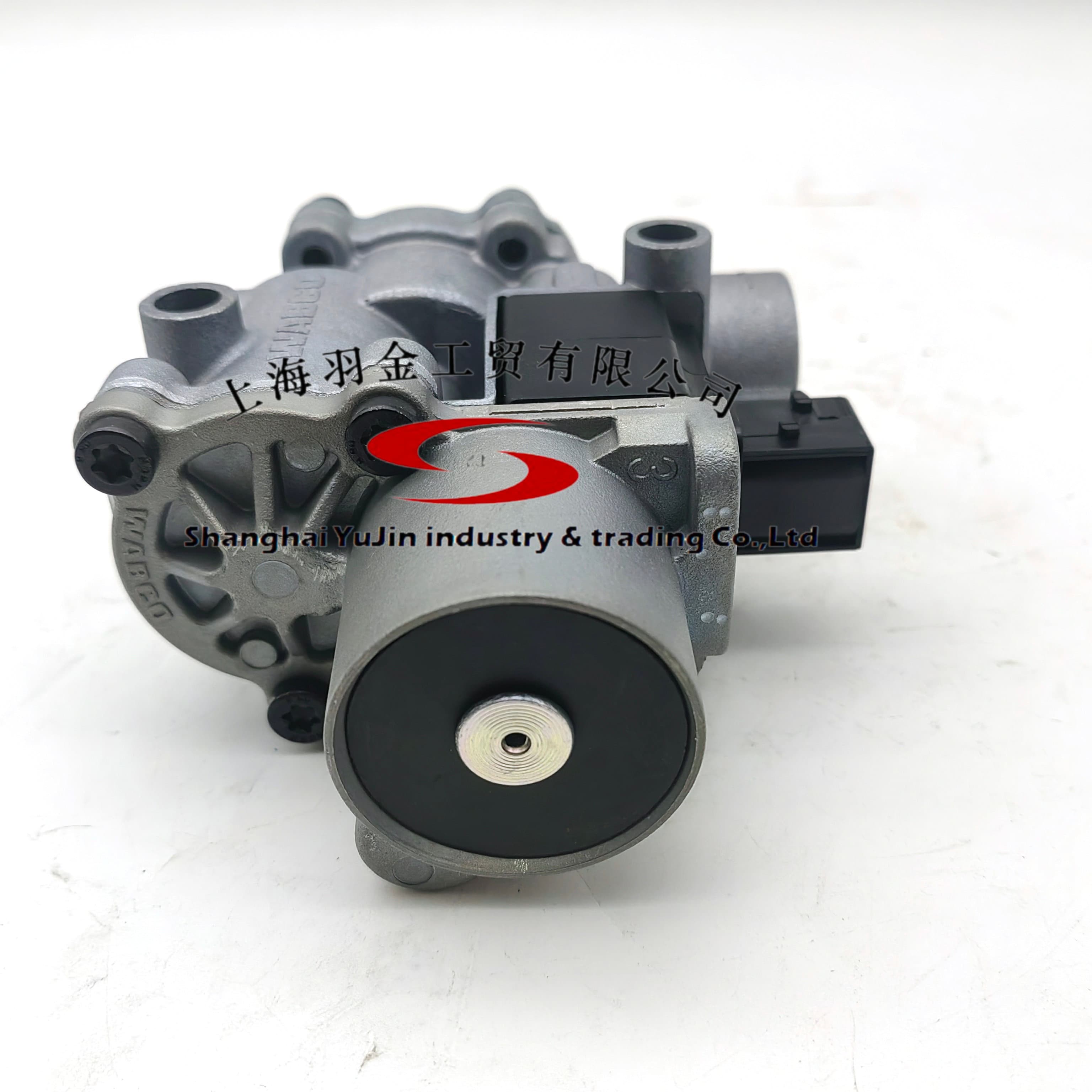

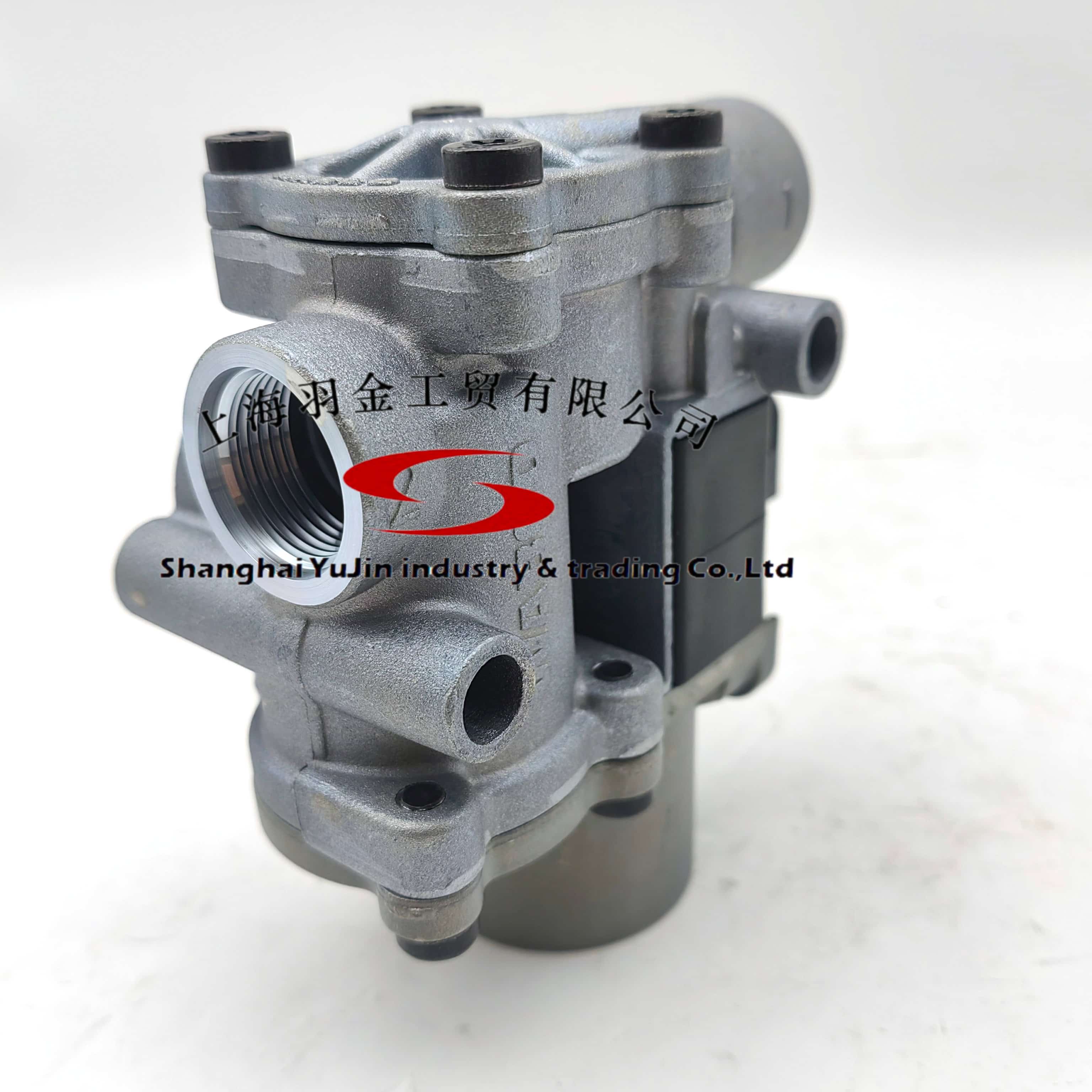

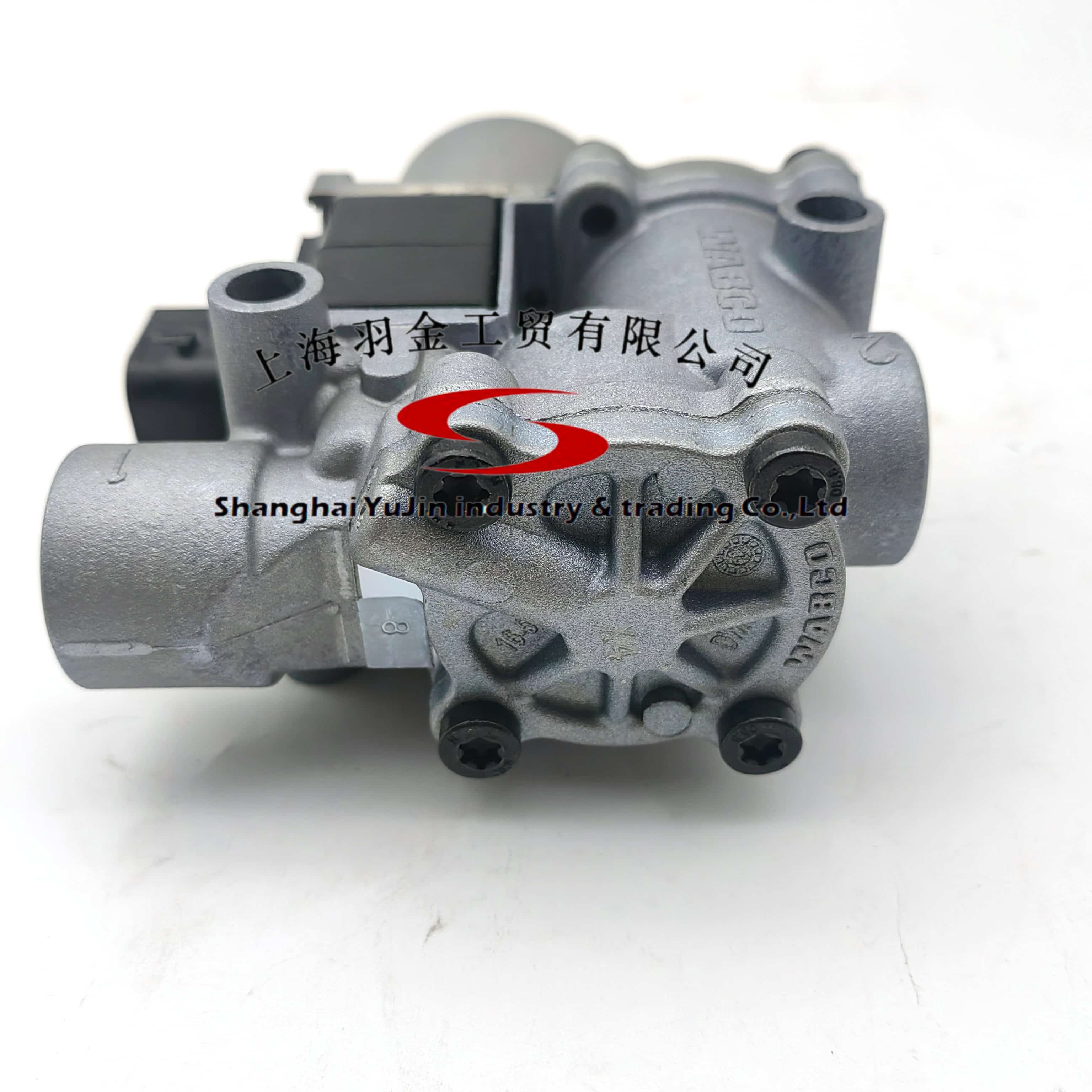

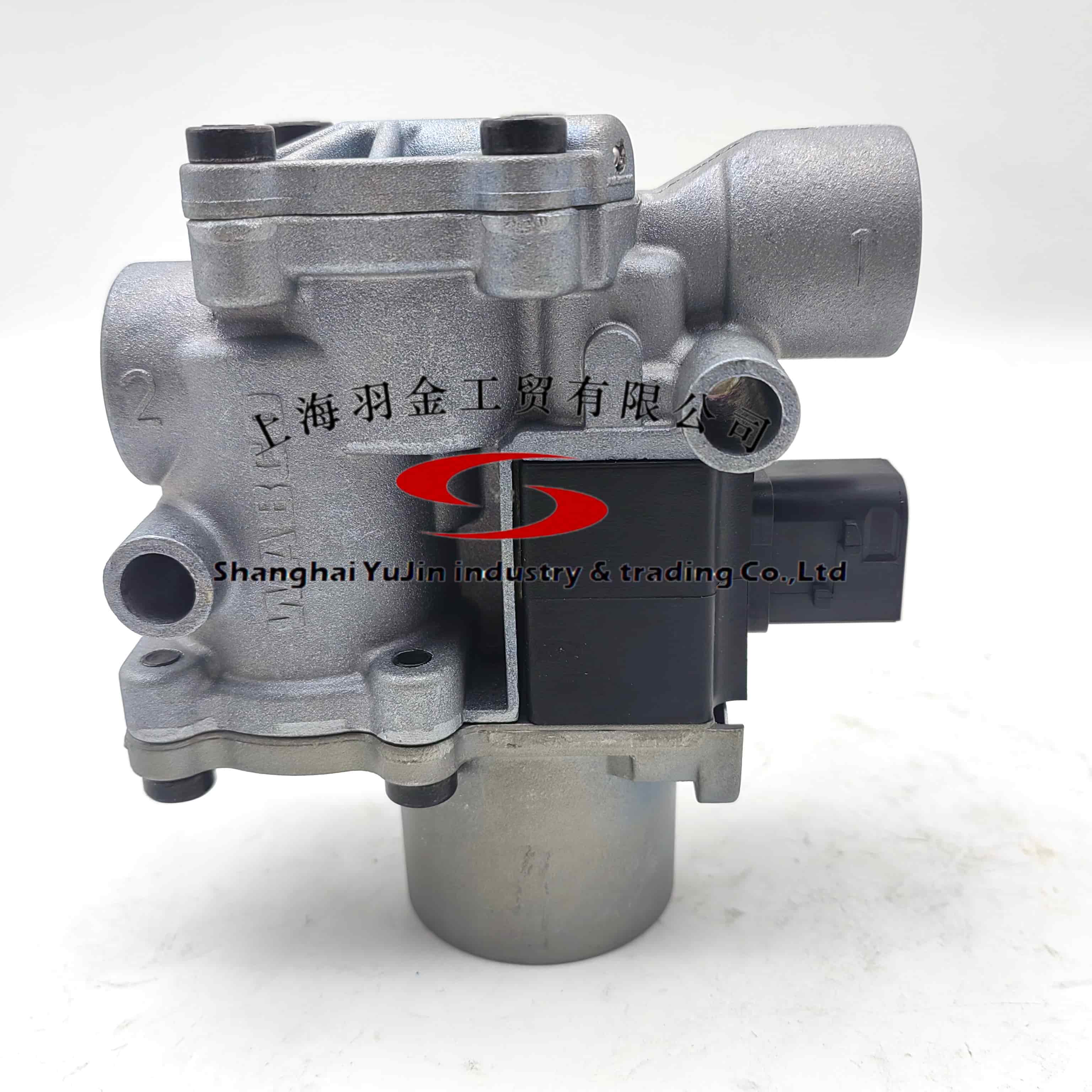

ABS电磁阀 -- 4721951080
| DAF | 1808335 |
| EVOBUS | A0054299244 |
| LEYLAND DAF | EXABRF374 |
| MERCEDES-BENZ | A0054299244 |
| MERCEDES-BENZ | 0054299244 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 0.72546 |
| Distance between holes | 2.8x0.79 in |
| Electrical connection | Tyco HDSCS 3x 2.8 coding A |
| Exhaust | Flap |
| Max. operating pressure | 159.5 psi |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M22 x 1.5 JED-388-0 |
| Port thread 2 | M22 x 1.5 JED - 388-0 |
| Port threads | M22 x 1.5 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
