WABCO威伯科制动气室4235050000 1517954 7054446 A0074201224 13851 2772 21151205030 337900 4110801 4235050000 N2504016063 74201224 A0074201224 1456901 14315 1517954 4454108260 4454106760 3454106760 3454108260

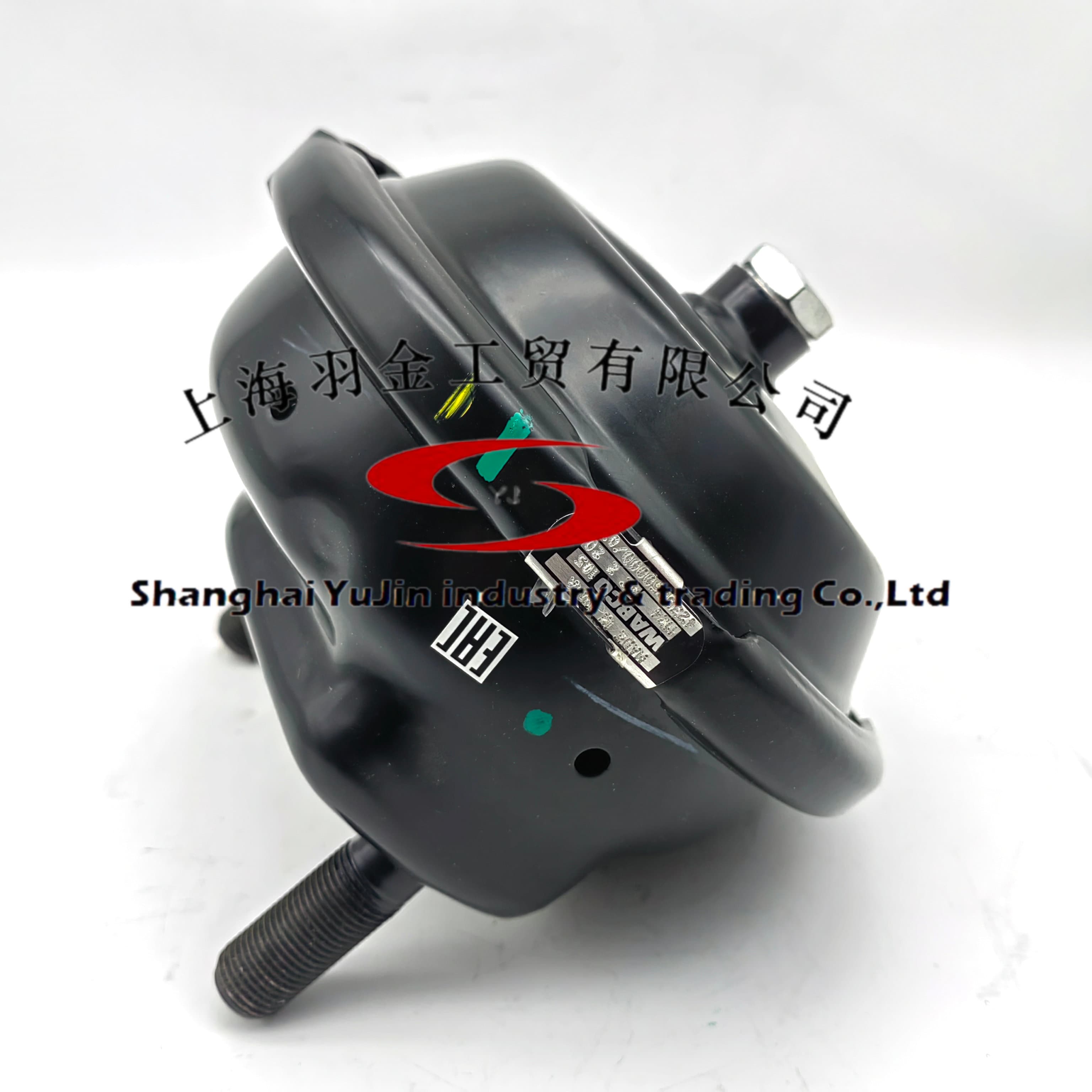

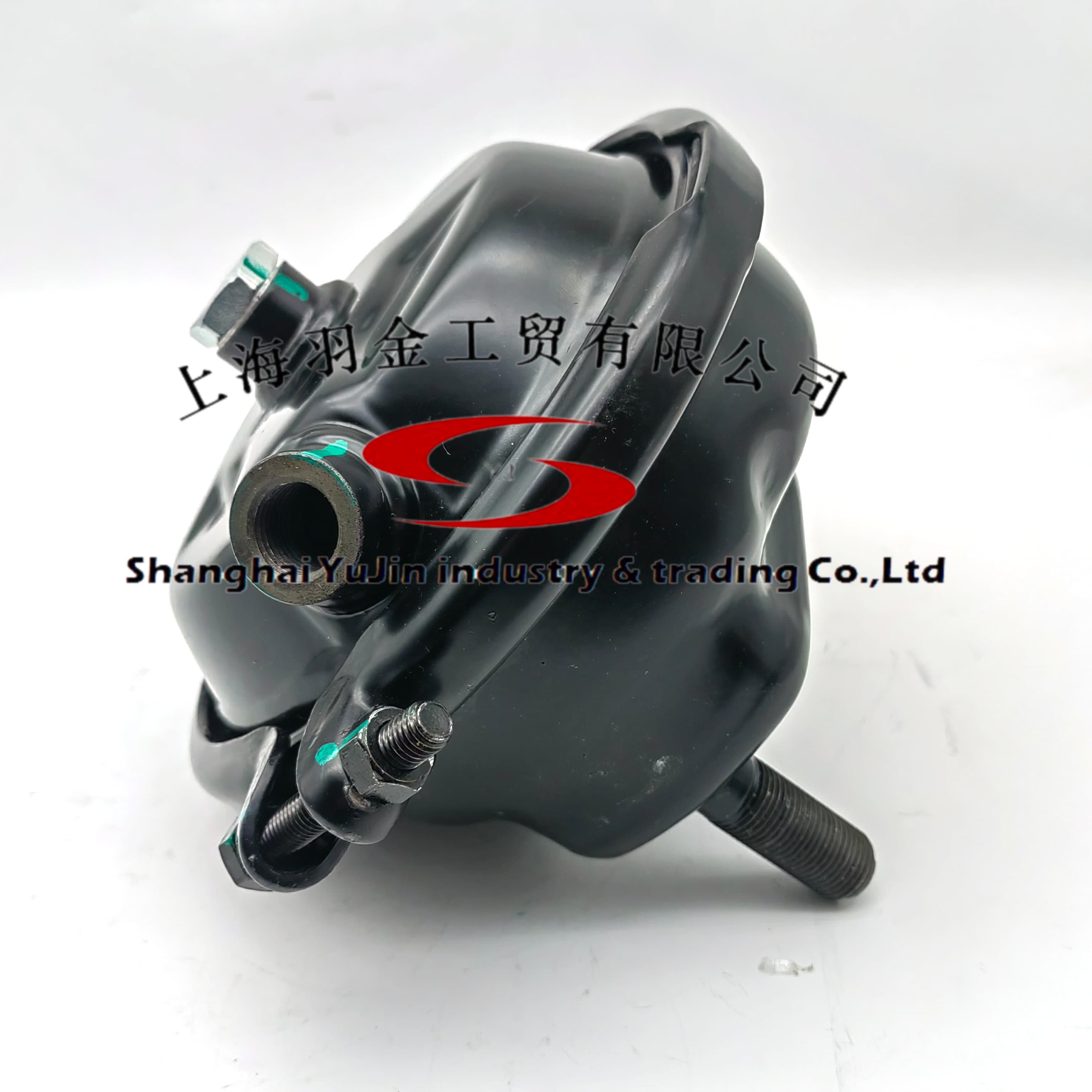

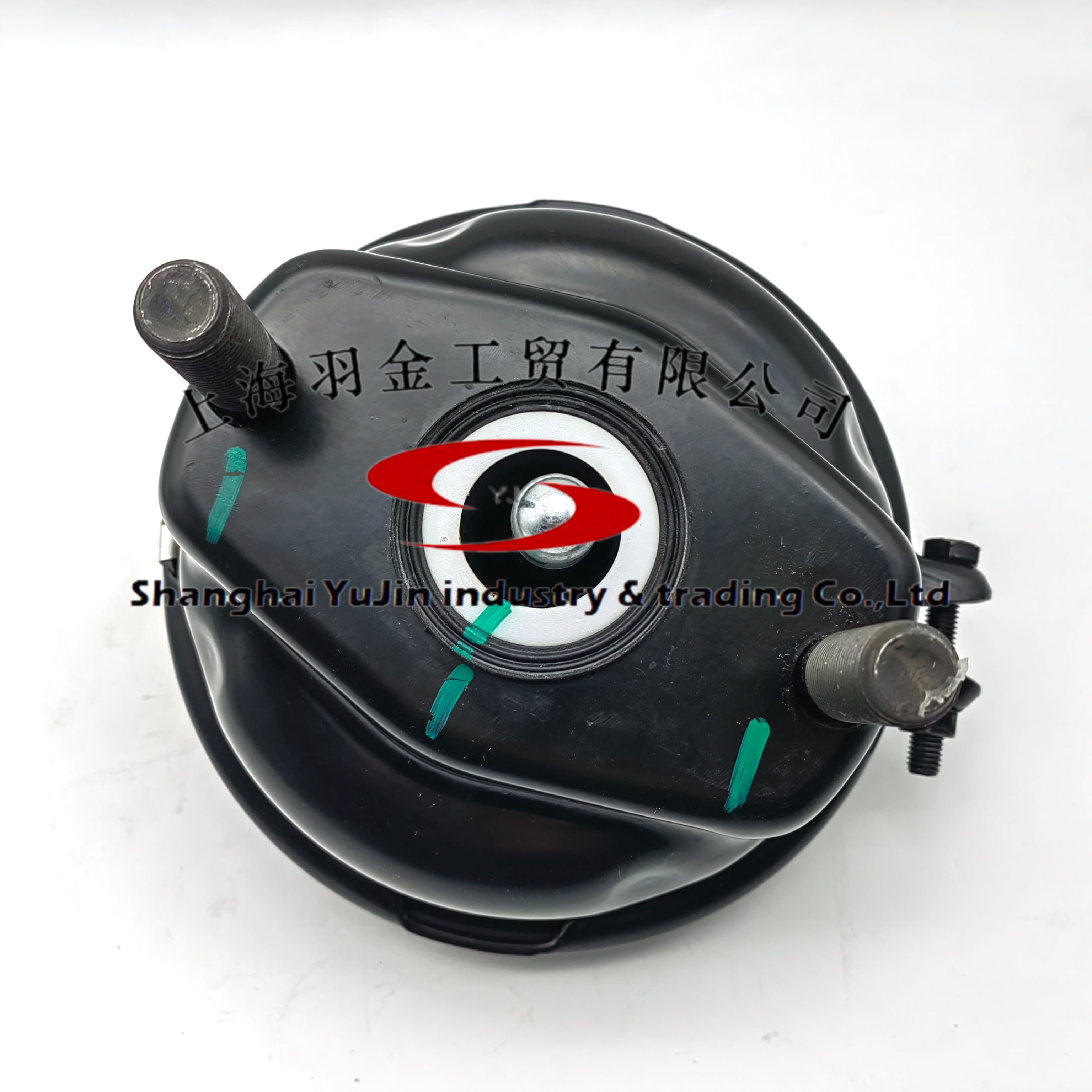

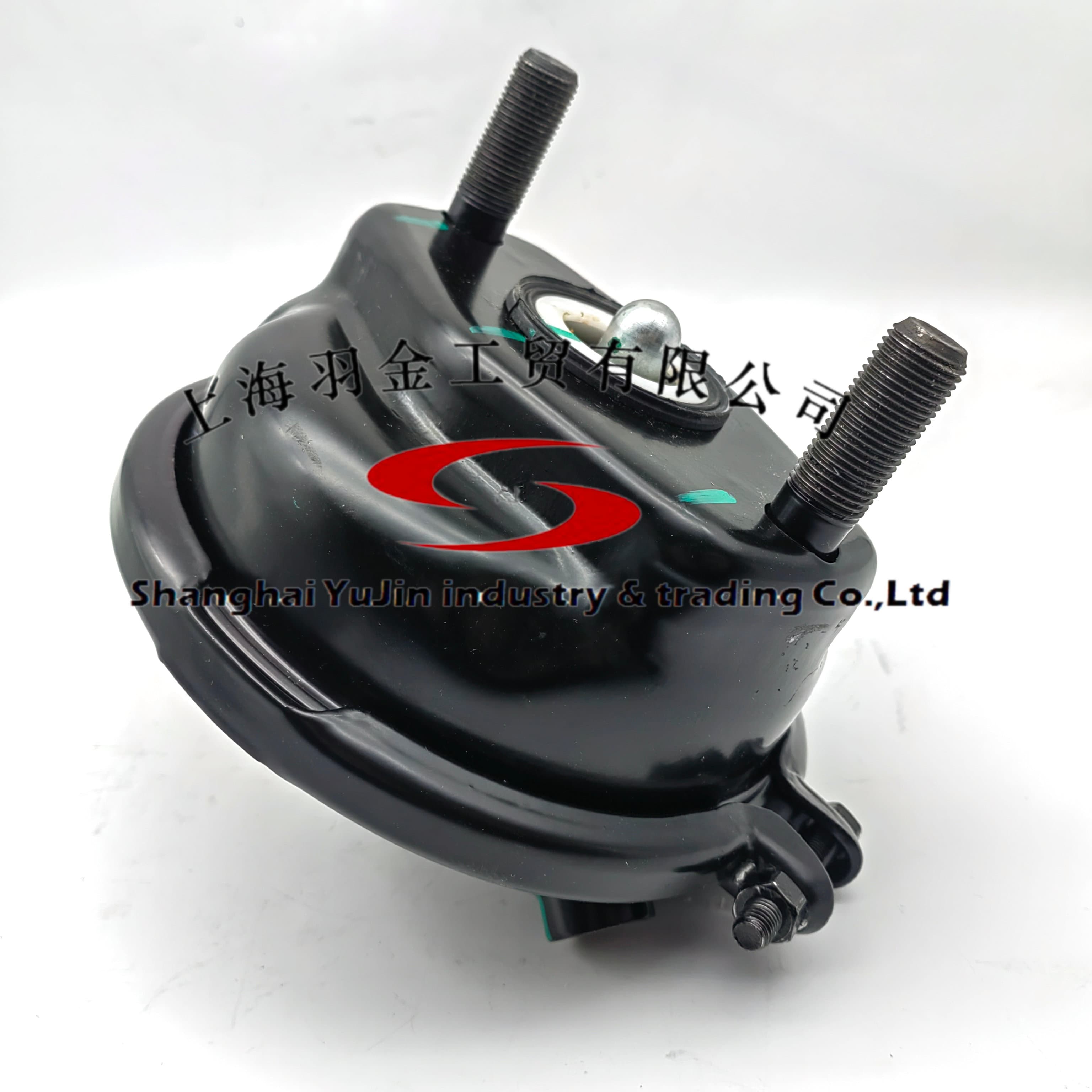

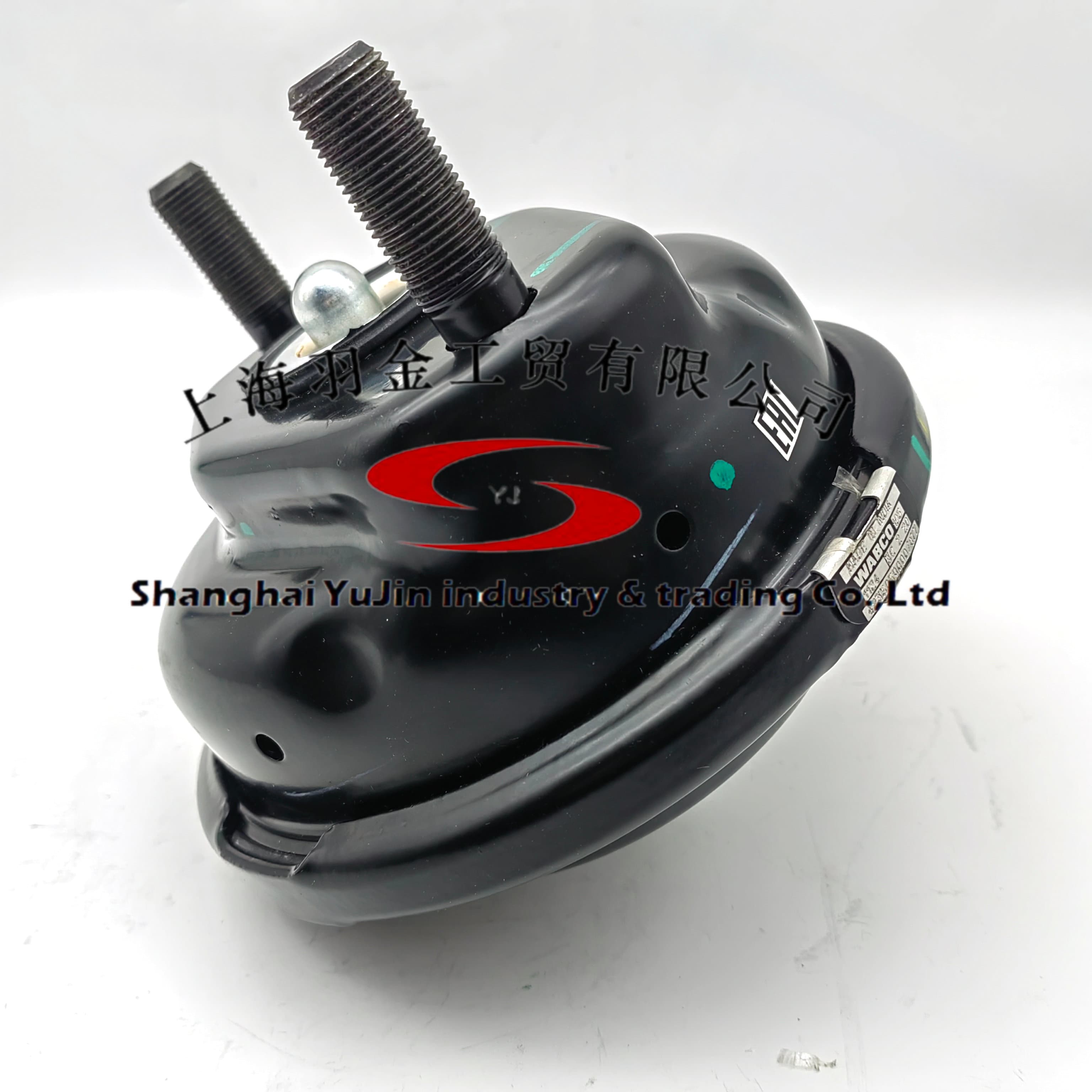

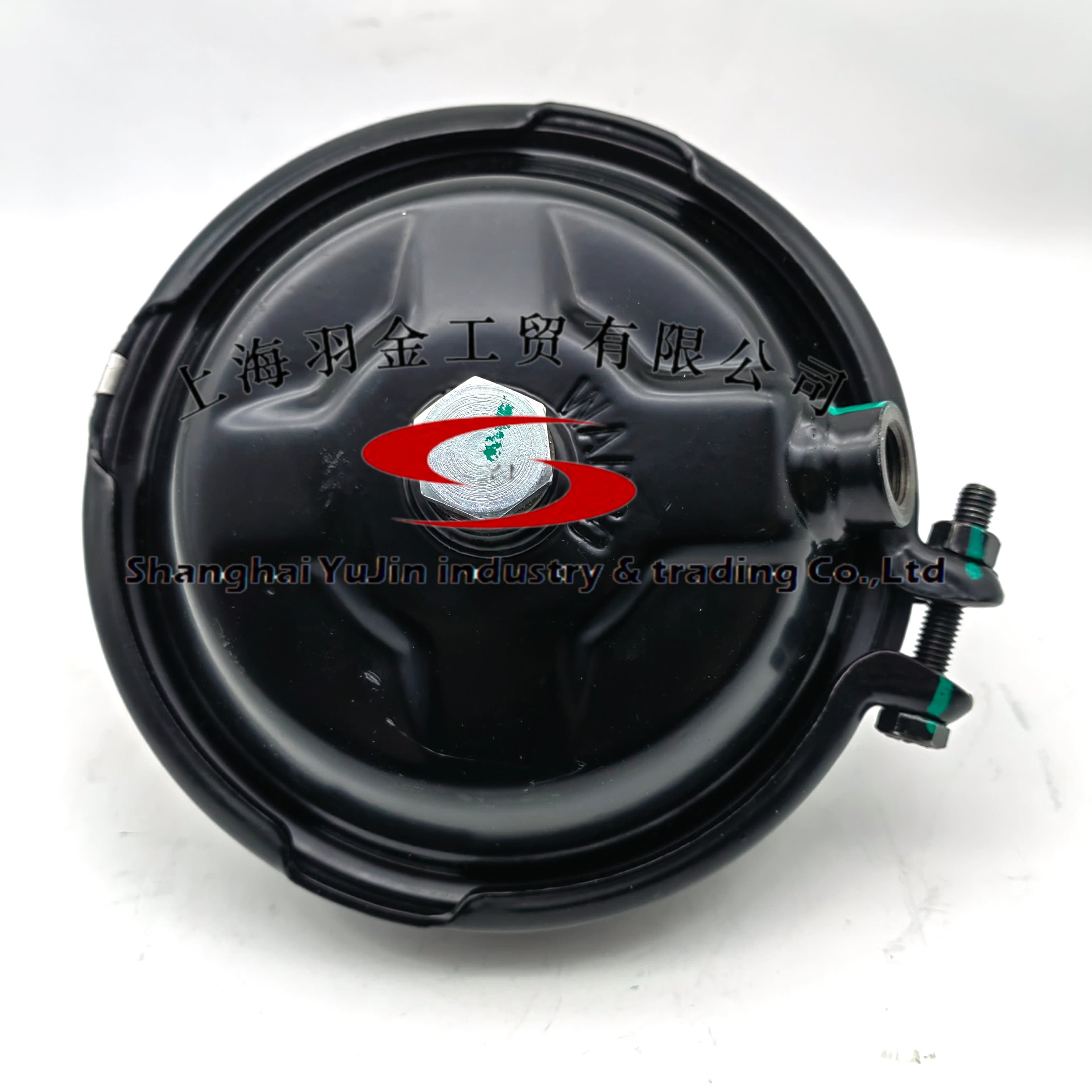

制动气室 -- 4235050000
产品介绍
| DAF | 1517954 |
| DOLL | 7054446 |
| EVOBUS | A0074201224 |
| FAYMONVILLE | 13851 |
| FELDBINDER | 002772 |
| KÄSSBOHRER | 21151205030 |
| KÖGEL | 337900 |
| LECITRAILER | 4110801 |
| LOHR | 4235050000 |
| MAN | N2504016063 |
| MERCEDES-BENZ | 0074201224 |
| MERCEDES-BENZ | A0074201224 |
| NOOTEBOOM | 1456901 |
| NOOTEBOOM | 14315 |
| PACCAR | 1517954 |
| SAF | 4454108260 |
| SAF | 4454106760 |
| SAF | 3454106760 |
| SAF | 3454108260 |
| SCANIA | 1932639 |
| SCHMITZ CARGOBULL | 1020756 |
| VOLVO | WA4235050000 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 4.2492 |
| Clamp band | 175 mm |
| Clamp band position | 20° |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 psi |
| Operating pressure | 147.9 psi |
| Output force | 2203.13 lbf |
| Output force M | 2203.13 lbf |
| Port (side) | M16 x 1.5 |
| Port (top) | M16 x 1.5 |
| Port angle | 0° |
| Port threads | M16 x 1.5 |
| Push-rod length | 0.59 in |
| Push-rod thread | Ball R8 |
| Return-spring force | 49.46 lbf |
| Stroke | 2.44 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 4.02 in |
| Type | 20 |
| Type of operation | Disc |
| Version | Without boot |
