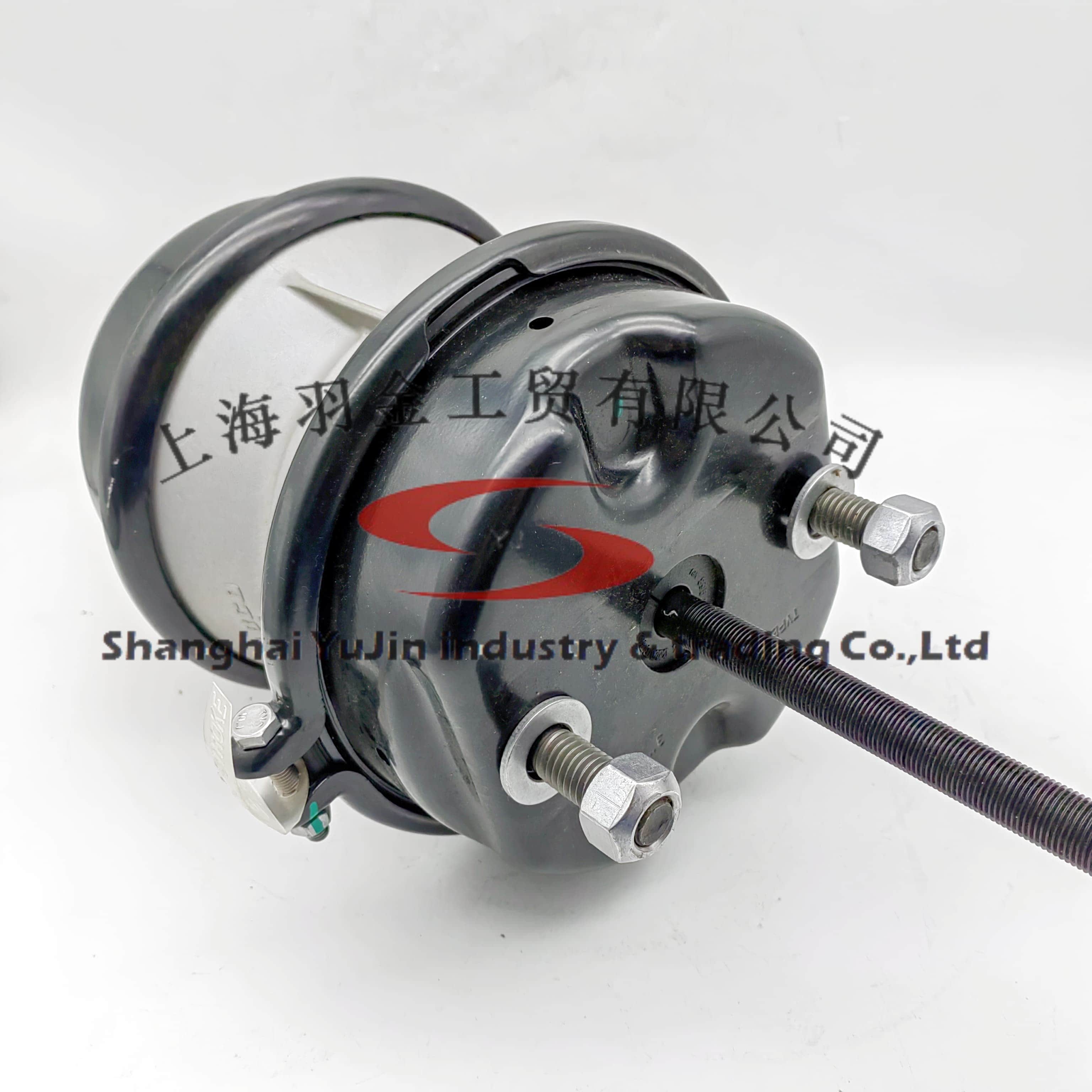

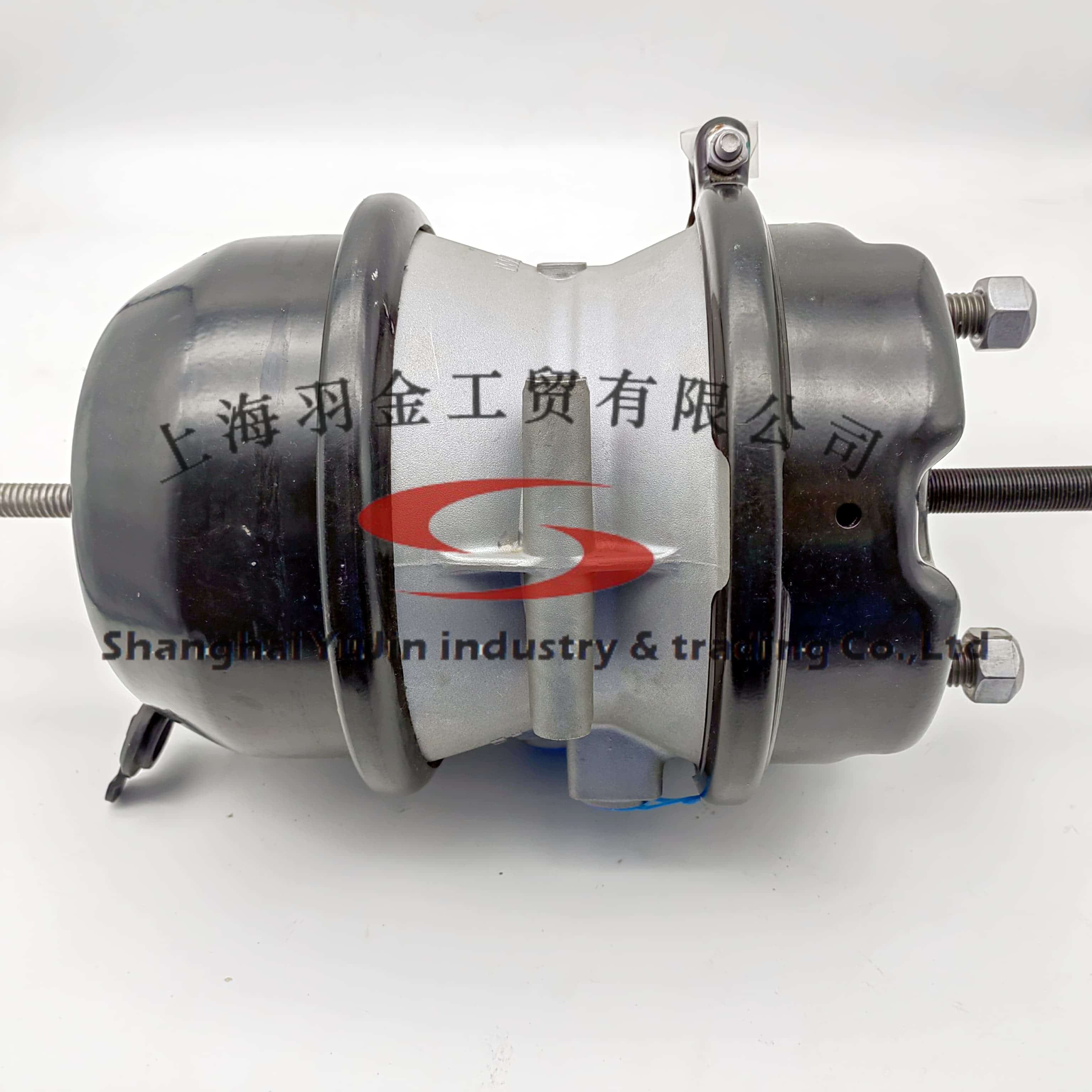

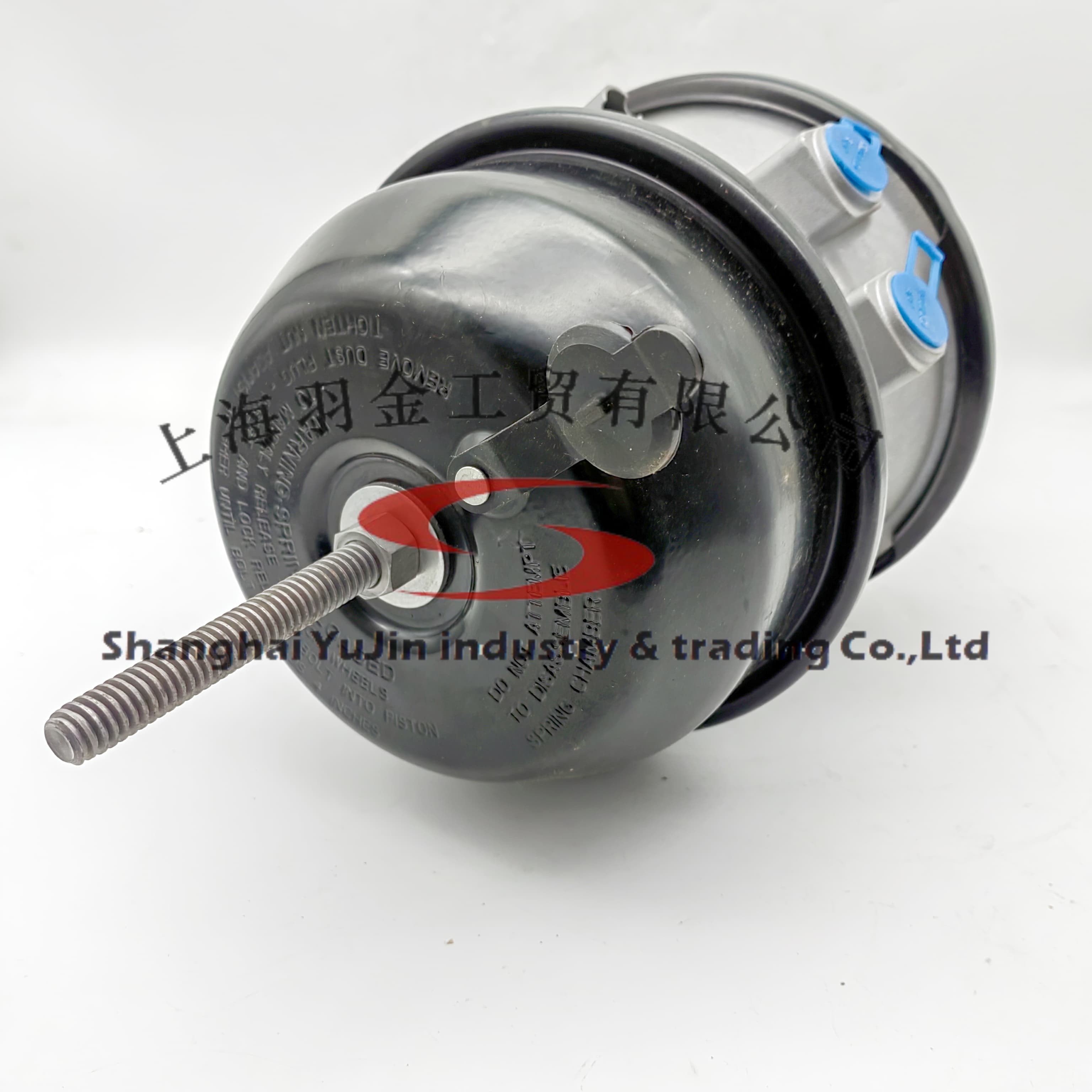

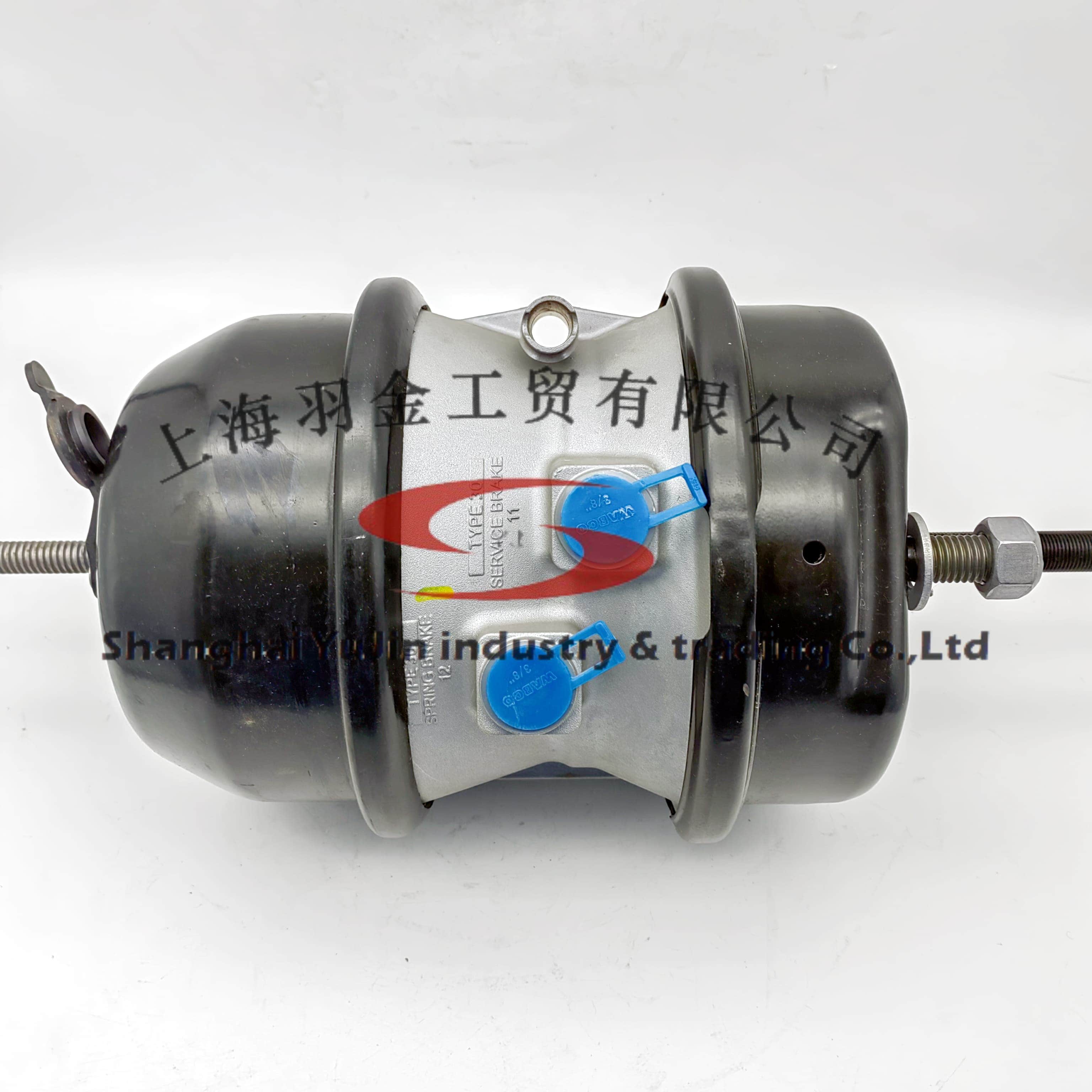

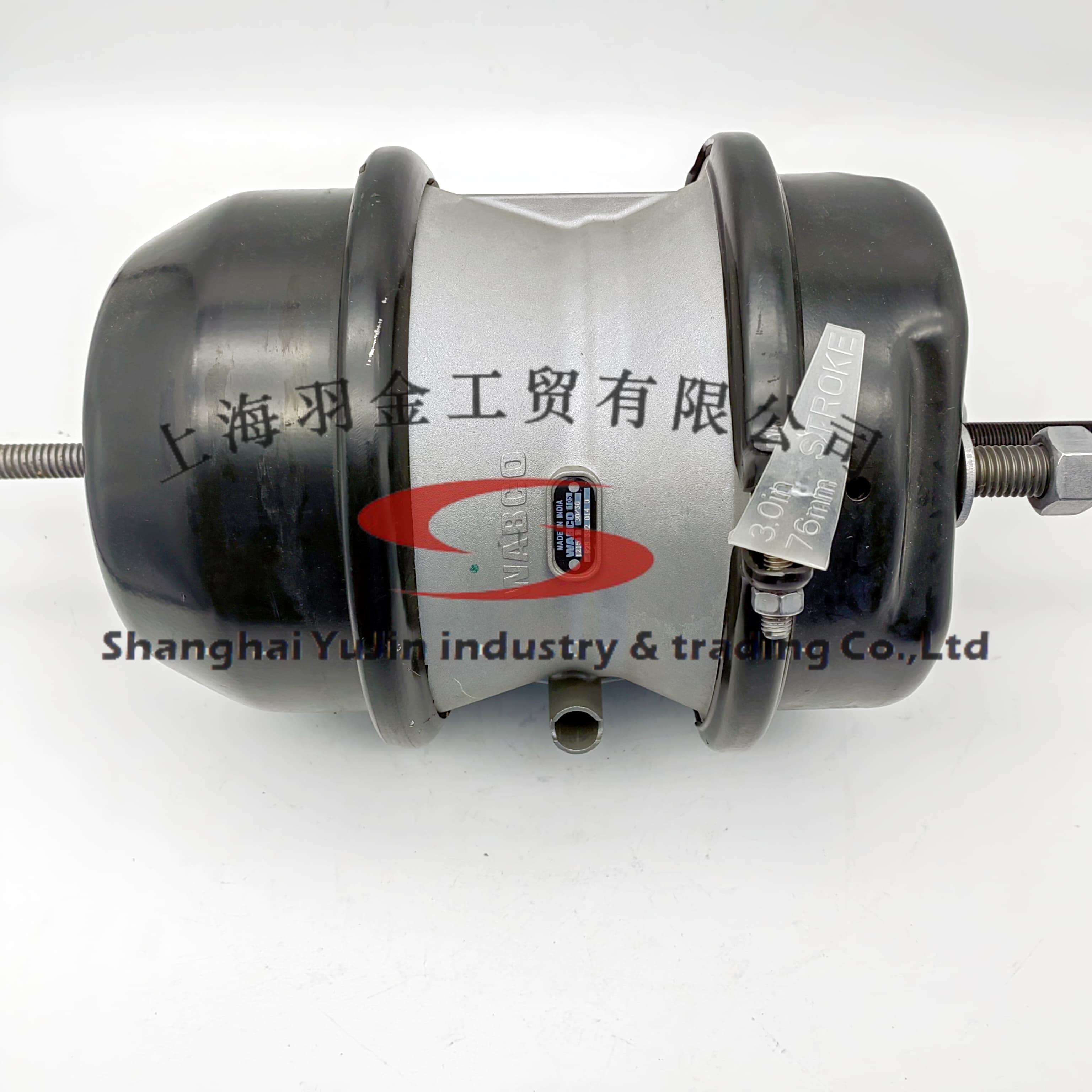

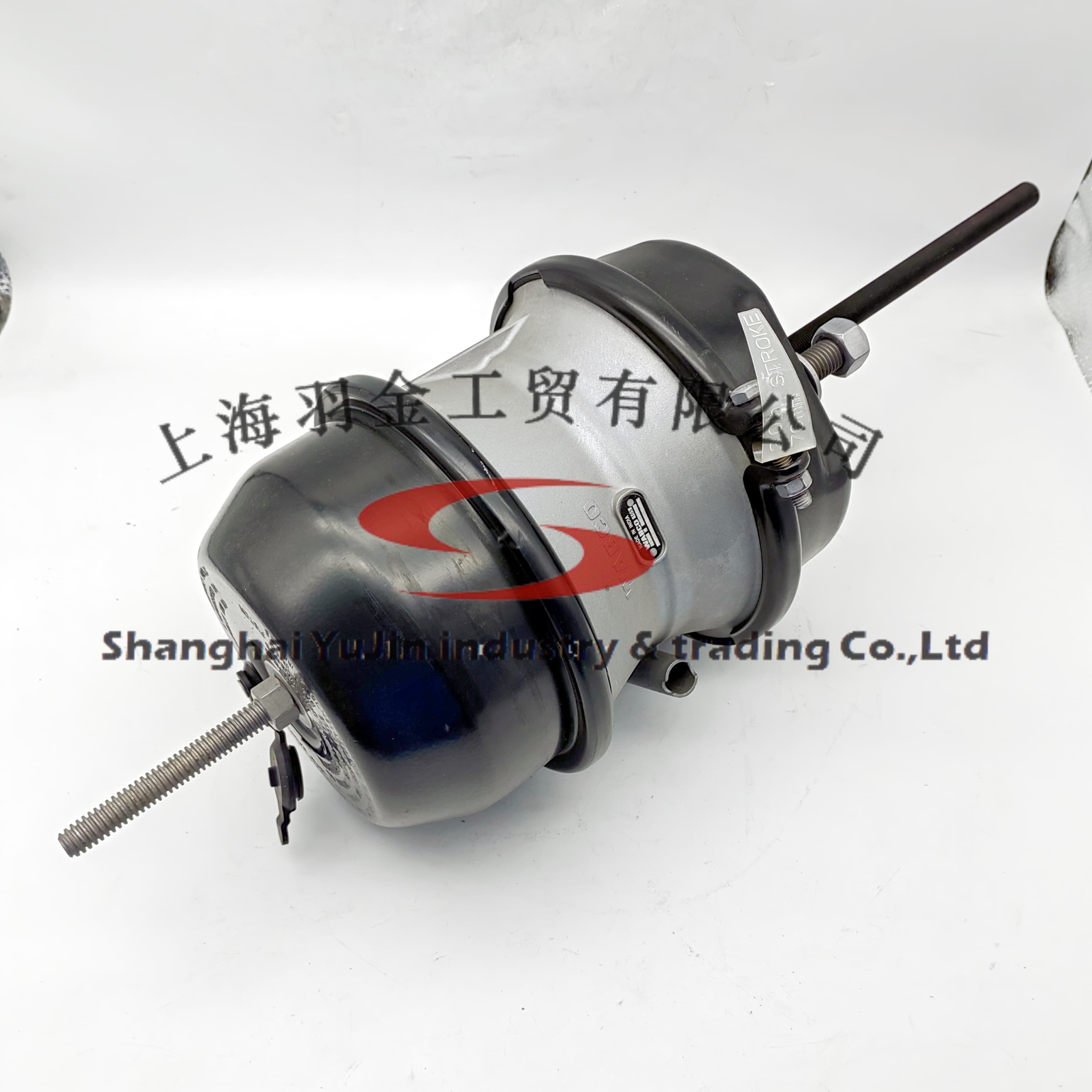

WABCO威伯科制动气室30/30 9253920140 12600624
制动气室30/30 -- 9253920140
产品介绍
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.50 in |
| Bolt threads | 5/8'' - 11 UNC |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 145.0 psi |
| Port angle | 0° |
| Port thread 11 | 3/8" - 18 NPTF |
| Port thread 12 | 3/8" - 18 NPTF |
| Push-rod length | 9.80 in |
| Push-rod thread | 5/8'' - 18 UNF |
| Release pressure | 66.72 psi |
| Stroke | 2.99 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 14.29 in |
| Type | 30/30 |
| Type of operation | Cam |
