WABCO威伯科制动气室9254800110 A0204203418 A0154208618 A0214209818 A0204205018 1524581

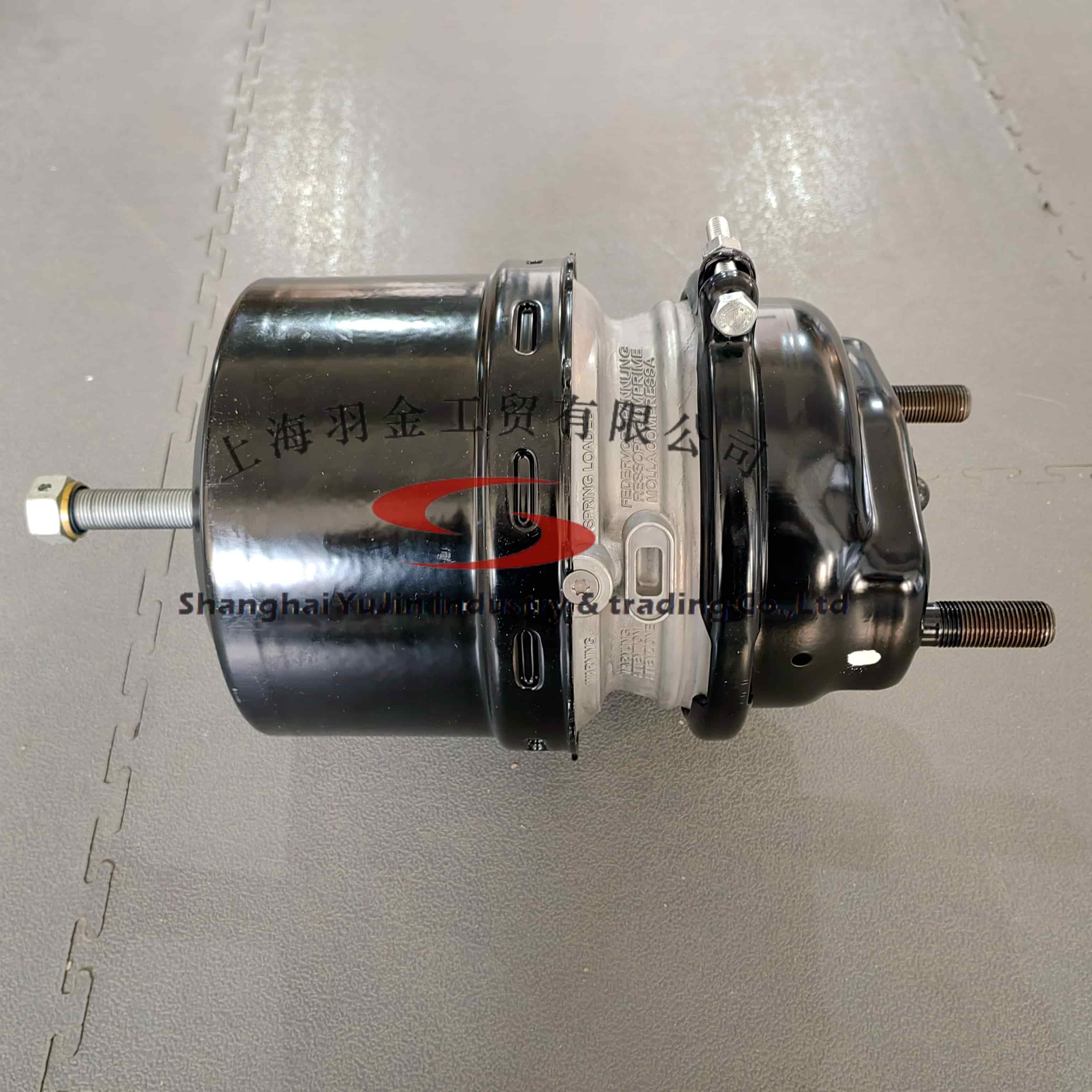

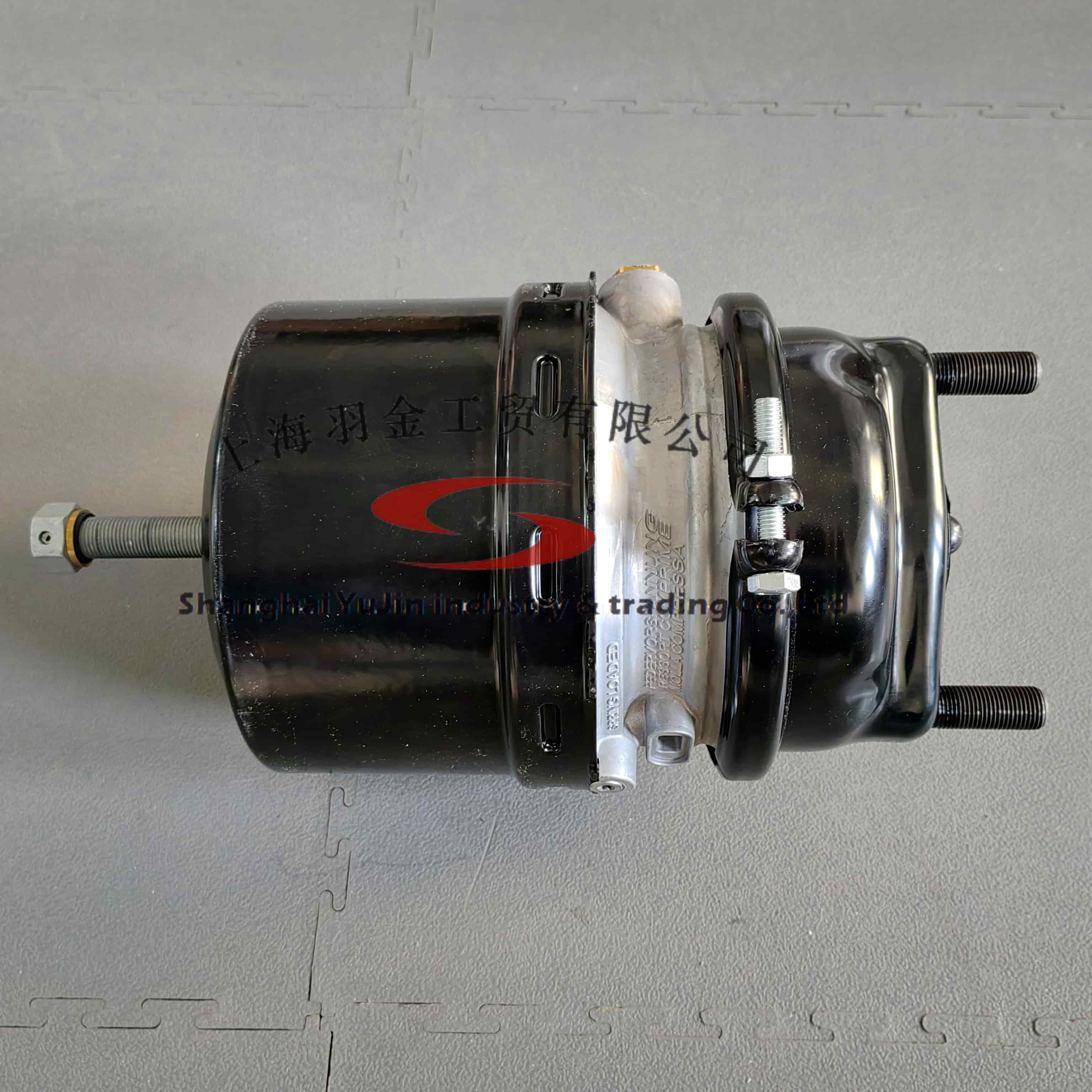

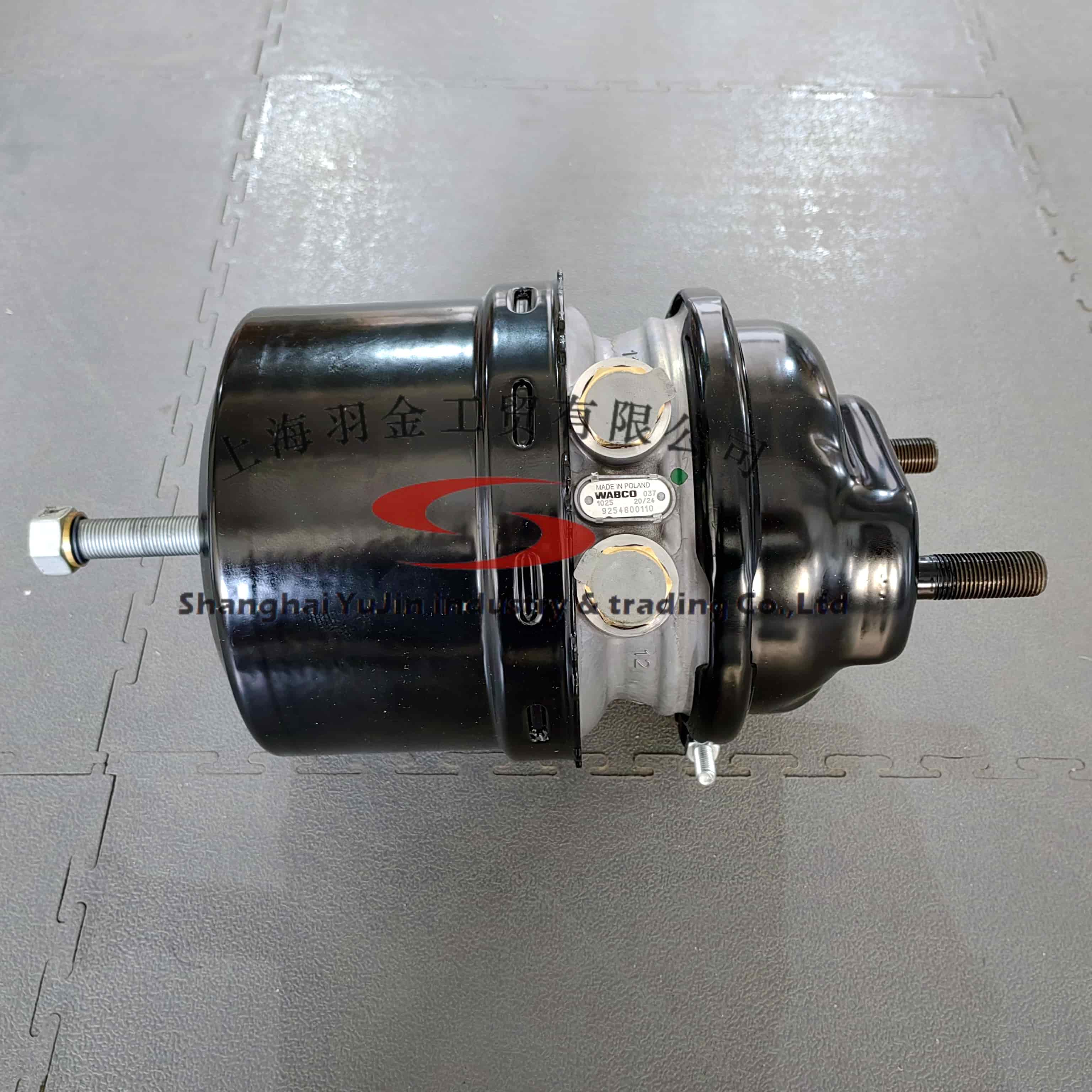

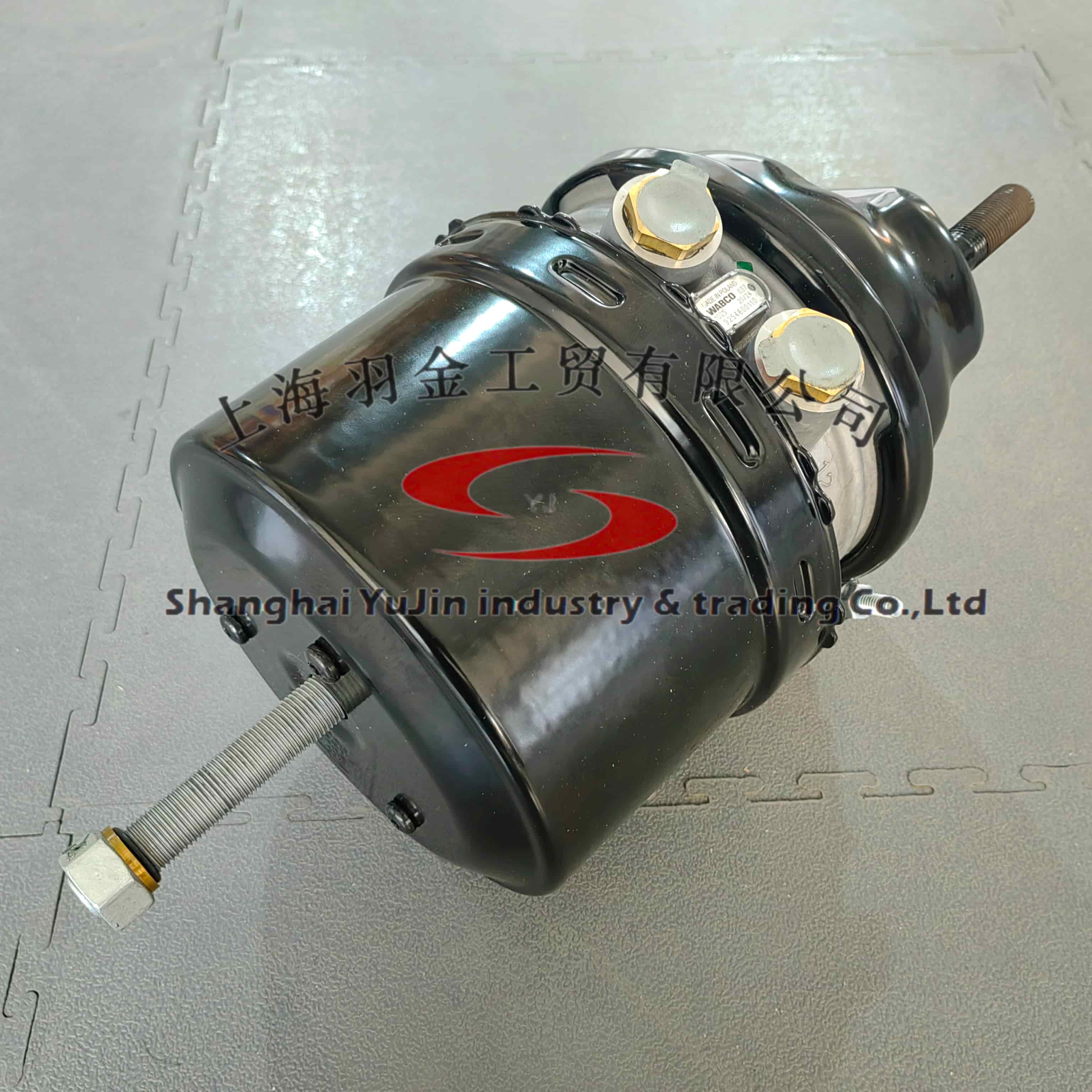

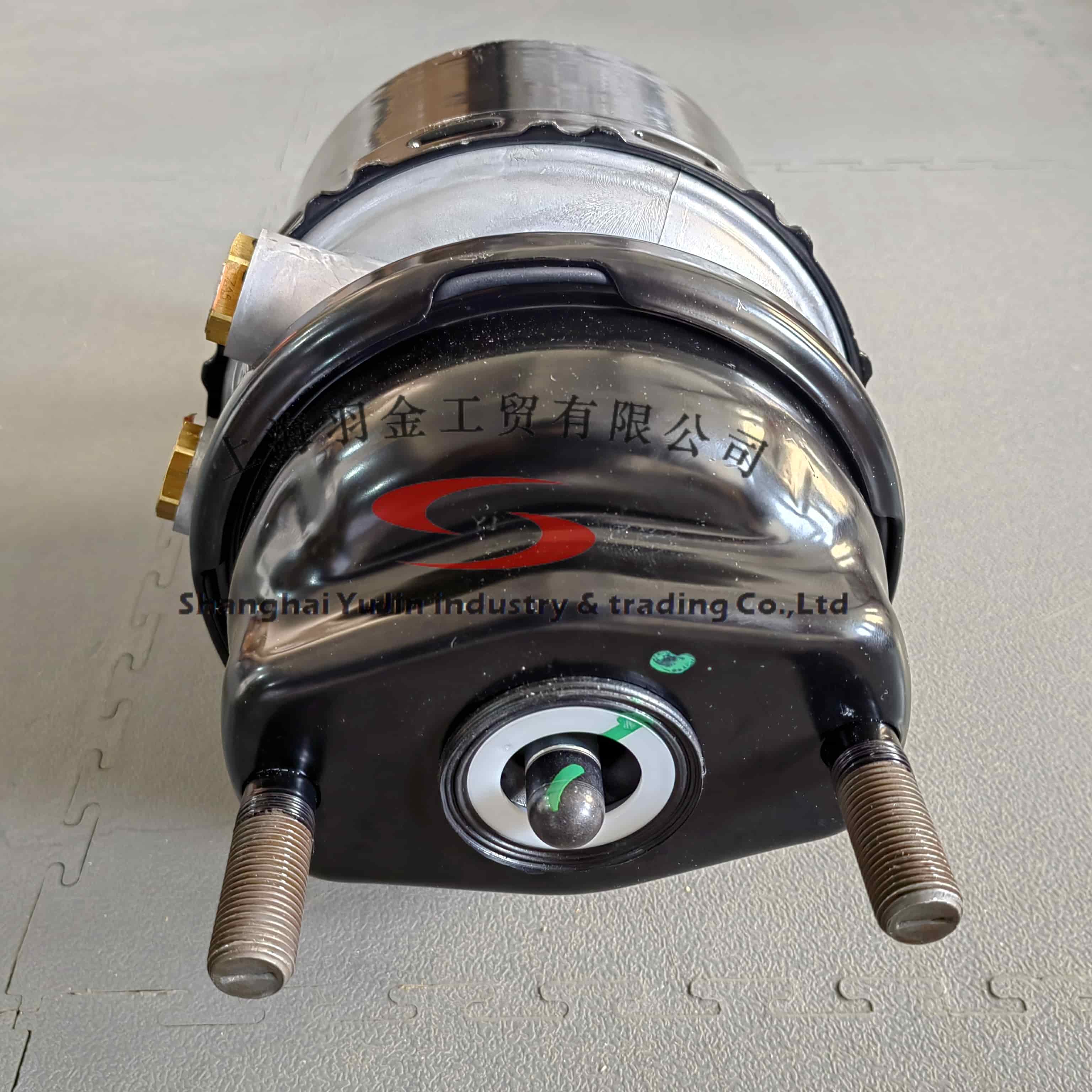

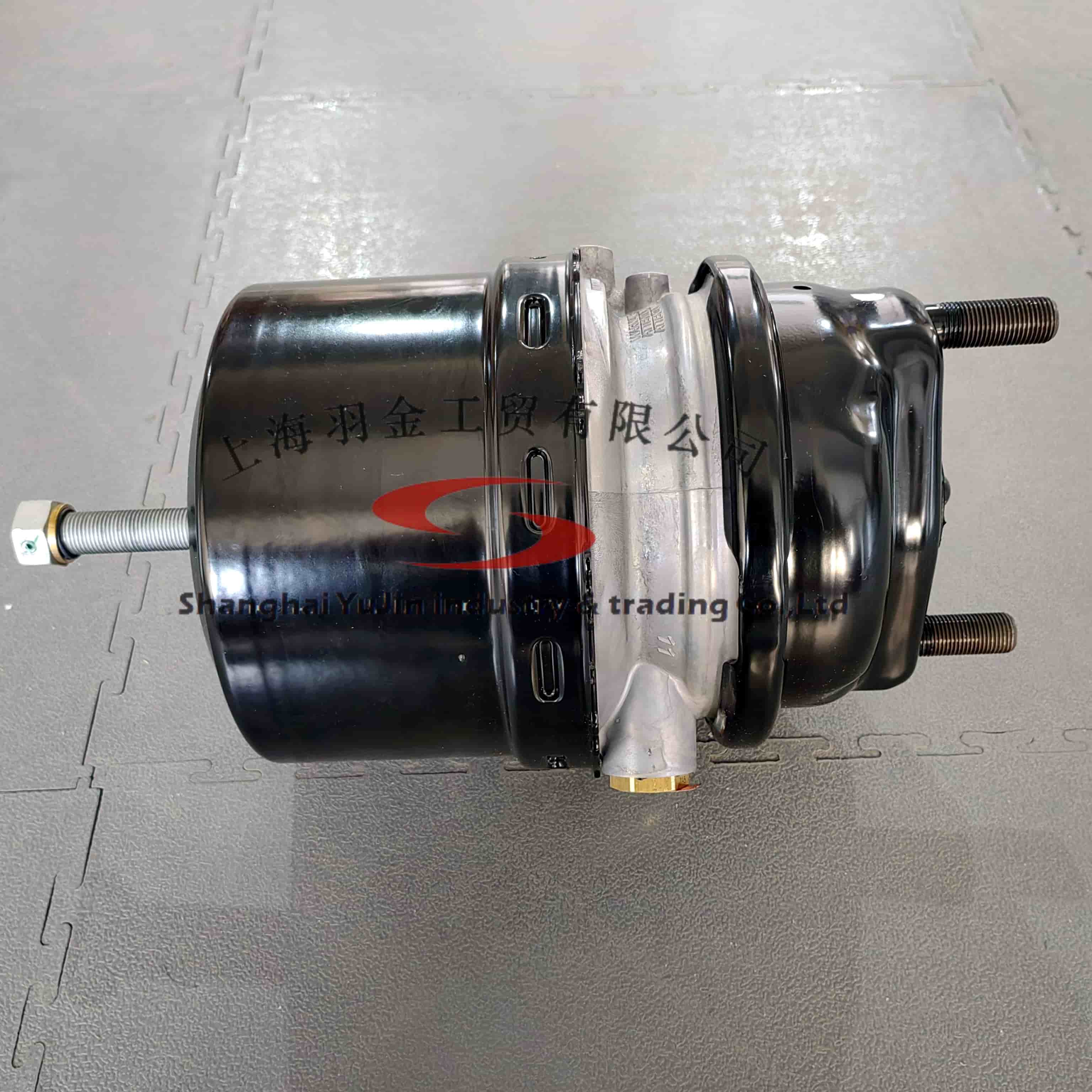

制动气室 -- 9254800110
产品介绍
| MERCEDES-BENZ | 0204203418 |
| MERCEDES-BENZ | 0154207618 |
| MERCEDES-BENZ | 0154208618 |
| MERCEDES-BENZ | 0204205018 |
| MERCEDES-BENZ | A0204203418 |
| MERCEDES-BENZ | A0154208618 |
| MERCEDES-BENZ | A0214209818 |
| MERCEDES-BENZ | A0204205018 |
| PACCAR | 1524581 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 15.1343 |
| Comments | With VOSS 232 |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Opposite | 925 480 010 0 |
| Output force M | 2234.60 lbf |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 12 | M22 x 1.5 JED - 388 |
| Port threads | M22 x 1.5 |
| Push-rod length | 0.59 in |
| Push-rod thread | Ball R8 |
| Release pressure | 73.97 psi |
| Return-spring force | 49.46 lbf |
| Stroke | 2.52 / 2.52 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 10.16 in |
| Type | 20/24 |
| Type of operation | Disc |
