WABCO威伯科制动气室9254221200 81504106677 81504106678 81504106674

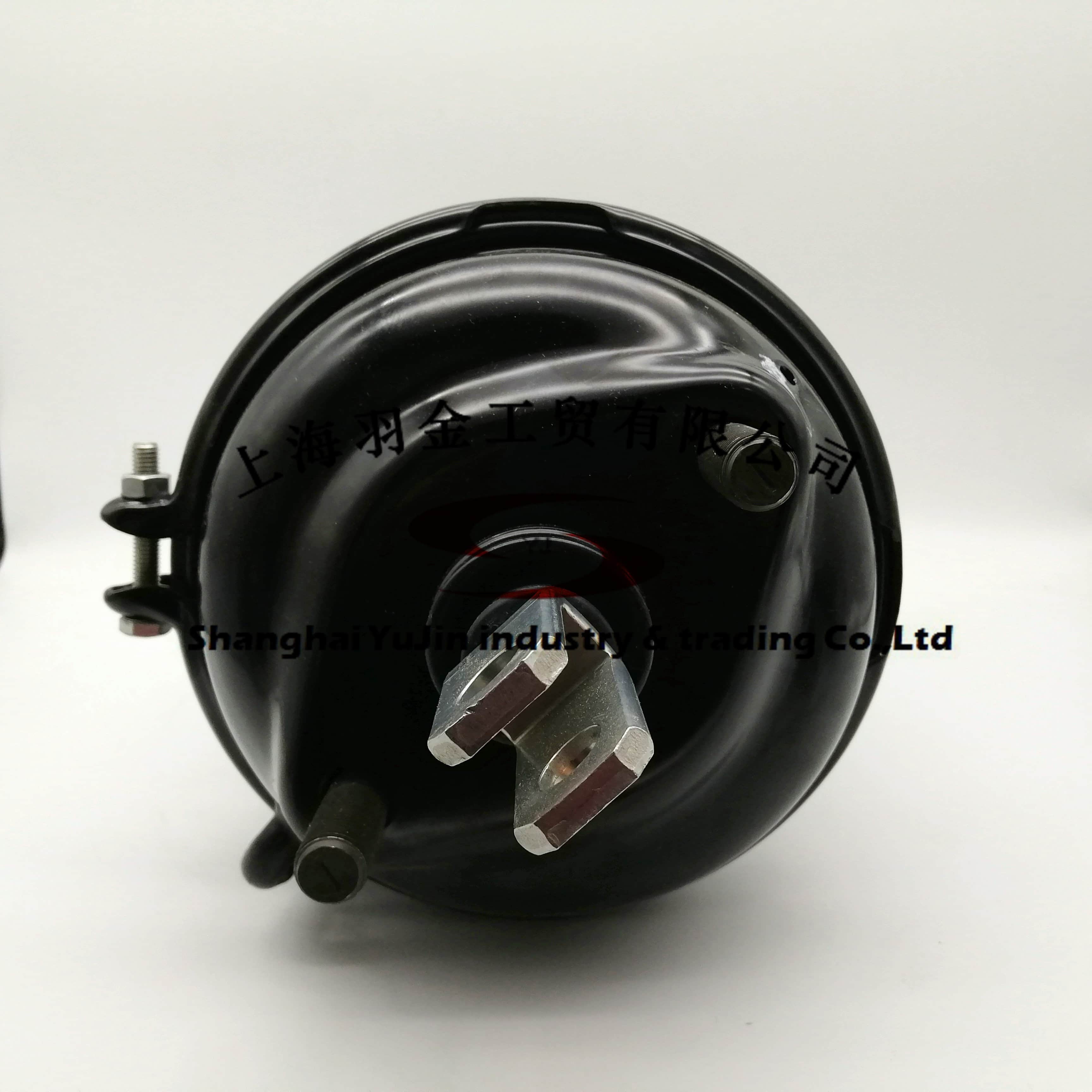

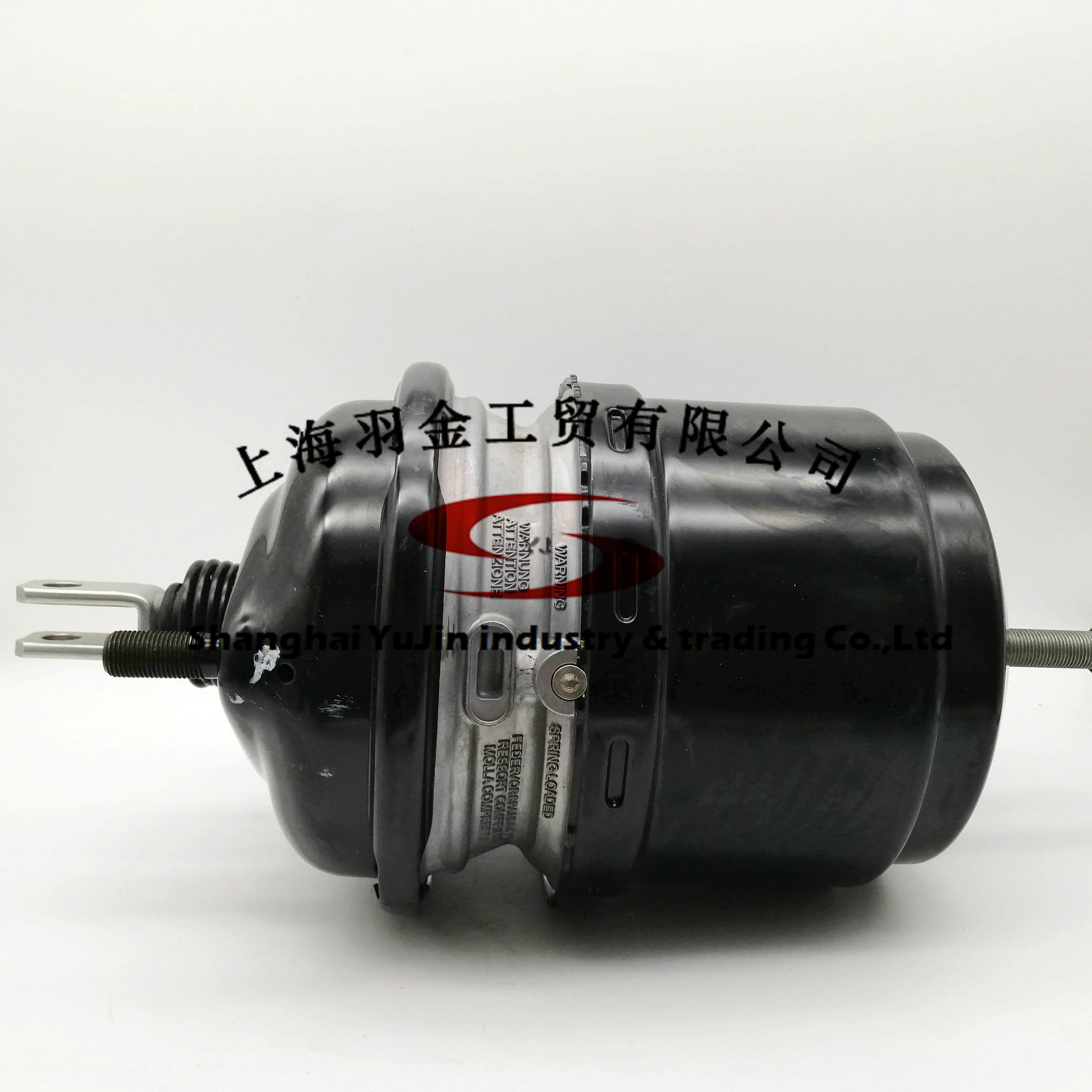

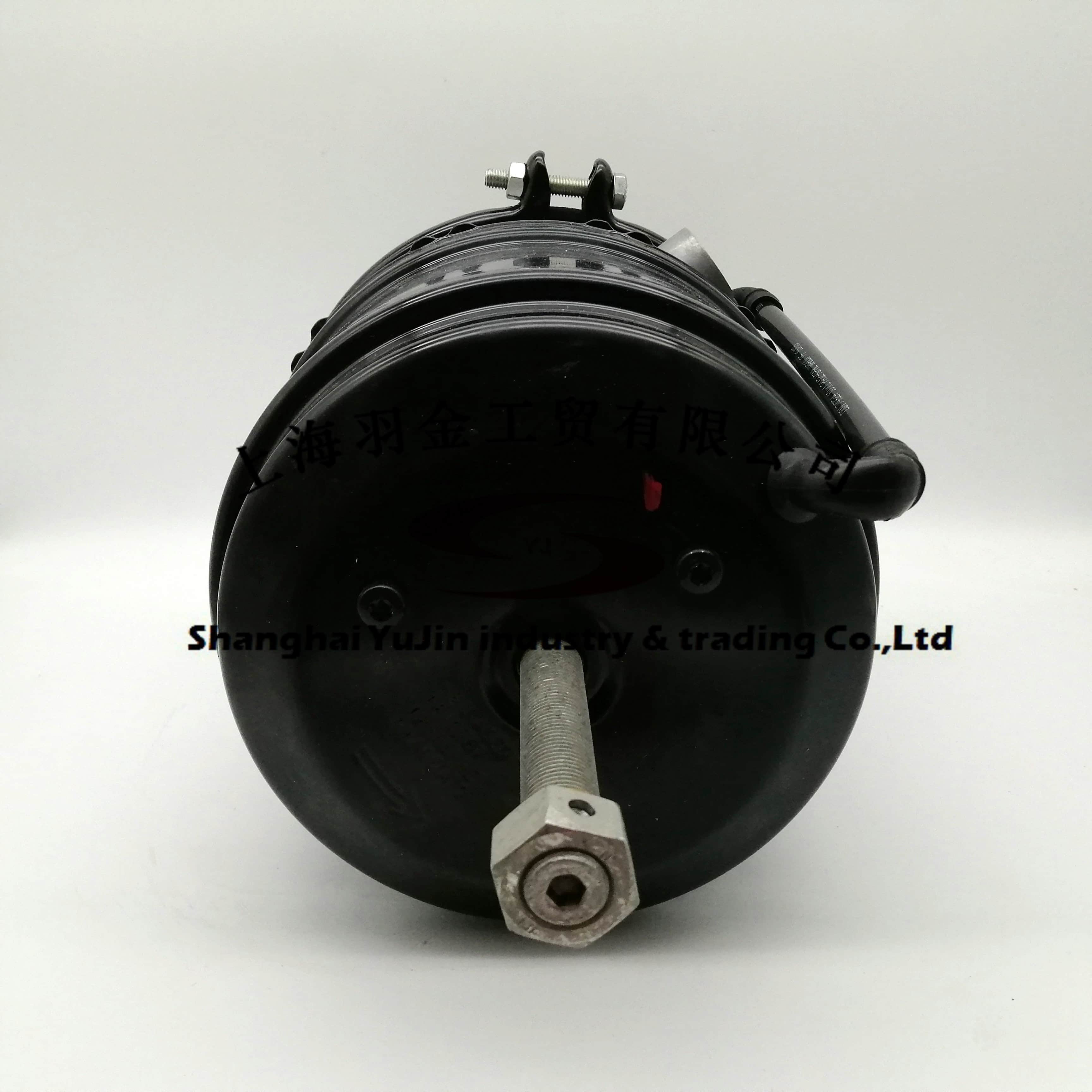

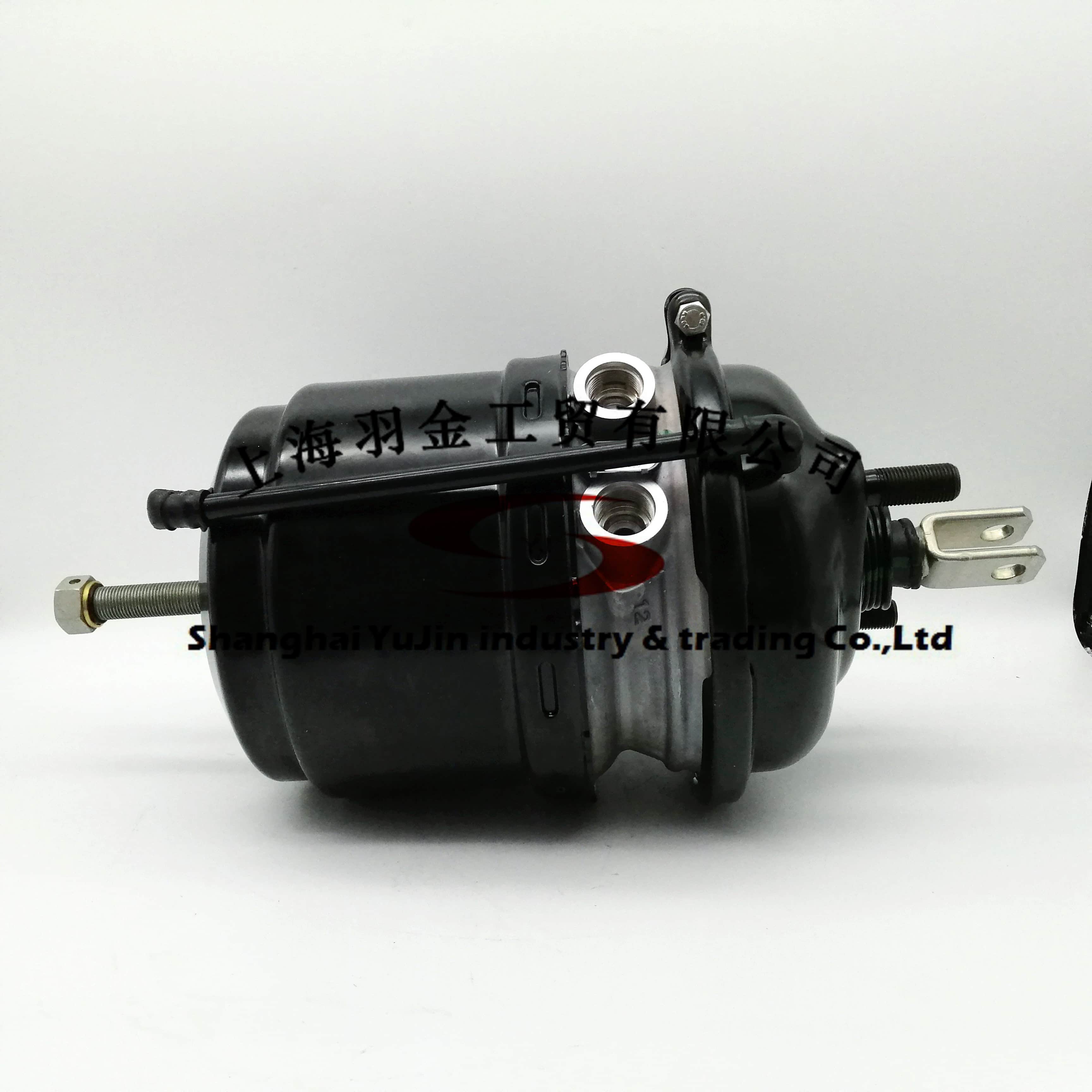

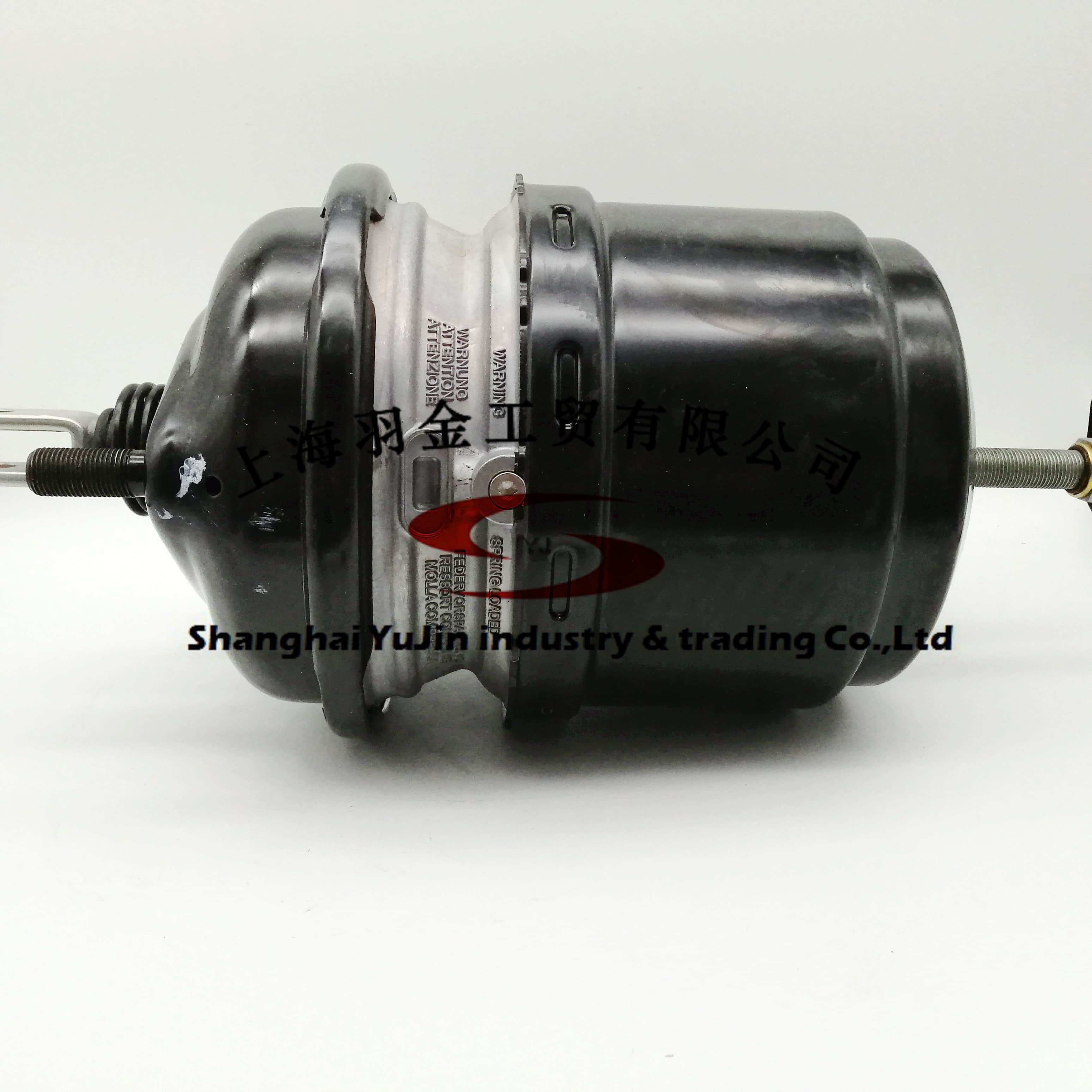

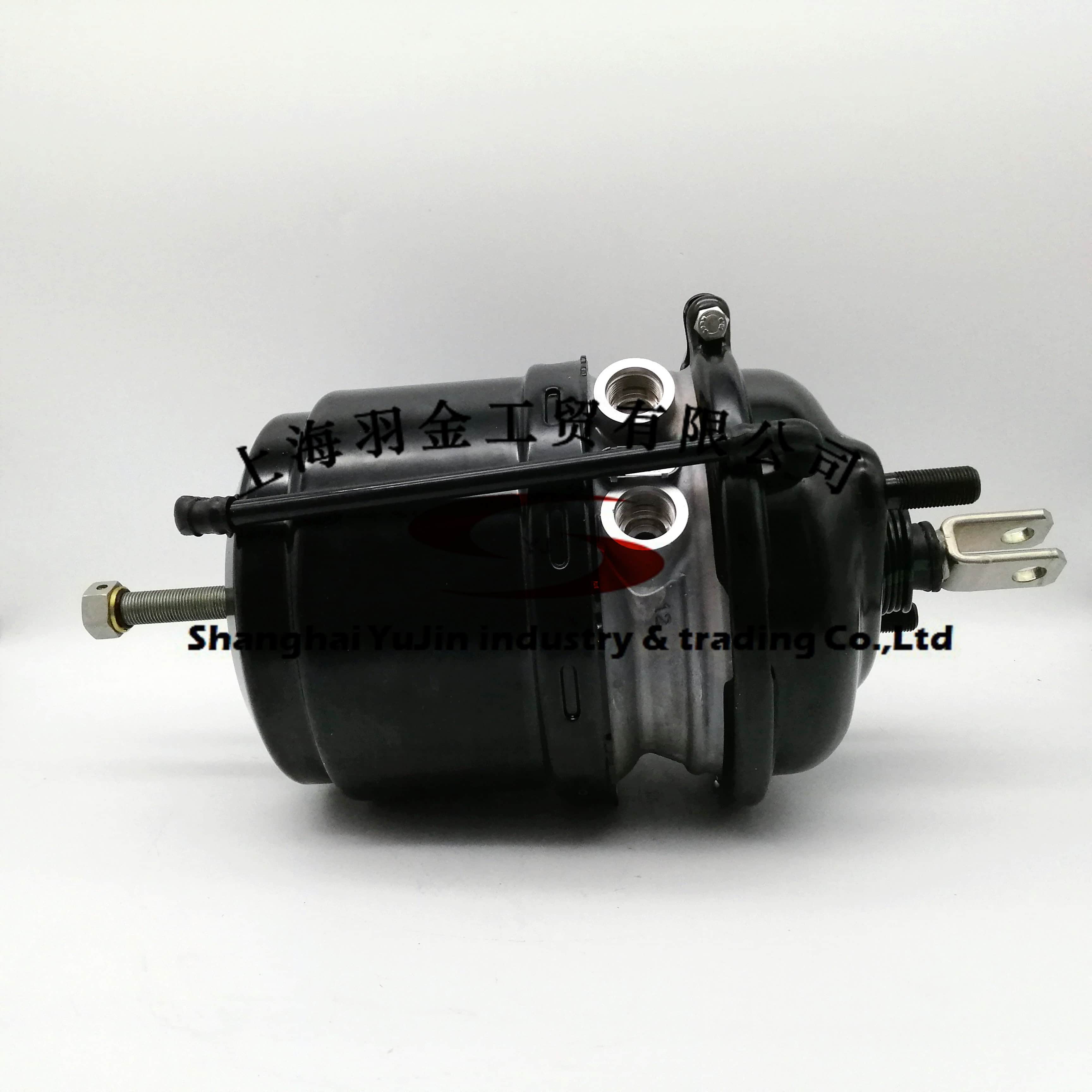

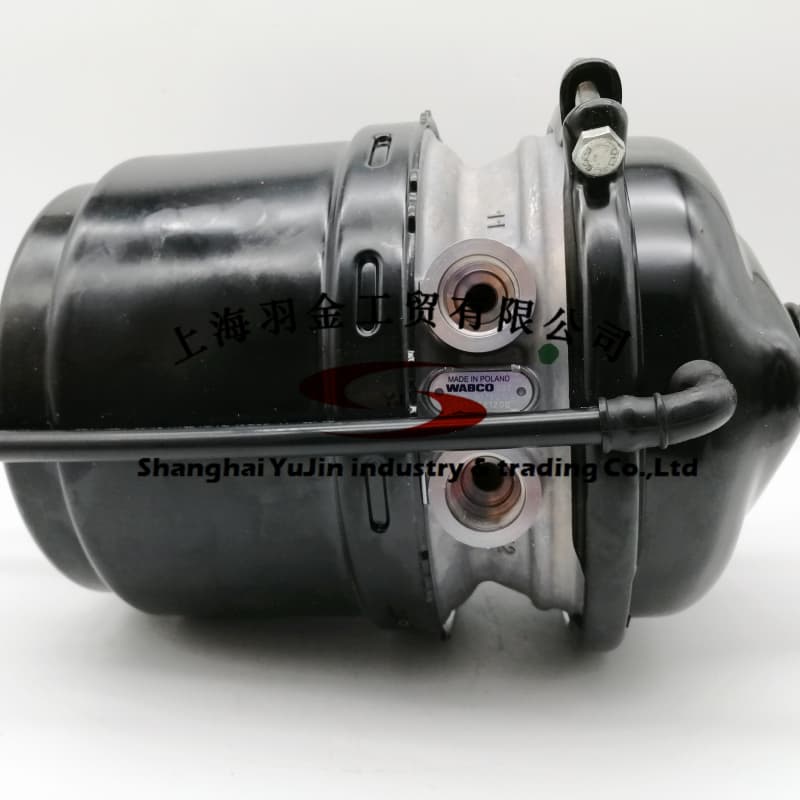

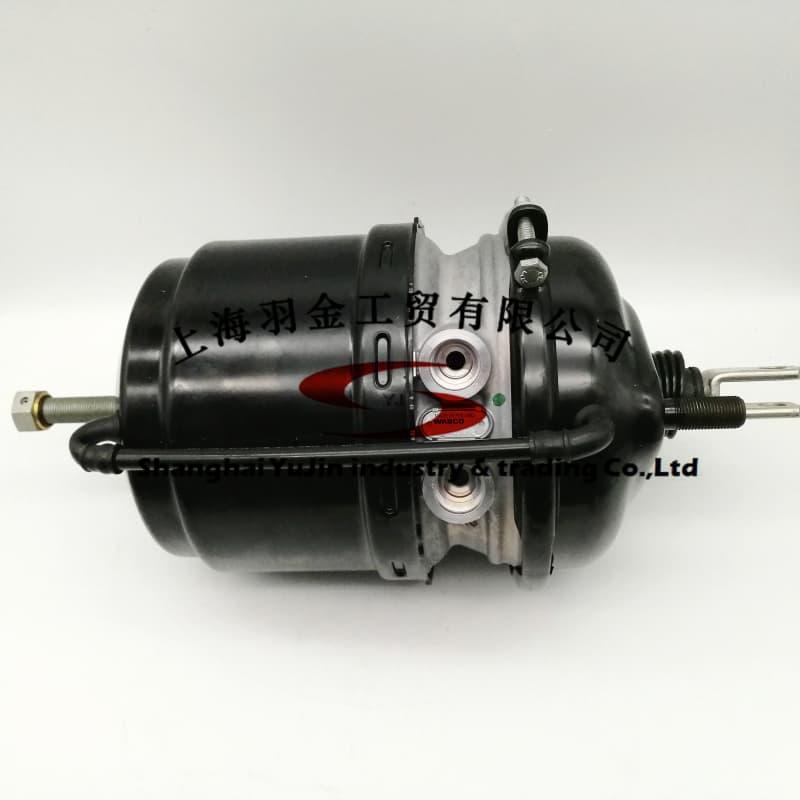

制动气室 -- 9254221200
产品介绍
| MAN | 81504106674 |
| MAN | 81504106677 |
| MAN | 81504106678 |
| NEOPLAN | 81504106674 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.52 in |
| Bolt threads | 2 x M16 x 1.5 |
| Calculated Volume (dm³) | 22.473 |
| Clevis pin | 0.55 in |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Output force 3 | 2585.30 lbf |
| Output force M | 3259.73 lbf |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port threads | M22 x 1.5 |
| Push-rod length | 2.95 in |
| Release pressure | 73.97 psi |
| Return-spring force | 56.20 lbf |
| Stroke | 2.56 / 2.56 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 11.18 in |
| Type | 30/30 |
| Type of operation | Cam |
| Version | with boot |
| Yoke | Welded |
