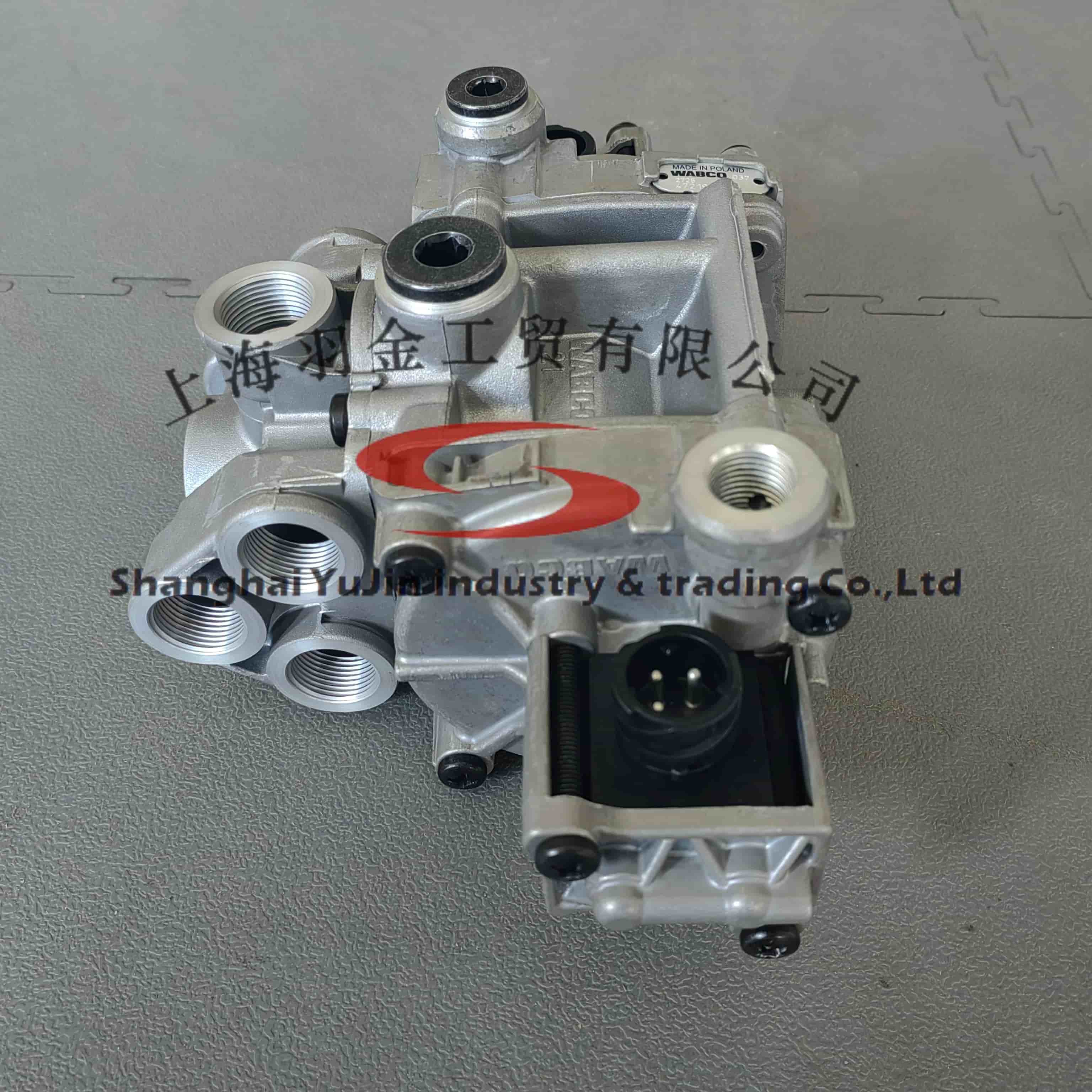

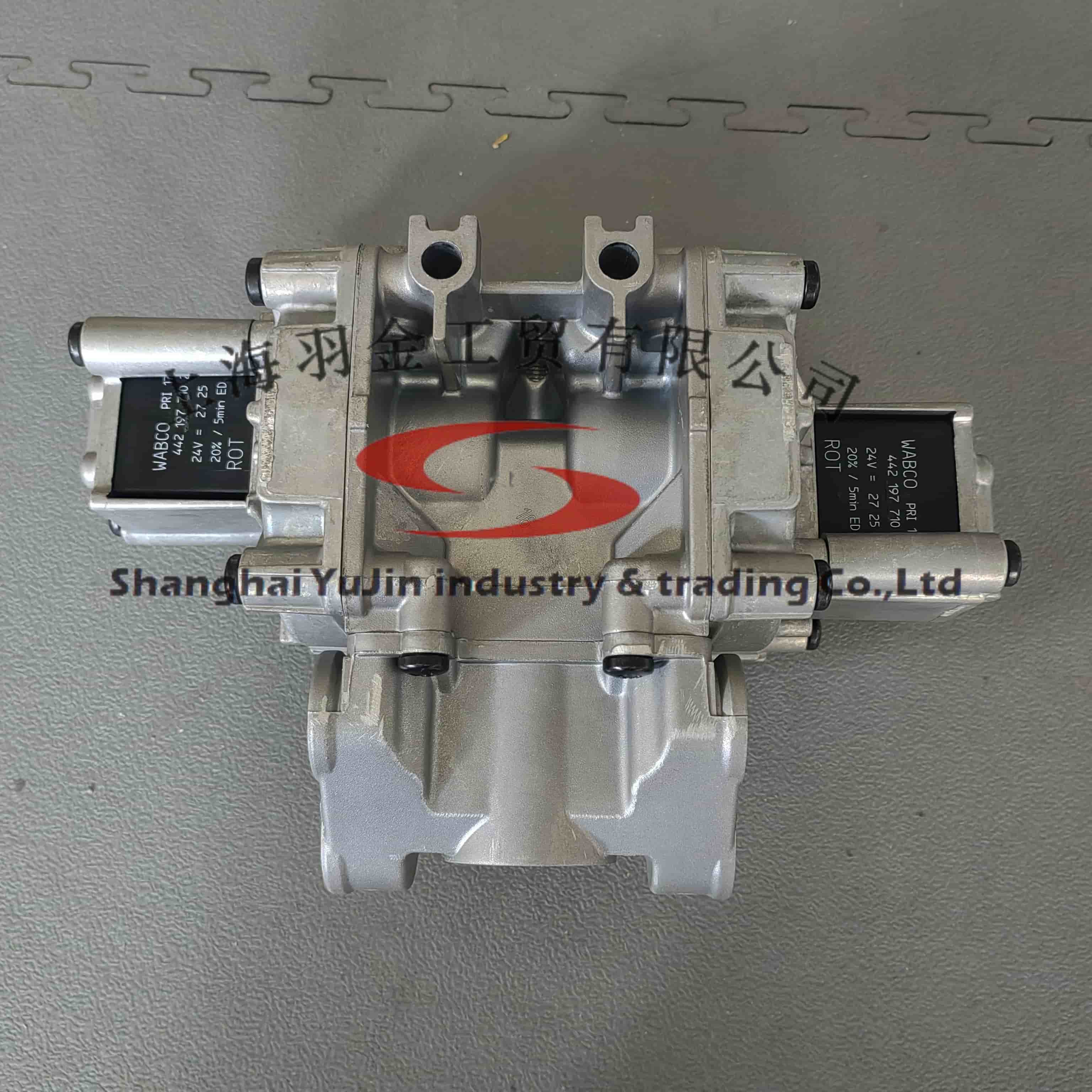

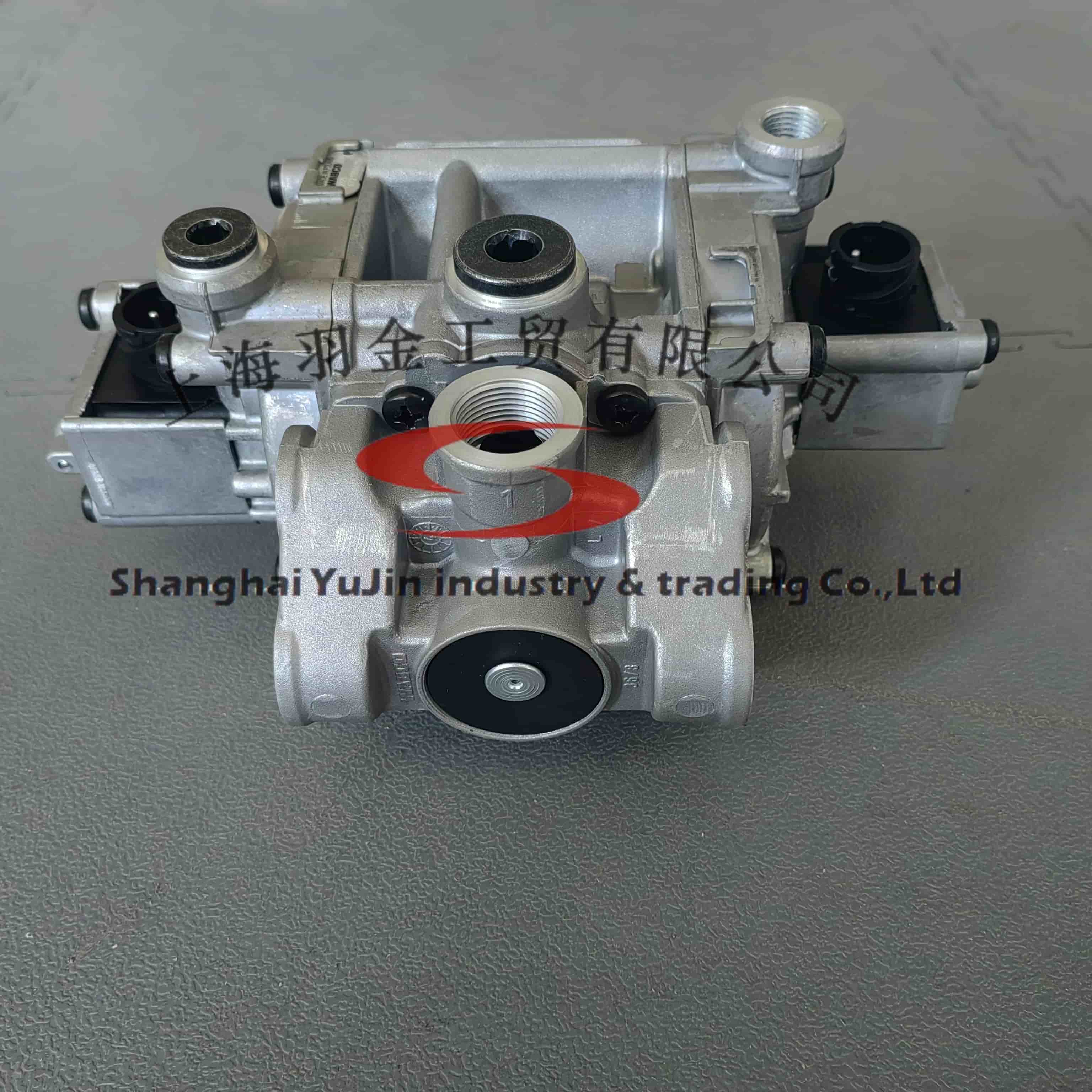

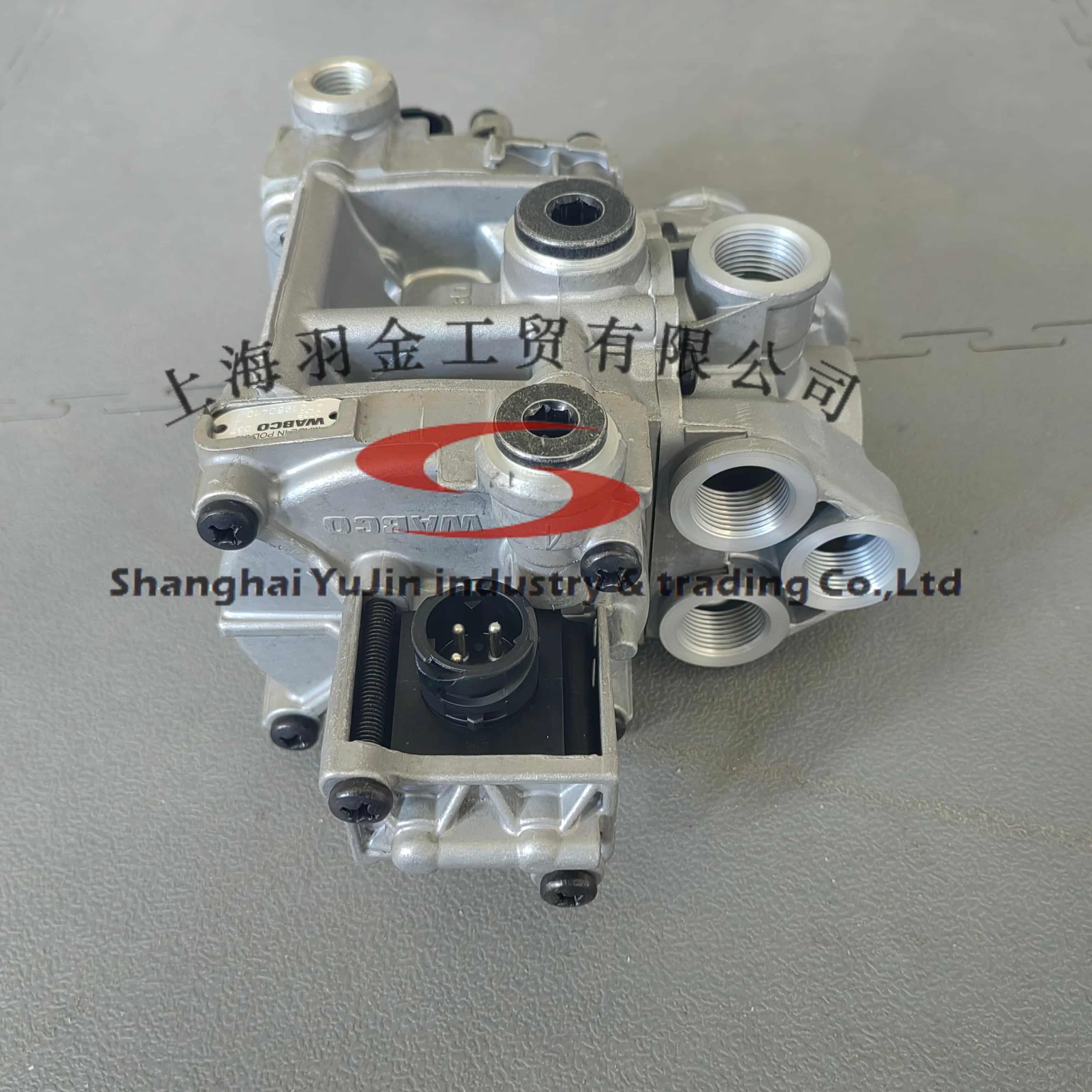

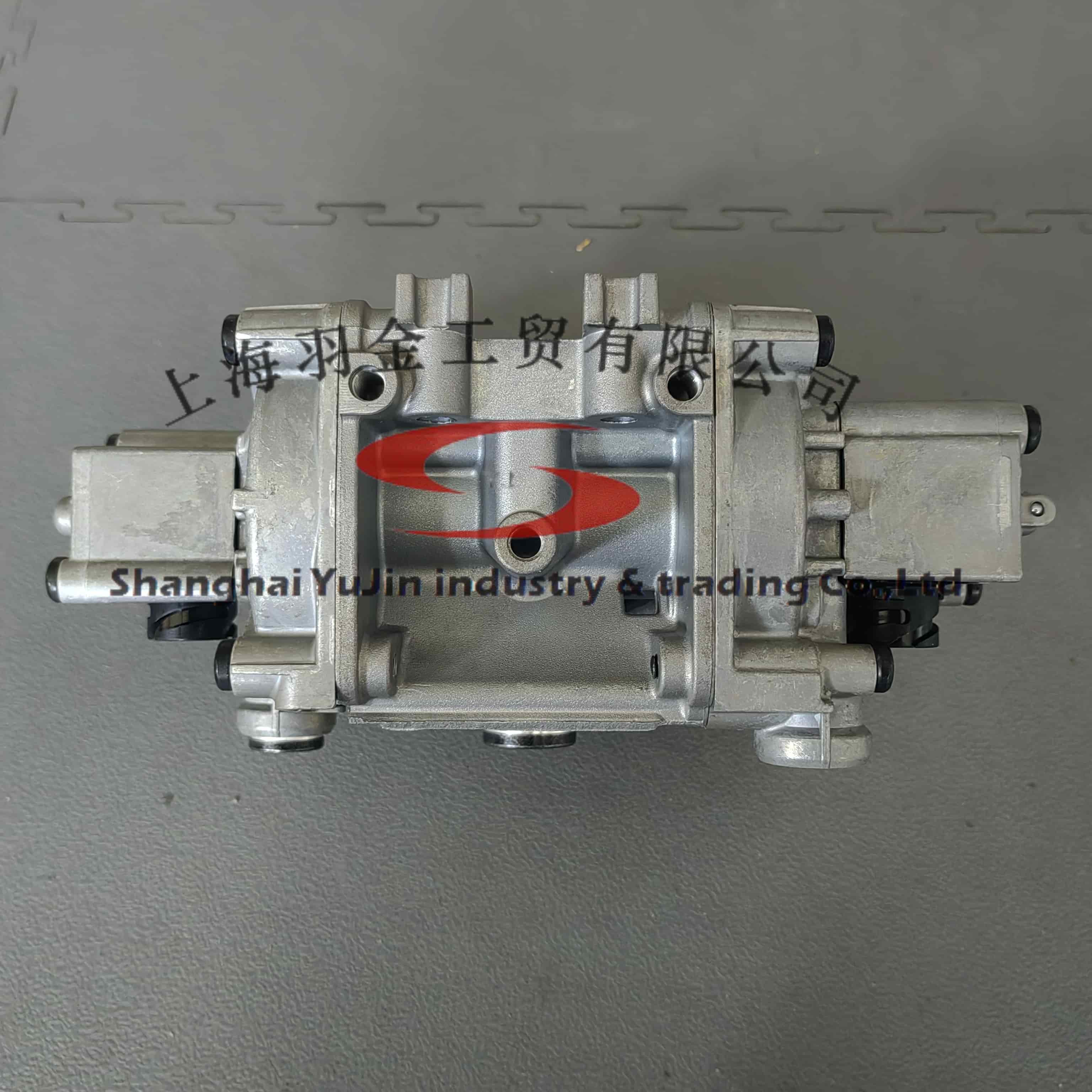

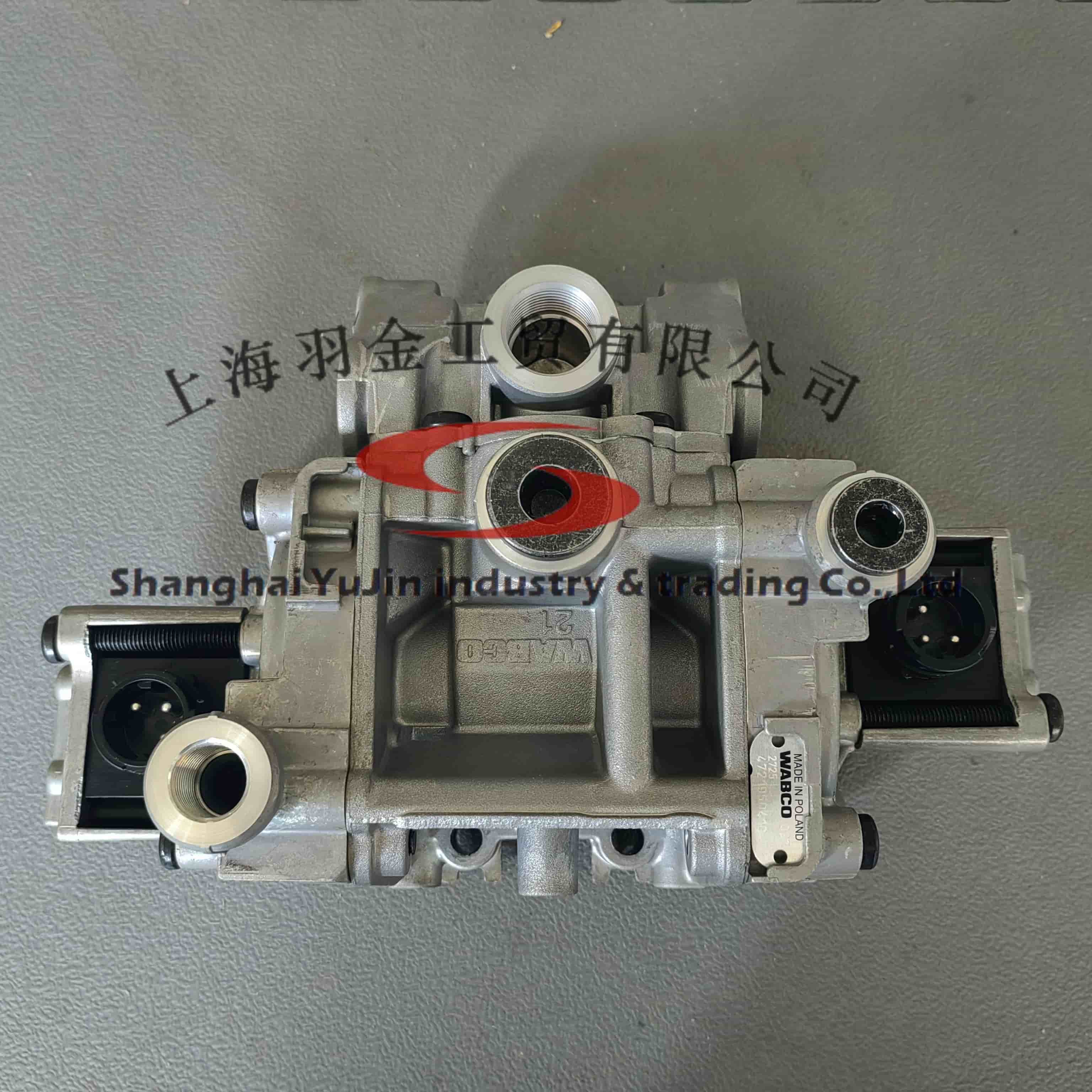

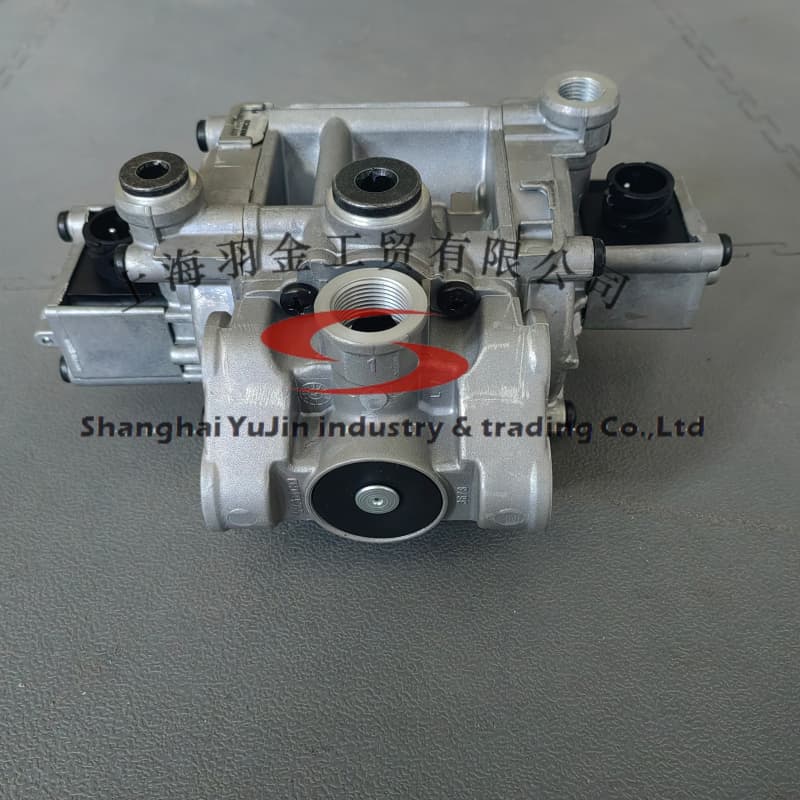

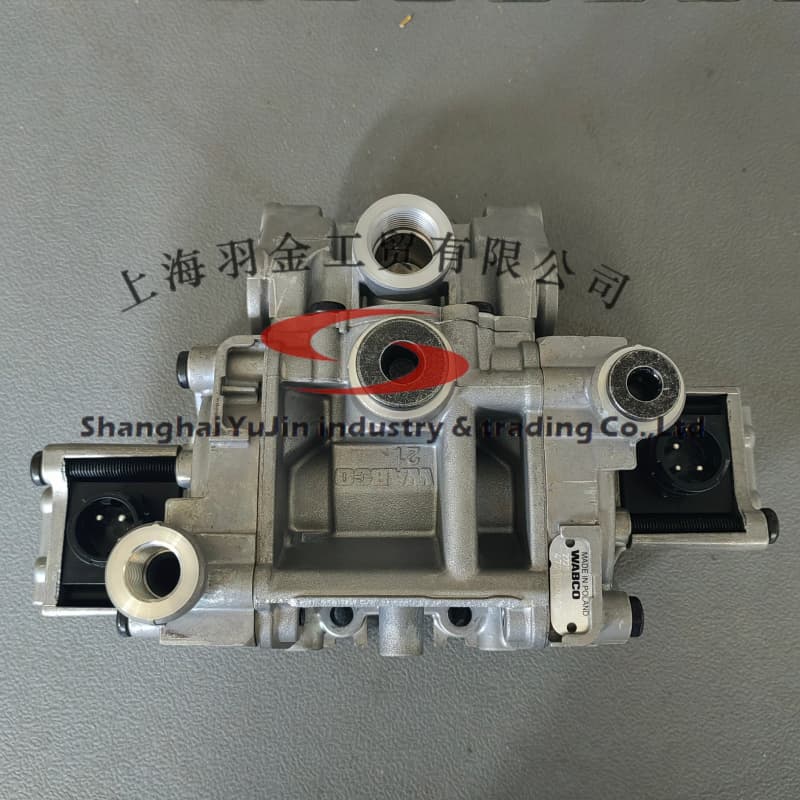

ABS电磁阀 -- 4721950410
| DAF | 1624254 |
| DOLL | 7064984 |
| FAYMONVILLE | 14194 |
| FELDBINDER | 011008 |
| GOLDHOFER | 167145 |
| KRONE | 5815328 |
| KRONE | 58153280 |
| LANGENDORF | 1111635 |
| MAN | N2524526001 |
| NIPPON TREX | 924301-00086 |
| NOOTEBOOM | 1278076 |
| NOOTEBOOM | 20096 |
| PACCAR | 1624254 |
| RENAULT | 5021170198 |
| SCANIA | 1934976 |
| SCHMITZ CARGOBULL | 54573 |
| SCHMITZ CARGOBULL | 054573 |
| SCHWARZMÜLLER | 43209 |
| TIRSAN | 21150110057 |
| ZORZI | 1013178 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 4.6799 |
| Comments | Adapter kostal M24x1: 2x 8946011322 |
| Distance between bolts | 2.76x1.38 in |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K1 |
| Max. operating pressure | 145.0 psi |
| Mounting | 3 x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | 3x M22 x 1.5 |
| Port thread 23 | 3x M22 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Port thread 4 | M16 x 1.5 |
| Protection class | IP 66, IP 69K |
| Rated current | 1650 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
