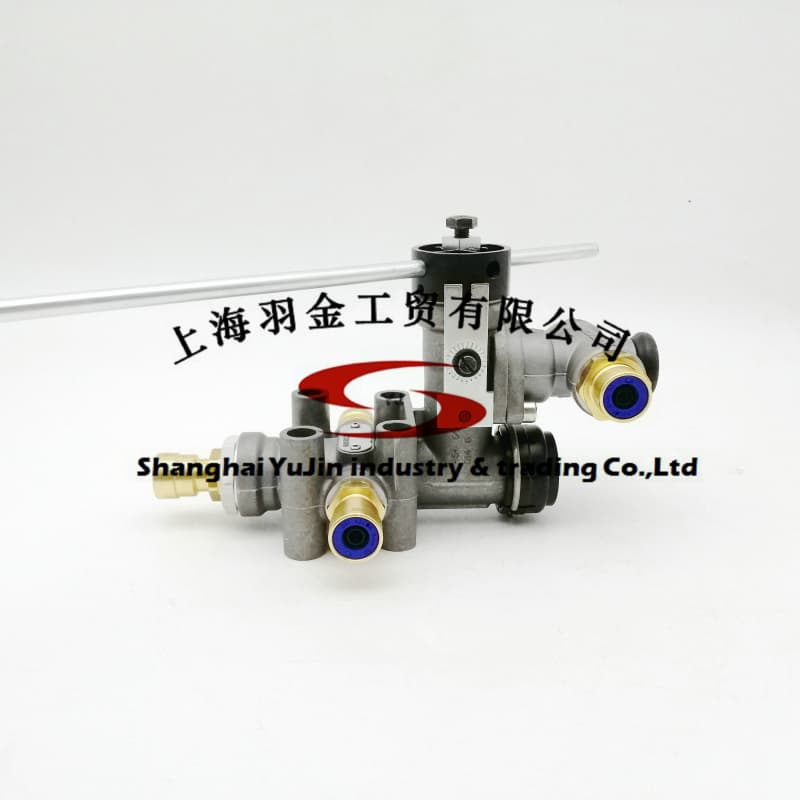

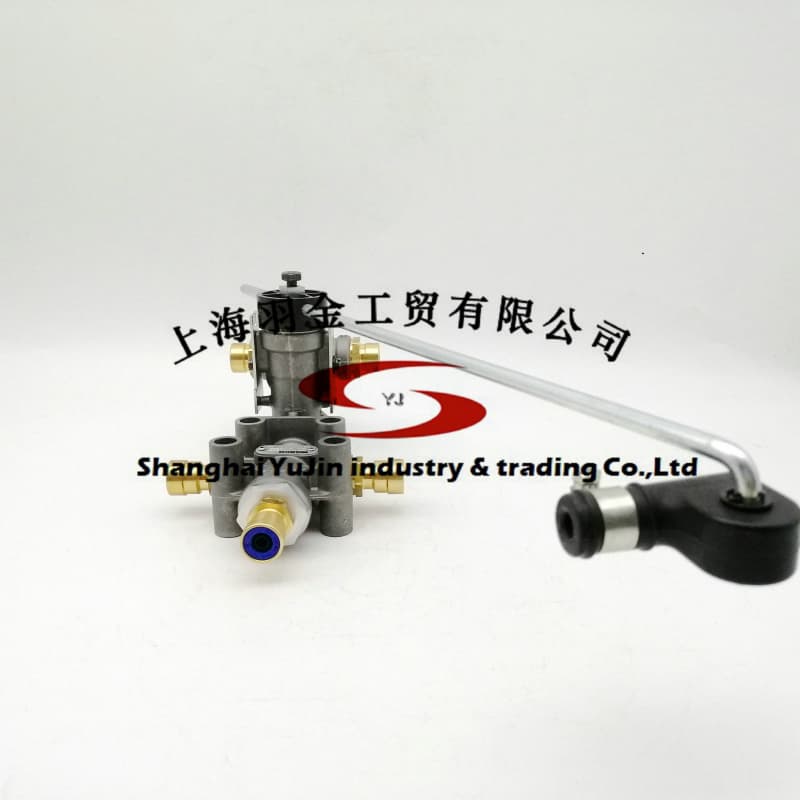

WABCO威伯科挂车高度阀4640062010 2089980
挂车高度阀 -- 4640062010
产品介绍
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation angle | 90° |
| Body material | Aluminium |
| Calculated Volume (dm³) | 4.8038 |
| Comments | 2-circuit. With fittings |
| Distance between holes | 1.57/1.97 in |
| Max. operating pressure | 188.5 psi |
| Mounting | 4x Ø 8.8 mm |
| Nominal diameter | 3.0 mm |
| Port thread 1 | Ø 8 x 1 |
| Port thread 12 | Ø 8 x 1 |
| Port thread 21 | Ø 8 x 1 |
| Port thread 22 | Ø 8 x 1 |
| Port thread 23 | Ø 8 x 1 |
| Port thread 3 | Flap Exhaust |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 2-stage with regulation |
| Version | With Lever |
