| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | Rear axle |
| Calculated Volume (dm³) | 7.2947 |

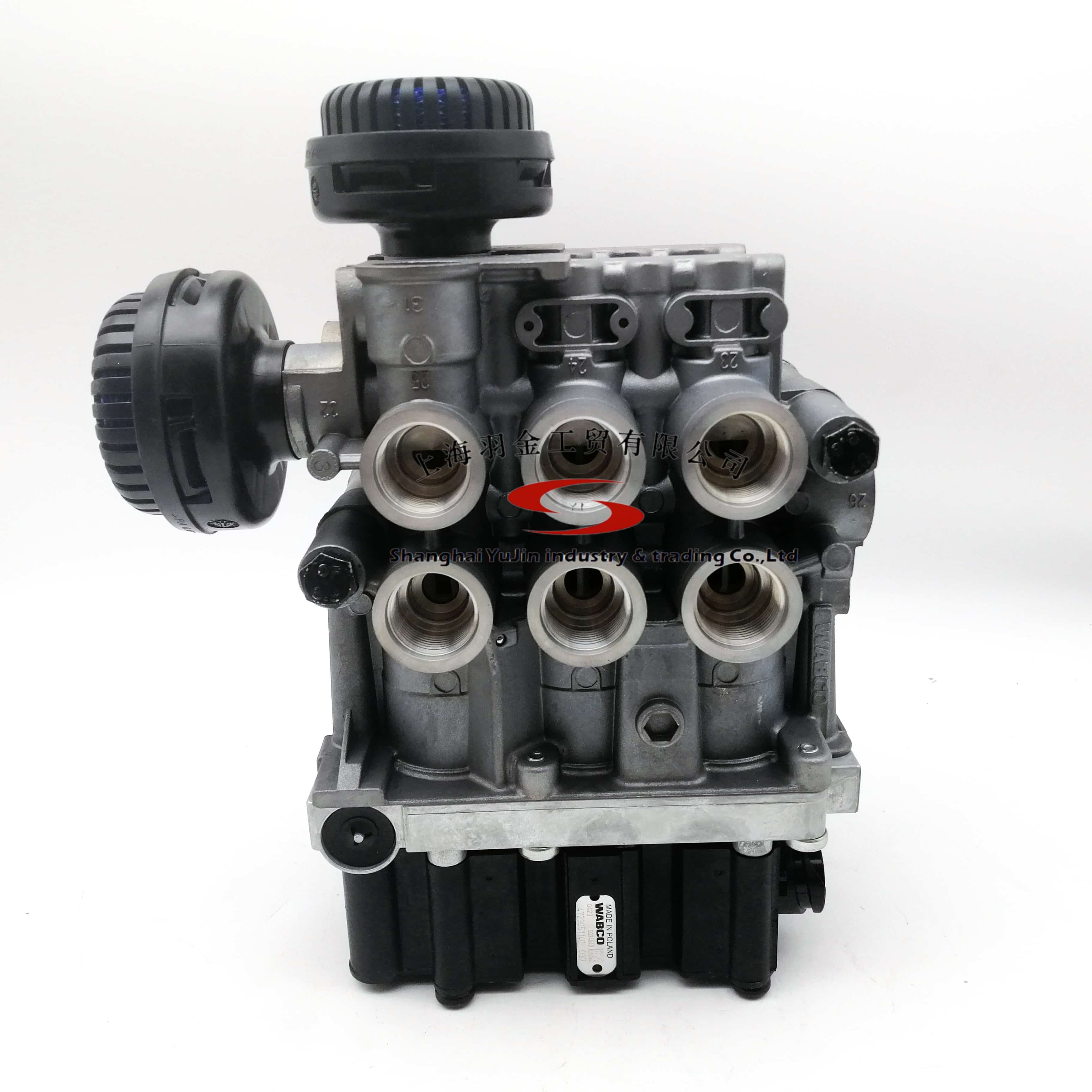

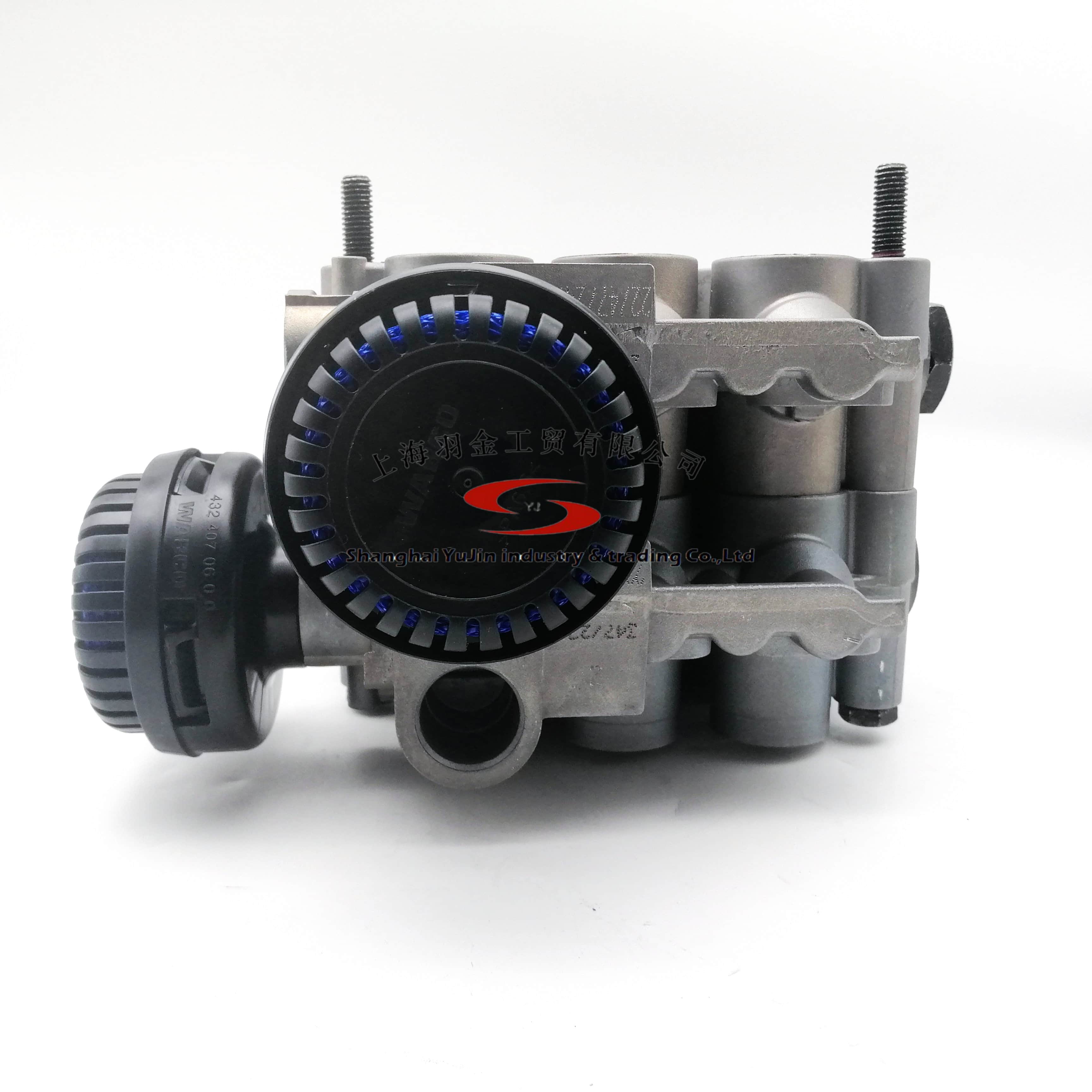

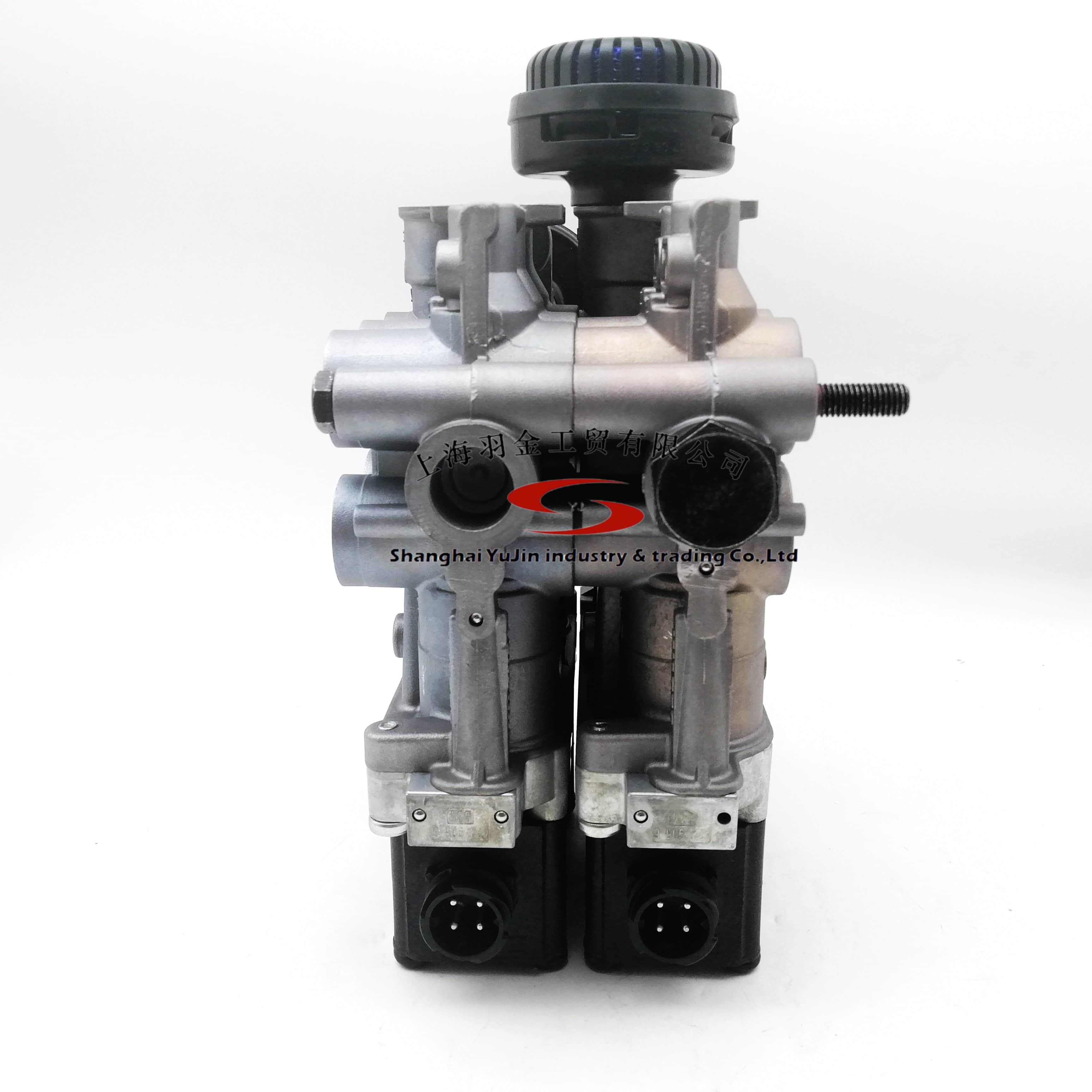

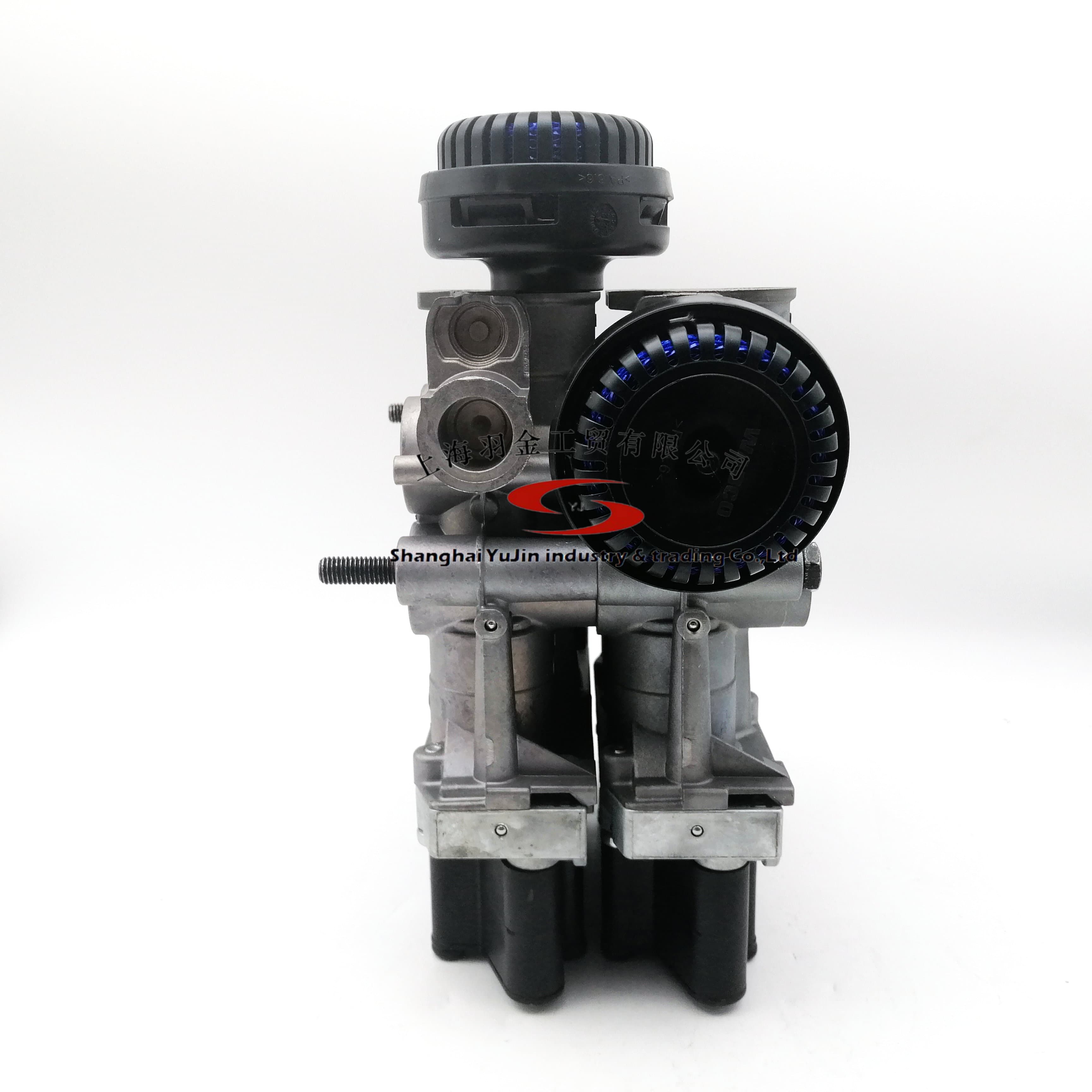

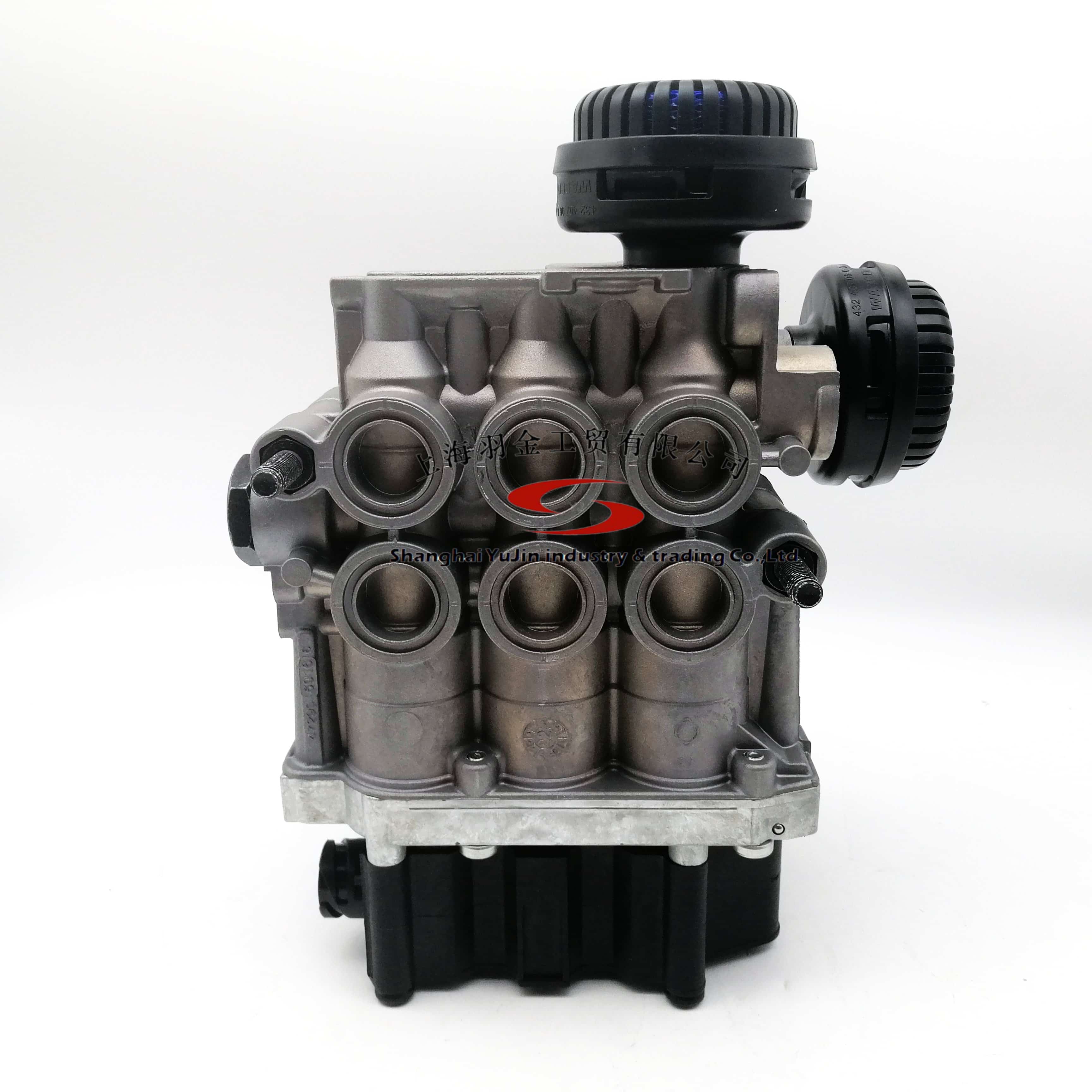

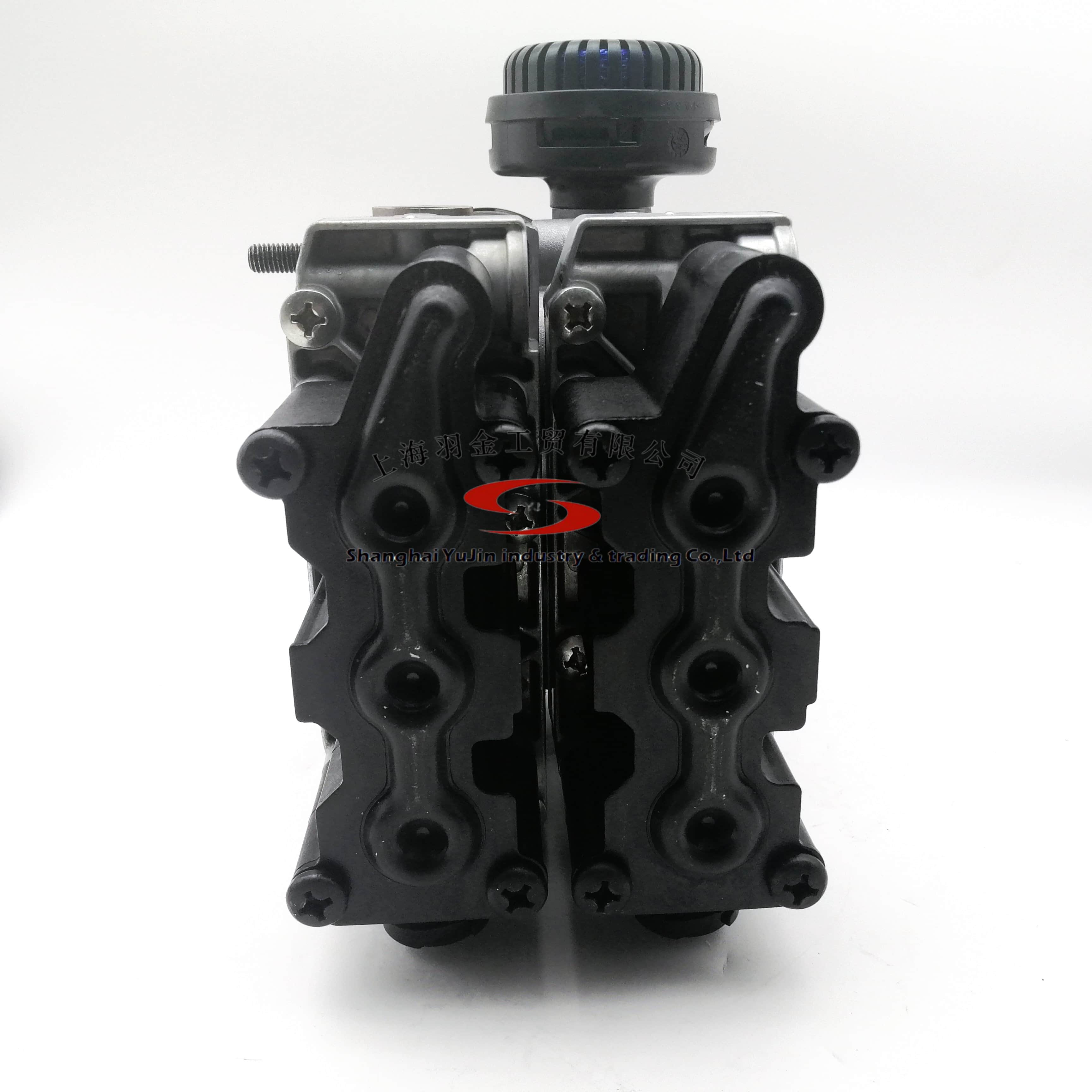

| Comments | ECAS solenoid block for drive axle+lift axle 2 silencers and port 26 closed mounting position: solenoid connections on top |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 290.1 psi |
| Mounting | 2 x M8 |
| Multi Nominal diameter (From Port 1 to x) | 0.39 / 0.28 / 0.34 / 0.02 in |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 21 | M22 x 1.5 JED - 388 |
| Port thread 22 | M22 x 1.5 JED - 388 |
| Port thread 23 | M22 x 1.5 JED - 388 |
| Port thread 24 | M22 x 1.5 JED - 388 |
| Port thread 25 | M22 x 1.5 JED-388 |
| Port thread 26 | Closed |
| Port thread 3 | 2 x Silencer 432 407 060 0 |
| Port threads | M22 x 1.5 JED-388 |
| Protection class | IP 6K9K |
| Rated current | 340 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
