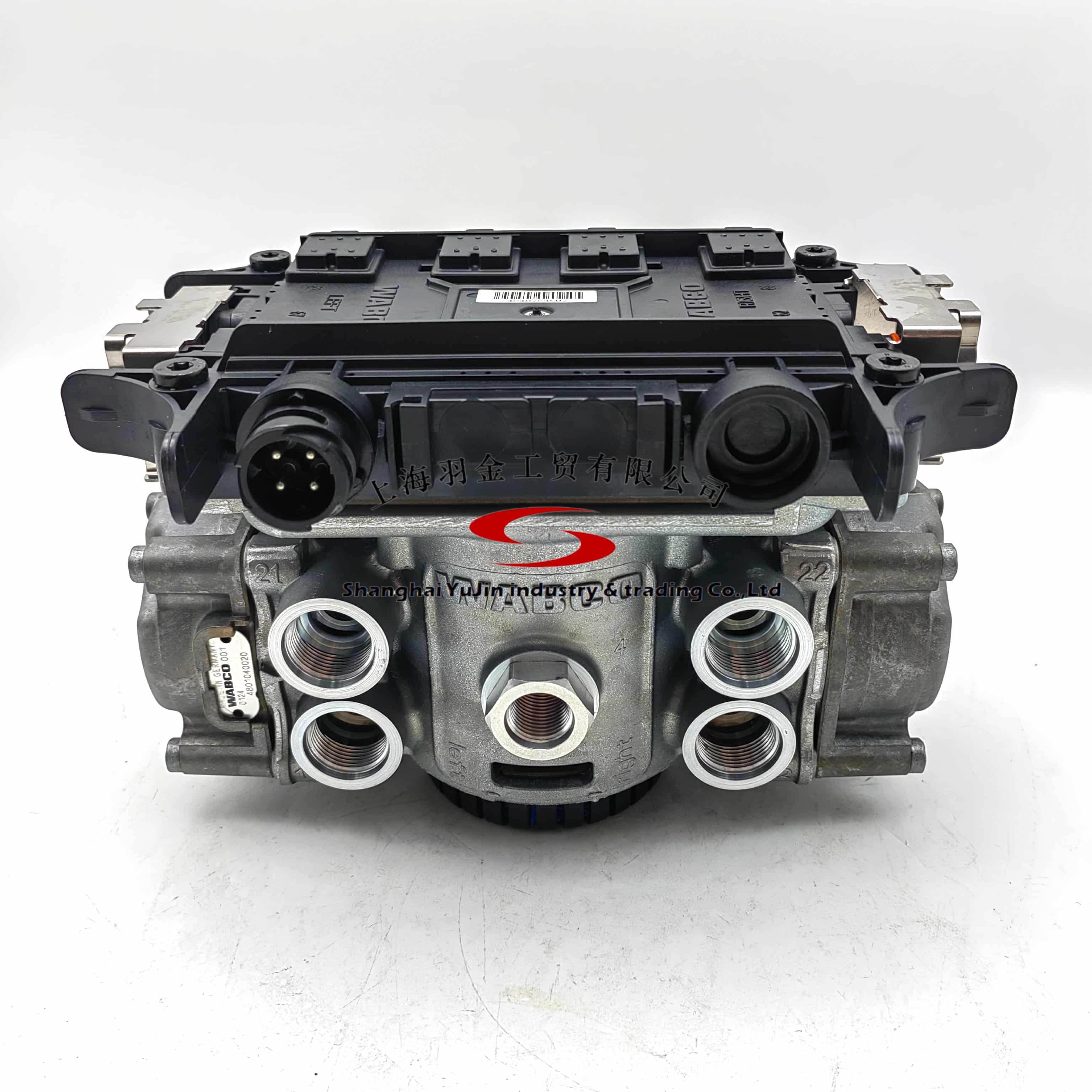

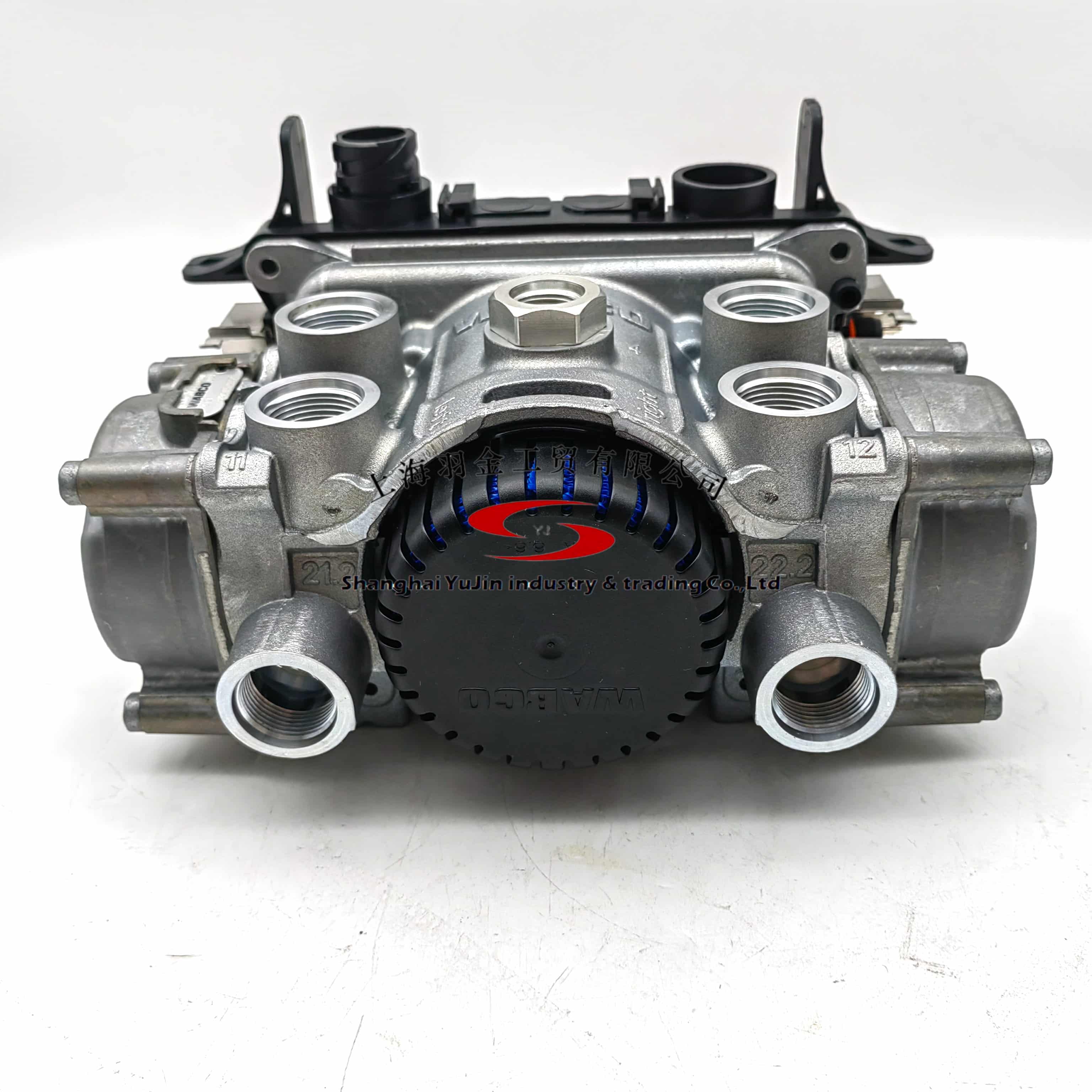

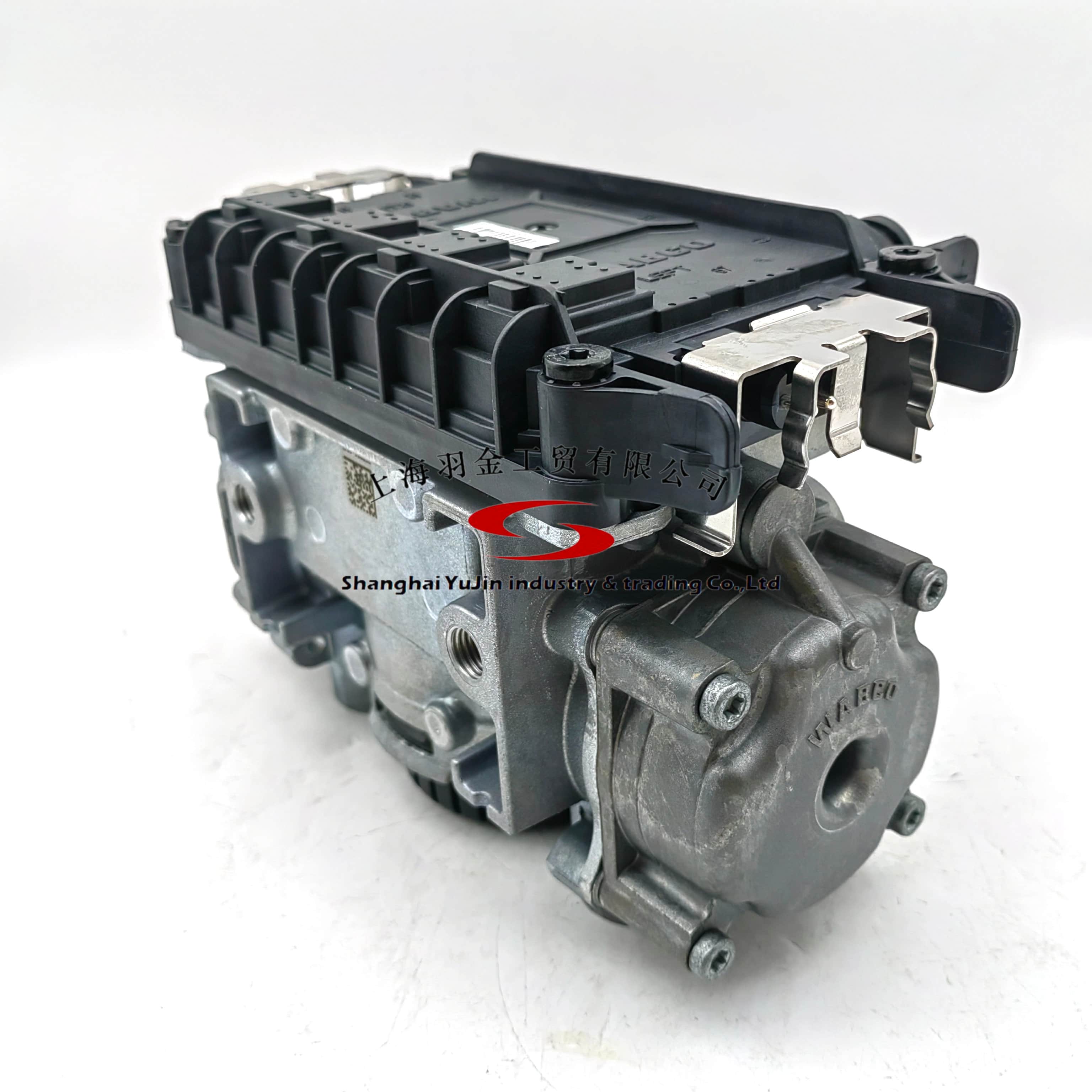

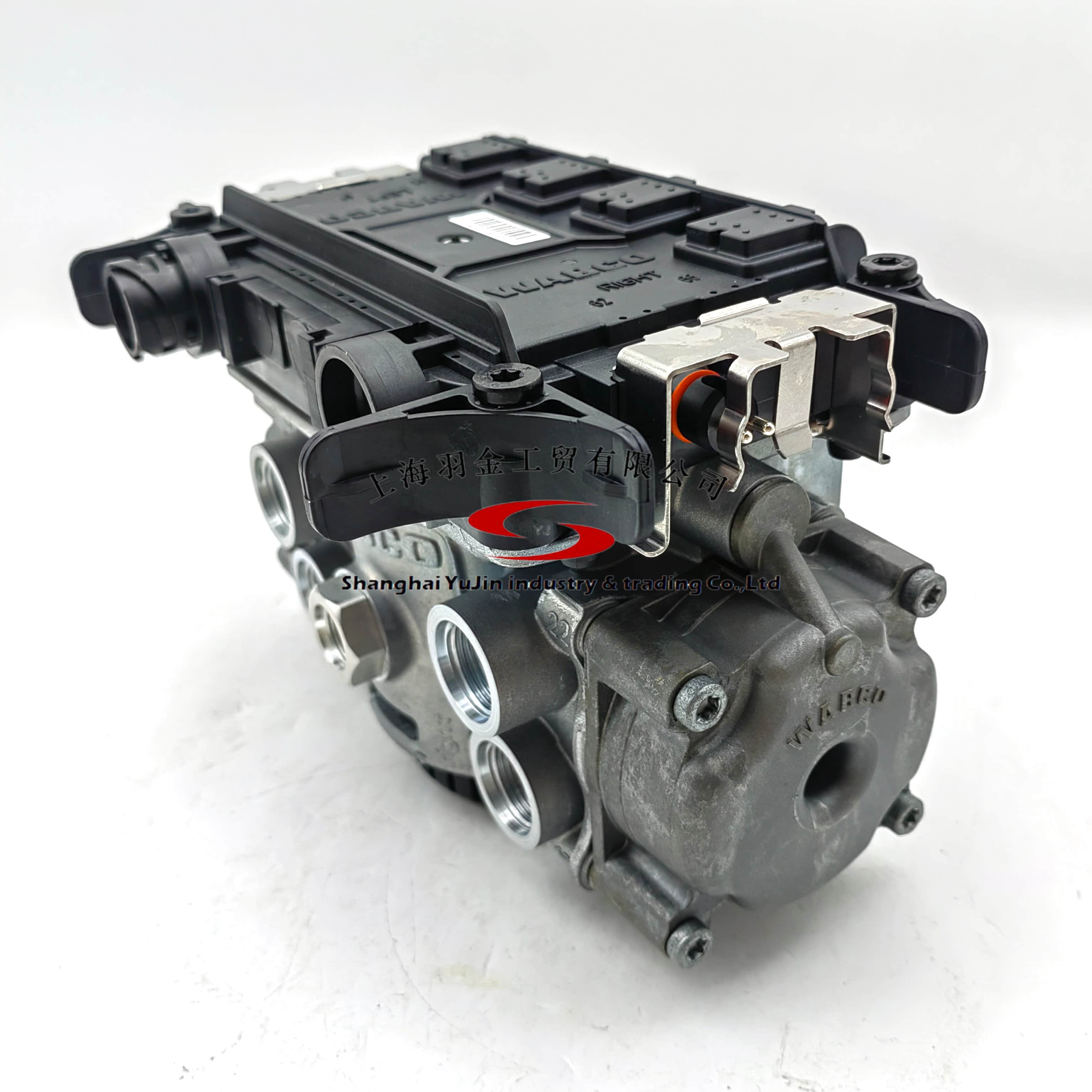

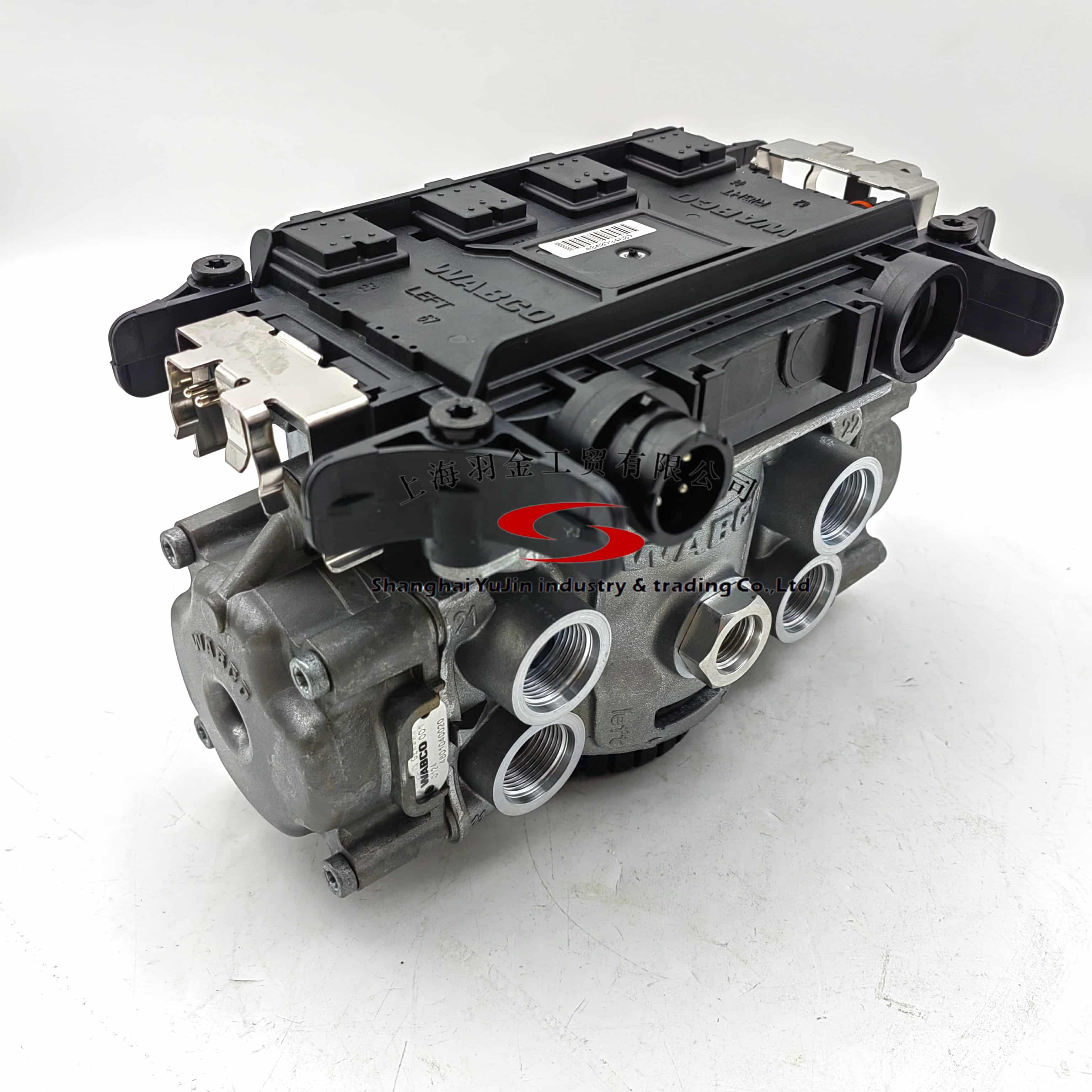

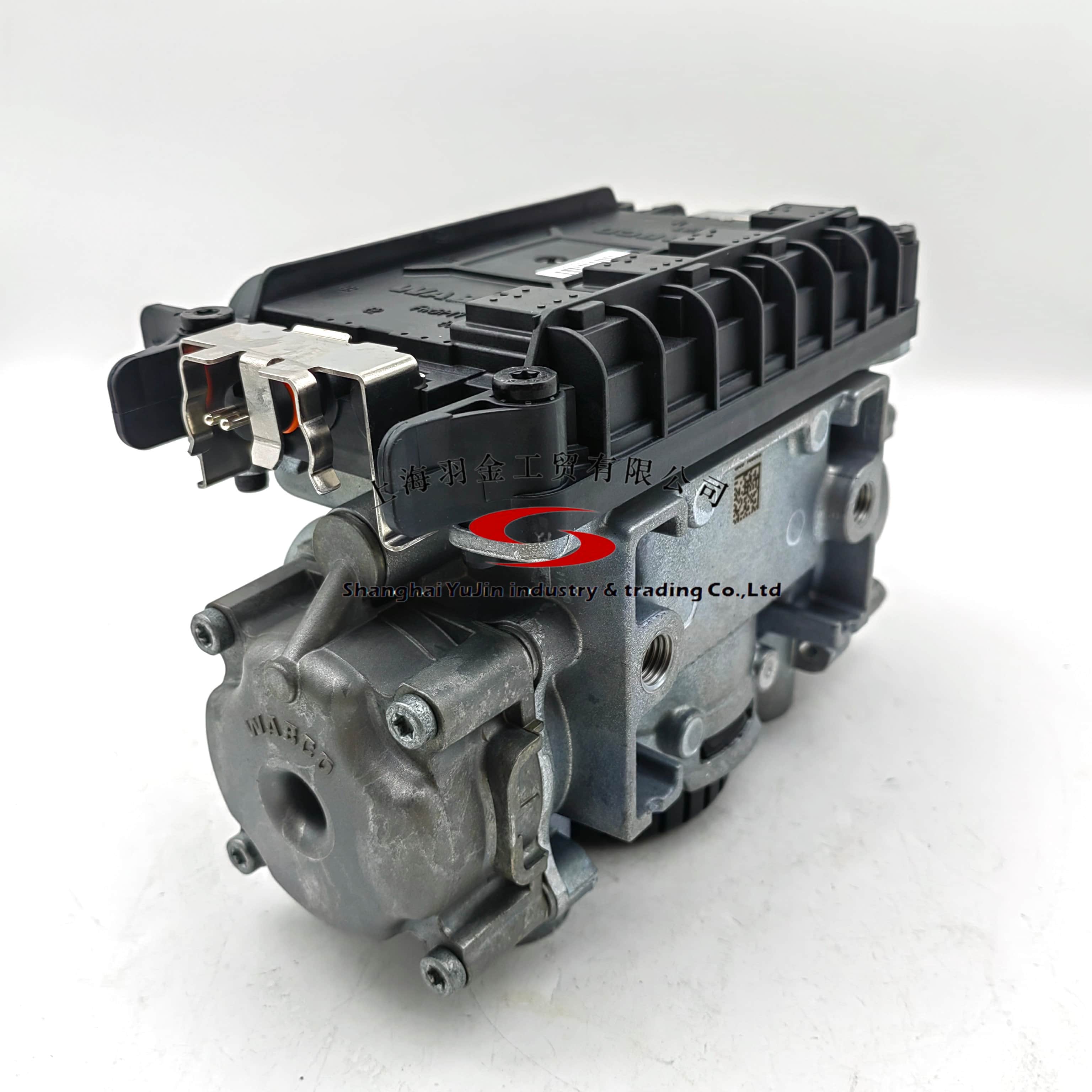

EBS后桥模块 -- 4801040020
| DAF | 1607919 |
| HYUNDAI | 595307M010 |
| HYUNDAI | 59530 7M010 |
| HYUNDAI | 59530 8KHA0 |
| LEYLAND DAF | 1607919 |
| PACCAR | 1607919 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | AA 2S 2M |
| Calculated Volume (dm³) | 4.452 |
| Comments | Volume production modification |
| Distance between holes | 3.94 in |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 181.30 psi |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drive axle 2S 2M |
| Voltage | 24 V |
