WABCO威伯科制动气室cam36 4230089190 703302400 1505933 8143058 1038430 155470 500945156 9455330 175205 1109368 BBU5934 502919001 A05010109 305053 8655 5021170045 1932617 50299

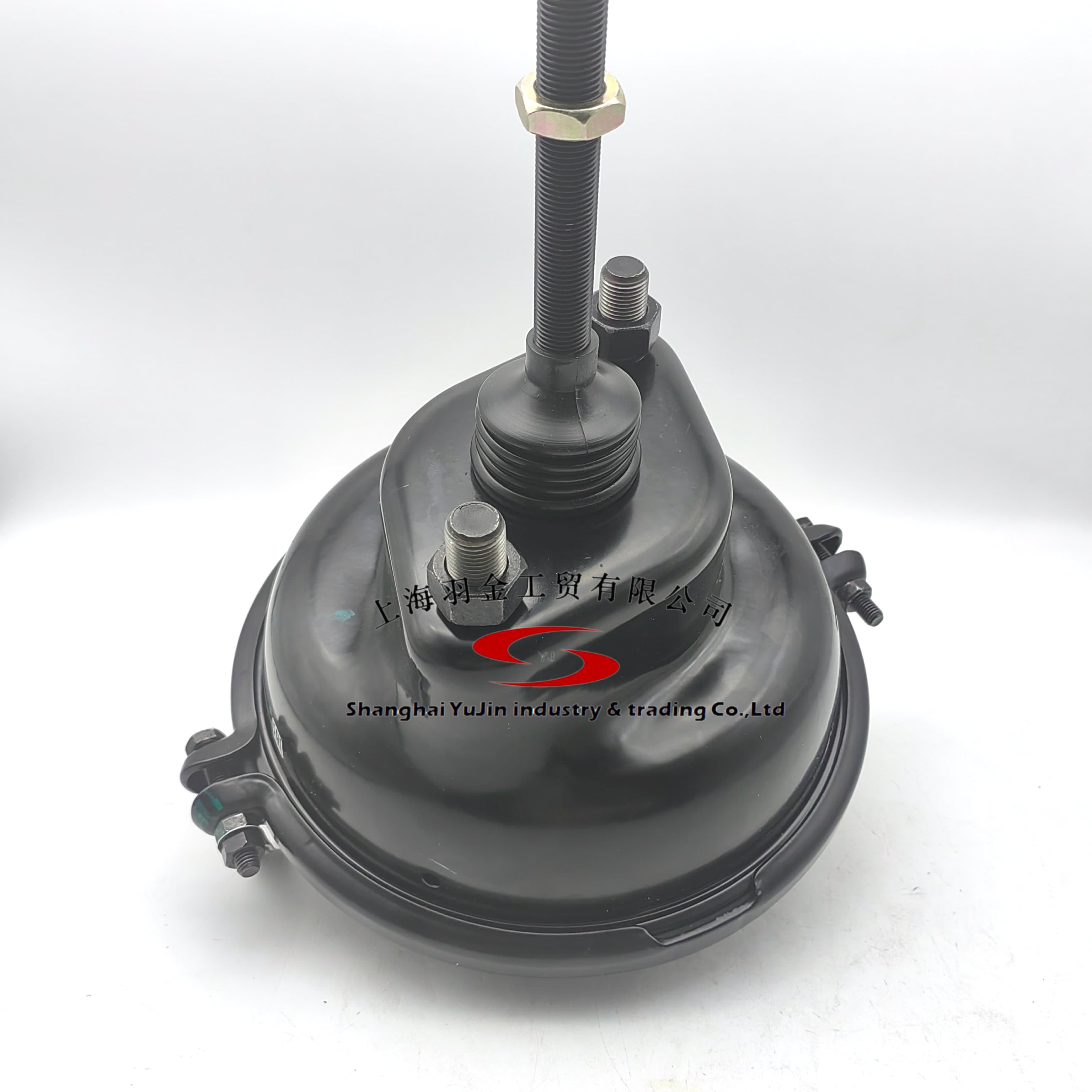

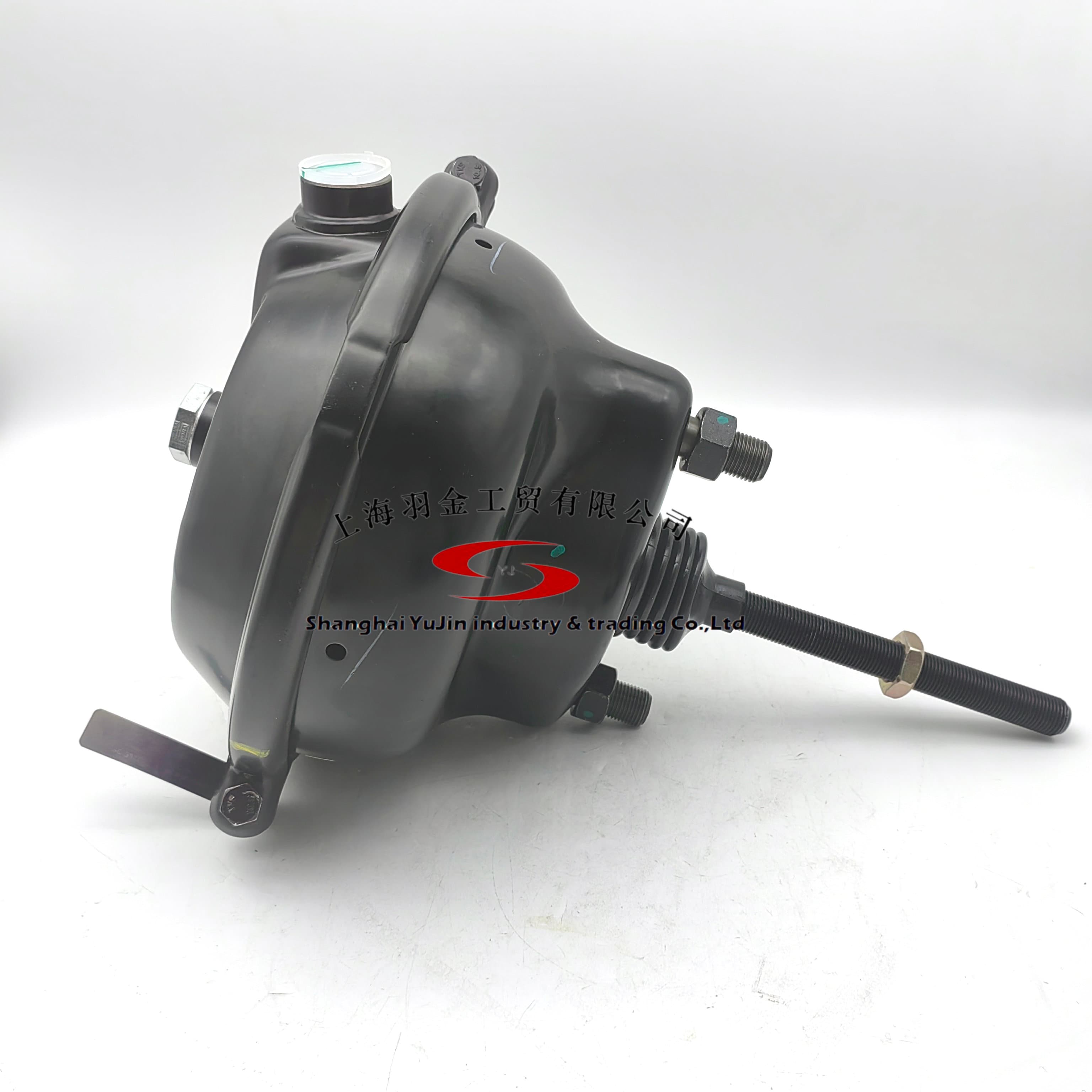

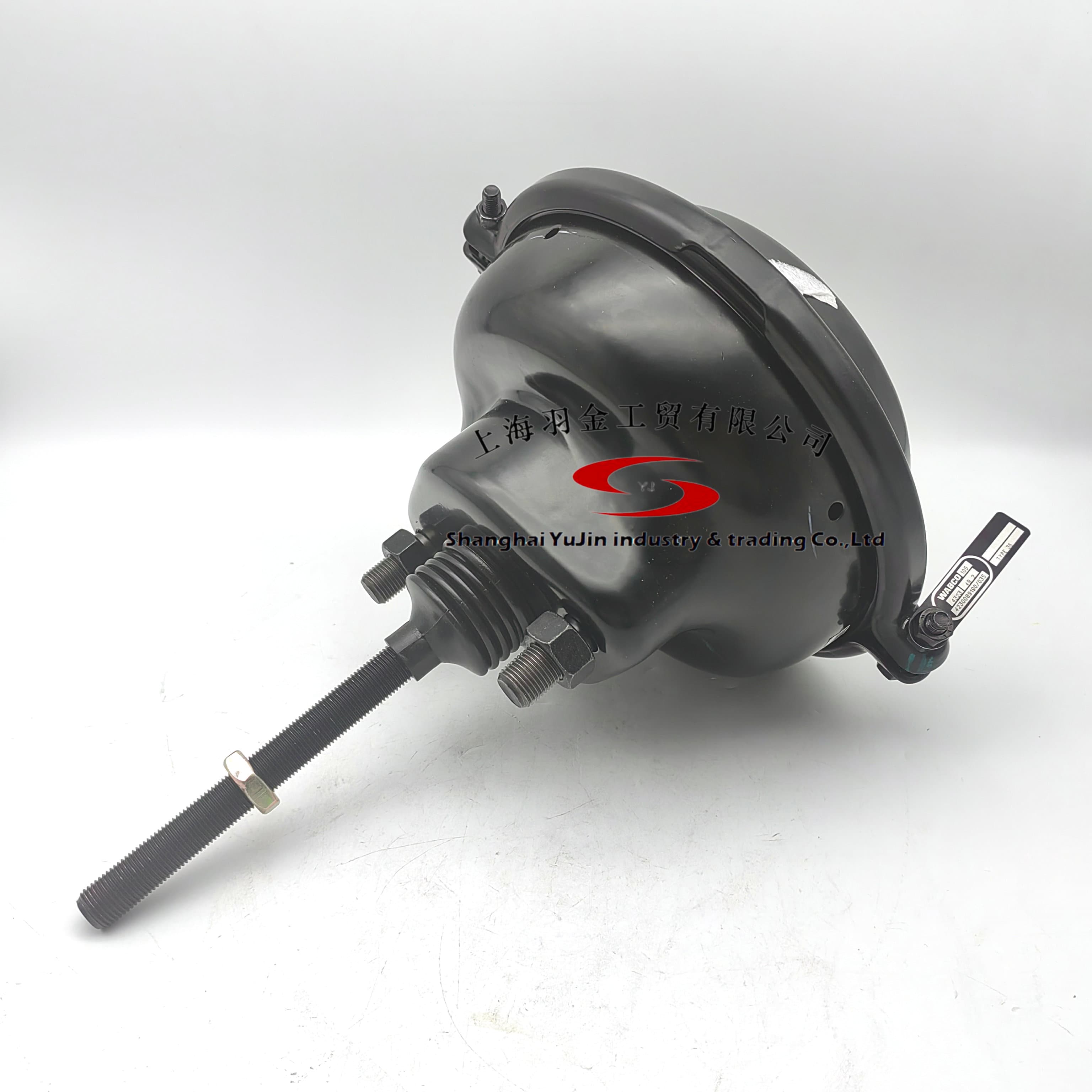

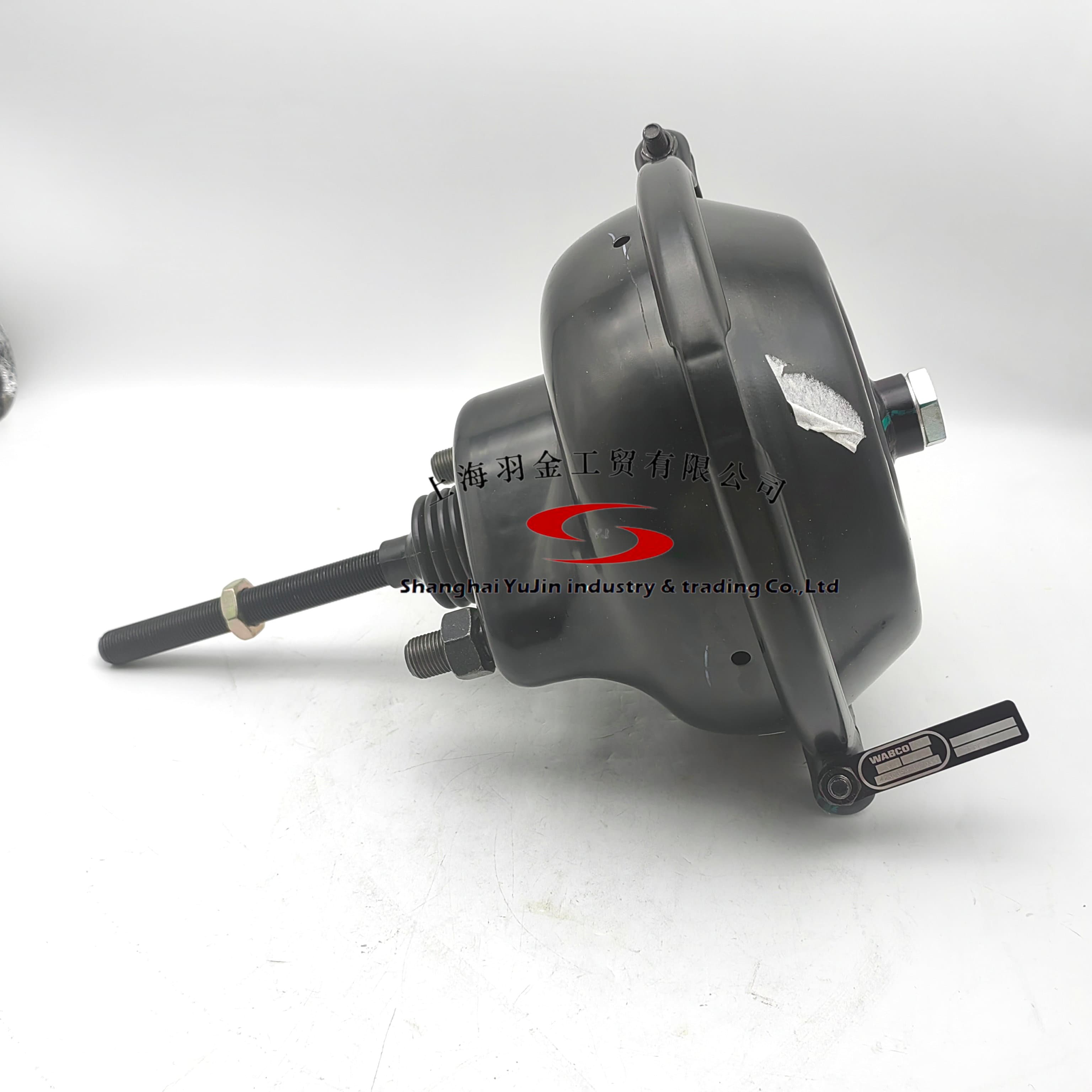

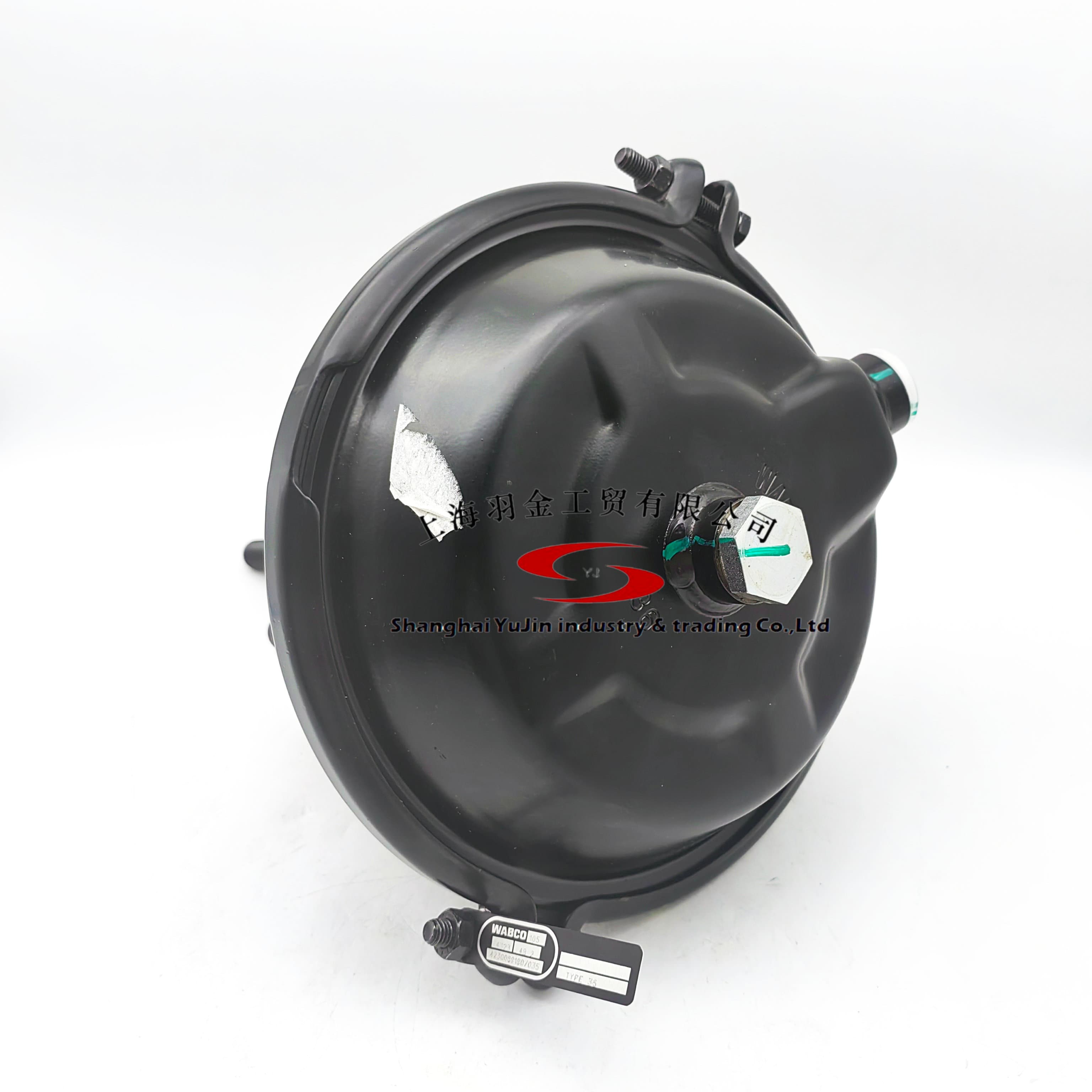

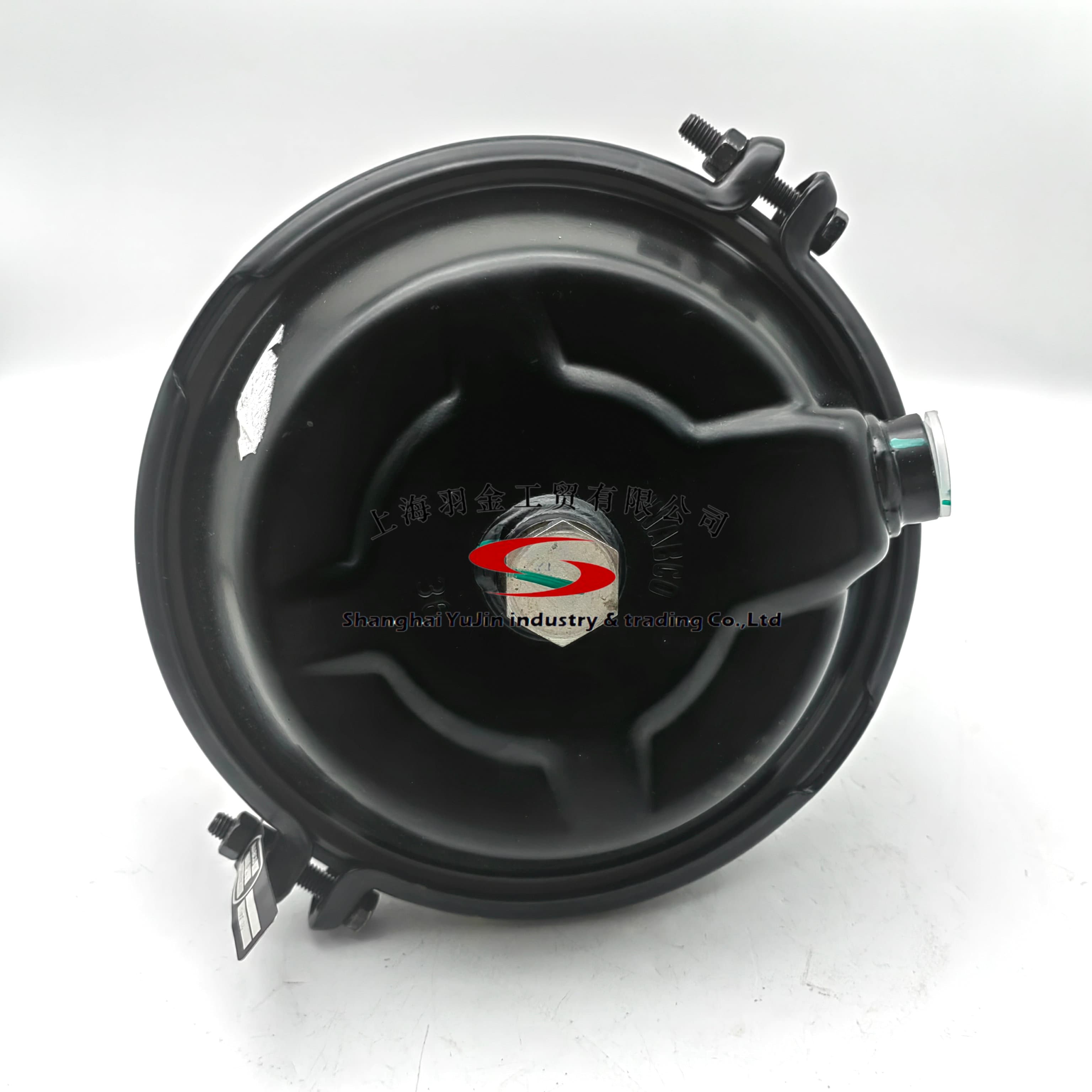

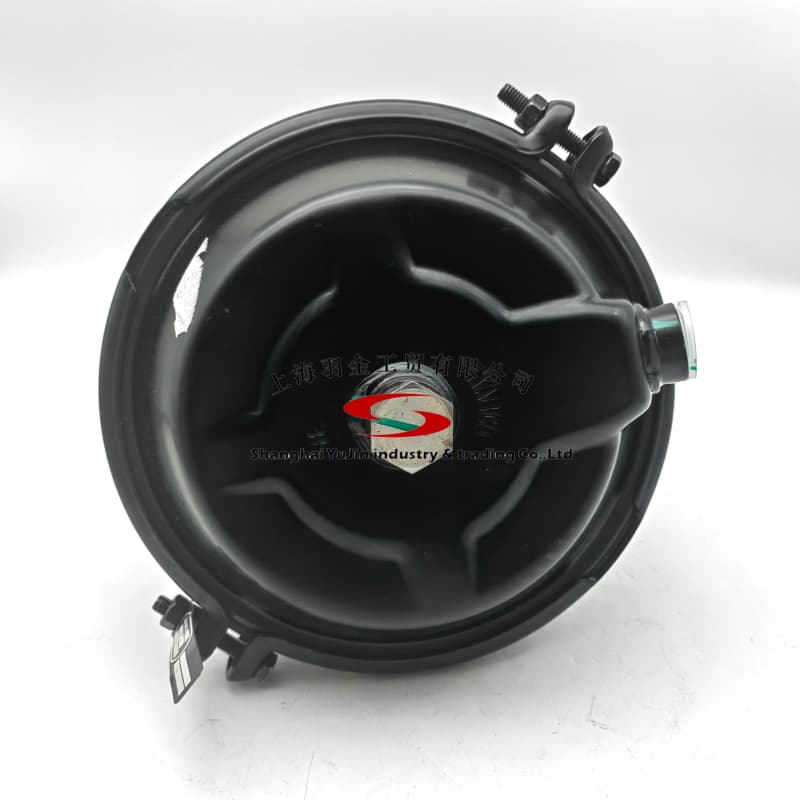

制动气室cam36 -- 4230089190
产品介绍
| BENALU | 703302400 |
| DAF | 1505933 |
| DOLL | 8143058 |
| FELDBINDER | 1038430 |
| GOLDHOFER | 155470 |
| KRONE | 500945156 |
| KRONE | 09455330 |
| KÖGEL | 175205 |
| LANGENDORF | 1109368 |
| LEYLAND DAF | BBU5934 |
| LIEBHERR | 502919001 |
| LOHR | A05010109 |
| NOOTEBOOM | 305053 |
| NOOTEBOOM | 08655 |
| RENAULT | 5021170045 |
| SCANIA | 1932617 |
| SCHMITZ CARGOBULL | 50299 |
| SCHWARZMÜLLER | 3549 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.30 in |
| Calculated Volume (dm³) | 16.4076 |
| Clamp band | 234 mm |
| Clamp band position | -45° |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 116.03 psi |
| Nominal diameter | 8.5 mm |
| Output force | 2989.96 lbf |
| Output force M | 2989.96 lbf |
| Port (Side) | M22 x 1.5 |
| Port (Top) | M22 x 1.5 |
| Port Angle | 180° |
| Push-rod length | 7.20 in |
| Push-rod thread | M16 x 1.5 |
| Return-spring force | 101.16 lbf |
| Stroke | 2.99 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Thread length | 7.20 in |
| Total lenght | 6.77 in |
| Type of operation | Cam |
| Yoke | Without |
