WABCO威伯科离合器助力缸9700514740 160230554B 1602305-14A/A 1612516205010 H4162040001A0 WG97252300522 WG9725230042/4 WG97252300422 WG9725230042/2

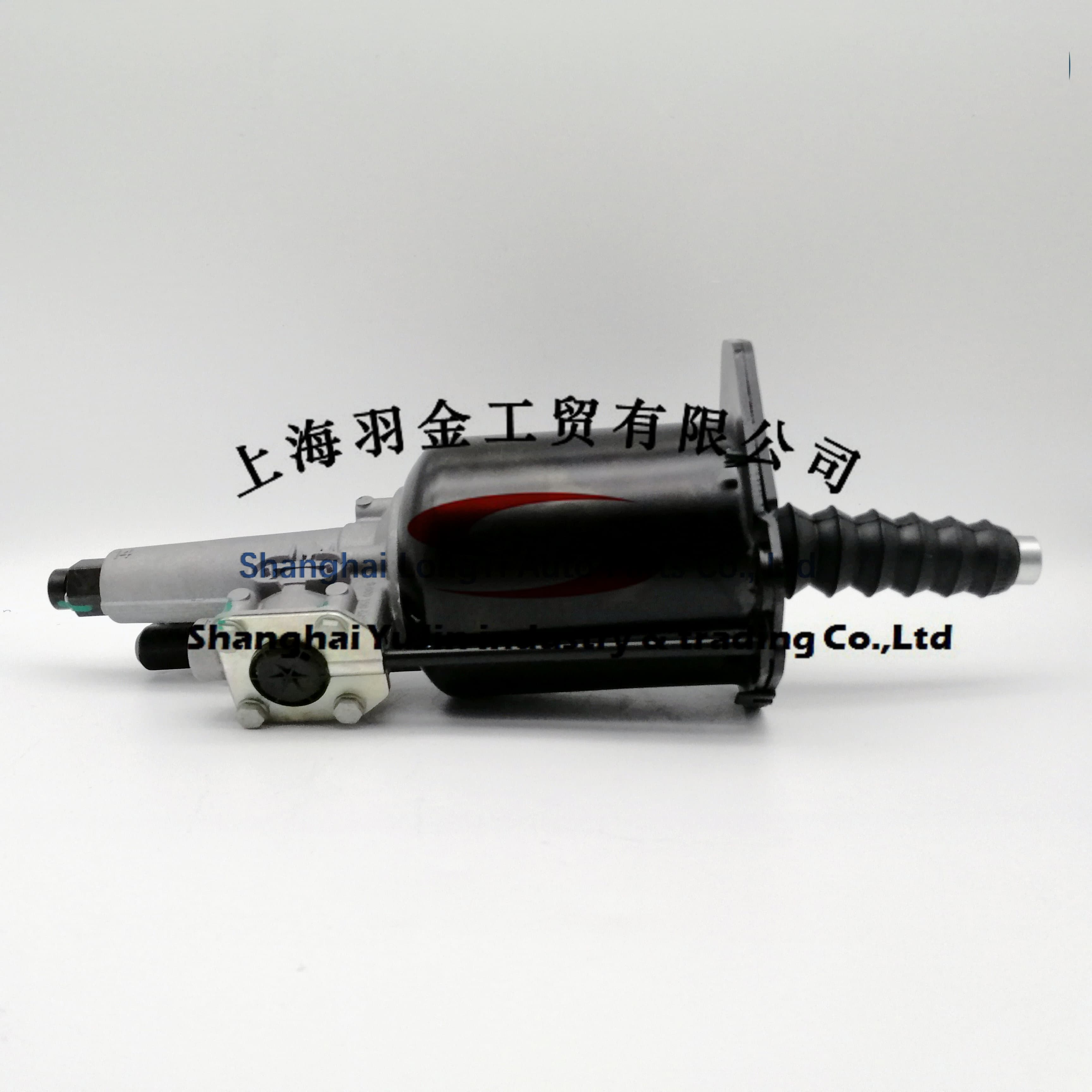

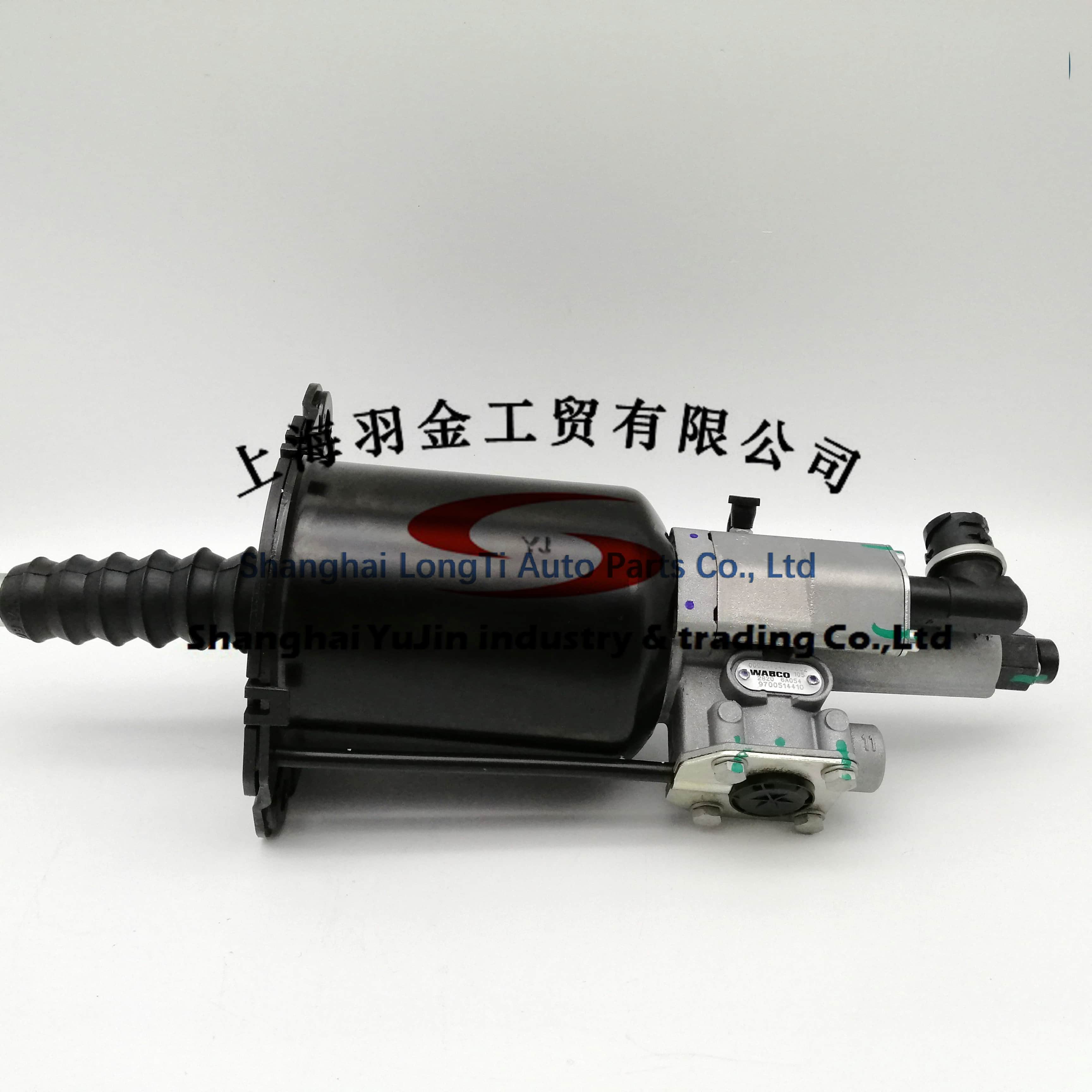

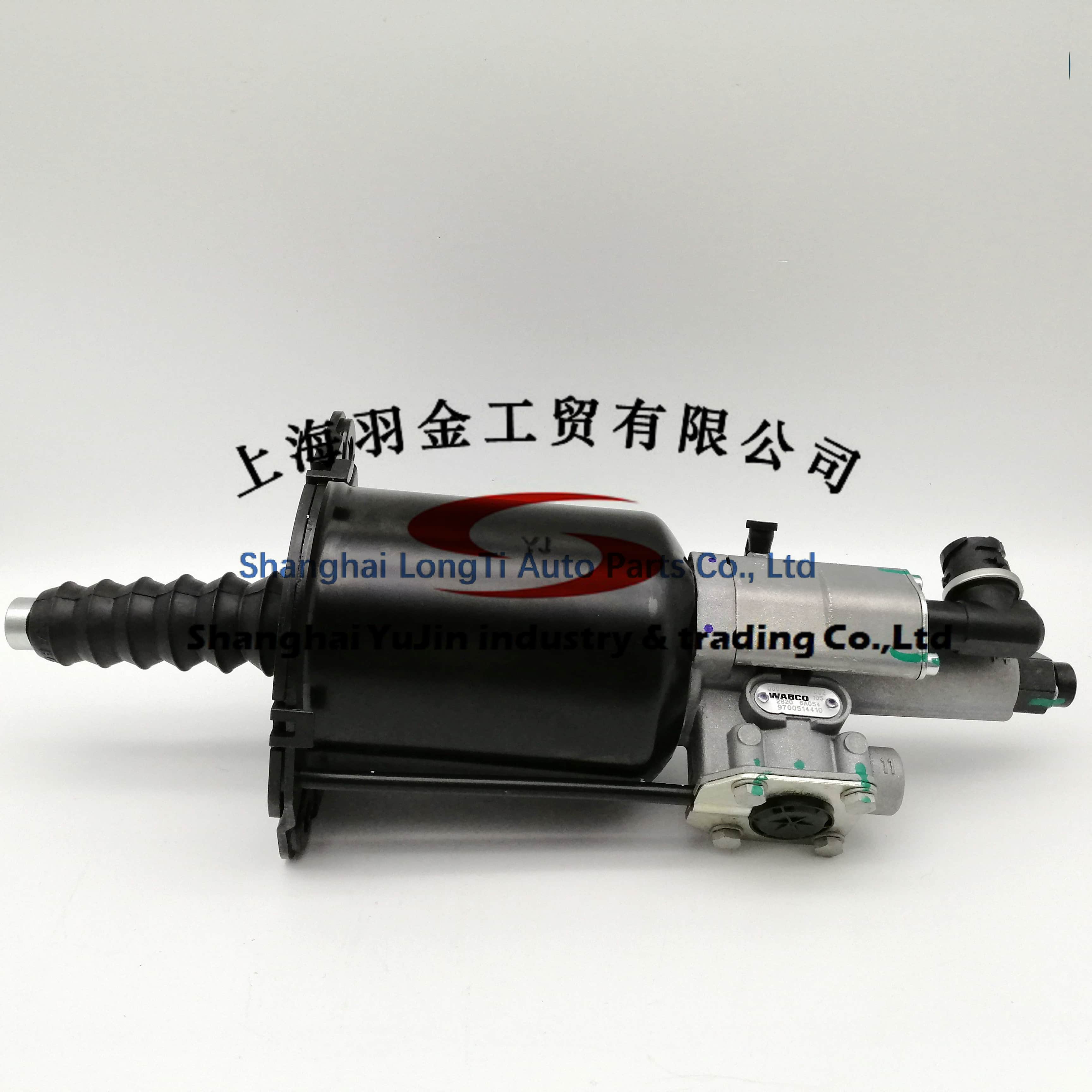

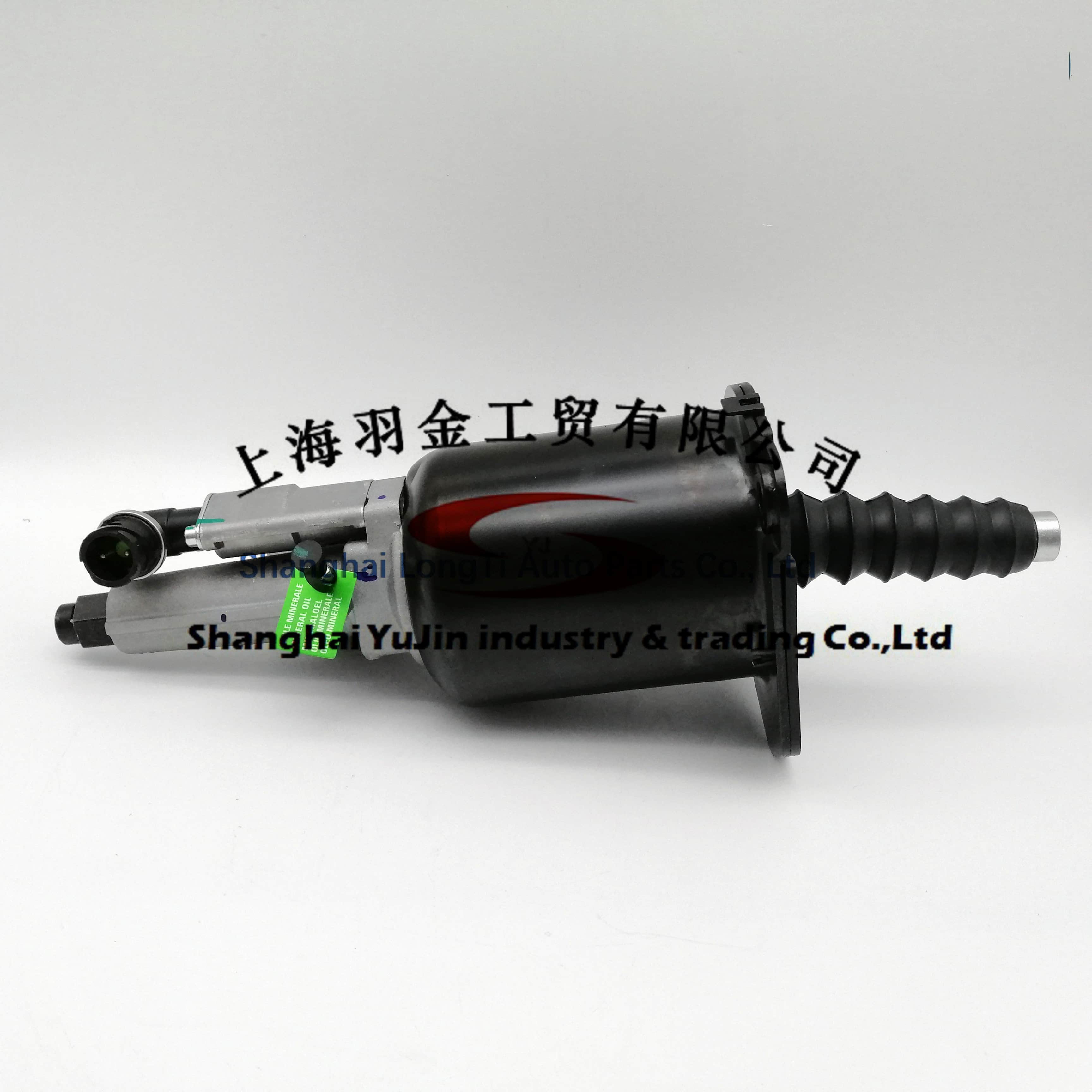

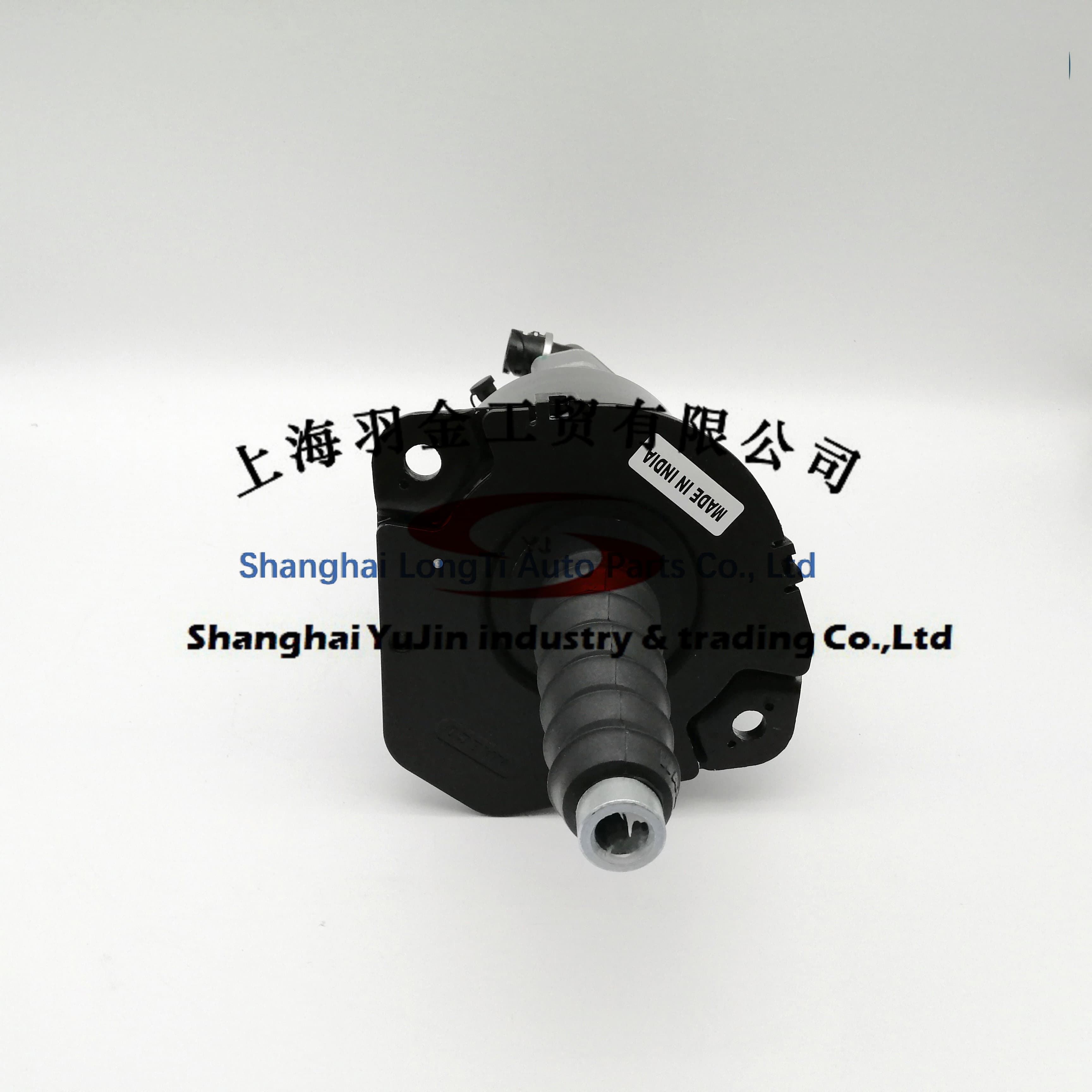

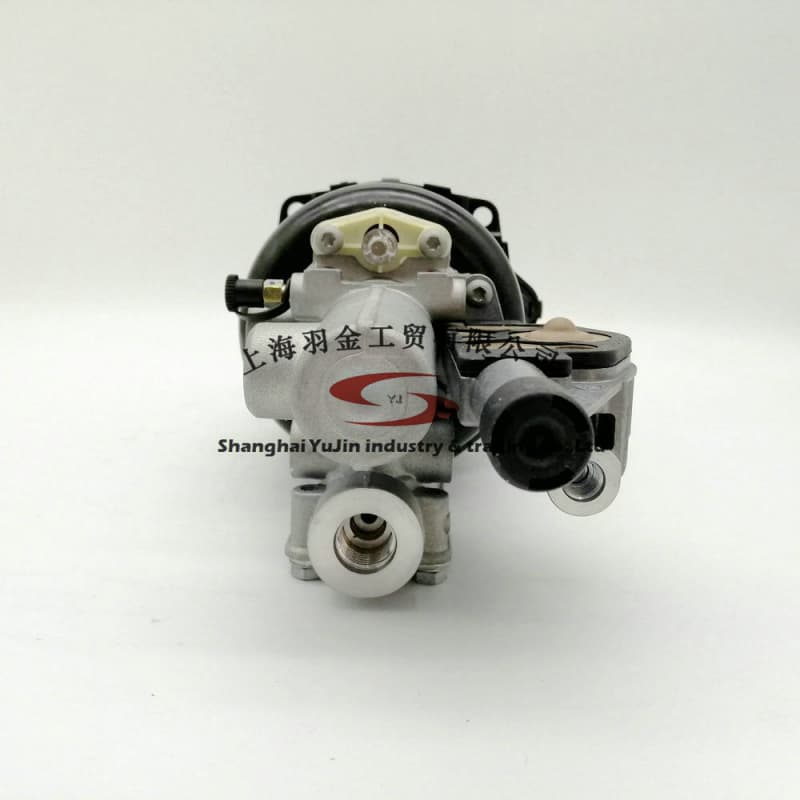

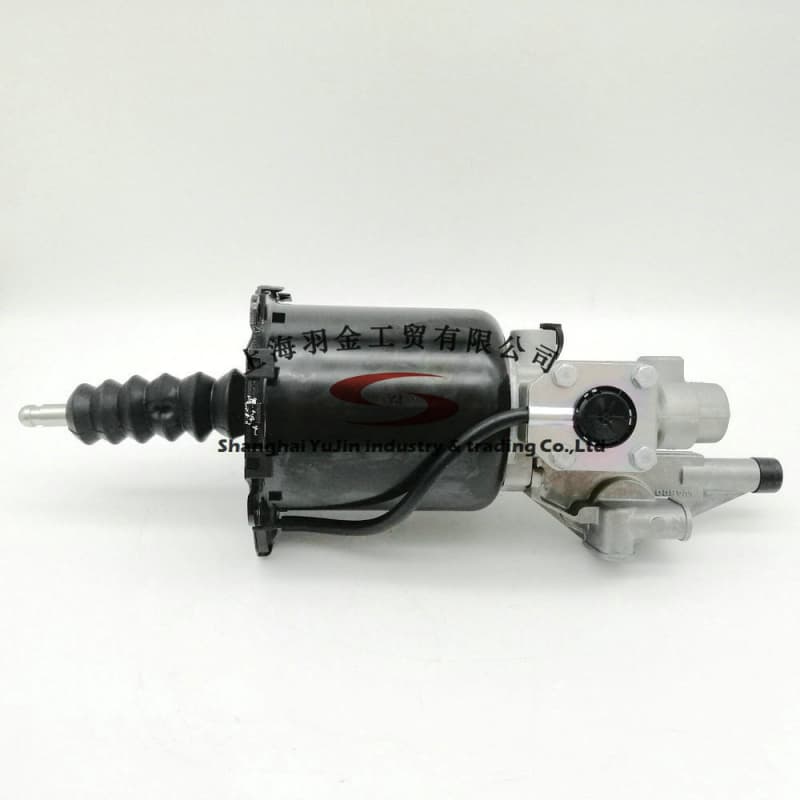

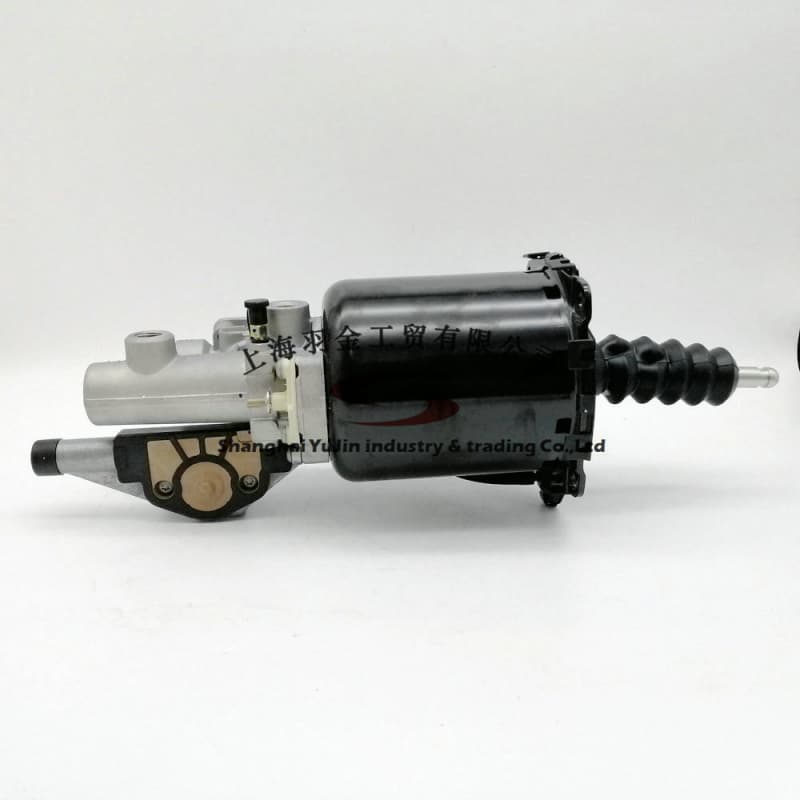

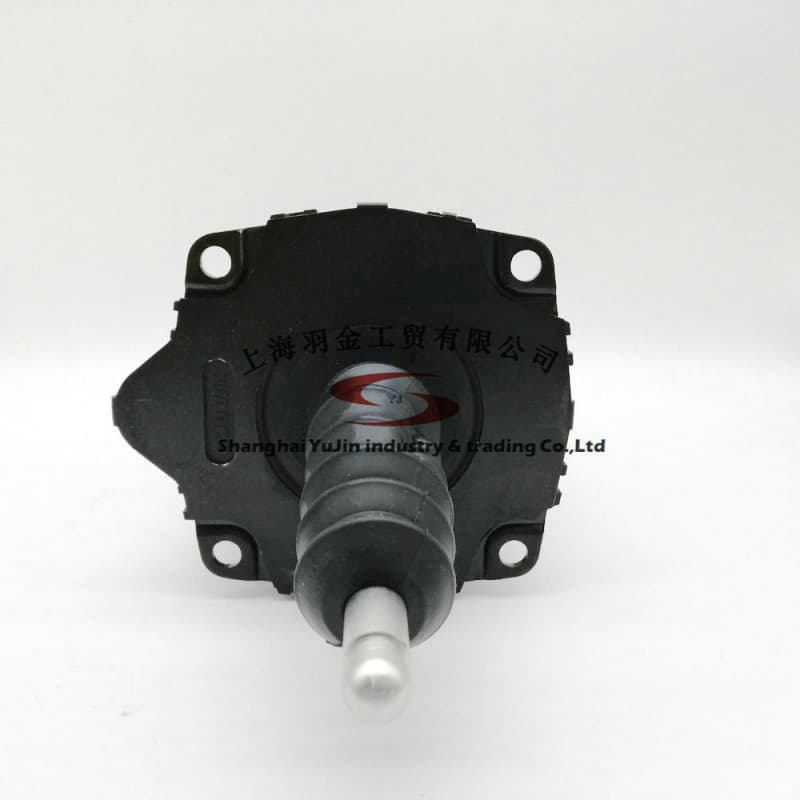

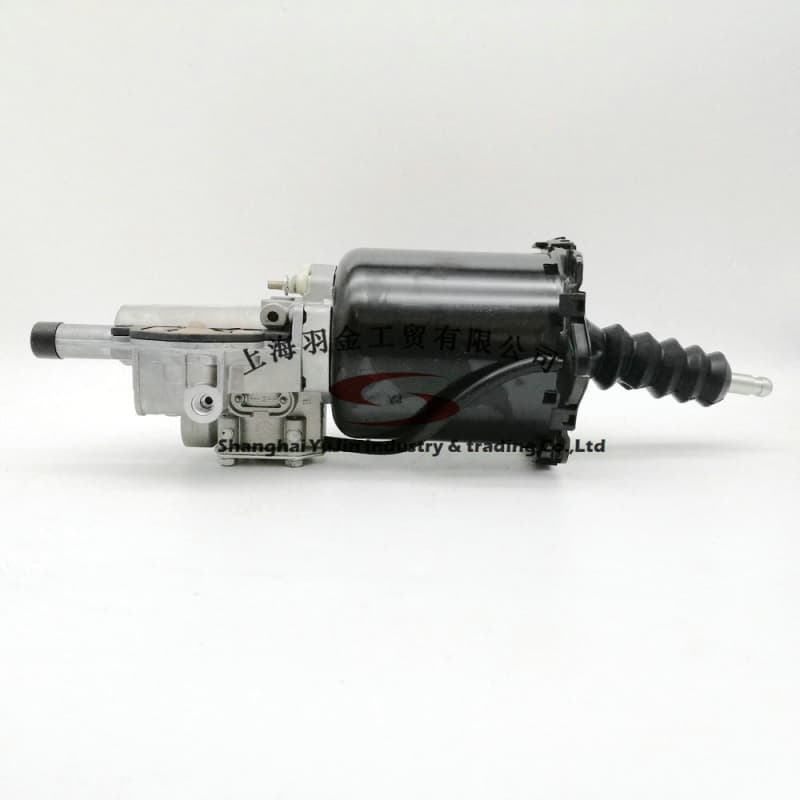

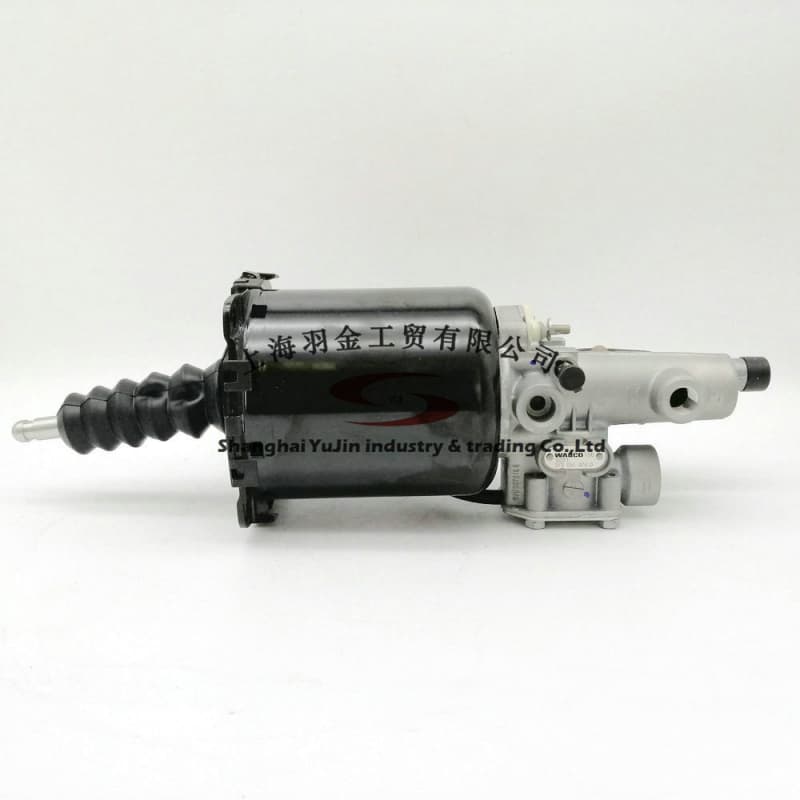

离合器助力缸 -- 9700514740
产品介绍
| FAW | 160230554B |
| FAW | 1602305-14A/A |
| FOTON | 1612516205010 |
| FOTON | H4162040001A0 |
| SINOTRUK (CNHTC) | WG97252300522 |
| SINOTRUK (CNHTC) | WG9725230042/4 |
| SINOTRUK (CNHTC) | WG97252300422 |
| SINOTRUK (CNHTC) | WG9725230042/2 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 7.481 |
| Distance between holes | 5.12 in |
| Length | 404 mm |
| Max. operating pressure | 145.0 psi |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED - 388 |
| Port thread 12 | M10 x 1.0 JED - 388-1 |
| Port thread 22 | M10 x 1.0 JED - 388-1 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 2.91 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
