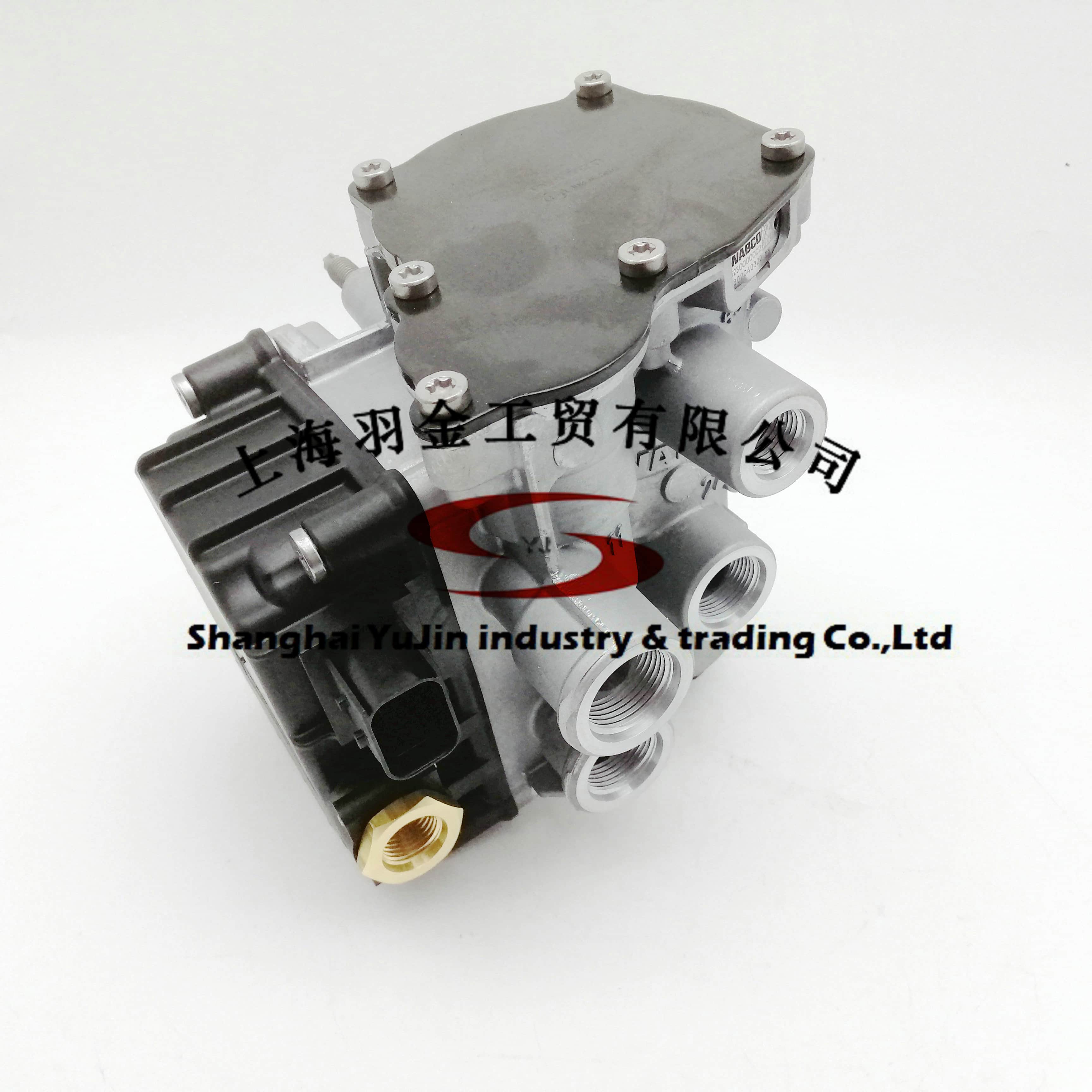

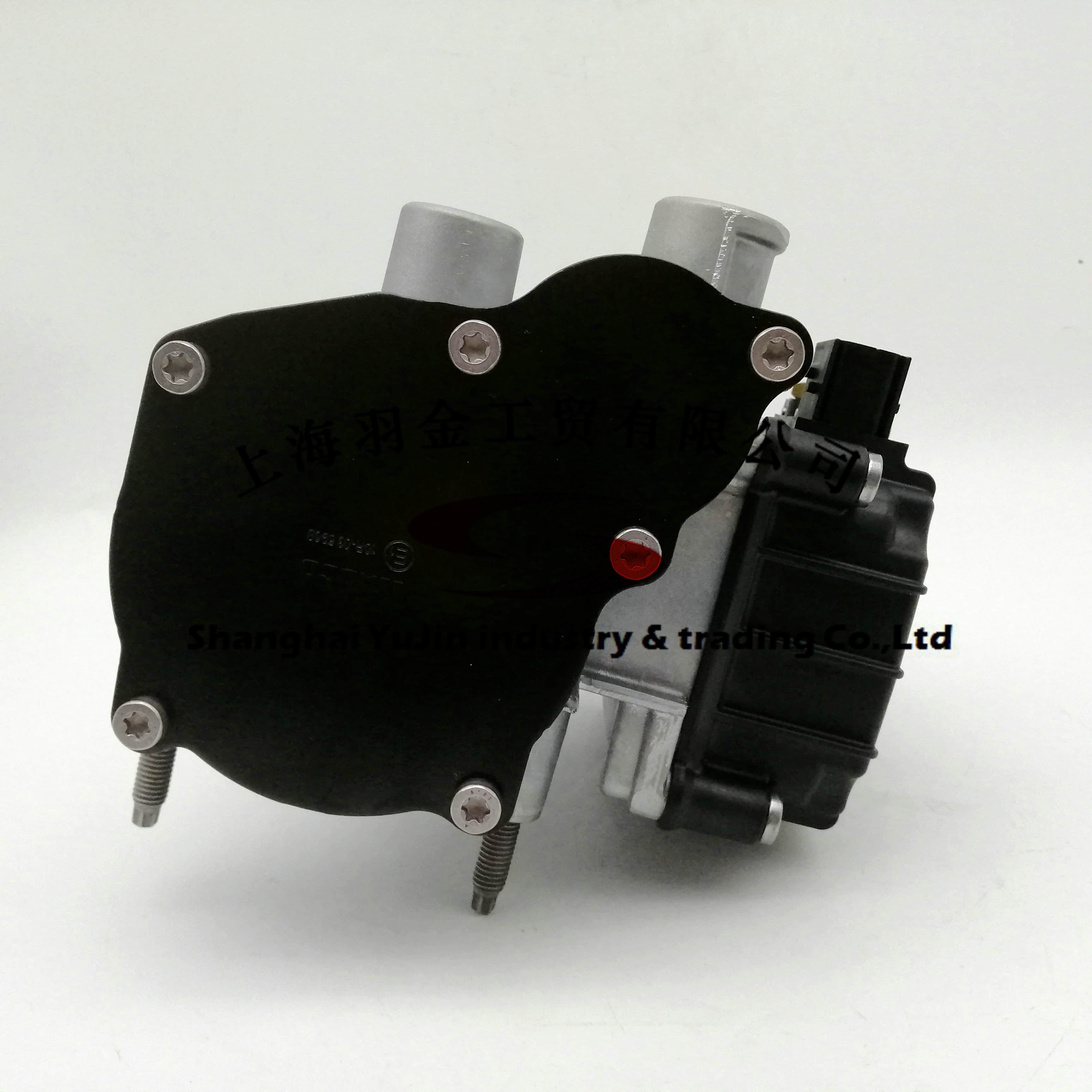

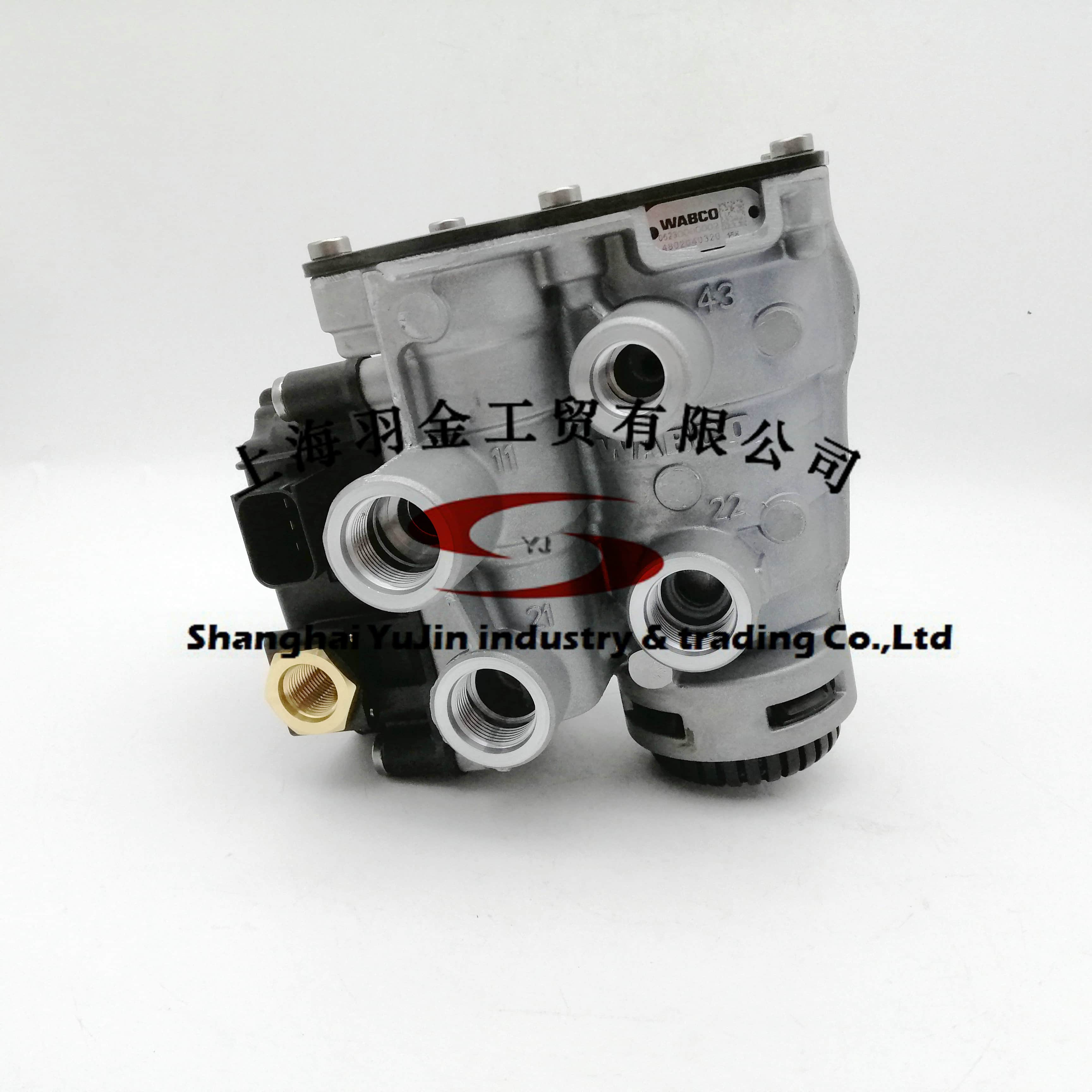

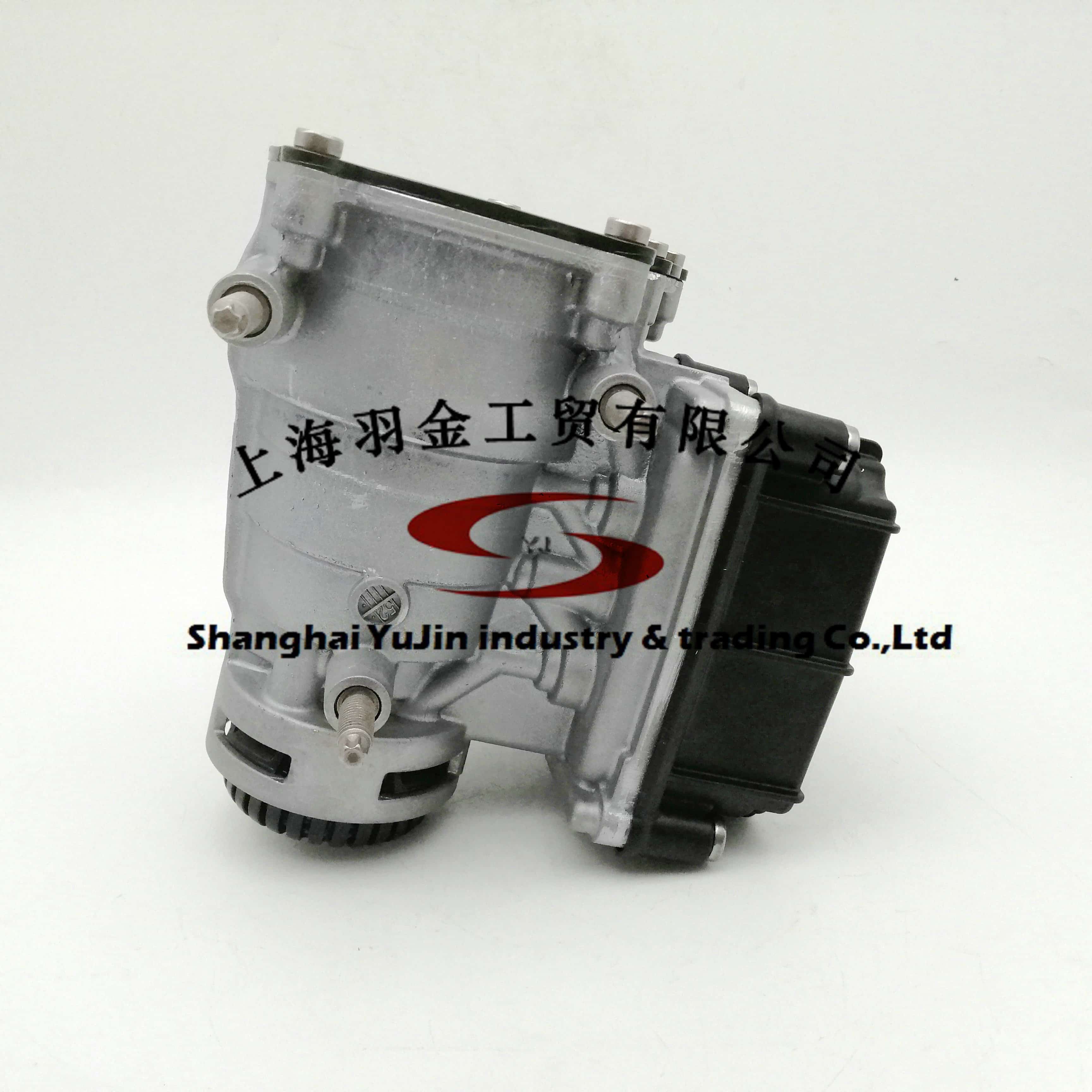

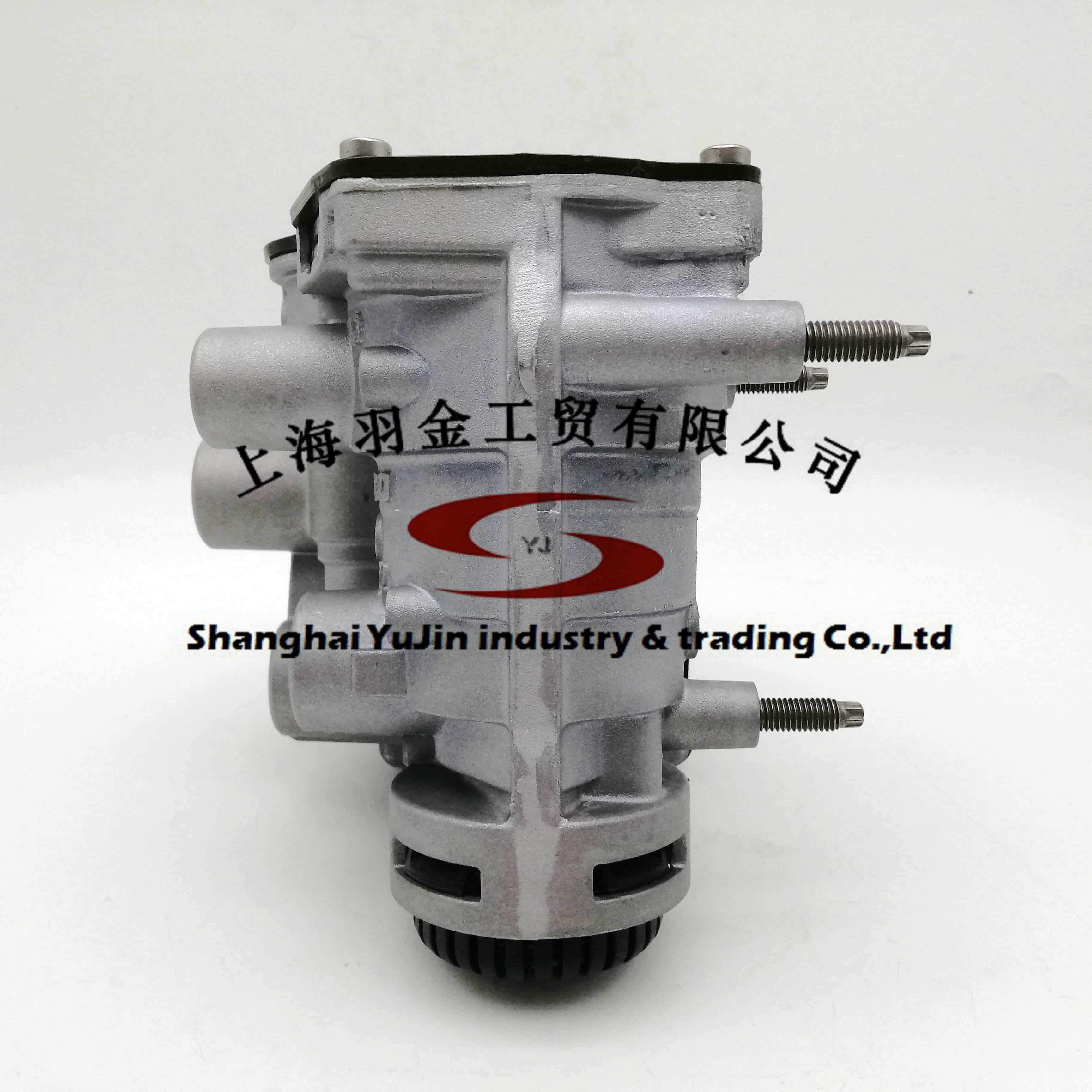

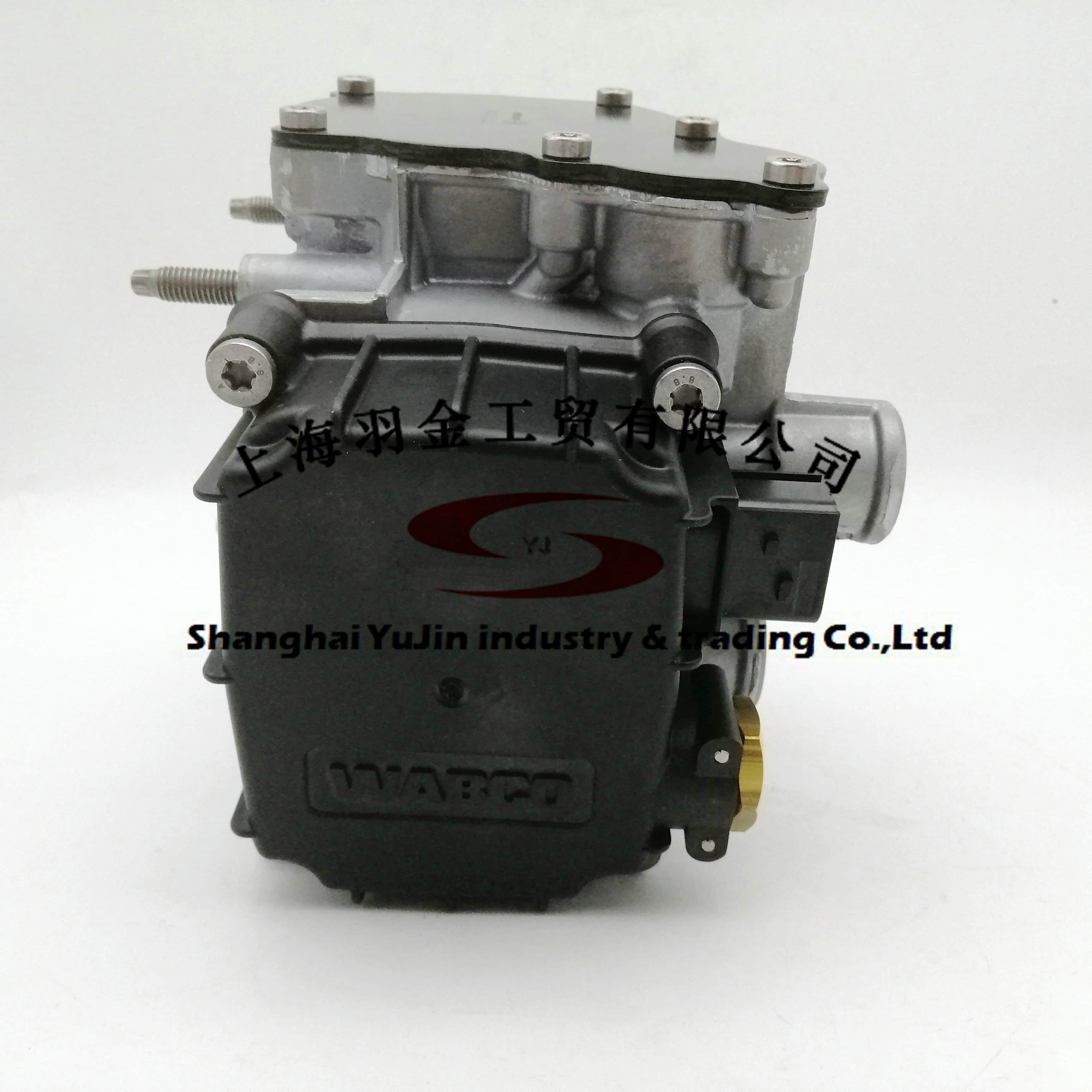

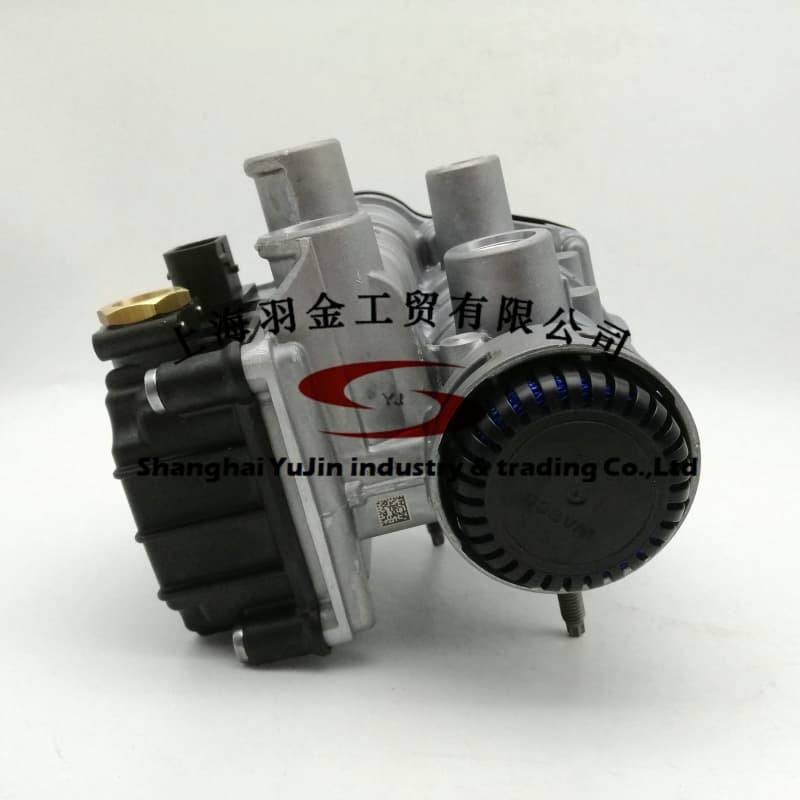

WABCO威伯科挂车控制阀4802040320 P34544 04300 ML252149 59710 7R000 8982320390 45289NA01A
挂车控制阀 -- 4802040320
产品介绍
| DAEWOO | P34544 04300 |
| FUSO (MITSUBISHI) | ML252149 |
| HYUNDAI | 59710 7R000 |
| ISUZU | 8982320390 |
| UD TRUCKS | 45289NA01A |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 4.9405 |
| Delivered pressure | 123 psi |
| Distance between bolts | 3.15x3.15 in |
| Electrical connection | HDSCS connector code |
| Max. operating pressure | 123.28 psi |
| Mounting | 3x M8 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 42 | M16 x 1.5 JED-388-4 |
| Port thread 43 | M16 x 1.5 JED-388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 5 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
