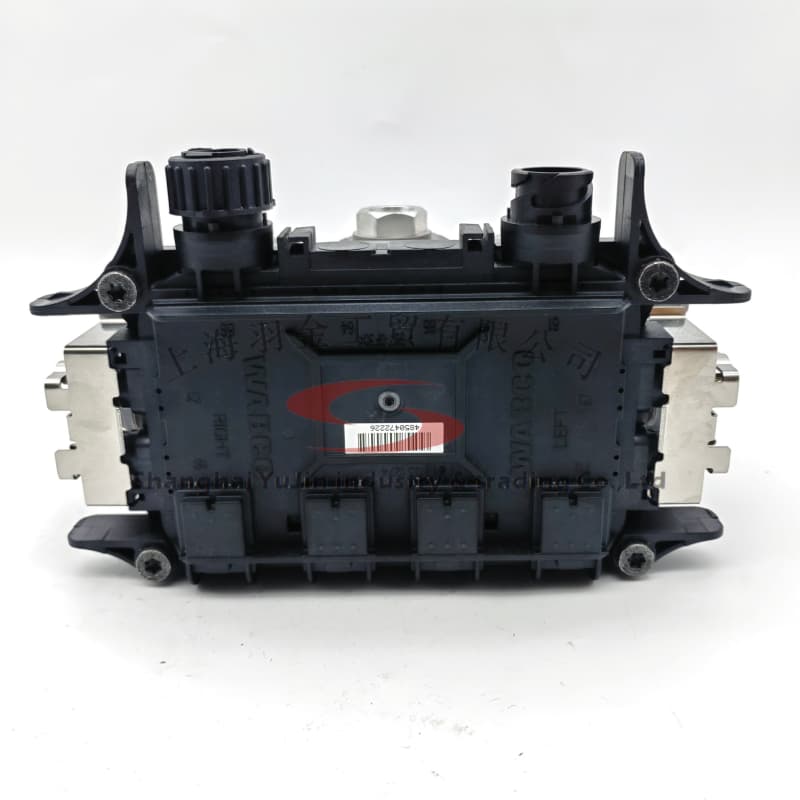

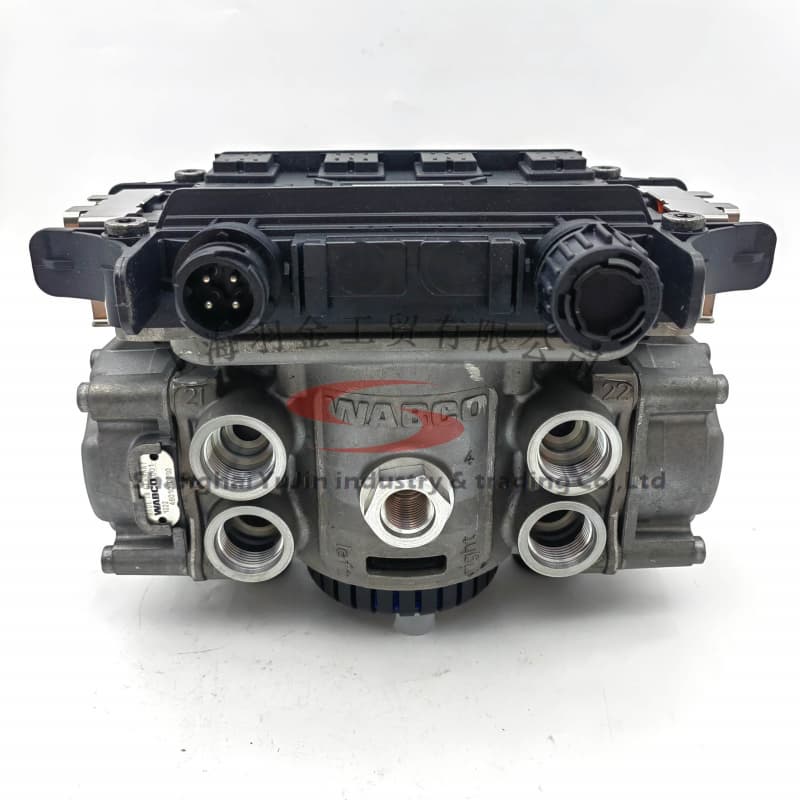

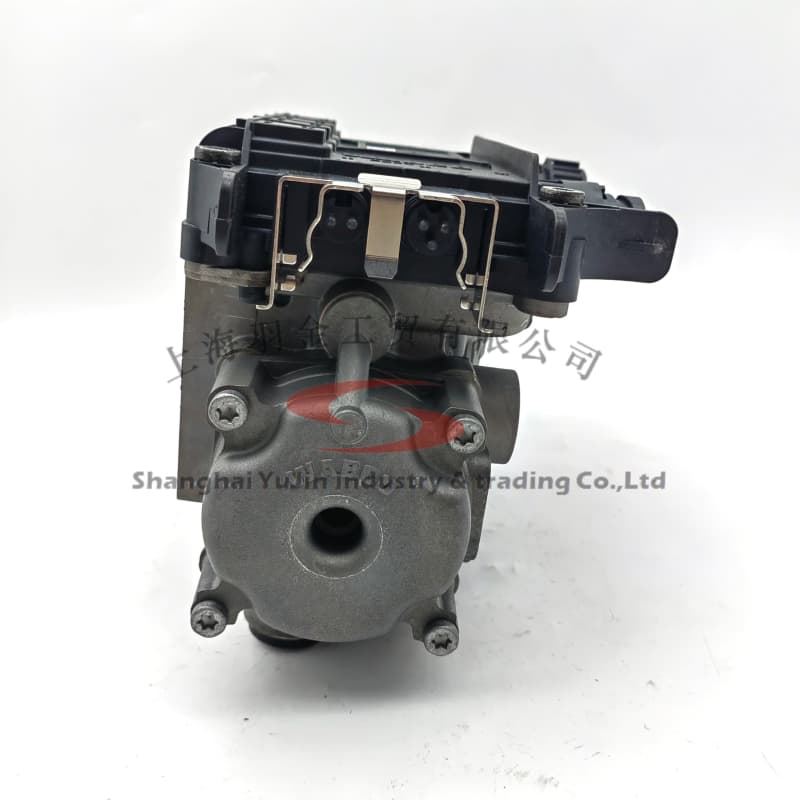

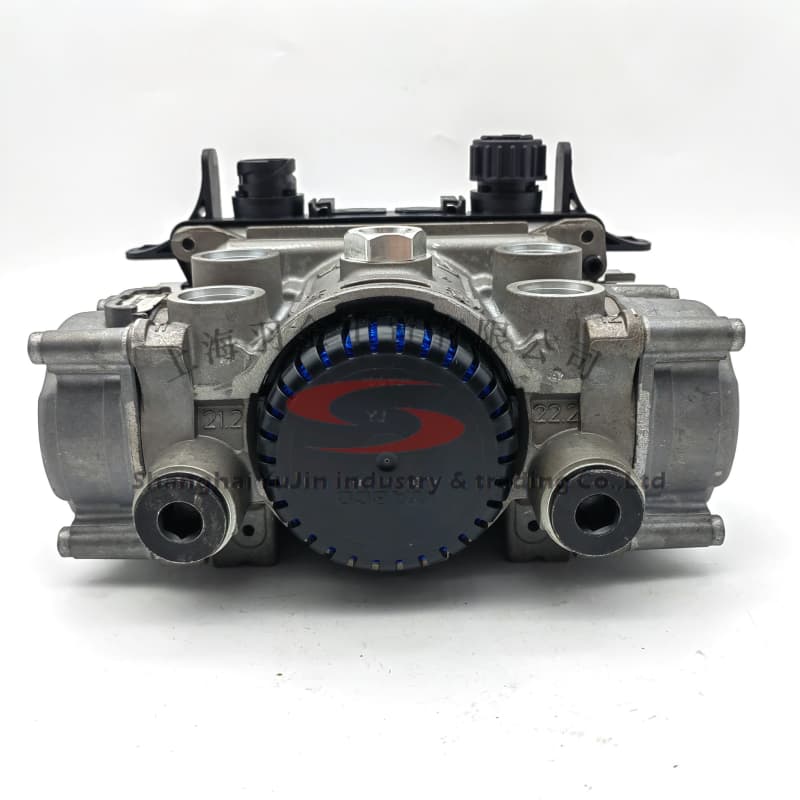

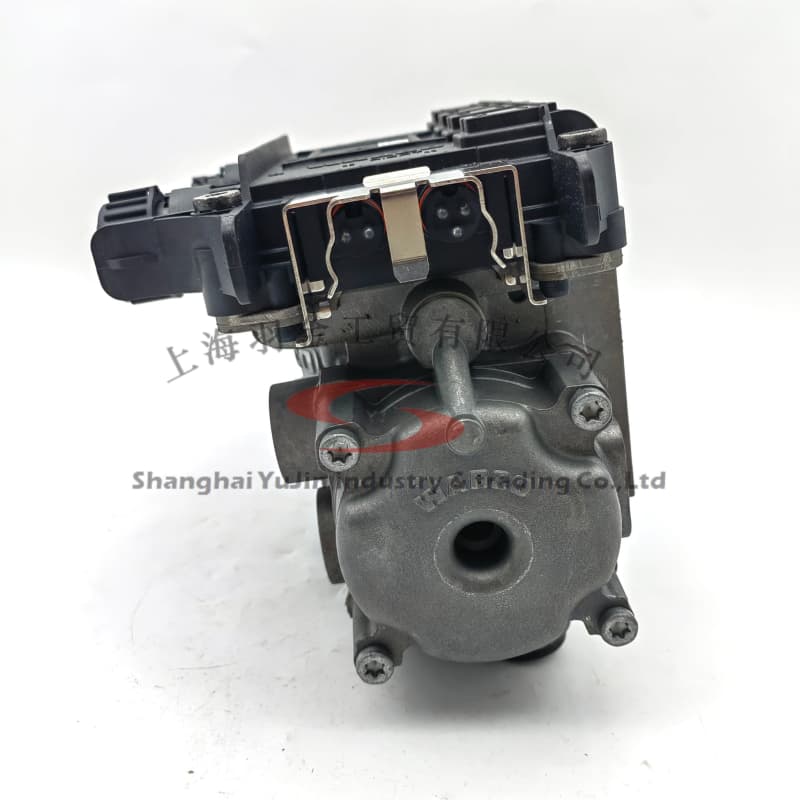

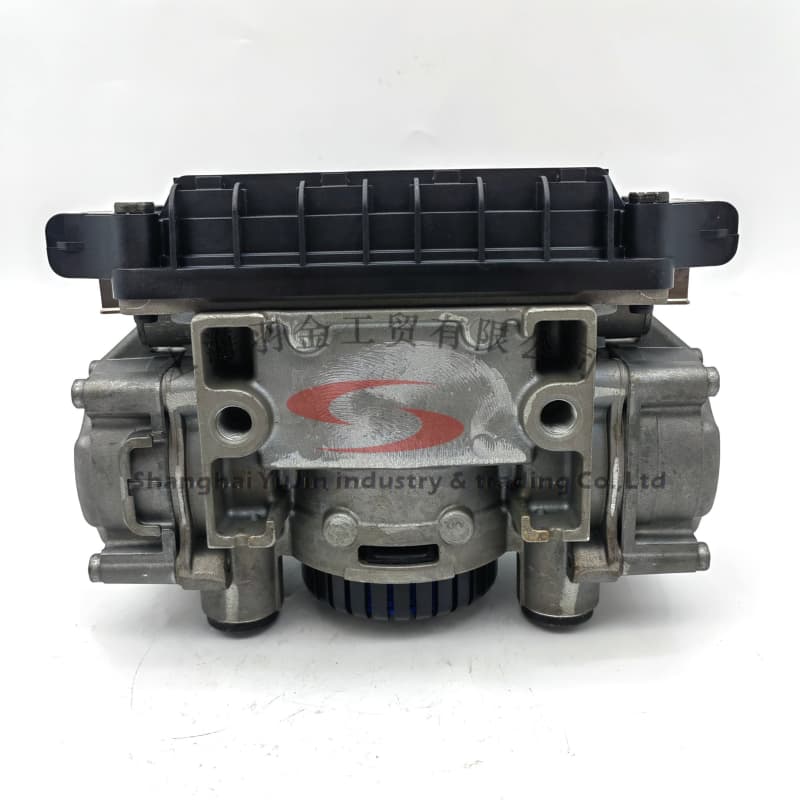

EBS后桥模块 -- 4801040090
| FOTON | 1612935610103 |
| IRIZAR | 8015519 |
| IVECO | 500590631 |
| IVECO | 5801546259 |
| OTOKAR | 16H1208525AA |
| SHAANXI | DZ95189584020 |
| SOLARIS | 1102732030 |
| VAN HOOL | 11167592 |
| VDL | 20297652 |
| VDL | 759010012 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | AA 2S 2M 2W |
| Calculated Volume (dm³) | 4.906 |
| Comments | Volume production modification |
| Distance between holes | 3.94 in |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 181.30 psi |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drive axle 2S 2M 2W |
| Voltage | 24 V |
