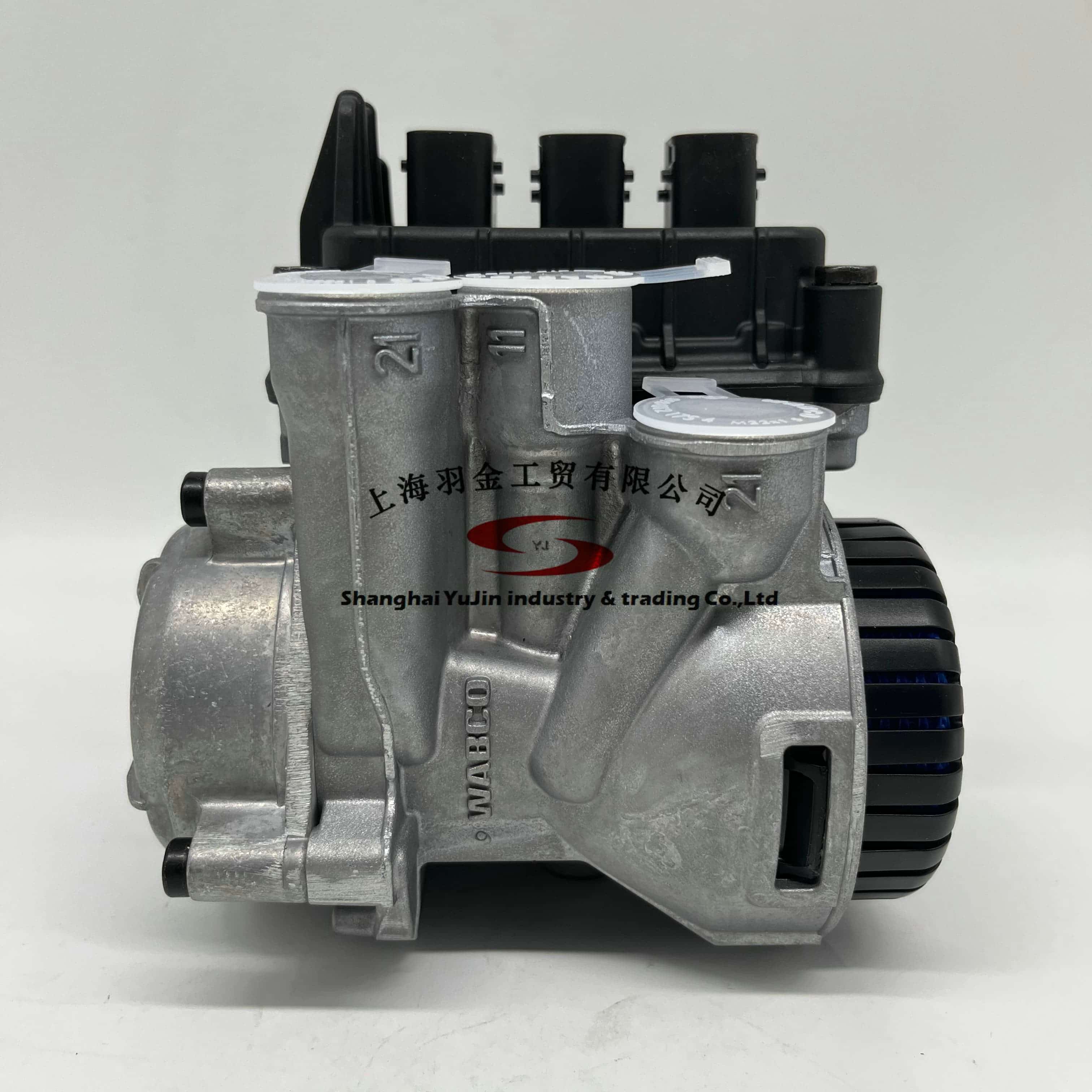

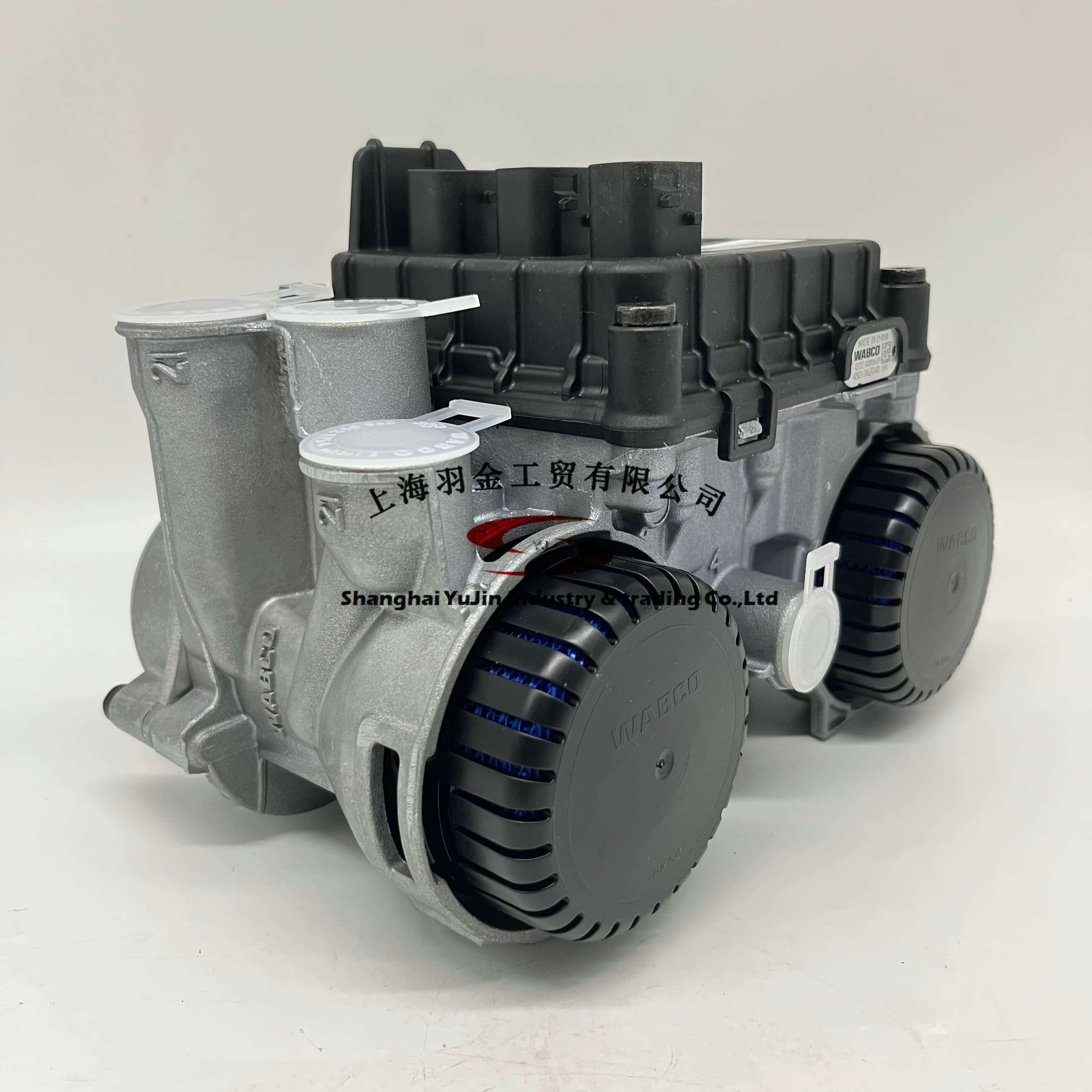

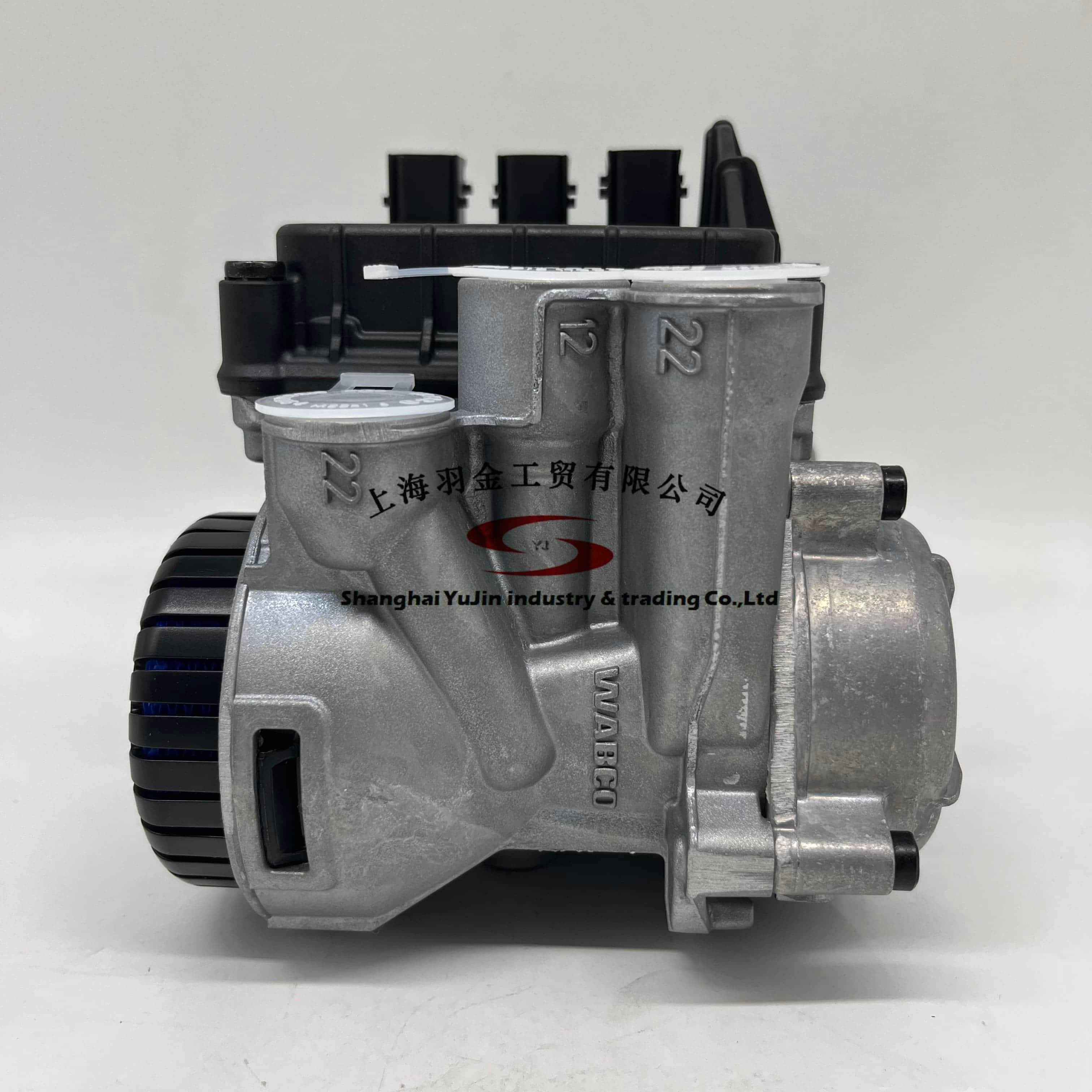

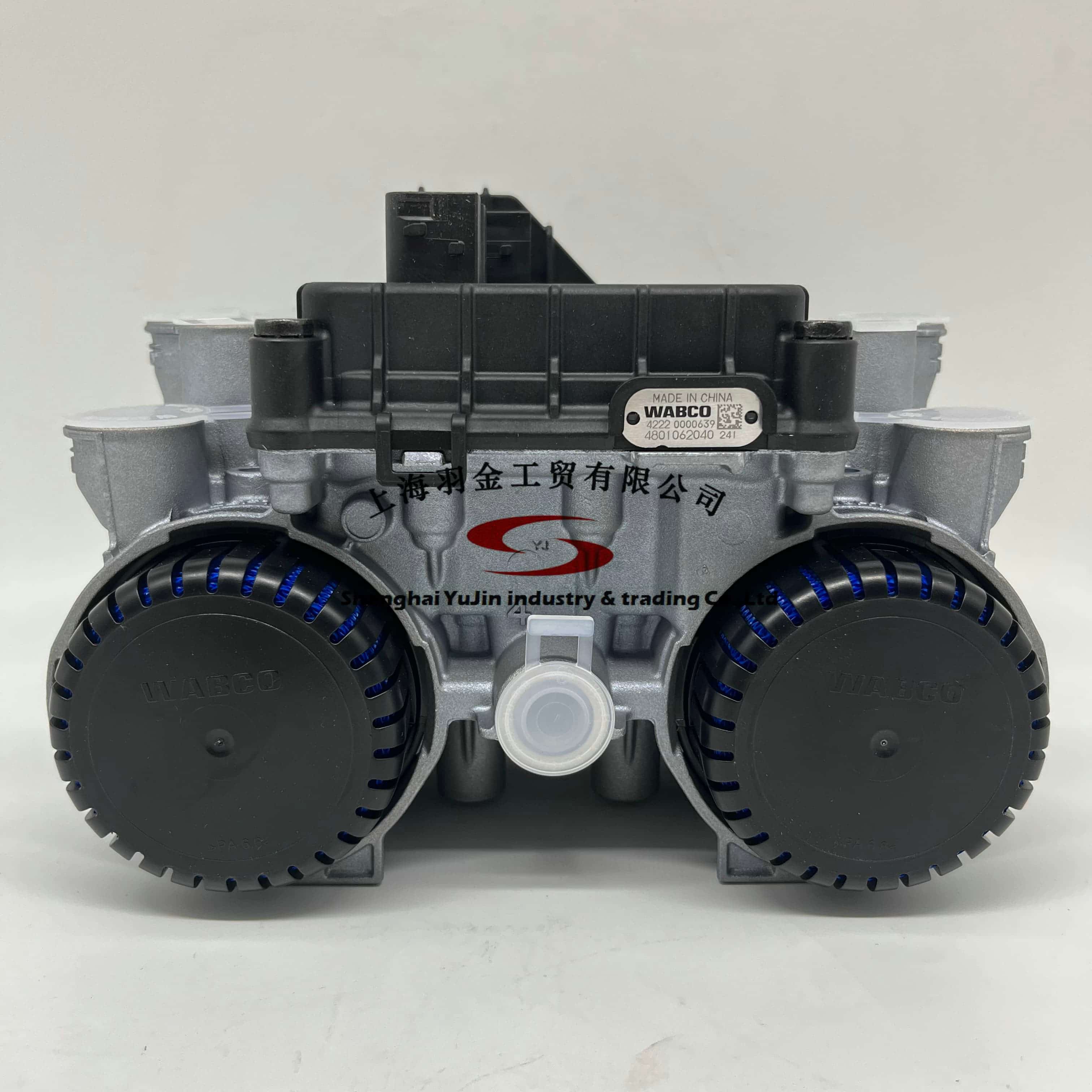

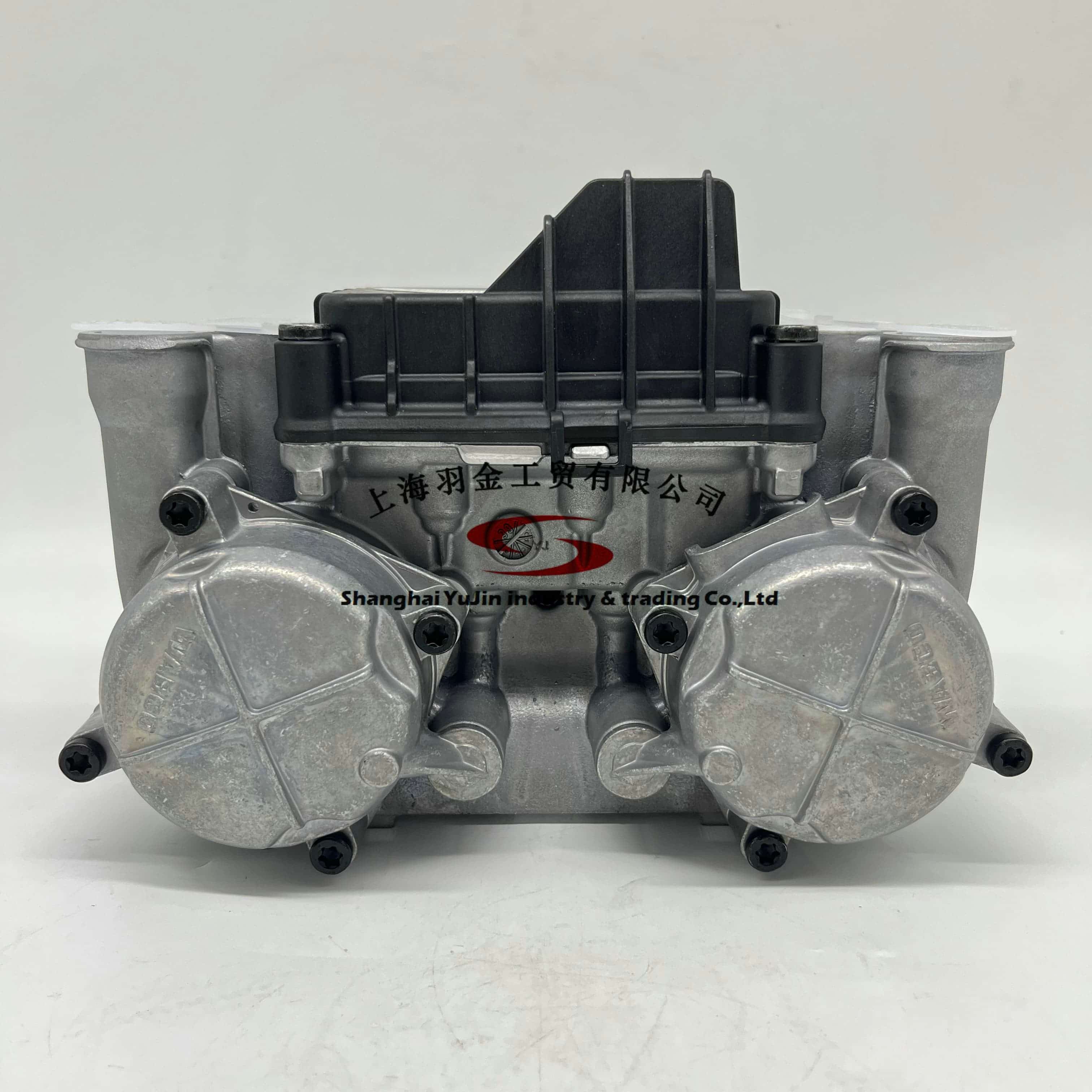

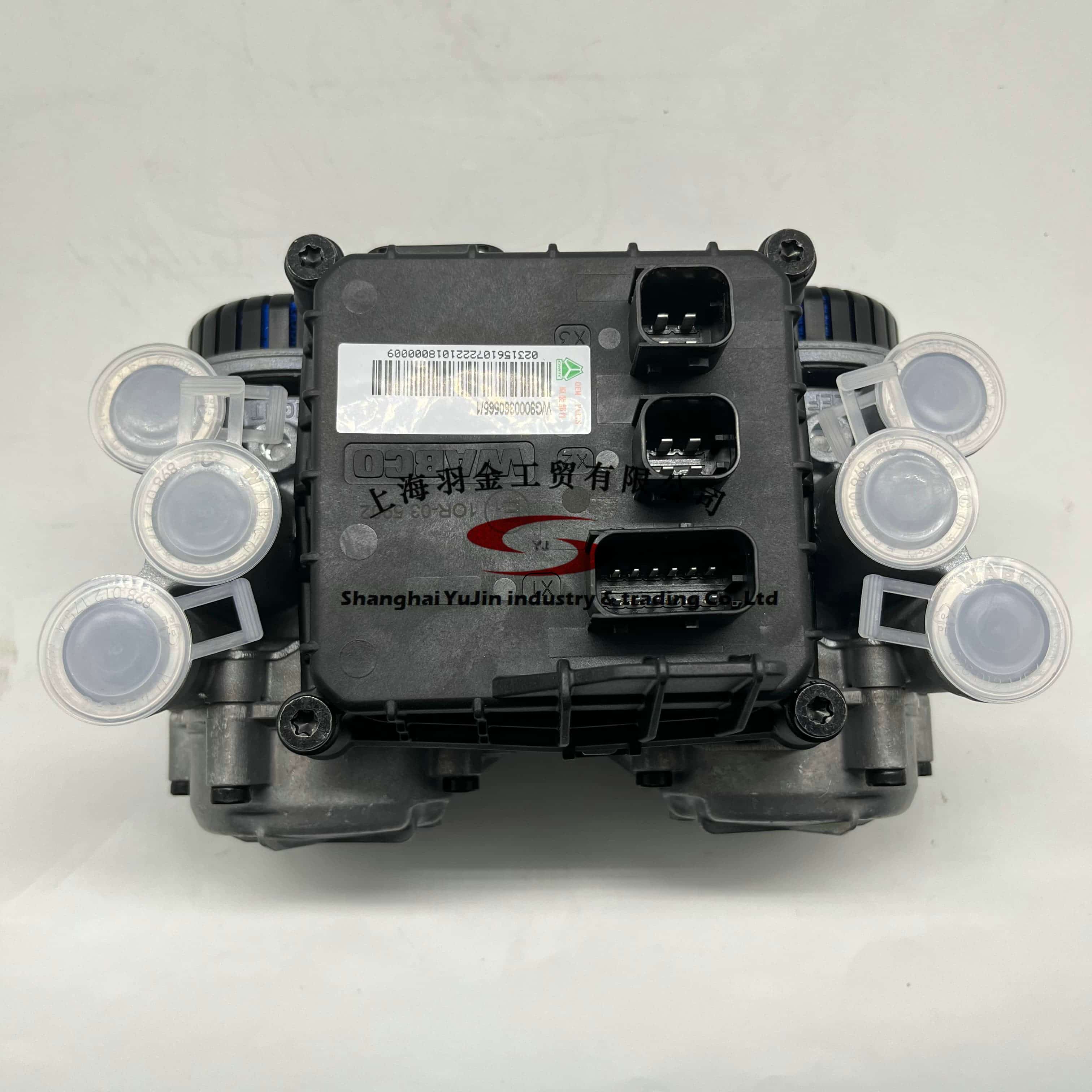

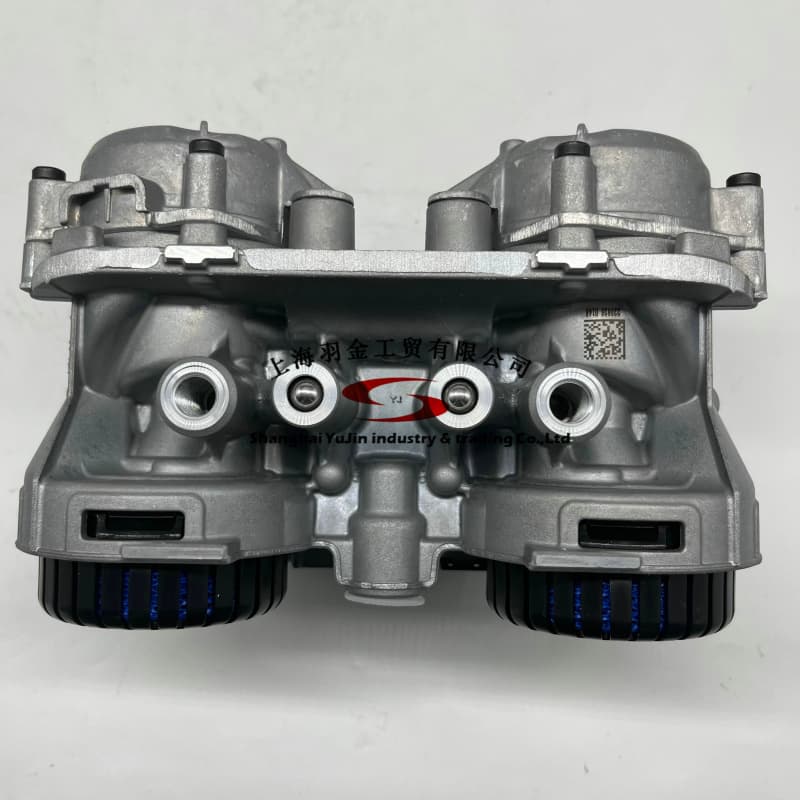

WABCO威伯科EBS后桥模块4801062040 3560035-1051-C00 30218582
EBS后桥模块 -- 4801062040
产品介绍
| FAW | 3560035-1051-C00 |
| VDL | 30218582 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 6.204 |
| Distance between holes | 3.94 in |
| Max. operating pressure | 188.5 psi |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port thread 12 | M22 x 1.5 JED - 388-4 |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED - 388-4 |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10500 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
