WABCO威伯科制动气室9254840210 204205918 154206218 154208018 194205818 A0204205918 1527208

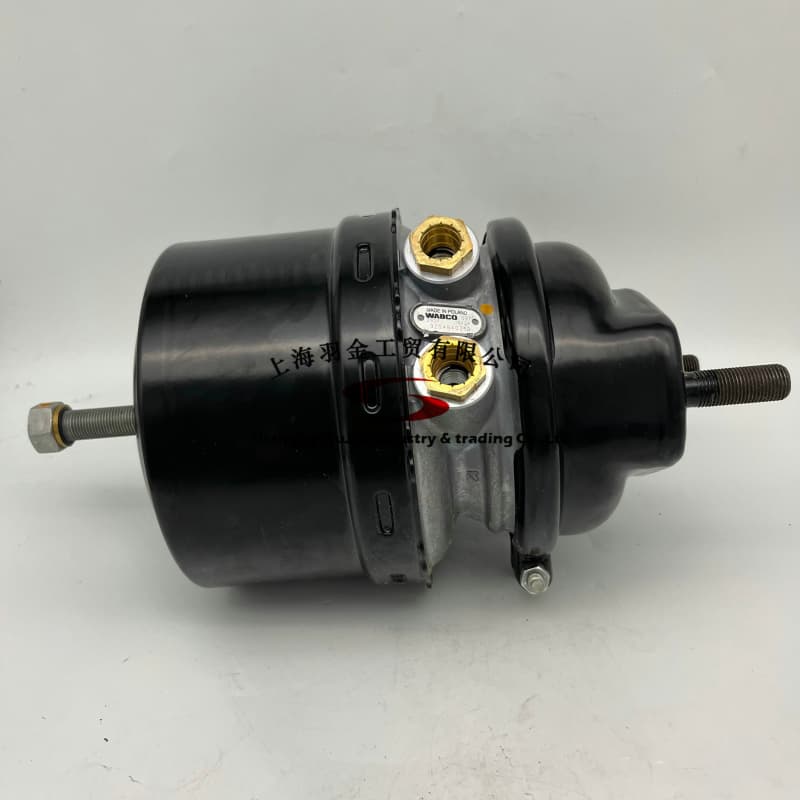

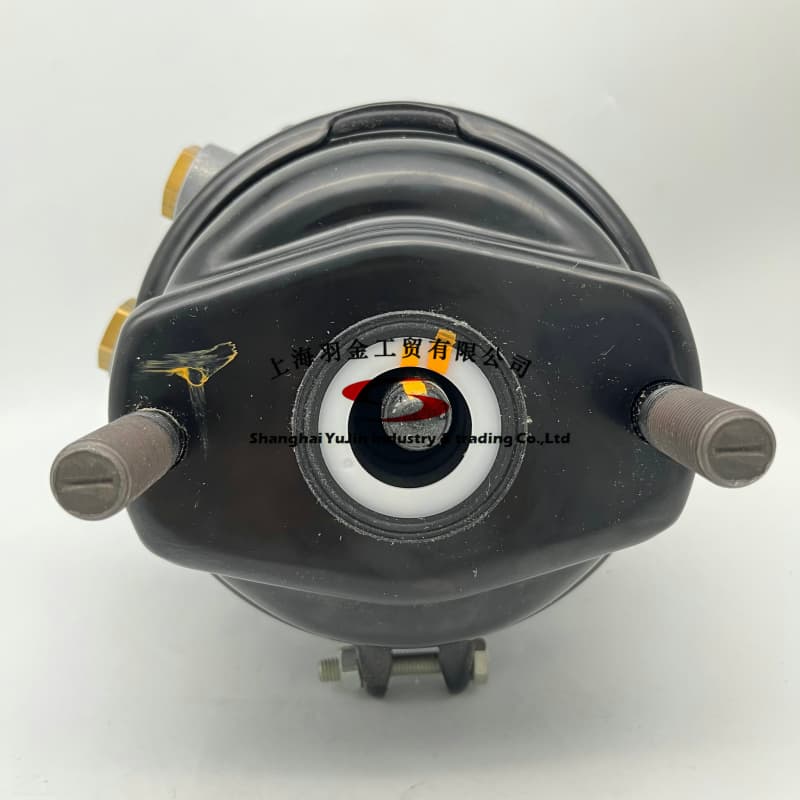

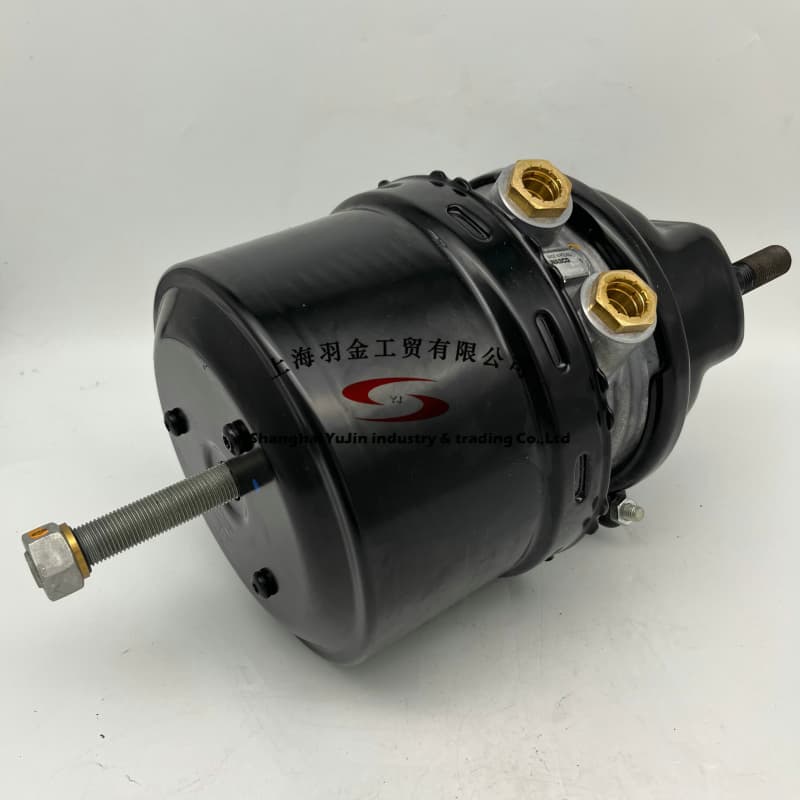

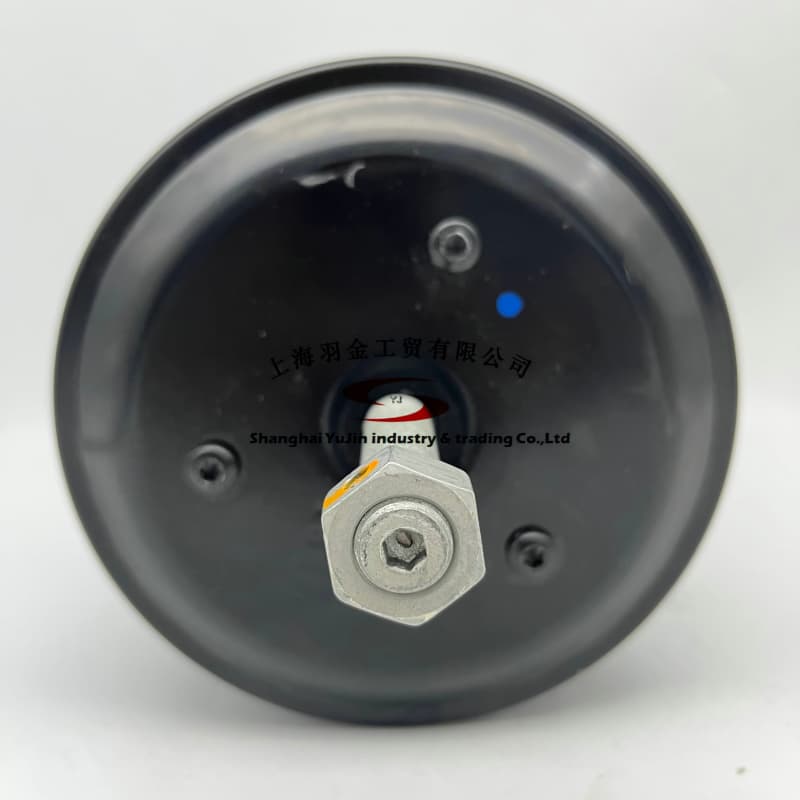

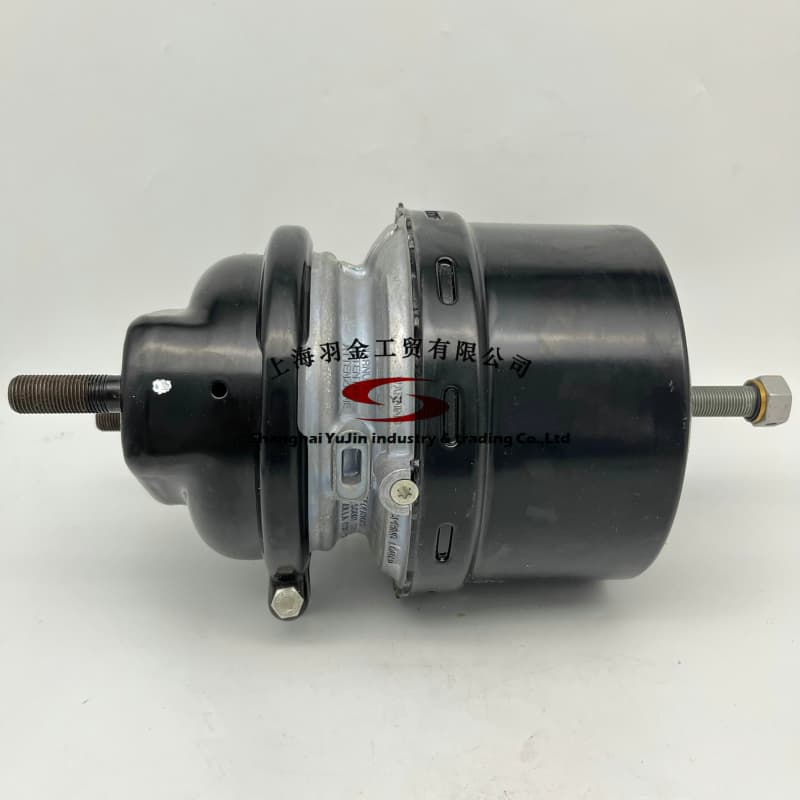

制动气室 -- 9254840210
产品介绍
| MERCEDES-BENZ | 0204205918 |
| MERCEDES-BENZ | 0154206218 |
| MERCEDES-BENZ | 0154208018 |
| MERCEDES-BENZ | 0194205818 |
| MERCEDES-BENZ | A0204205918 |
| PACCAR | 1527208 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 14.0332 |
| Comments | With VOSS 232 |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Opposite | 925 484 020 0 |
| Output force M | 1863.67 lbf |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 12 | M22 x 1.5 JED - 388 |
| Port threads | M22 x 1.5 |
| Push-rod length | 0.59 in |
| Push-rod thread | Ball R8 |
| Release pressure | 73.97 psi |
| Return-spring force | 49.46 lbf |
| Stroke | 2.24 / 2.24 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 9.92 in |
| Type | 16/24 |
| Type of operation | Disc |
